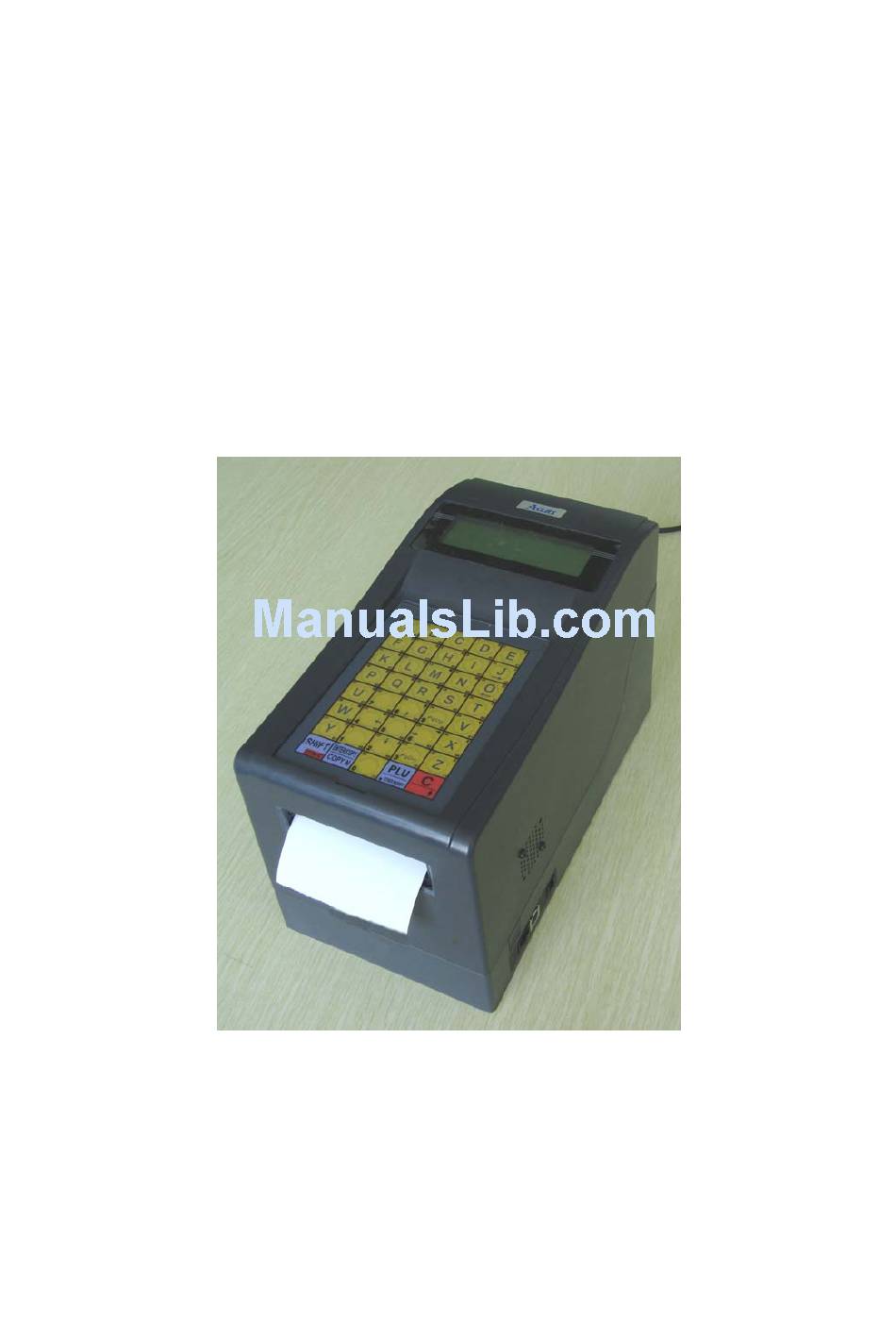

Pinnacle Technology LP1 User Manual

Hide thumbs Also See for LP1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
P
R
I
N
T
P
R
I
N
T
P
P
L
P
1
L
L
P
1
L
E
R
U
S
E
R
U
S
i
n
n
a
c
l
e
T
e
i
n
n
a
c
l
e
T
e
A
B
E
L
A
B
E
L
E
R
M
E
R
M
c
h
n
o
l
o
g
y
C
c
h
n
o
l
o
g
y
C
A
N
U
A
A
N
U
A
o
r
p
.
o
r
p
.
L
L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP1 and is the answer not in the manual?

Questions and answers

Related Manuals for Pinnacle Technology LP1

Summary of Contents for Pinnacle Technology LP1

  • Page 3: Table Of Contents

    CONTENTS UNPACKING THE LP LABEL PRINTER....................... 1 SUMMARIZATION............................2 Technical Specification..........................2 Advanced Features............................. 2 Dimension..............................3 Power Switch and Communication Interface .................... 3 KEYBOARD LAYOUT ............................ 4 HOW TO INSTALL PAPER ..........................5 PC SOFTWARE INSTALLATION ........................8 COMMUNICATION............................10 Connect LP to PC ............................

  • Page 4: Unpacking The Lp Label Printer

    1 UNPACKING THE LP LABEL PRINTER LP1 Printer 4P9D Cable PC Disk User manual...

  • Page 5: Summarization

    2 SUMMARIZATION Technical Specification Power supply: AC100―240V~50/60Hz 1A 0℃~40℃ ，5％~85%R.H. working environment: -10℃~50℃ ，5％~85%R.H. storage environment: Printer: Thermal Printer Printer head: 72mm width, 203 Dot/in Print speed: 50mm/s (light printing) Paper width: 72mm Weight: Keyboard: 40 membrane keys Communication port: PS/2, Ethernet, RS232 NAND Flash capacity: standard 16Mbit (can change to larger capacity)

  • Page 6: Dimension

    Dimension Unit: mm Power Switch and Communication Interface Use to download data from PC or connect to scale...

  • Page 7: Keyboard Layout

    3 KEYBOARD LAYOUT Shift the key function Press the key and hold it for 2 seconds to enter system set mode. Confirm key Press key [SHIFT][COPY] to copy the last label, and stops until you press key [C] Decimal point Combine with numerical key shift digits to bar code number Clear data Paper feeding...

  • Page 8: How To Install Paper

    4 HOW TO INSTALL PAPER 1. Follow the arrowhead direction and push the two side buttons. 2. Open the upper cover and open the printer head...
  • Page 9 Label paper installation 3. Roll paper like the picture shows , lock the paper edge on the winder and shut up the flake 4. Close the printer head 5. Close the cover...
  • Page 10 Receipt paper installation Load the receipt paper like the picture shows and then shut up the flake Close the printer head Close the cover...

  • Page 11: Pc Software Installation

    5 PC SOFTWARE INSTALLATION Double click lbmn602b.exe: Click it. Click it.
  • Page 12 Click it. Here shows destination location. Click it to finish installation.

  • Page 13: Communication

    6 COMMUNICATION Before you download data or driver, you need to test the communication. Connect LP to PC 4P9D cable There are 2 methods to connect LP1X and PC: Via Ethernet port Via RS232 port Communication Test Before you use link 32, you need to test the communication: 1.
  • Page 14 3. Choose the button and click it, then, start to test communication. <Communicating> Communication is OK <Result>...

  • Page 15: How To Create Plu Data

    7 HOW TO CREATE PLU DATA 1. Click open “PLU manager” and edit PLU information. If the LP isn’t connected to scale, here you should choose ‘PCS’. Or the label cannot be printed. 2. Click button Select ‘TCP/IP’. Input the LP’s IP address here.
  • Page 16 3. Save the PLU data You can also import PLU data from excel file...

  • Page 17: How To Create Hotkey

    8 HOW TO CREATE HOTKEY You can create the hotkey by “PLU manager”. 1) Download a PLU file: Click , select a PLU file, and click “open” to download it. Click this icon Select this file Click ‘Open’...
  • Page 18 2) Click button Click this button Choose the default TCP/IP item Click ‘OK’...

  • Page 19: How To Print Hotkey

    9 HOW TO PRINT HOTKEY 1. Choose ‘Preferences’ in PLU Manager: Choose this hotkey sheet type.
  • Page 20 2. Click ‘File/Hotkey sheet input’ to set the hotkey table in the following interface: first page: Font --- set the characters’ font on hotkey table. Load Plu --- click this item, you can choose the PLU in the pop-up window: Double click the blank to choose the PLU.
  • Page 21 BackGround --- set background color for the hotkey table. Clear --- clear all messages on the hot key table. default background --- set the default background color of the hotkey table. second page: you can set two levels of each hotkey. This item is to set the second level on hotkey table. It is similar to the item ‘first page’.
  • Page 22 3. Preview hotkey sheet 4. Print the hotkey: click ‘File/hotkey sheet Print…’.
  • Page 23 4. Cut a hotkey sheet down and insert the hotkey sheet into the keyboard.

  • Page 24: Label Design

    10 LABEL DESIGN 1. Open link32, and Click to open “label editor”. 2. Create a new label: Input width (width must between 30 and 78)
  • Page 25 Input height (height must between 15 and 109) 3. Edit the label 1) Choose ‘component’ tool bar Choose the tool bar 2) Choose the components and edit them. Click each item in tool bar, and then click the label, the label component will lay in the label, select the component and keep it, the component can be moved to any position.
  • Page 26 Edit the components here 3) Edit background picture Choose the tool bar...
  • Page 27 Click the item in the tool bar, and then click the label to edit the label background. Click to select the background and keep it, the background can be moved to any position. Click to select the background and keep it, and drag it out of the label to eliminate it; or you can use rubber in the tool bar to erase it.

  • Page 28: System Set Mode

    SYSTEM SET MODE Press key for about 2 seconds to enter system set mode. Use key to select system set items: Hotkey System set Description <DATE> Set date and time <ALIGN> Use arrow key to select one of the 17(-8~+8) different kinds of the excursion and to adjust the paper to the most suitable initial state.
  • Page 29 Set parameters in PC software Open link32, and Click Figure function setting (part 1) Basic functions explanation： Paper type：0:label；1:receipt ；2:no-rewinder.0 is the default. Barcode type：0~99 (refer to barcode type table). Date format：0: DDMMYY; 1: MMDDYY; 2: YYMMDD (D，date；M，month；Y，year). Decimal position：0，1，2；Set price decimal digit. Rounding：Set round carry digit.
  • Page 30 Message 1：0~197 message. If PLU data hasn’t set message1, this PLU data will be the default. 18 -barcode：0,width 2/5; 1,narrow width 2/5; 2, Ean 128; 3, narrow Ean 128. Sale date adjust: The valid date and sale date are related in time: valid date=sale date + sale date adjust, or sale date=valid date –...
  • Page 31 (Note: don’t set too low speed, or the lifetime of the print head will be shortened) Print direction：0~1; 0: Horizontal; 1: Vertical. This is to set the print direction of all the label in this software. Account type：Reserved. Security functions explanation： Set the password of the scale lock function.

  • Page 32: Print Label

    12 PRINT LABEL The printer supports 10000 kinds of PLU. You can set 72 kinds of them to hotkey. Method Example PLU which hotkey number is in Press the hotkey number Sell PLU which hotkey number is 20 the range of 1-36 directly PLU which hotkey number is in Sell PLU which hotkey number is 56...

  • Page 33: Communication Protocol

    13 COMMUNICATION PROTOCOL 1. Interface = RS232C 2. Connector = D-SUB 9 (pin2 = TXD; pin3 = RXD; pin 7 = Masa) 3. Baud rate = 9600 4. Bits = 8 5. Stop bit = 1 6. Parity = NONE 7.
