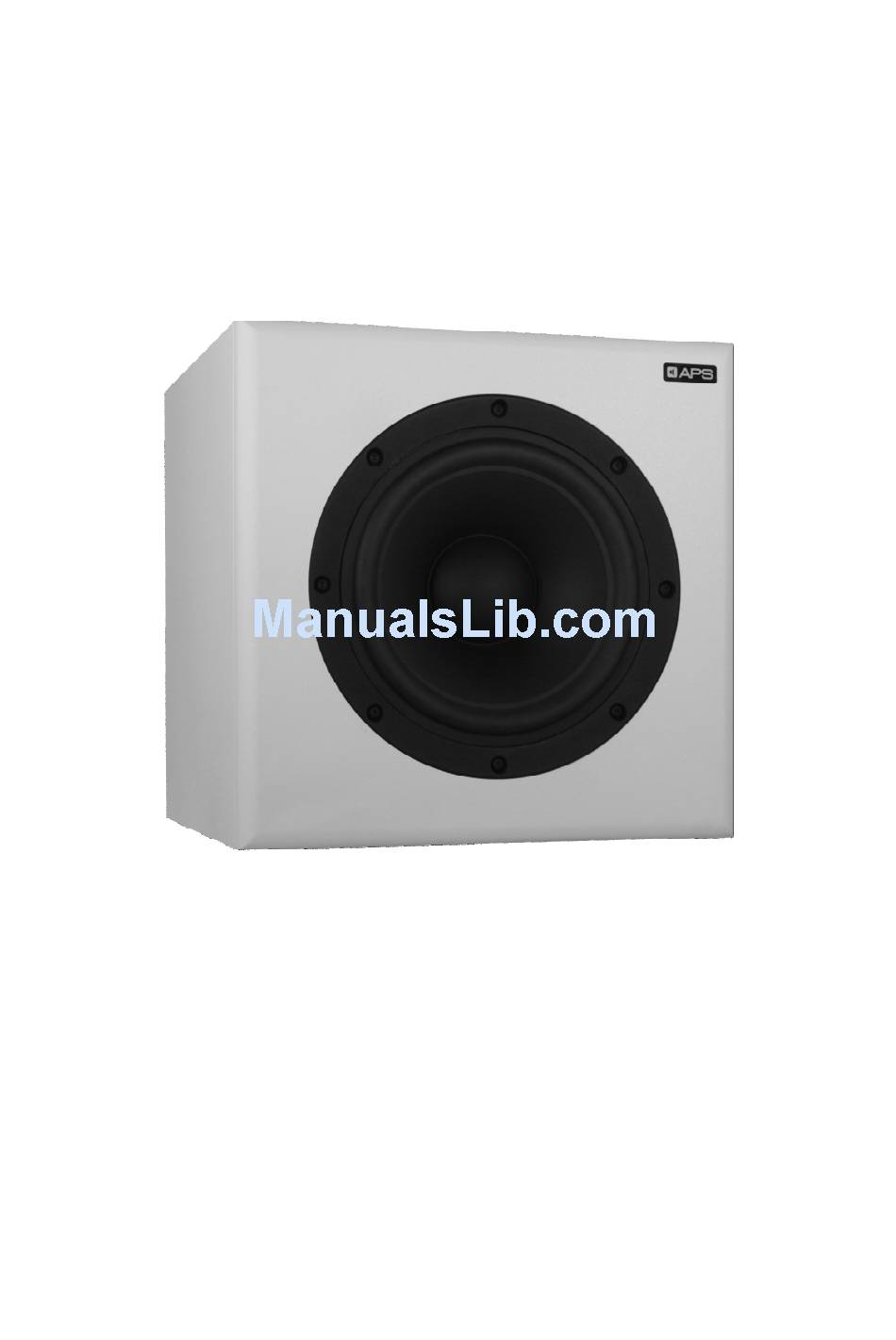

- Page 1 USER’S MANUAL SUB 10 ACTIVE STUDIO SUBWOOFER...
-
Page 2: Table Of Contents
CONTENTS page INTRODUCTION GENERAL INFORMATION REAR PANEL REAR PANEL INPUTS/OUTPUTS SWITCHES INDICATORS TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS MISCELLANEOUS CARE... -
Page 3: Rear Panel
INTRODUCTION SUB 10 SUB 10 Congratulations on your purchase of the APS active studio subwoofer. is designed to provide many years of excellent and trouble free audio reproduction. It is most important, however, that you take a few SUB 10 minutes to read this manual. -
Page 4: Rear Panel
13. Stand-by switch 1-6. Inputs/outputs SUB 10 subwoofer is equipped with two pairs of balanced XLR inputs and outputs, one pair per channel. The inputs support combo connectors, which can be used to connect the subwoofer using cables with XLR or balanced TRS connectors (6.3 mm). -
Page 5: Switches
Effects) is the source, you can turn off the subwoofer correction. However, it is a good idea to test both settings. 9. CUT OFF switch SUB 10 The CUT OFF switch is an eight-position controller for the upper cut-off frequency of the subwoofer. -
Page 6: Indicators
Example: SUB 10 and COAX. SUB 10 COAX Configuration and switch settings in a system with the subwoofer and the monitor. The subwoofer is on the floor, pushed back about 0.5 to 1.5 metres behind the monitor The PHASE switch is in the 180-degree position, ... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS SUB 10 Active Studio Subwoofer Type Active – Class D power amplifier Hypex: 400 W @ 4 Free Field Frequency Response 2.5 dB: 19 Hz 90 Hz SPL in Free Field @ 1m RMS: 108 dB (single subwoofer) Peak: 116 dB (pair of subwoofers) Dimensions: Height ... -
Page 8: Safety Instructions
CLIPPING detected Red LED POWER ON / DC-error detected Green LED / Red LED SAFETY INSTRUCTIONS The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 9: Miscellaneous
MISCELLANEOUS Care SUB 10 Components of the highest quality are used in your subwoofer. This assures years of trouble free operation. Following precautions should still be made though. Avoid running the system into severe clipping. Even there is an advanced protection system, you may be able to destroy your subwoofer by severe overpowering. The limiter works over a certain range, but exceeding this level may send a severely clipped signal to your sub-bass loudspeaker driver.
