Summary of Contents for Magic MWS 8840

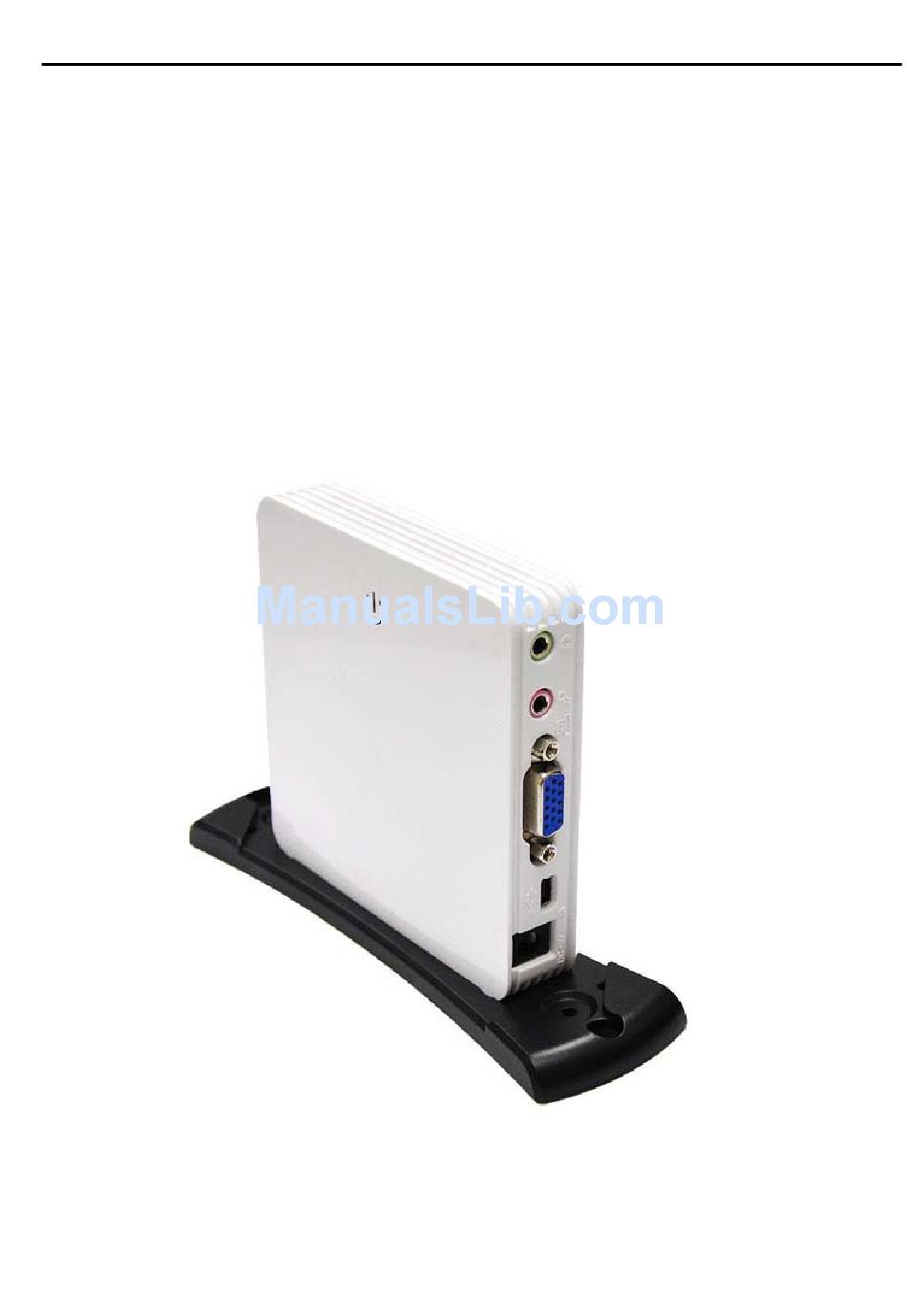

Page 1 ™ Workstation MWS 8840 ULTI OINT ANUAL...
Page 2: Table Of Contents
™ Workstation MWS 8840 ULTI OINT TABLE OF CONTENTS INTRODUCTION .................. 2 FEATURES ..................2 APPLICATION ................3 PACKAGE CONTENTS ..............3 MINIMUM SYSTEM REQUIREMENTS ........... 4 FOR OPTIMUM VIDEO DISPLAY ........... 5 REGULATORY COMPLIANCE ............5 SUPPORTED DISPLAY RESOLUTIONS ..........5 DEVICE INSTALLATION - SOFTWARE ..........
Page 3: Introduction
™ Workstation MWS 8840 ULTI OINT INTRODUCTION Thank you for purchasing the MultiPoint Workstation 8840. The MultiPoint Workstation (MWS8840) is designed specifically for Windows MultiPoint Server 2011. Simply connect it to an available USB port on the server and attach a monitor, keyboard, and mouse to add a new workstation.
Page 4: Application
™ Workstation MWS 8840 ULTI OINT APPLICATION PACKAGE CONTENTS MWS8840 VESA Mounting kits USB cable (2 Meters) 3A/5V AC Power Adapter Driver CD User Manual...
Page 5: Minimum System Requirements
™ Workstation MWS 8840 ULTI OINT MINIMUM SYSTEM REQUIREMENTS Available USB 2.0 Port CPU – One of the following: • x64-based Intel Pentium, Intel quad core (i7, i5, i3), XEON, Intel dual core. • Compatible processor (MultiPoint Server supports up to four core & eight core...
Page 6: For Optimum Video Display
™ Workstation MWS 8840 ULTI OINT FOR OPTIMUM VIDEO DISPLAY Technically, short video playbacks can be supported but the operating system needs to be - i7 processor - Intel Sandy bridge chipset Note: Extended video display at full screen is not recommended; it often exhausts CPU and force system with much lower performance.
Page 7: Device Installation - Software
™ Workstation MWS 8840 ULTI OINT DEVICE INSTALLATION - SOFTWARE Installing the device driver enables Windows MutliPoint Server 2011 to recognize the MWS8840. Please make sure the MWS8840 is unplugged from your server before executing the setup program. Step 1 Insert the Driver installation CD into the CD-ROM drive.
Page 8 ™ Workstation MWS 8840 ULTI OINT Step 3 License Agreement; review it and check I accept the terms of the license agreement Click Next to accept the License Agreement. Step 4 Setup is searching for installed features... *You may notice the screen flashes during...
Page 9: Installing Mws8840 Hardware
™ Workstation MWS 8840 ULTI OINT Step 5 Driver Installation Wizard, click Finish to continue and restart the computer. INSTALLING MWS8840 HARDWARE Step 1 Connecting monitor to the VGA connector of the MWS8840, turn on the monitor. Connecting power adapter, USB cable, keyboard, and mouse to the MWS8840.
Page 10: Verifying The Mws8840 Connection
™ Workstation MWS 8840 ULTI OINT VERIFYING THE MWS8840 CONNECTION Step 1 Right click ‘Manage’ from the ‘computer’ as the screen Step 2 Point to ‘Device Manager’ on the left panel under ‘Server Manager’ go to ‘View’ and click ‘Devices by type’ as the picture showed.
Page 11: Split Screen On Windows Multipoint Server 2011
™ Workstation MWS 8840 ULTI OINT SPLIT SCREEN ON Windows Multipoint Server 2011 Any MultiPoint Server station monitor that has a resolution greater than 1024x768 can be split into two station screens using the split screen task on the Stations tab in MultiPoint Manager.
Page 12 ™ Workstation MWS 8840 ULTI OINT Please follow up the steps for split screen as below: Step 1 Please follow up the procedure on illustration for getting into “MultiPoint Manager” as 1. Start -> 2. All Programs -> 3. Windows Multipoint Server --> MultiP oint Ma na ge r Step 2 Select “Stations”...
Page 13 ™ Workstation MWS 8840 ULTI OINT Step 3 Click OK to continue NOTE: TO DISABLE SPLIT SCREEN Same procedure as above step1 for getting onto “MultiPoint Manager” and select “Stations” then highlight the local station and click “Unsplit station” under “Selected Item Tasks”...
Page 14: Adjusting The Screen Resolution
™ Workstation MWS 8840 ULTI OINT ADJUSTING THE SCREEN RESOLUTION By default, Windows MultiPoint Server 2011 will select the recommended resolution for each connected display. However, if you would like to choose a different resolution, follow these steps: Step 1 Please follow up the procedure on illustration for getting into “MultiPoint Manager”...
Page 15 ™ Workstation MWS 8840 ULTI OINT Step 3: Click OK to continue Step 4 Press “Ctrl + Alt + Delete” to log in administrator into Maintenance Mode Step 5 Right click on the desktop and choose Screen Resolution from the contextual...
Page 16: Device Driver Un-Installation
™ Workstation MWS 8840 ULTI OINT Step 6 Click Identify to identify each display. Then click on the display to be adjusted and choose the desired resolution from the Resolution dropdown menu. (suggest: better using the system recommend resolution) DEVICE DRIVER UN-INSTALLATION The following procedure allows you to uninstall the MWS8840 device driver.
Page 17 ™ Workstation MWS 8840 ULTI OINT Step 2 Double click “Uninstall a program” as illustrated on the screen. Step 3 Select the “Magic Control Technology – MWS xx.xx.xxxx.xxxx” item. Click Uninstall button.
Page 18: Vesa Mounting
™ Workstation MWS 8840 ULTI OINT VESA MOUNTING...
Page 19: Troubleshooting Tips
For immediate support, visit http://www.mct.com.tw to find the latest documentation, Knowledge Base articles, and software for your device. Copyright© 2011 Magic Control Technology Corp. All rights reserved. All trade names are registered trademarks of their respective owners. Features and specifications are subject to change without...
