Wireless Security & Safety System
WA-1100-K
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA-1100-K and is the answer not in the manual?

Questions and answers

Summary of Contents for ProVisual WA-1100-K

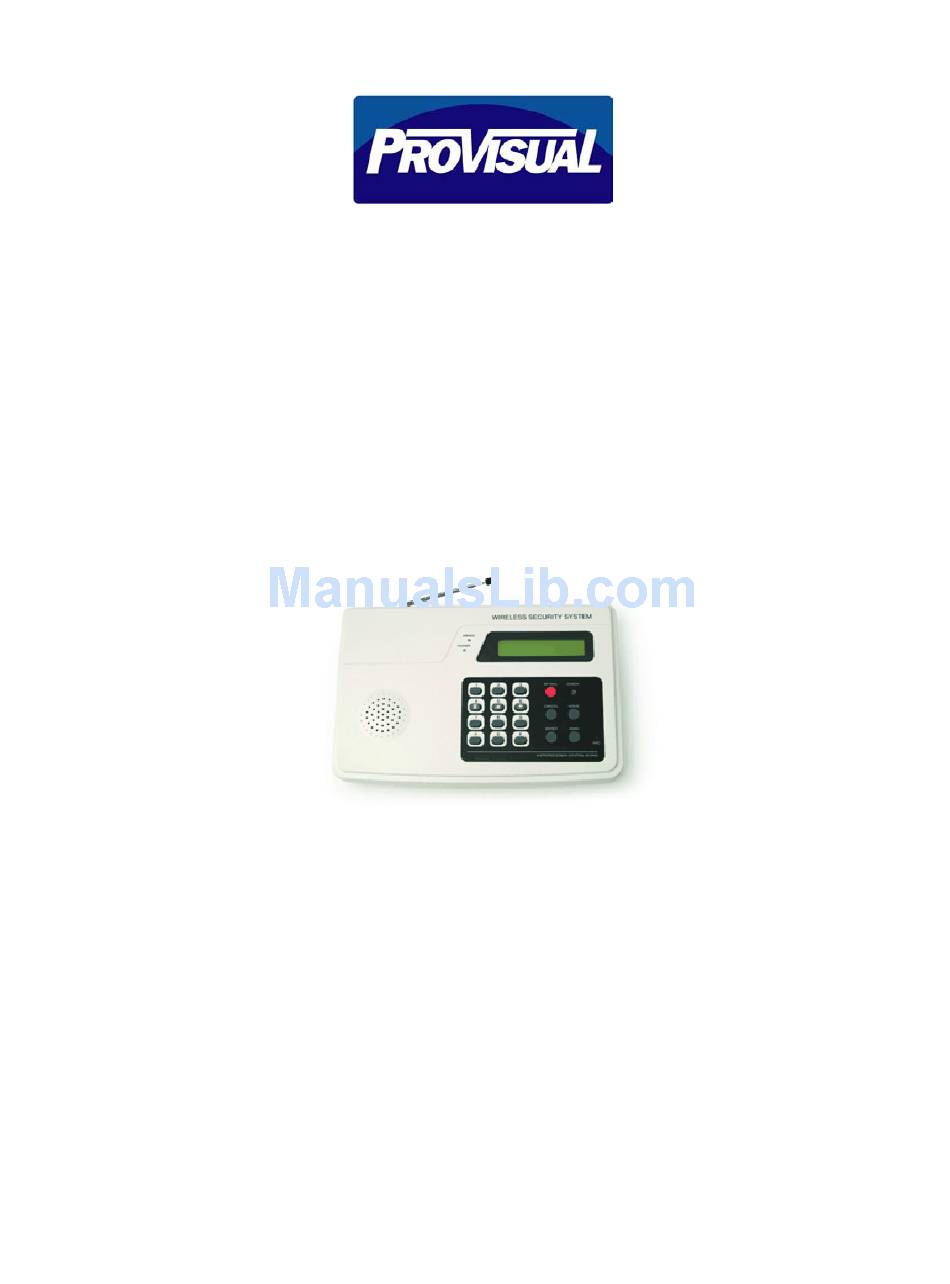

  • Page 1 Wireless Security & Safety System WA-1100-K OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Introduction…………………………………………………………………………….…... System Package…………………………………………………………….…. Optional Accessories…………………………………………………………... Planning for Installation Choosing a Location……………………………………………………….…... Setting Alarm Zones…………………………………………………………..Installing the Back-up Battery………………………………………………..Powering the Main Console……………………………………………………. Connecting the Telephone Line……………………………………………...… Setting the Antenna…………………………………………………………..…. Mounting the Main Console…………………………………………………..… About Passwords…..…………………………………………………………..Others………………………………………………………………………….…. Operation – Main Console……………………………………………………………….… LCD Panel Illustration…………………………………………………………...

  • Page 3: Important Safety Instructions

    Important Safety Instructions WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE OR POWER ADAPTER TO WATER OR MOISTURE • Read Instructions – All the safety and operating instructions should be read before operating this equipment. These instructions should be retained for future reference •...

  • Page 4: Introduction

    : You can choose the type of sensors and response actions for the system. Personalized : Program the system to notify whoever you choose in the case of an alarm activation. System Package WA-1100-K Main Console Remote Control (WA-129-RC) PIR Motion Detector (WA-120-MD) Door/Window Sensor (WA-122-DW) Wired Mini Siren (WA-207-S)

  • Page 5: Planning For Installation

    Planning for Installation AWAY HOME PANIC DISARM WIRELESS SECURITY SYSTEM ARMED POWER DIGITAL AUTO DIALER M ICR OPR OCES SOR CONTRO L K EYPAD The security system is designed to be as flexible as possible in order to meet your present needs, and also to adapt as your needs change.

  • Page 6: Connecting The Telephone Line

    Connecting the Telephone Line To connect the Main Console to the telephone line, Please follow these steps: Locate the two phone jacks at the top of the main console. These phone jacks are marked “ Phone “ and “ Line “. Connect one end of the telephone cord that came with the system into the connector, labeled”...

  • Page 7: Operation - Main Console

    Operation – Main Console The Main Console is the heart of the security system. It monitors the sensors and responds according to how it is programmed, whenever a sensor is activated. The illustration shown for the Main Console may look complex at first; however, most procedures are straightforward and easy.

  • Page 8: Function For Installer Menu

    12. Power LED : Indicates whether the AC Adaptor power is on or off. 13. Armed LED : When the light is ‘on’, the system is armed; When the light is ‘off’, the system is disarmed. 14. LCD Panel : Displays messages 15.

  • Page 9: System Option Menu

    3. Select the System Menu Number 3.1: System Option menu : Press 0 to start setting Setting : 0 – T 1 2 3 4 5 6 – P 7 – MSG 8 – DIAL 9 - CODE (1) 0-T : For time setting (Default is 30 seconds.) minimum 1 second, maximum 255 seconds.
  • Page 10 : The first priority dial in case of Fire. (check with Setting 5 the fire dept if this is acceptable) : The first priority dial in case of Medical help. Setting 6 (check with the hospital if this is acceptable ) Note: The dialer will work with a touch tone service line only (3) 7- MSG : To set a recorded message which contains 1 segment of message for a maximum of 25 seconds.

  • Page 11: 3.2: Sequence Programming Menu

    Press 1 to change the Install code menu. Setting : Change Code 1 – Install : 1 2 3 4 5 Press 2 to change the Master code menu. Setting : Change code 2 – Master : 1 3 5 2 4 6 3.2: Sequence Programming Menu This menu for code learning establishes a link between all sensors/other wireless devices and the main console.

  • Page 12: 3.3: Replacement Menu

    Sequential Pgming Sensor Added Sequential Pgming Trigger Sensor 02 If the sensor that was learnt into the main console is sending a signal during the learning mode, the main console will indicate on the LCD, as shown below and will not allow duplication. Sensor Already Exists in System 02 If the sensor “learned”...

  • Page 13: Function For Master Menu

    Press 3 to go into the clear mode. Clear Sensor 1 – Single 2 - All Press 1 , and key-in the sequence learning order number. Press ENTER , to clear the sensor. Clear Sensor 1 – Single Num: xx Clear Sensor Clear OK Num : xx Press 2 , It will display the words “Are you sure ? ”.

  • Page 14: Check Function

    If the password is correct, the main console will emit a long beep sound. (LCD display shown below). Access Granted Master Mode : MASTER A-AWAY H-HOME Now the system will select the arm mode and set the system in either Away arm/Home Arm mode (see below): A - AWAY : Press the AWAY button to set the “...

  • Page 15: Arm Or Disarm Via The Telephone Line

    SP DIAL + 4 , the autodial order is: Preset 4 → : Preset 1 → : Preset 2 →: Preset 3 (Burglary condition) SP DIAL + 5 , the autodial order is: : Preset 5 → : Preset 1 → : Preset 2 →: Preset 3 (Fire condition) SP DIAL + 6 , the autodial order is: : Preset 6 →...

  • Page 16: Lcd Messages

    Medical help - It will automatically dial Preset 6 → Preset 1 → Preset 2 → Preset 3, phone numbers for 3 cycles (6, 1, 2, 3). When the telephone is answered, it will playback the message 2 times LCD “MSG” : Message indicating on LCD This system will leave a warning message on the LCD panel when the sensors are opened, triggered or in a low battery condition.

  • Page 17: Remote Control Handset

    Remote Control Handset The key chain Remote Control Handset is a convenient way to arm (Home / Away mode) or disarm this system. Before using this device, please program it into the main console via the sequence programming menu. DC12V LEGEND 1.

  • Page 18: Pir Motion Detector

    63 REMOTE SENSOR 01 Panic PIR Motion Detector The PIR Motion Detector is designed to detect the movement of objects in a room or hallway. The effective range of the motion sensor is 30 feet long, with an 84 degree horizontal angle.
  • Page 19 Replace the Battery When the sensor sends a low battery message to main console, remove the old battery and replace it with a fresh alkaline battery. The LCD is shown below 63 PIR SENSOR 01 Low battery Zone Address Setting Enter the Installer password and press “1”...

  • Page 20: Door/Window Detector

    Take out the screws or double sided adhesive and install the mounting bracket on the wall. Press the ball joint portion into the bracket until it snaps securely. (Secure the mounting bracket on the wall, 2 meters above the floor). Place the PIR sensor on the mounting bracket.
  • Page 21 and replace it with a fresh alkaline battery. The low battery message on the LCD is shown below. 63 WINDOW SENSOR 01 Low battery Zone address setting You can set the sensor as “ Door “ or “ Window “ detector by using the jumper selector. If you want to set the sensor as a Door sensor, put the Jumper on the “D”...
  • Page 22 63 WINDOW SENSOR 01 Open • Window battery cover opened Door battery cover opened 63 WINDOW SENSOR 63 DOOR SENSOR 01 Tamper 01 Tamper Installing the Door/Window Detector Installing for( DC 12V Detector): To install a Door/Window Detector, follow these steps: 1.

  • Page 23: Mini Siren

    Mini Siren The siren is an effective deterrent to intruders. Choose a location inside your home where the siren is not plainly visible, but can be heard throughout the house. It is important to install the siren where the cable can be hidden, and discreetly out of reach of potential intruders (or anyone likely to tamper with the system.) When the siren is installed and the system is set to Arm, it will emit a piercing 110 decibel siren, once a sensor/detector activates the alarm.

  • Page 24: Panic Watch Transmitter

    Panic Watch Transmitter The Panic Watch Transmitter is an idea for the elder or the child stays indoors while on panic (medical) emergency, to press the red button and emit the signal via hopping code-communication with the main console unit to trigger out the auto-dialer system. It has 2 changeable types with the wrest belt and the pendant to carry with.
  • Page 25 Setting the Panic Watch Transmitter Under Learning Mode, to press the red button and the main console will sound ‘beep’ to complete the setting successfully. LCD display on the Main Console When trigger out the alarm system on emergency, or the status of low battery, the LCD display shown as below: 63 Panic System 01 Help...

  • Page 26: Smoke Detector

    Smoke Detector This smoke detector is armed in 24 hours. When it detects smoke, it send a signal to the main console and an alarm is generated the internal sounder and auto-dialer is activated. If the smoke level decreases to a set limit, the smoke detector will reset and go back to detecting status.

  • Page 27: Specifications

    Installation for Smoke Detector 1. Mount the base portion of the unit firmly with the two screws provided to the ceiling where protection is required. 2. Refit the top part of Smoke detector to the firmly mounted base according to the following figures: Preferred Location LCD display on the Main Console...

  • Page 28: Door Keypad Detector

    Door Keypad Detector This sensor is designed to detect, arm and disarm doors. Several functional operations are listed as below: DC9V Main Features 1. To Disarm – Using a remote controller or keypad to arm the system, enter password (default –135246) and press ‘C’ button, or use keypad to arm the system and enter password (default 135246 ), no need to press C button 2.

  • Page 29: Gas Detector

    . If enter number less than 6 digits (ex.11111) then press ‘E’ button afterwards to tell the end, another long ‘beep’ is sounded to indicate new password is programmed. If you use the password number less than 6 digits (ex.11111), you need to enter 11111 and press “E”...
  • Page 30 sound will automatically turn off in 5 seconds Lower explosive limits Natural gas (methane) 3.8 % by volume in air (standard) LP-gas (propane) 2.1% by volume in air (standard) Alarm will activate before Natural gas (methane) 25% of lower explosive limits LP-gas (propane) 25% of lower explosive limits Alarm will activate before...
  • Page 31 Powering up the system The Gas detector is powered by AC. Therefore, it is necessary to mount the detector to a wall (but after learning into the system) where is easily within reach of an AC power point. Setting the Gas Detector Main Console is under learning mode, to press the Test/Reset button and the main console will sound ‘beep’...
  • Page 32 3. Immediately get fresh air into premises. 4. Fix the gas source problem before restarting gas appliances. Fire and Gas Safety Minimize fire risks around your home – Common cause of household fires are smoking in bed, cleaning or cooking with flammable liquids, such as methylated spirits/gasoline, leaving children home alone, and unsafe Christmas decorations.

  • Page 33: Range Extender

    Range Extender The Range Extender is a booster for extending transmitting range. It can enlarge protection area to satisfy the needs for bigger houses, premises etc. The effective working range for transmitting distance is about 300 feet. Main Features R/T LED – range indicator. T (Transmit) - flash in ‘orange’...
  • Page 34 ‘Extender’ switch –Range extender B is only transmitting the signal of Extender (Range extender A) not of the detector to Main Console. Rechargeable battery – WA-126-BAT specially used for range extender. ( optional ) Powering up the Extender To place a rechargeable battery (WA-126-BAT) into the battery house. To connect with AC adapter, the power LED will light on.

  • Page 35: Summary Of Program - Main Console

    . Back-up battery : 9.6V / 300mA . Transmitting range : 300 feet in open air space. . Dimensions (cm) : 15.5 (L) x 10.7 x 3.5 . Weight : 500 grams (includes AC adapter) Summary of Program – Main Console Use the following form to record your programming choices for future reference.

  • Page 36: Summary Of Sensors And Zone Settings

    Summary of Sensors and Zone Settings Use the following form to record the setting detail of sensors Learning Place of Learning Place of Zone Label Zone Label Number Installation Number Installation 2F-xx room Window 1 Learning Place of Learning Place of Zone Label Zone Label Number...

  • Page 37: Specifications

    Specifications Items Specifications Frequency - 303 Mhz Power Source - AC120V , DC 12V Power Consumption - 70mA (idle), 170mA (activated) Back-up Battery (Optional) - Approximate 7 hours ( NO AC adaptor) - 0°C ～ 40°C Temperature Range RF Range - 100 feet in open air space Security Code - Hopping code...

  • Page 38: Installation Template

    Installation Template...
  • Page 39 “Installation template for wall mounting of main control panel” 1. Use the template on the right to mark positions for mounting screws to install the main control panel on the wall. 2. Once the mounting screw positions have been marked, drill 3/16” pilot holes and install the plastic wall anchors supplied.
