User's Guide and
Important Warranty Information
This is a Wall Mounted Powered Flue Condensing Combination Boiler Gas Fired Central Heating Unit.
The boiler meets the requirements of Statutory Instrument " The Boiler (Efficiency) Regulations 1993 N
deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water
boilers fired with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by:
Notified Body 0085.
Product/Production certified by:
Notified Body 0085.
For use in GB/IE only.
Gold Combi HE
Range
o
3083" and is
Please read this
document and keep it safe.
It will help you out should
your boiler need attention.
Advertisement
Summary of Contents for Potterton Gold Combi HE

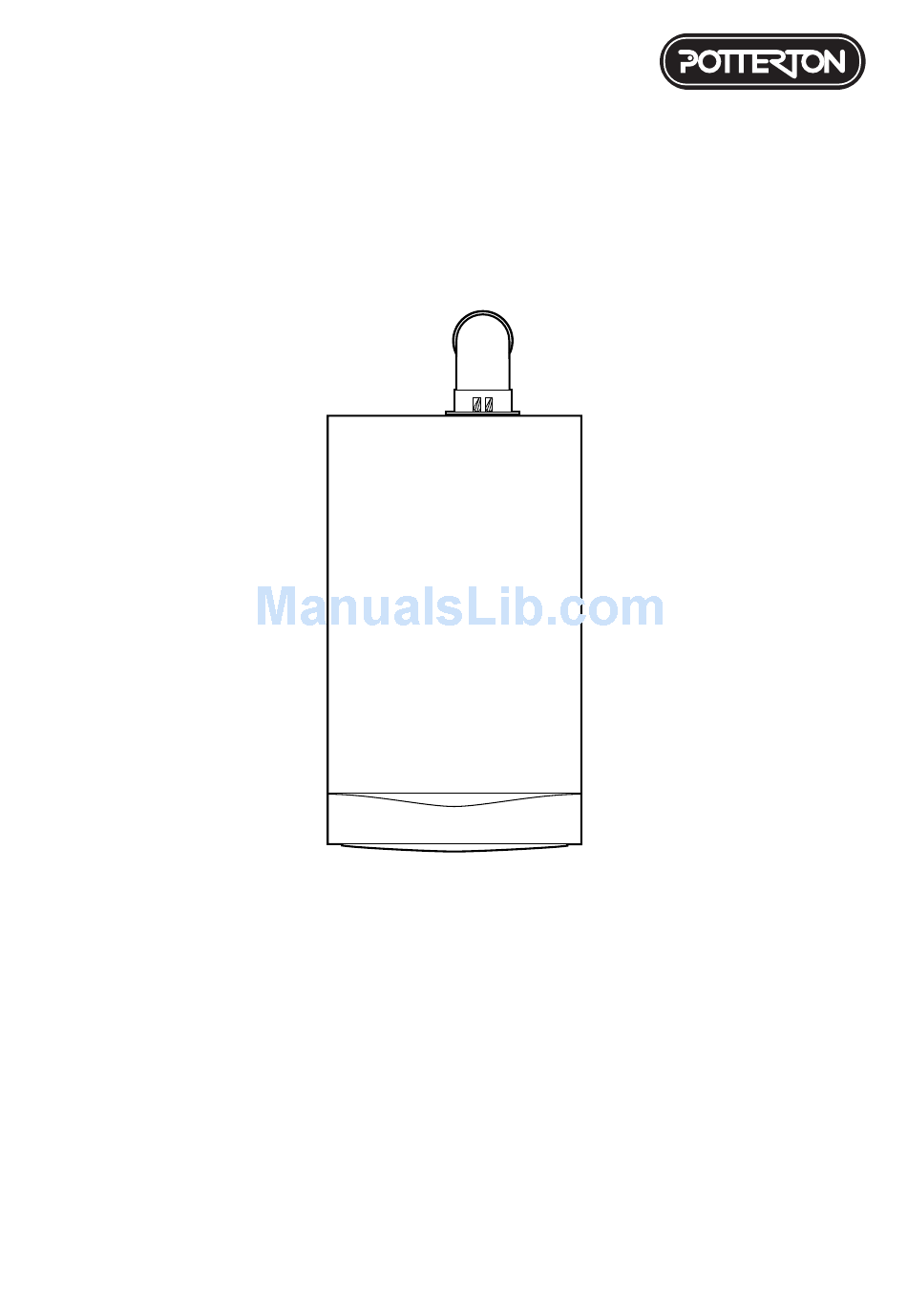

- Page 1 Gold Combi HE User’s Guide and Range Important Warranty Information This is a Wall Mounted Powered Flue Condensing Combination Boiler Gas Fired Central Heating Unit. The boiler meets the requirements of Statutory Instrument “ The Boiler (Efficiency) Regulations 1993 N 3083”...
-
Page 2: Natural Gas
Warranty heateam the service division of Baxi Potterton provide a 3 year free warranty for your peace of mind. Once your boiler is registered with us and in the unlikely event your boiler develops a fault and your installer is unable to assist, heateam will provide a free service to you provided the boiler is under 3 years old. - Page 3 Instructions on how to use your programmer and other heating controls should have been supplied with the items. Baxi Potterton also produce a guide ‘How to get the best out of your NEW Central Heating System’. Telephone our Literature Hotline on...
- Page 4 Fault Indication 1. If a fault occurs on the boiler an error code may be shown on the facia display. Reset 2. The codes are either two or three digit, preceded by the letter 'E'. For example, code E133 GRASSLIN will be displayed by 'E1' alternating with '33'.
- Page 5 Temperature Control 1. Central Heating: The central heating hot water flow temperature can be adjusted between 25° C minimum and 80° C maximum. 2. Turn the control knob clockwise to increase the temperature (Fig. 10). As the control knob is turned the selected temperature is displayed for approximately 4 seconds.
- Page 6 Central Heating System Pressure Pressure Gauge 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not operating the pressure should be at least 0.5 bar. During operation the pressure should not exceed 2.5 bar, and will normally be between 1.0 and 2.0 Fig.
- Page 7 Our Baxi Potterton trained heating experts will quickly get your heating and hot water working again. If your boiler is out of its free 3 year period, heateam can provide a competitive fixed price repair rate including parts, labour and VAT.
- Page 8 Setting the Timer The Electro-Mechanical Timer allows the central Time Pointer heating system to be set every 15 minutes. Using the three position switch the timer will allow Constant either constant operation, timed operation or central heating off. Timed Move the switch button by sliding to the desired position.
- Page 9 For your Safety 5mm Min 450mm 5mm Min This appliance must have been installed in accordance with the manufacturer’s instructions and the regulations in force. Any modification that may interfere with the 200mm Min normal operation of the appliance without express written permission from the manufacturer or his agent could invalidate the appliance warranty.
- Page 10 In the unlikely event you have a problem with your boiler please check the following. 1. Is the electricity supply to your boiler switched on and the selector switch set to Central Heating and Hot Water? If so the Green ‘Power On’ neon will be on. No Heating/Hot Water 2.
- Page 11 Warning ! If you smell gas Turn off the gas supply at the meter and call your gas supplier immediately. It is possible to isolate the boiler and at the isolating valve (Fig. 19). In GB, Transco operate a 24 hour emergency service and the telephone number will be listed in your telephone directory.
- Page 12 Please complete the boxes below Baxi Potterton providing a free warranty service within 3 years of installation of your boiler. If your installer is Serial Number unable to rectify your boiler fault, by contacting one of our friendly advisors we can arrange an engineer if required.
