Precision Power PVI-170BI Owner's Manual

In-dash 7” monitor touch screen dvd/cd/mp3/mp4 am/fm radio with bluetooth support ipod/iphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

PVI-170BI
In-Dash 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
With Bluetooth
Support iPod/iPhone
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVI-170BI and is the answer not in the manual?

Questions and answers

Related Manuals for Precision Power PVI-170BI

Summary of Contents for Precision Power PVI-170BI

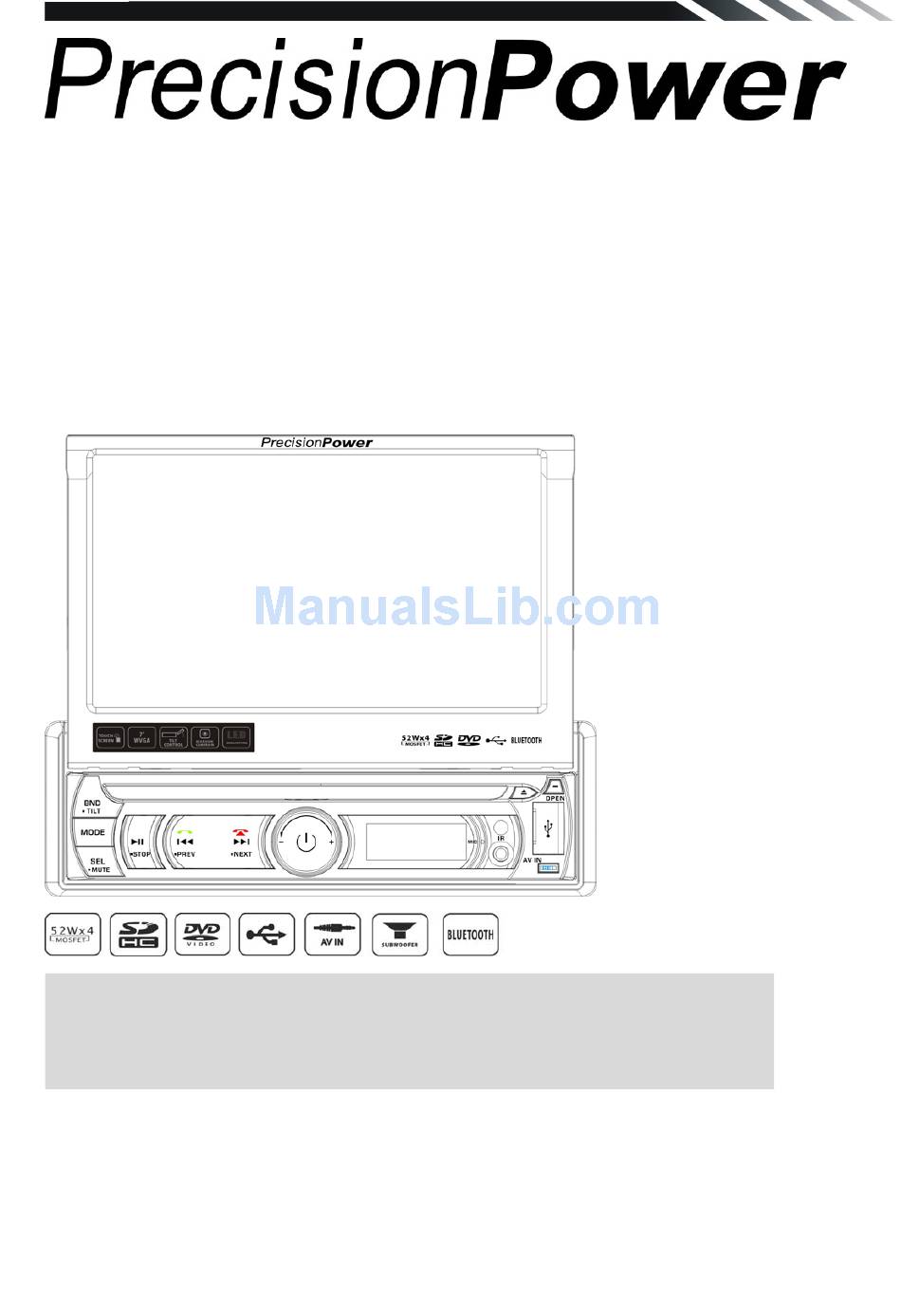

  • Page 1 PVI-170BI In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio With Bluetooth Support iPod/iPhone Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS..................2 CONTENTS ........................ 3 INSTALLATION / UN-INSTALLATION ............... 5 WIRING CONNECTIONS ................... 6 FRONT PANEL......................8 REMOTE CONTROL ....................10 REMOVE BATTERY....................13 MAIN MENU ......................14 ◆ RADIO PLAYER....................14 ◆ DVD PLAYER ...................... 15 ◆USB/SD/MMC CARD OPERATION ..............
  • Page 4 Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw 4*6 (5) Mounting Collar (6) Release Key (7) Screw 5*20 (8) Rubber Cushion 1x AV-IN Cable Warranty card User Manual...

  • Page 5: Installation / Un-Installation

    INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND). The is using a BTL circuit and each loudspeaker must be connected with insulated cables according the unit diagram.

  • Page 8: Front Panel

    FRONT PANEL 1. Release Button Press to detach and release the front panel. When released the unit will switch off automatically after a few second. Detach/Attach the Panel: Press REL button and pull out the left side to detach the panel. To attach it, insert the right side first and then press the left side until hear a click sound.
  • Page 9 Short press it to MUTE the volume output, press it again to resume volume when the power is / PLAY / PAUSE / Button In Disc, USB, SD CARD mode, press it to pause / play. Press it again to resume playback; long press it to stop, Press it again to resume playback.

  • Page 10: Remote Control

    19. SD/MMC CARD slot SD/MMC card slot, for Multimedia playback files only. Insert a SD/MMC CARD into this slot and the unit will automatically start reading and playback the card. * Supported Music File Format: MP3, WMA Files REMOTE CONTROL 1: MODE 2: POWER 3: BAND/RANDOM/Clear...
  • Page 11 In BLUETOOTH mode, press it to make a * symbol. 8. P.SCN/ RPT /# In SD CARD/ USB mode, press to repeat REP 1 => REP DIR => REP ALL In DVD mode, press to start repeat REP OFF=>REP Chapter=>REP Title=>REP Off. In Radio mode: PS (Preset Scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds.
  • Page 12 22. A-B/ZOOM button During playback, press it at the starting point of section you want to repeat(A), press this button again at the ending point of the section you want to repeat (B), section A-B repeating starts. Press it again to cancel the A-B repeat function. Press it and hold for two seconds in DVD mode to zoom the image in or out in the sequence of ZOOM 2->...

  • Page 13: Remove Battery

    REMOVE BATTERY Note: The distance may vary according to the brightness of ambient light. If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. Do not place any objects between the remote control unit and the sensor on the unit.

  • Page 14: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 15: Dvd Player

    ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played. Buttons will appear when you tap on TFT screen. Tap the screen again to hide the buttons. Insert DVD disc insert VCD disc NOTE...

  • Page 16: Usb/Sd/Mmc Card Operation

    Select the viewing angle of the touch-screen. ◆USB/SD/MMC CARD OPERATION Insert USB/SD/MMC and play track will display as follows: Mute the sound. Decrease the volume. Increase the volume. Stop button. Press it to Stop playback from the current position, press it again to final stop to the very beginning Play/pause button.

  • Page 17: Ipod/Iphone Operation

    Note: If there is no external video input, the TFT displays “NO SIGNAL”. 1. Press the △ / ▽ icon to adjust TFT angle. 2. Press the icon to be back to main menu. ◆IPOD/IPHONE OPERATION Use the supplied iPod/iPhone connection cable to connect to the USB socket on the panel to play back iPod/iPhone audio and video.

  • Page 18: Setting Control

    Songs: you can find all of songs in songs option. Genre: you can find the corresponding songs according to different Genre. Composer: you can find the corresponding songs according to different composer. iPod- video playback The unit support video playback. In USB/iPod mode, select the video option to show below the options: Movies=>Music Video=>TV Shows=>Video Podcasts=>Rented Movies.

  • Page 19: Display Control

    DISPLAY CONTROL Tap DISPLAY button to show DISPLAY menu. SCREEN Screen setting 16:9, 4:3,FULL Backlight Backlight setting LOW, MID, HIGH RADIO CONTROL Tap RADIO button to show RADIO menu. AREA:EUROPE-U.S.A-SOUTH AREA AMERICA-RUSSIA STEREO Set STEREO ON or OFF LOCAL Set LOCAL ON or OFF GENERAL CONTROL Tap GENERAL button to show GENERAL 1 menu.

  • Page 20: Dvd Set Up Menu

    DVD SET UP MENU During the DVD playback, press the SETUP button to enter into the system settings main menu; press the up or down arrow buttons to move to the highlighted menu item and select one of the Setup Pages: [1].

  • Page 21: System Information

    [6] TV SHAPE: Set TFT screen mode to the correct ratio: Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), Normal/LB (4:3 Letterbox) and Wide (16:9). Different disc formats will display different images depending this setting and the screen size used. [7] NTSC/ PAL: Select this menu item to set up your preferred video output format.
  • Page 22 Tap CALLING button to use phone functions. Tap MUSIC button to start BLUETOOTH music player . Tap HISTORY button to check dialed, received, missed calls . Tap PHONEBOOK button to use phone book functions. Pairing Mode At the 1st time when using BLUETOOTH, you need to pair the mobile phone first. When a phone have not been paired with the unit, the BT icon and Pairing mark will blink continually on the panel.

  • Page 23: Other Functions

    the mobile Phone. Dialed /Received/Missed calls are saved In History mode .Tap Up/Down arrow load previous/next history record. The calls in each category are orderly saved from the latest one to the final one.. Select a number and tap Send button to enter calling mode. 4.

  • Page 24: Notes On Disc

    NOTES ON DISC Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body.

  • Page 25: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 26: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER DISC CANNOT BE INSIDE THE PLAYER THEN PUT A NEW UPWARD.

  • Page 27: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
