Summary of Contents for Trevi GO 2100HD

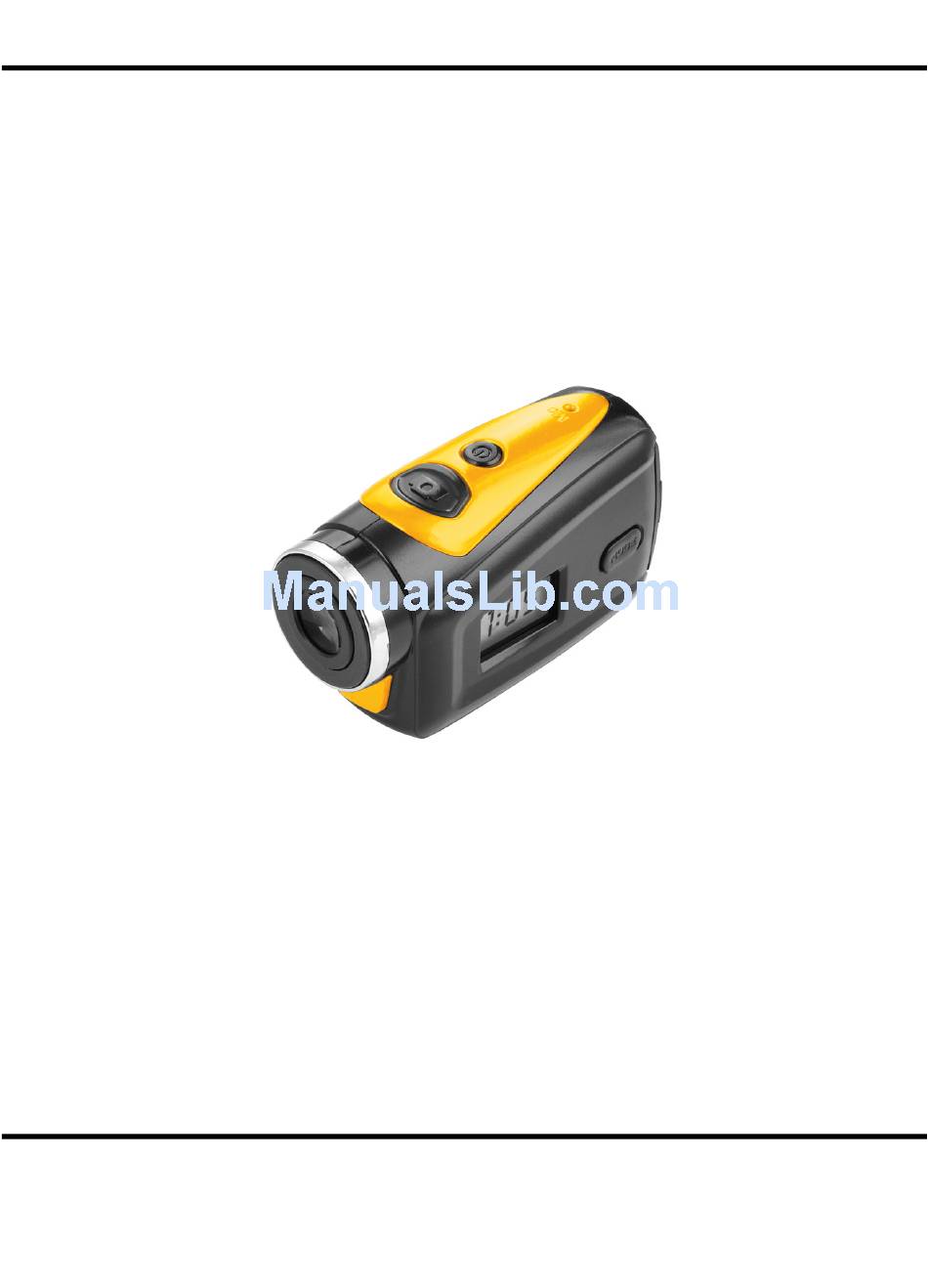

- Page 1 TREVI GO 2100HD HD SPORT CAMCORDER USER MANUAL EN G L I SH...
-
Page 2: Operation Notice
Foreword Thank you for purchasing this digital camera. Please carefully read through this product manual before using, and keep this manual properly for future reference. Contents of the product manual are based on the updated information when compiled. The screen display and figures used in the manual are for detailed and visual operation of the camera. - Page 3 ● In case of one of the followings for the memory card, the recoded data may be damaged: - Improper use of the memory card; - Power-off of taking out the memory card during recording, deleting (formatting) or reading; ● It is recommended to make backup for the important data on other media like soft disk, hard disk or CD;...
-
Page 4: System Requirements
System Requirements When operating and using this digital camera, please pay attention to minimum system requirements from the camera. You are strongly recommended to use better computer to control the camera for better effect. The requirements for minimum system are as below: System Requirements Operating system Microsoft Windows 7, 2000, XP, VISTA... - Page 5 Appearance ⑴ ⑵ (1) Black and white digital screen (2) MODE key (3) Shutter (4) Power (5) Microphone (6) Lens (7) Reset (8) USB port (9) TV port (10) Micro SD card slot Key Functions and Indictors Function Key/Indicator Power Power On/Off Video recording mode, Recording/Stop Capture mode, taking pictures...
- Page 6 Start Operation Battery This camera uses the original packaged built-in rechargeable 3.7V lithium battery. Battery disassembly is prohibited. Battery Recharge Before you turn off the camera, then connect the camera with the USB cable attached to the USB port of your computer. Once you have connected to your computer, the camera automatically goes into battery charging, the battery level indicator will Flash.
-
Page 7: Video Recording
──────────────────────────────────── Attention: Video recording mode: Lo indicates VGA (640x480) 60 frames, Hi indicates HD (1280x720) 30 frames Capture mode: Lo indicates 1.3M (1280x960), Hi indicates 5.0M (2592x1944) Video recording In video recording mode, click Shutter key to start video recording and click it again to stop recording. -
Page 8: Advanced Operation
Advanced Operation Video recording, capture mode After power-on, the camera automatically enters video recording mode. In video recording mode at HI size, click MODE key to switch the size to Lo; in video recording mode at Lo size, click MODE key to enter capture mode at HI size, and in capture mode at Lo size, click MODE key to return to video recording mode at HI size. - Page 9 Icon Description Indicates high resolution in current video Video recording HI recording mode Indicates currently in video recording mode Video recording (Flashing icon means in the process of icon video recording) Battery level Indicates level of battery Micro SD card Indicates a memory card available Indicates low resolution in current video Recording Lo...
- Page 10 Replay Mode After power-on and connecting to TV, the camera enters the replay mode. In replay mode, press MODE key to select photo and recorded video. After selecting video file, press Shutter key to play it. During playing, press Shutter key to Stop playing.
- Page 11 File Deletion After connecting to TV, the camera enters the replay mode. In replay mode, long press Shutter key to enter file deletion mode, press Shutter key to confirm deletion, and press MODE key to exit from deletion. Connect to computer to download photo/video After connecting to computer, the camera enters portable disc mode.
- Page 12 Specification Image sensor 1.30Mega pixel CMOS image sensor Lo 1.3M (1280x960), Image resolution HI 5.0M (2592x1944) External Micro SD card (4GB to 32GB class 4 Memory or above) File format JPEG, AVI Video resolution Hi HD 1280X720, Lo VGA 640×480 White balance Automatic Exposure compensation...
- Page 13 Failure camera startup after placing Battery low. Recharging battery is required. battery in Fail to take picture or Full memory. Please store filed achieved on other record video memories. pressing Shutter key Trembling hand when taking the photo. Hold the camera stead with two hands, or fix the camera Blur photo stable with assistance of tripod to keep the camera...
- Page 14 PRECAUTIONS CORRECT DISPOSAL PRODUCT The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste. The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.
-
Page 15: Battery Removal
INFORMATION NOTE ON THE REMOVAL AND DISPOSAL OF BATTERIES Warning: Only high-qualified personnel should perform this operation! BATTERY REMOVAL The appliance should not be plugged to the mains socket when performing this operation! Remove the screws tightening the lower part of the appliance; Select the battery shown by the arrow in the picture;... - Page 16 For additional information and updates of this product see: www.trevi.it Trevi S.p.A. Strada Consolare Rimini-San Marino, 62 47924 RIMINI (RN) Italy Made in CHINA...
