5 Gould Road, PO Box 2155
New London, NH 03257 USA
Voice: (603) 526-9800
info@canarysystems.com
www.canarysystems.com
Using the RAVEN II CDPD Modem
Application Note #12

Overview

This Application Note provides information to setup and configure your AirLink CDPD Raven II Modem,
as well as configuration information to setup and configure MultiLogger to communicate with your data
acquisition system using this modem.
CDPD is a technology used to transmit packet data over cellular voice networks. It is ideal for wireless
applications. It is also more cost effective than circuit-switched cellular data for small amounts of data. It
provides instantaneous response for data communications because there are no dialing delays. Built-in
encryption maintains the security of the application data over the air.

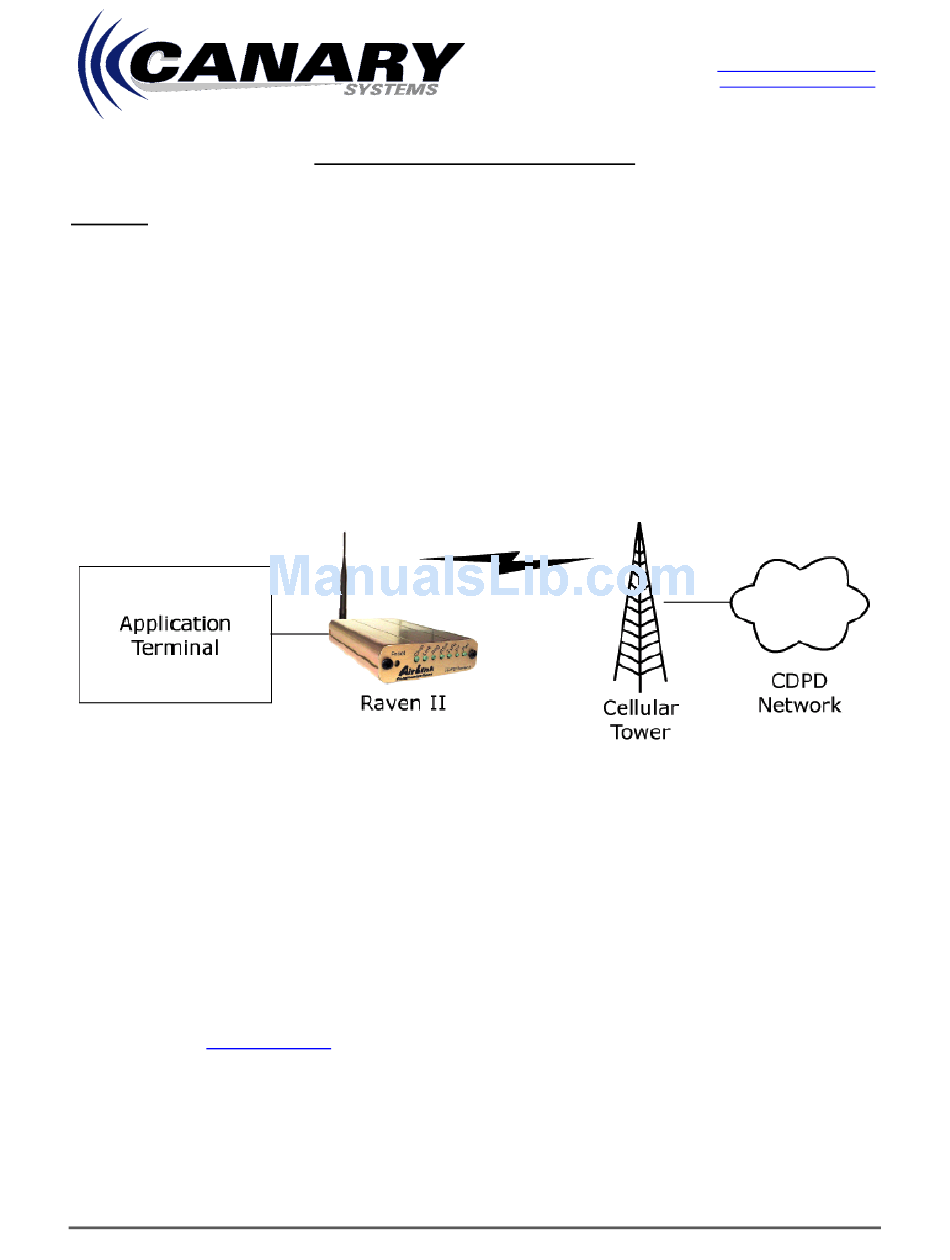

The structure of the CDPD network is shown below. The "Application Terminal" would be the data
acquisition unit to which the Raven Modem is connected.
The CDPD Network shown above is accessed via the Internet. The PC running MultiLogger which will be
used to communicate with the data acquisition unit connected to the Raven II must have Internet
access to function. Due to the bandwidth limitations of the Raven II network a dial-up networking
connection is usually adequate for this purpose.
More detailed information on the Raven II Modem can be found in the Airlink Raven CDPD Modem
User's Manual. More detailed information on MultiLogger can be found in the MultiLogger User's
Guide. This documentation is available from the support directory of the Canary Systems website.
Prior to setup of the Modem you will need to obtain a service agreement, the key piece of information
provided by the service agreement is the IP, or the address of the Modem. It is the form of a 4 octet
sequence, in the form nnn.nnn.nnn.nnn, i.e. 166.147.127.200
Contact Airlink at
www.airlink.com
to obtain information on obtaining a service agreement.
Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raven II CDPD and is the answer not in the manual?

Questions and answers

Summary of Contents for Canary Systems Raven II CDPD

  • Page 1 IP, or the address of the Modem. It is the form of a 4 octet sequence, in the form nnn.nnn.nnn.nnn, i.e. 166.147.127.200 Contact Airlink at www.airlink.com to obtain information on obtaining a service agreement. Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 1 of 8...
  • Page 2 [S23] Parity=N [MVOFF] Modbus-Variant Offset=1 [MVLEN] Modbus-Variant Length=0 [MVTYP] Modbus-Variant Type=0 [MVOPT] Modbus-Variant Options=0 [MVMSK] Modbus-Variant ID Mask=0 [FM] Friends Mode=0 Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 2 of 8...
  • Page 3 TCP/IP. Follow the instructions shown on the form, be sure to select the COM port that was configured previously, in our case COM5. Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 3 of 8...
  • Page 4 The following screenshots illustrate the Install New Modem forms of Windows (these are captured from a Win2K installation, other Windows version will look slightly different). Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 4 of 8...
  • Page 5 Installation and configuration of COM/IP is complete! You will see the COM/IP icon in your System Tray, by default COM/IP will be launched each time Windows starts. Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 5 of 8...
  • Page 6 If the communication with the data acquisition unit fails you will usually need to wait 2 minutes • before attempting further communication functions. This is due to the timeout settings of the TCP/IP connection. Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 6 of 8...
  • Page 7 Enter in the appropriate IP and port as shown, remember to use the IP provided by the service provider! Press OK. Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 7 of 8...
  • Page 8 The display of data should be steady and the connection reliable enough so that all arrays, followed by the memory pointers, display. Using the Raven II CDPD Modem – Canary Systems Application Note #12 – March 2002 – Page 8 of 8...
