Ölens Technology XPJ Owner's Manual

Olens xpj projector owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Introduction
Congratulations and get ready to really change the way

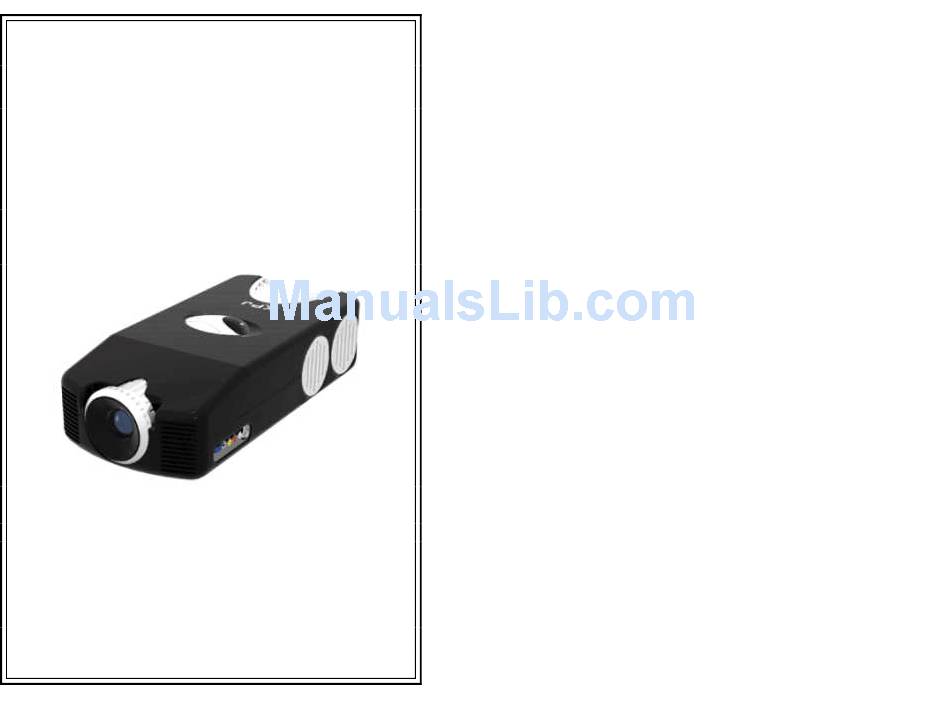

XPJ Projector
you watch movies or T.V., play games, view pictures,
surf the internet and so much more! The XPJ Projector
is a projector for you to use and play with just like
you've always wanted. This machine has been
designed to be easy to use and fun. You'll love the high
quality projection and image quality options. Within the
manual, you'll find set up and usage instructions,
troubleshooting
advice,
and
important
safety
instructions. You will soon be ready to experience the
fun of the XPJ Projector. Enjoy!
Owner's Manual
Updated Nov 15, 2010
- 2 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPJ and is the answer not in the manual?

Questions and answers

Summary of Contents for Ölens Technology XPJ

  • Page 1 XPJ Projector you watch movies or T.V., play games, view pictures, surf the internet and so much more! The XPJ Projector is a projector for you to use and play with just like you’ve always wanted. This machine has been designed to be easy to use and fun.

  • Page 2: Table Of Contents

    Important Safety Information Table of Contents Important Safety Information Precautions Precautions READ ALL SAFETY INFORMATION BEFORE USING Operating Instructions Features of Your Projector Using Your Projector Storing Your Projector PRECAUTIONS TO AVOID POSSIBLE Turning Off Your Projector DAMAGE TO PROJECTOR OR USER ...

  • Page 3: Important Safety Information

     Important Safety Information Operating Instructions Precautions (cont’d) Features of Your Projector READ ALL SAFETY INFORMATION BEFORE USING Legend  Projector Buttons   Lamp Cover PRECAUTIONS TO AVOID POSSIBLE   DAMAGE TO PROJECTOR OR USER Fan Vents  ...

  • Page 4: Using Your Projector

    Operating Instructions Operating Instructions Using Your Projector Using Your Projector (cont’d) Place the projector on a flat surface at least 30 Dim the lighting in the room. inches (76cm) from the floor. Pull the kickstand out from the bottom of the projector. Press the power button and wait for the green light to turn on.

  • Page 5: Turning Off Your Projector

    Operating Instructions Helpful Information Turning Off Your Projector Menu Options  Input IMPORTANT Input Change modes between A/V, USE ONLY THESE STEPS TO POWER DOWN, S-Video and VGA NEVER USE THE POWER SWITCH ALONE TO TURN OFF PROJECTOR. THIS WILL CAUSE THE Information Basic information about the unit PROJECTOR TO OVER HEAT AND BREAK DOWN.

  • Page 6: Remote Operation

    Helpful Information Helpful Information Remote Operation Menu Options (cont’d) Remote Control  Key Controls: Functions/Features: Audio Enters or exits main menu Volume Increases and decreases MENU volume (see “Remote Enters or exits different submenus Operation” for other volume ENTER/EXIT adjusting methods) Decreases the amplitude ◄...
  • Page 7 Helpful Information Helpful Information Remote Operation (cont’d) Remote Operation (cont’d) Projector Buttons How to Use Your Remote Control Key Controls: Corresponds to Remote Key: 1. Press MENU to enter the main menu. MENU MENU ▲ 2. Scroll to desired section of menu with ◄...

  • Page 8: Replacing The Lamp

    Helpful Information Helpful Information Replacing the Lamp (cont’d) Replacing the Lamp 3. Locate the two metal hooks (Figure 2) on the lower NEVER TOUCH THE INSIDES OF THIS UNIT front face of the new replacement lamp cassette. OR THE LAMP GLASS WHEN REPLACING THE LAMP NEVER USE TOOLS OTHER THAN THE HOOKS ON THE UNDERSIDE OF THE NEW...

  • Page 9: Replacing The Fuse

    Helpful Information Helpful Information Replacing the Lamp (cont’d) Replacing the Fuse Figures 1. Remove fuse holder with a screwdriver. Figure 4. Removing the Old Lamp (pull up) Note: Keep the old lamp away from children and do not touch with bare hands as it is HOT! 5.

  • Page 10: Technical Summary

    If Something Goes Wrong Helpful Information Troublshooting Tips Technical Summary Problem Solution  640 X 480 pixels (VGA) Resolution  50 inches at 2 meters Projection 1. Fans are a. After turning toggle switch on  Composite Video (AV) – RCA jack Support running, the side of the projector to the...

  • Page 11: Troubleshooting Tips

    RCA Out or S-Video Out.) c. Confirm that the main switch on the side of the XPJ is on. d. Check the red LED on the top of the projector, confirm it turns on and off when the main power is turned on and off.

  • Page 12: Miscellaneous

    Miscellaneous Miscellaneous Quick Start Guide Appendix A Remove projector, power cord, and remote control from package. Install batteries in remote control and connect power cord to AC mains. Connect a S-Video, RCA, or PC Video cable to projector. Remove the lens cover and turn on main power by pressing the mark on the toggle switch Push to turn on...

  • Page 13: Glossary

    Miscellaneous Miscellaneous Appendix B Glossary Brightness: the amount of light displayed Contrast: the intensity of the light displayed Hue: the amount of color displayed Input mode: Settings that are changed to be compatible with the type of cords connected to the projector (A/V, S-Video, or VGA) Turn to focus image Projective Screen Sizes: the size of the image that will...
