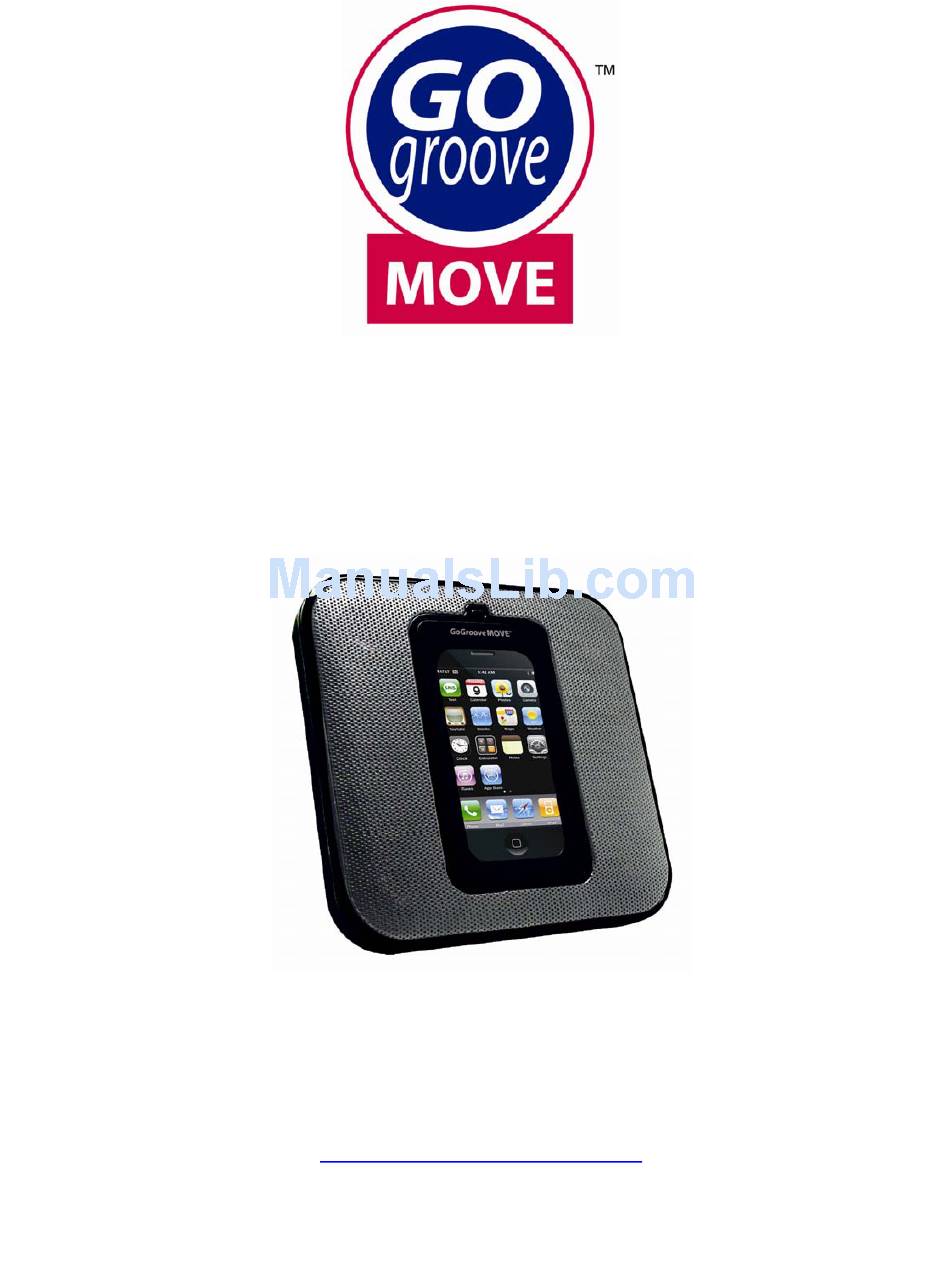

iPhone/iTouch/Nano G3 Mini Speaker
Instruction Manual
------------------------------------------------------------
FREE PRODUCT WARRANTY REGISTRATION
Protect your investment and take advantage of this free product warranty.
YOU MUST REGISTER WITHIN 30 DAYS
of purchase to receive full warranty coverage and access to special offers.
www.AccessoryPower.com/warranty
------------------------------------------------------------
- 1 -
Advertisement
Table of Contents
Related Manuals for Accessory Power Go groove move
Summary of Contents for Accessory Power Go groove move
- Page 1 iPhone/iTouch/Nano G3 Mini Speaker Instruction Manual ------------------------------------------------------------ FREE PRODUCT WARRANTY REGISTRATION Protect your investment and take advantage of this free product warranty. YOU MUST REGISTER WITHIN 30 DAYS of purchase to receive full warranty coverage and access to special offers. www.AccessoryPower.com/warranty ------------------------------------------------------------ - 1 -...
-
Page 2: Table Of Contents
Delivery includes Environment-protection information Installation Maintenance and care Connection…………………………………………..…….. 5-7 Battery installation Wiring diagram of the GO GROOVE MOVE Operating with iPhone Operating with iTouch Operating with Nano G3 Connecting with power adapter Connecting with other devices Operating elements……………………………………….. 8-9 Operating the GO GROOVE MOVE……………………….9-11... -
Page 3: Overview
Overview Features of the Go Groove MOVE The GO GROOVE MOVE has a built-in 2.0 Amplifier and 4 Speakers. This system produces Hi-Fi audio that does not diminish sound quality at maximum sound levels. The GO GROOVE MOVE accommodates the iPhone/iTouch/Nano G3. Simplicity and convenience come together in the design of the 3-Button Control System located on top of the unit. -
Page 4: Installation
● Flame sources, such as lighted candles, should not be placed near the GO GROOVE MOVE. ● The GO GROOVE MOVE should be placed close to its AC Power Source or Wall Outlet so that it is easily accessible and well ventilated. -
Page 5: Connection
Connection Battery installation Figure 1 Figure 2 Figure 3 1. Open the battery covers at the back of the speakers by pressing the two catches.(as the arrow indicates in Figure 1) 2. Place 4 AA batteries(as Figure 2 indicates) in the battery compartments. 3. -
Page 6: Wiring Diagram Of The Gogroove Move
Connection Wiring diagram of the GOGROOVE MOVE Operating with iPhone — Ensure the iPhone is fully and properly inserted in the port of the speaker. Next, push the frame of the speaker in place. Play your favorite music by operating the iPhone. Operating with iTouch —... -
Page 7: Operating With Nano G3
Connecting with other devices — You can play music by using the included 3.5MM to 3.5MM cable to connect the “INPUT” port on the back of the GO GROOVE MOVE, with other audio source devices, such as iPod, MP3 or PC/Laptop etc. -
Page 8: Operating Elements
Operating elements 1. Power LED －It will be lit when the speaker is on and dark when the speaker is off. 2. STANDBY-ON －Turn on the speaker or switch to standby mode. 3. VOLUME – －Turn down the volume. 4. VOLUME + －Turn up the volume. -
Page 9: Operating The Go Groove Move
Turn the GO GROOVE MOVE on/off — Connect the GO GROOVE MOVE to the power source with the provided power adapter. Insert the AC plug into your local power supply / wall outlet, and the other end into the DC input jack on the back of the GO GROOVE MOVE. -
Page 10: Swinging The Go Groove Move
Swinging the GO GROOVE MOVE ● If you want to play video from iPhone or iTouch, adjust the stabilizing structure on the back of GO GROOVE MOVE until it turns 90 degrees according to the icon. Then you can watch videos on your iPhone/iTouch. -
Page 11: Specifications
Specifications Specifications ● Dimensions：170*170*32MM ● Net weight：500G ● Power：7.5W ● Voltage input：DC5.5V 1.5A ● Electrical level：500～800mV ● Speaker：1.2″2W 8Ω*4 ● Power output：2.5W*2 T.H.D=10% ● Frequency response：80HZ~20KHZ ● Resolution：≥40dB ● Signal-to-Noise：≥60dB Subject to modification. Troubleshooting Warning Under no circumstances should you try to repair the system yourself, as this will void the warranty. - Page 12 WESTLAKE VILLAGE, CA WWW.ACCESSORYPOWER.COM MADE IN CHINA (C) 2009 ACCESSORY POWER. ALL TRADEMARKS AND BRAND NAMES ARE THE PROPERTY OF THEIR OWNERS. DO NOT OPEN OR DISPOSE OF IN FIRE OR SHORT CIRCUIT. BATTERY MAY EXPLODE OR CAUSE INJURY. - 12 -...
- Page 13 - 13 -...
