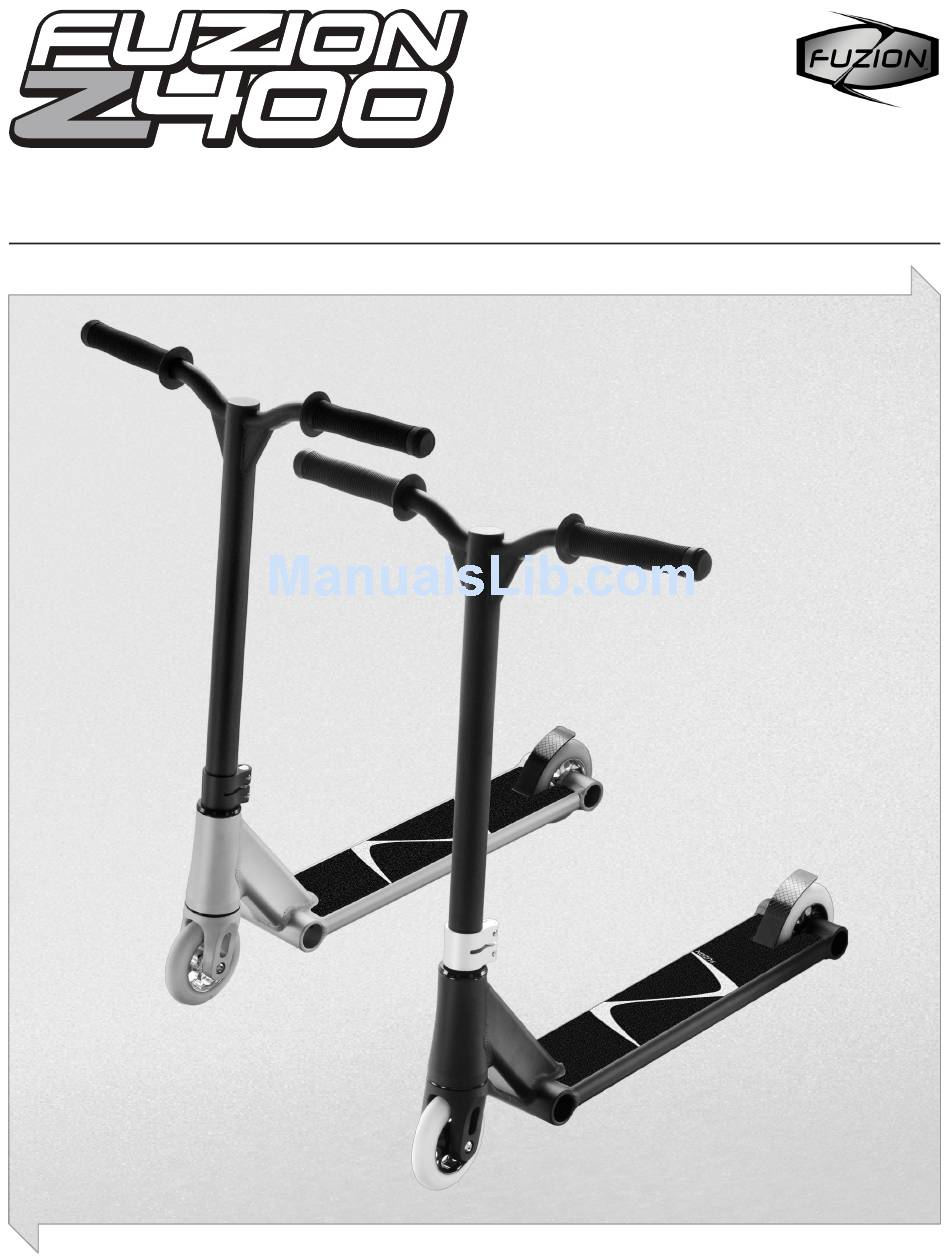

Page 1: Owners Manual
OWNERS MANUAL For Riders Age 8 Years and Older ITEM NUMBER: SILVER - F1322 ITEM NUMBER: BLACK - F0822 MANUAL VERSION: 1A-2013... -
Page 2: Before You Start
BEFORE YOU START • Always wear proper protective equipment, such as a helmet, elbow, wrist, hand and kneepads. Always keep the chinstrap securely buckled on the helmet. Long sleeve shirt, long pants, shoes and elbow and knee pads are mandatory. • Wear athletic shoes (lace-up shoes with rubber soles) . Don’t ride barefoot or in sandals. Keep shoelaces out of the way of wheels or pivots. • Use the scooter only on flat, dry, level ground without loose debris like rocks or gravel. Ride on smooth, paved surfaces away from motor vehicles. Avoid excessive speed associated with downhill rides. • Never use the scooter at dusk or night, or in wet or icy conditions. Wet weather impairs traction, braking, and visibility. • Avoid sharp bumps, drainage grates, and sudden surface changes. Avoid water, speed bumps, sand, gravel, and anything else that could cause the wheels to suddenly stop. When in doubt avoid the bumps. • Do not exceed 220 lbs (100 kilograms) total weight on the scooter. For riders ages 8 and older. • Do not wear anything that obstructs hearing, visibility, or function when riding the scooter. • Watch out for pedestrians. Avoid excessive speed. • Never ride in traffic or on the street, and watch your surroundings for pedestrians, bikes, and skateboard and scooter riders. Use the scooter in areas free from fixed or moving hazards such as poles, curbs, hydrants, walls, parked automobiles, and traffic. • Keep hands and feet clear of steering mechanism at all times. • Always check and secure all fasteners before every ride. Make sure the clamp is properly positioned and fully tight. • Always avoid excess speed associated with downhill rides. Avoid steep inclines and don’t ride too fast- you can lose control and fall. • Always replace worn or broken parts immediately. Call 1-510-550-8960 or e-mail us at info@nextsport.com. AN IMPORTANT MESSAGE TO PARENTS This manual contains important safety information. For your child’s safety, it is your responsibility to review this information with your child and make sure that your child understands all warnings, cautions, instructions, and safety topics. Nextsport recommends that you periodically review and reinforce the information in this manual with younger riders, and that you inspect and maintain your child’s scooter... - Page 3 BREAKTHROUGH TECHNOLOGY ALUMINUM BOX DECK DESIGN 6061 T6 Heat Treated deck with built in Grinding Pegs and 1.5” Headset. *wheel hub design subject to change. FORGED AND CNC FORK FLEX BRAKE INTEGRATED REAR PEGS INTEGRATED FRONT GRINDING PEGS & Lighter and stronger. Precision CNC wheel hangers. Increases grinding surfaces and structural deck integrity. STRANGLER CLAMP SEALED HEADSET BEARINGS Lighter and stronger clamping power. 1.5” Heavy Duty Lower Bearing.
- Page 4 COMPONENT PARTS ASSEMBLY Z-400 COMPONENTS LIST 01 Aluminum Box Deck Integrated Grind Pegs with 02 Chromoly Bars 03 Strangler Clamp 04 Compression Bolt 05 Compression Cap 06 HIC Shim 07 Upper Sealed Headset Bearings (3 Pieces) 08 Lower Sealed Headset Bearing 09 Forged CNC Fork 10 Front PU Wheel - Aluminum Core 11 Front Wheel Axle and Bolt (Short) 12 Rear PU Wheel - Aluminum Core 13 Rear Wheel Axle and Bolt (Long) 14 Flex Brake, Bolts and Nuts (Set of 2) 15 Grip Tape TOOLS INCLUDED 5mm Allen Wrench (x2) *grip tape design subject to change.
- Page 5 ASSEMBLING YOUR FUZION Z400 1. Fork, Head Set Bearings, HIC Shim, 2. Place the clamp on your riser tube 3. Slide the bars over the fork. Compression Cap and Compression so that the bottoms are aligned. Bolt are factory assembled and adjusted. *wheel hub design subject to change. 4. Rotate the clamp until the clamp 5. Rotate the fork so that the wheel is 6. Once the T-bar is aligned correctly, opening is centered over the slit in forward facing. Then place the riser using the 6mm Allen wrenches the riser tube. tube over the steer tube. evenly tighten the two bolts on the clamp so that it compresses around the riser. FAILURE TO PROPERLY ASSEMBLE AND TIGHTEN ALL BOLTS AND COMPONENTS MAY CAUSE LOSS OF SCOOTER CONTROL AND INCREASE RISK OF FALLING.
- Page 6 ADJUSTMENT TIPS *wheel hub design subject to change. HEADSET STRANGLER CLAMP WHEELS AND BEARINGS Place the HIC Shim over the fork and Strangler Clamp new design consists Inspect and adjust the wheels and tighten the bolt through the topcap and of two steel pins for maximum holding bearings for wear and tear, and check for into the top of the fork until there is power, without deforming the clamp proper tightness. Use firm pressure but no headset wobble, and the fork shape. avoid over tightening the wheel axle bolts. rotates freely. You will need two 8 mm socket wrenches to adjust or remove rear wheels. MAINTENANCE TIPS It is the responsibility of the owner or guardian to periodically inspect the wheels, nuts and bearings for wear and tear, and check for proper tightness. Always make sure to tighten all bolts and nuts before you ride. Eventually wheels, self locking nuts and bearings wear and need replacement. The life of these components depend on the kind of riding done. Lots of braking will wear out wheels and riding in dirty or wet conditions will prematurely shorten bearing and fastners life. Worn wheels and bearings are considered normal wear-and-tear and are not covered by the Nextsport Limited Warranty. Wheels other than genuine Fuzion wheels may not be compatible with your scooter. Always use genuine Fuzion replacement parts. CLEANING YOUR SCOOTER Wipe with a damp cloth to remove dirt and dust. Do not use industrial cleaners or solvents as they may damage the surfaces. Do not use alcohol, alcohol-based or ammonia-based cleaners as they may damage or dissolve the plastic components or soften the decals or decal adhesives.
- Page 7 ALWAYS, BEFORE YOU RIDE WARNING: ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Proper inspection and maintenance of your scooter can reduce the risk of injury. Check all fasteners before every ride. Always inspect your scooter before riding, and maintain it regularly. Replace worn or broken parts immediately. Adults must assist children in the assembly and initial adjustment procedure. WARNING: REGARDING USE OF NON-NEXTSPORT PRODUCTS WITH YOUR FUZION SCOOTER. Your scooter has been built to Nextsport’s design specifications. All the original equipment supplied at the time of sale was selected on the basis of compatibility with the frame, wheels, pivots, and all other parts. Certain after-market products may or may not be compatible with your FUZION scooter. Call Nextsport’s customer service prior to modifying or replacing any component with non-factory specified parts. WARNING: CHECK ALL LOCAL LAWS REGARDING SCOOTER USE. Check all local laws and regulations to see where and how you may use your FUZION scooter legally. In many states and local areas scooter riders are required BY LAW to wear a helmet. Check and obey local laws and regulations regarding laws governing helmet use and scooter operation in your area. WARNING: BRAKE MECHANISM WILL GET HOT FROM CONTINUOUS USE. Do not touch after braking. WARNING: REMEMBER TO ALWAYS WEAR PROTECTIVE GEAR. This includes a helmet, elbow and knee pads.
-
Page 8: Limited Warranty
LIMITED WARRANTY This Limited Warranty is the only warranty for this Fuzion scooter. There is no other expressed or implied warranty. This Limited Warranty will be void if the product is ever: USED IN A MANNER OTHER THAN FOR RECREATION OR TRANSPORTATION • MODIFIED IN ANY WAY • RENTED The Manufacturer warranties this product to be free of manufacturing defects for a period of six months from date of purchase. This Limited Warranty does not cover normal wear and tear, or any damage, failure, or loss caused by improper assembly, maintenance, storage, or use of the scooter. Check local laws and regulations to see where you can ride your scooter legally. The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly from the use of this product. To obtain service under this warranty you must, within the warranty period, contact Nextsport directly by phone at 1-510-550-8960 or by email at warranty@nextsport. com. Purchase additional parts and replacements at www. nextsportstore.com. Nextsport will provide warranty replacements at its sole discretion. Authorized warranty services are ONLY available from Nextsport. Specifications are subject to change without notice. For questions regarding your warranty or part information please contact us at: warranty@nextsport.com or call us at 1-510-550-8960 WE WANT TO HEAR FROM YOU Visit us online at WWW.FUZIONPROSCOOTER.COM for event information, product news, videos and much more! Follow Team Fuzion online and share your riding videos with us on Facebook and YouTube. WATCH THE FUZION TEAM VIDEOS ON YOUTUBE FOLLOW US ON FACEBOOK www.youtube.com/officialteamfuzion www.facebook.com/officialteamfuzion FUZION SCOOTERS ARE PROTECTED BY US AND INTERNATIONAL PATENTS AND TRADEMARKS. © Copyright 2012 Nextsport All Rights Reserved. NEXTSPORT, INC. 2340 POWELL STREET, SUITE 198 EMERYVILLE, CA 94608 WWW.NEXTSPORT.COM WWW.FUZIONPROSCOOTER.COM...
