Summary of Contents for Nothern Industrial tools 157796

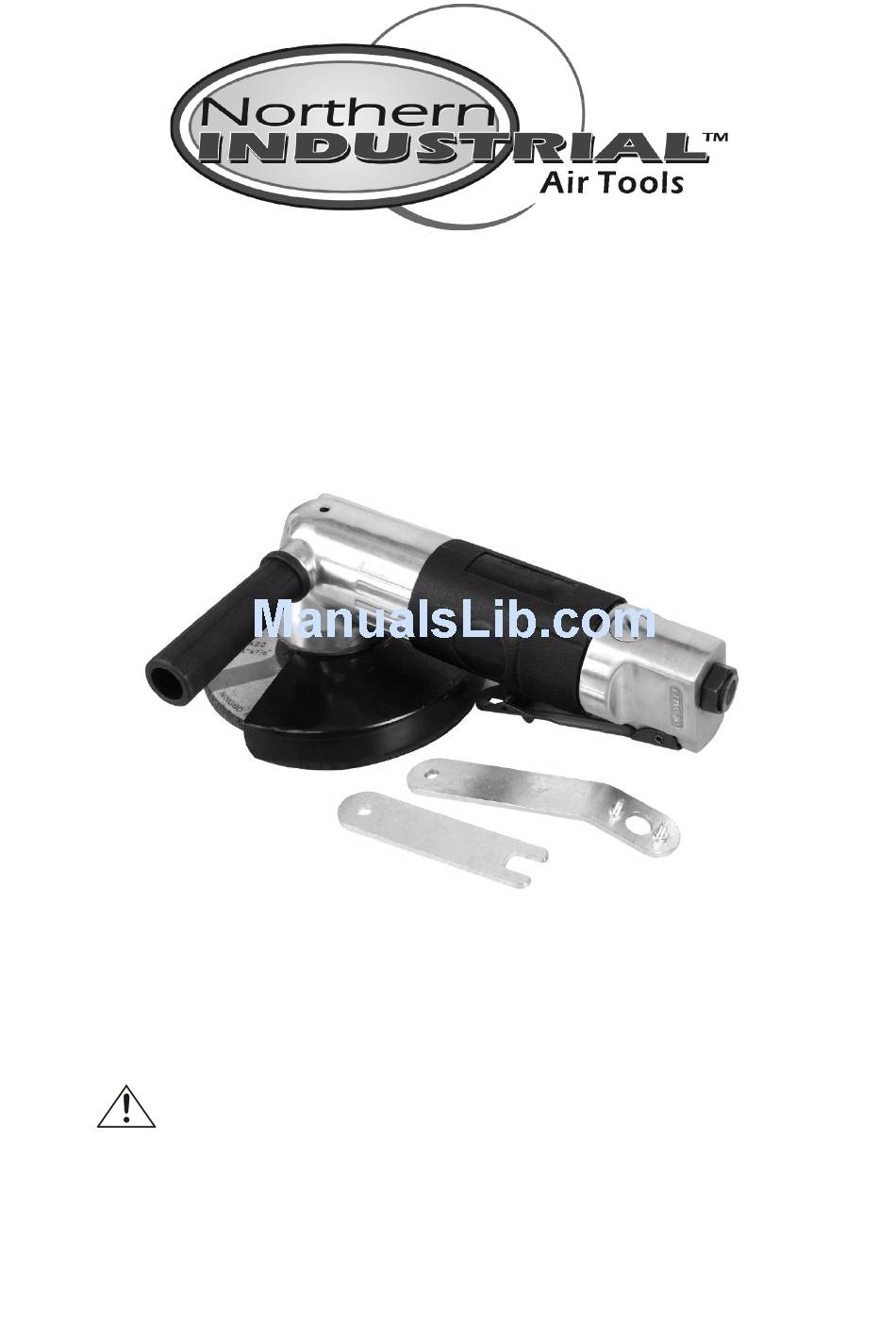

- Page 1 5" AIR ANGLE DIE GRINDER USER’S MANUAL ITEM# 157796 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Page: 1 of 7...
-
Page 2: Technical Specifications
For technical questions and replacement parts, please call 1-800-222-5381. Thank you very much for choosing a NORTHERN TOOL & EQUIPMENT CO., INC. Product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. - Page 3 WORK AREA / PERSONAL SAFETY / TOOL CARE Keep work area clean. Cluttered areas invite injuries. Observe work area conditions. Do not use machines or power tools in damp or wet locations. Don’t expose to rain. Keep work area well lighted. Keep bystanders, pets and children away.
- Page 4 17. For your safety, maintenance should be performed regularly by a qualified technician. 18. Use compressed air only — Never use combustible gases as a power source. Note: Performance of the compressor (if powered by line voltage) may vary depending on variations in local line voltage.
- Page 5 Diagram for the Air Die Grinder Parts List for the Air Die Grinder Part# Description Qty. Part# Description Qty. Housing Rotor Blade Screw End Plate Deflector Adjust Nut Screw Adjust Screw Dead Handle Spring Spacer Governor Bearing Pendulum Retaining Ring Wave Washer Plunger Bevel Gear...
- Page 6 Woodruff Key Valve Bush Gasket Valve Bushing Retainer Trigger 4" Disc Cover Lever 5" Disc Cover Spring Washer Cap Screw 4" Disc Nut Valve Stem 5" Disc Nut O-ring 4" Disc Hole Spring 5" Disc Hole O-ring 4" Disc Nut Valve Screw 5"...
- Page 7 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints, •...
