Page 1: User Manual

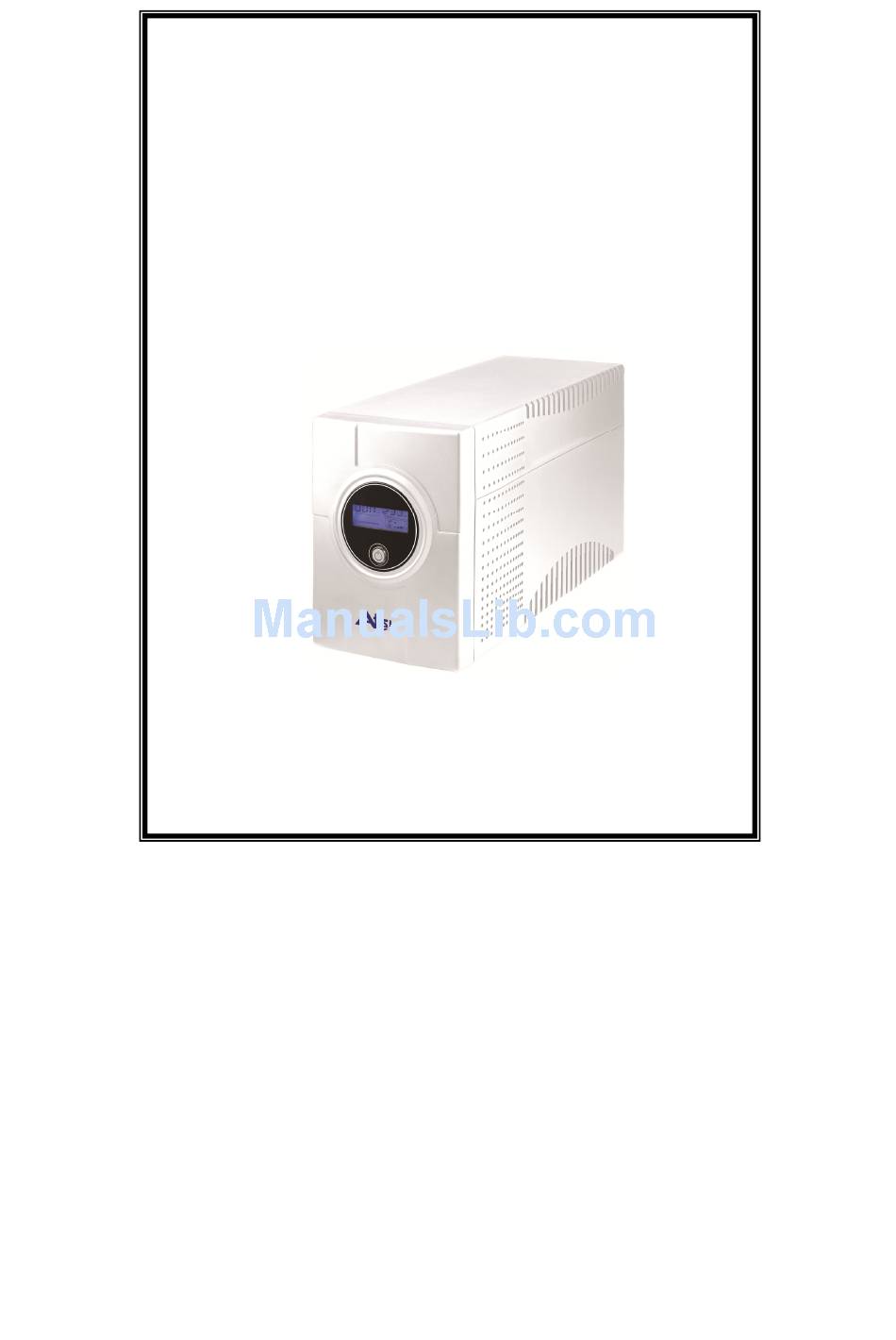

USER MANUAL Blazer Vista 1000/1400/2000 Uninterruptible Power System... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS –This manual contains important instructions for model Blazer Vista 1000/1400/2000 VA that should followed during installation maintenance of the UPS and batteries. Safety – CAUTION! This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. - Page 3 Unplug the UPS prior to cleaning and do not use liquid or spray detergent. Do not dispose of battery or batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic. A battery can present a risk of electrical shock and high short circuit current.
-
Page 4: System Description
System Description Front Panel— 1. LCD Back-Light 2. Power “ON/OFF” Switch Back Panel— 1. Communication Port(optional) 2. Cooling Fan 3. AC Output 4. Modem/Phone Line Surge Protection 5. Circuit Breaker 6. AC Input... -
Page 5: Installation And Operation
Installation and Operation Installing the UPS is as easy as following the steps shown. Be aware of the Power Switch must be kept in the “ON” position, otherwise, the UPS will be disabled and your equipment will not be protected during a power failure. 1. - Page 6 4. Computer Connection Connect one computer-related device into each of the power receptacles supplied on the back of the UPS (maximum of three devices). 5. Modem/Phone line Connection Plug incoming internet line into the “In” socket at the back of the UPS. Use one more Internet line cable and plug one end of the Internet line cable to the “Out”...
- Page 7 6. Serial Cable Connection To allow for unattended system shutdown for your operating system, connect the serial cable as per diagram below. 7. Turn On/Off To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again (When Switch ON T he LED ，...
- Page 8 1).When in normal mode, it will display as below. 2).When in AVR mode, it will display as below. And the mark will flicker every 1second. 3).When in battery mode, it will display as below. And the mark will flicker every 1second. Note: If I/P-V<40V i nput voltage will display “000”...
- Page 9 6).Load level definition: Load LEVEL Load bar Indication 0%~25% 25%~50% 50%~75% 75%~100% 7).Battery capacity definition: Battery LEVEL Battery bar Indication Battery voltage ≤ 1 1 V B attery voltage 1 1 V ≤ ≤ 1 1 . 5 V B attery voltage 1 1 .
- Page 10 Software Installation -- WinPower -- WinPower is brand new UPS monitoring software, which provides user-friendly interface to monitor and control your UPS. This unique software provides safely auto shutdown for multi-computer systems while power failure. With this software, users can monitor and control any UPS on the same LAN no matter how far from the UPS Installation procedure: Go to the website:...
-
Page 11: Troubleshooting
Trouble Shooting Use the table below to solve minor UPS installation or operation problems. If any abnormal situations occur that are not listed above, please call service people immediately. Symptom Possible Cause Remedy No LED display on 1. Missing battery. 1. -
Page 12: Specification
Specification MODEL 1000 1400 2000 CAPACITY VA/W 1000VA/600W 1400VA/840W 2000VA/1200W INPUT Voltage 220, 230, 240VAC Voltage Range 162-290VAC 166-290VAC OUTPUT Voltage 220, 230, 240VAC Voltage Regulation 1 0% ±5% At load <50% ± (Battery Mode) Frequency 50Hz or 60Hz Frequency Regulation +/-1 Hz (Battery Mode)
