Summary of Contents for Telsyco GSM key

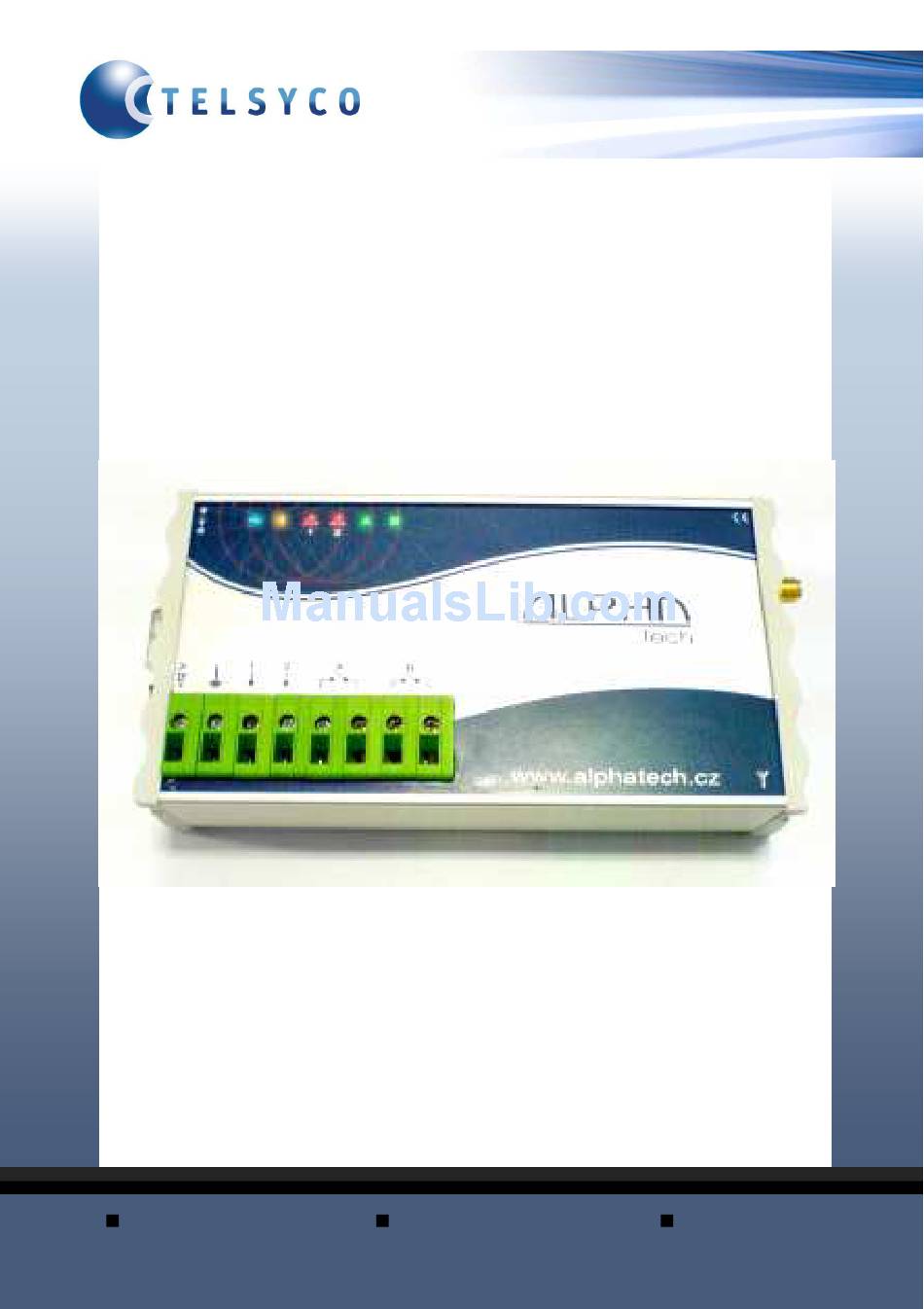

- Page 1 GSM remote control GSM key User manual v 4.0 TELSYCO s.r.o. e-mail: info@telsyco.com www.telsyco.com Prostřední 627/14 tel./fax: +420 241 765 832 141 00 Praha 4 - CZ...
- Page 2 Basic technical parametres: Power supply 9 to 15V ss, 500mA GSM network 900/1800MHz dimension: 145 x 75 x 30 mm Features : o Power supply from distribution net 12V or alternative from main power supply (12V adapter). Also can be used backup battery 12V with charging adapter.
- Page 3 Installation The unit may be installed on DIN ribbon, screw on the wall or put to the shelf. The unit is not designed for installation in high humidity environment. If you want install it in external environment you have to fix it into waterproof box. SIM card setting Insert SIM card to various mobile phone Where you can programm neccessary parametres.
- Page 4 Schematics of feeding with delivered power supply Schematics of feeding with charging power supply and backup 12V ACU...
- Page 5 Schematics of feeding from 12V distribution 12V distr, consumption max 500mA Schematics of Inputs/Outputs Input 1 Output A (against GND) Output B Input 2 (against GND)
- Page 6 Inputs connection examples: Connection with relay contacts, switches, magnetic contact switchers etc. Connection of galvanically isolated switch with optotransistor Outputs connection examples: High power relay (clamper) connection , lightbulb connection (heating, engine etc.). Selftest Input 1 (due relay A) – possibility activate Alarm...
- Page 7 Indication LED Blue LED Lighting – feeding from power supply Flashing – feeding from Backup ACU Yellow LED Short flashing – GSM network search Slow flashing – GSM network ready Fast flashing – SIM card error Red LED Lighting during input activation Green LED Flashing –...
- Page 8 Names and numbers to save on SIM card Name functionality various By ringing activate output A (closing time set in RTIME) ALARM1 - By ringing activate output A (closing time set in RTIME) - By SMS activate output A and B ALARM8 - By SMS control (status, version, IMEI, credit) - During failure on input 1(2) is send SMS from position 2(3)
- Page 9 Command SMS – SMS with other content are refused Command ( SMS) Function response ADMINx,+420cc...c Save or rewrite ADMINx 'OK,credit' number ADMINx, Erase ADMINx number 'OK,credit' ALARMx,+420cc...c Save or rewrite ALARMx 'OK,credit' number ALARMx, Erase ALARMx number 'OK,credit' ARMSMSx,+420c.c Save or rewrite ARMSMSx 'OK,credit' number ARMSMSx,...
- Page 10 (called „X“) , on which we activate permanent divert to number used in GSM Key. To close output B we do not call number in GSM Key but number „X“ – follow is managed by GSM Key and GSM operator.
- Page 11 How you can get further phone number? The best is to manage next SIM card on which you activate permanent divert. However you have further options. The second number on current SIM card ( data number, fax number, second number – depends on GSM operator services and prices). When you want control output B by SMS the second number is not neccessary.
- Page 12 SMS: Parker,+420123456789. Since now Mr. Parker can control your gate as well. After his job is ending you will erase similiary his name from phonebook. Obviously you have the same unit in company( you will not use a few radio controllers??? When all you manage by your mobile phone).
- Page 13 PC programming by configuration sw. Installation and uninstallation of software 2 files (file with end .exe and file with end .ini). From selected language spot on CD copy to choosen ( or created) directory in your PC. During first run programm creates all neccessary files in this directory.
- Page 14 Basic window of the programm Until connection established (max. 30sec) some elements are not active. Save and read phone book Prepared blank phone book Symbol to show searching of unit to establish connection The basic window after connection PC with unit Button to work with SMS Button to work with...
- Page 15 GSM provider GSM signal Number of available strenght where SIM is items in phone book of registrated Program monitors communication microprocessor with GSM module . It shares this communication way to module. Microprocessor works with GSM module in 30 sec. period. It means that program has periodically 30 sec.
- Page 16 Searching start Name searching Number searching Searching next in order Sorting of phone book by alphabetics In phone book you can search items up names (or its part) or up phone number (or its part). Phone book you can save to PC where you can use various text editor to make corrections.
- Page 17 SMS messages work Window to work with SMS is opened after click to SMS button in basic window. Erase all messages from SIM Save written SMS to SIM Reading of all messages from SIM SMS sent when unit start works SMS sent when input 1 is activated SMS sent when...
- Page 18 Servise button – seriál communication monitor It is display complete seriál communication running on seriál bus with GSM modul. It may be saved to file which you can sent for analyse if neccessary.
- Page 19 Entry recording („Evidence of access“) The unit allows recording (when programm is permanently connected to unit) each access (relay closing by ring). It is records date, time and phone number+name like is saved on SIM card. For better searching in recorded data is possible to put different names for relays A and B (for example: Gate, Entry 1, Entry 2 etc...).
- Page 20 Registered company address: TELSYCO, s.r.o. Prostřední 627/14 141 00 Praha 4 Czech Republic VAT: CZ28548302 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 149478 TELSYCO s.r.o. Office: Kyjovská 1983/1 142 00 Praha 4...
