Summary of Contents for Heatwave HWP-1

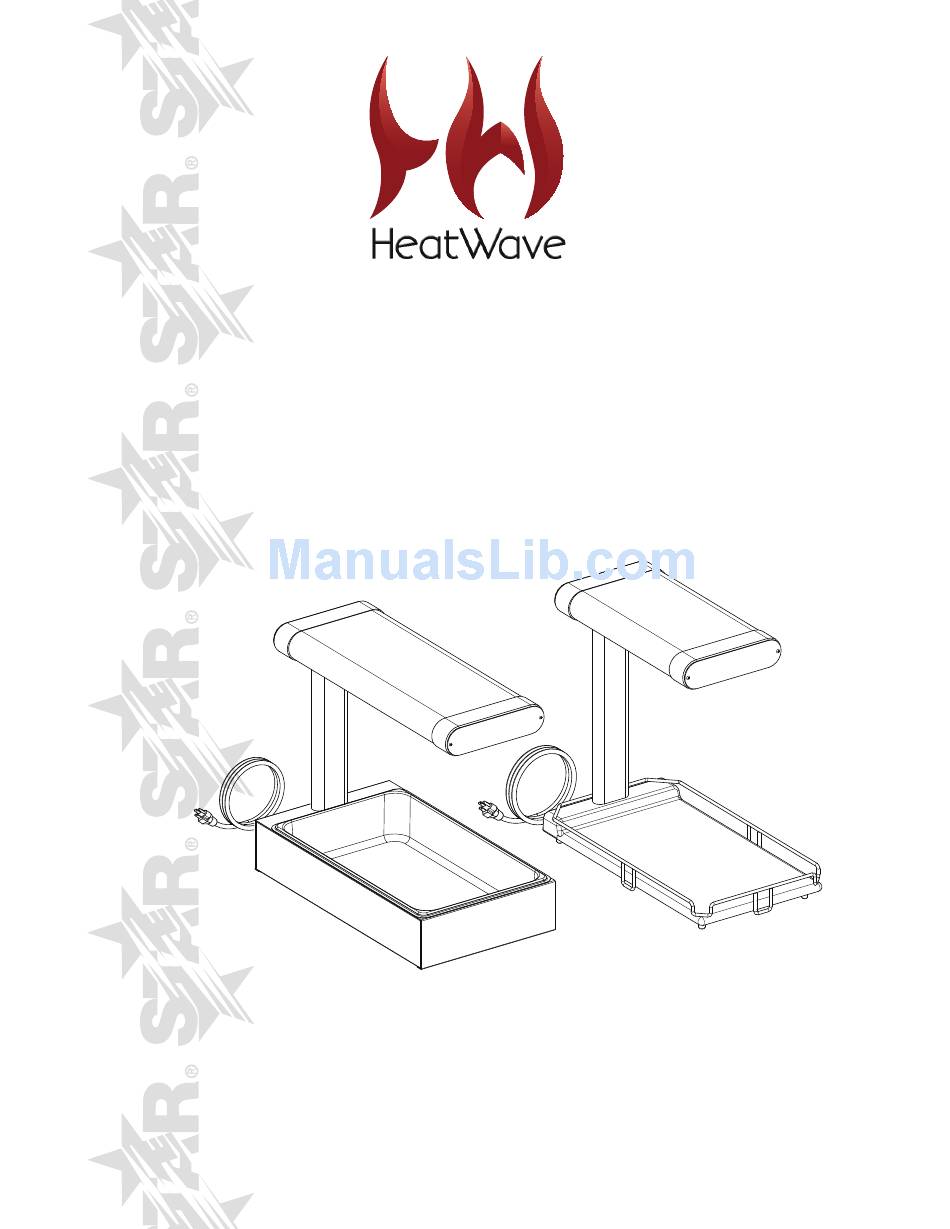

- Page 1 PORTABLE FOOD WARMER MODEL Installation and Operation Instructions 2M-Z14531 Rev. A 8/09/2011 HWP-2C HWP-1...
- Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
- Page 3 HWP: Model Designation C: Ceramic Element 1: Non-Heated Base 2: Heated Base Specifications Size Element Elec. Model Heated Base Light Cord Type Included Supply Width Depth Height HWP-1-120 Cal-Rod 18.75" HWP-2-120 120V 14-3 12.5" 22.75" HWP-1C-120 Ceramic 22.75" HWP-2C-120 HWP-2CL-120...
-
Page 4: Electrical Connection
GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for CAUTION use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... - Page 5 OPERATION Swivel Top (HWP-2C model only) Heated Top (Optional Lighted) Heat Switch Controls Pan Rail Power Cord Base (Optional Base Heat) IL2199 INITIAL START-UP Before using the unit for the first time, wipe down the surface a damp cloth. Take to a well ventilated area and heat without good product for approximately 0 minutes.
- Page 6 ELEMENT BLACK GREEN BLACK BLACK GREEN GREEN WHITE WHITE WHITE PLUG THERMISTAT PLUG PLUG MODEL: HWP-1 MODEL: HWP-2 MODEL: HWP-1C WIRE DIAGRAM, 120V WIRE DIAGRAM, 120V WIRE DIAGRAM, 120V SK2496 03/14/11 SK2499 03/14/11 SK2498 03/14/11 TOP HEATING ELEMENT TOP HEATING...
- Page 7 Description Application 2S-Z13998 BULB SHATTE RESISTANT HWP-2CL 2E-Y5921 SCOKET SPRING CLIP MOUNT HWP-2CL 2N-Z14311 ELEMENT, CAL-ROD HWP-1, HWP-2 2N-Z14312 ELEMENT, CERAMIC HWP-1C, HWP-2C, HWP-2CL REAR PLATE, 1 SWITCH 2E-Z13989 SWITCH- OVAL 2C-Z5883 10-24 X 1/2 FZA SCREW D5-Z14050 BASE COVER PLATE...
- Page 8 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
