AE-Y310 Electronic Thermostat is mainly used in the control of electric heater
or electric floor heating. It has an On/off switch and is suitable to be mounted indoor.
It has also a power indication and a heater output indication. It can be installed
directly on a power box. Function is to control floor temperature.It can be widely used
in families, offices, schools,etc.

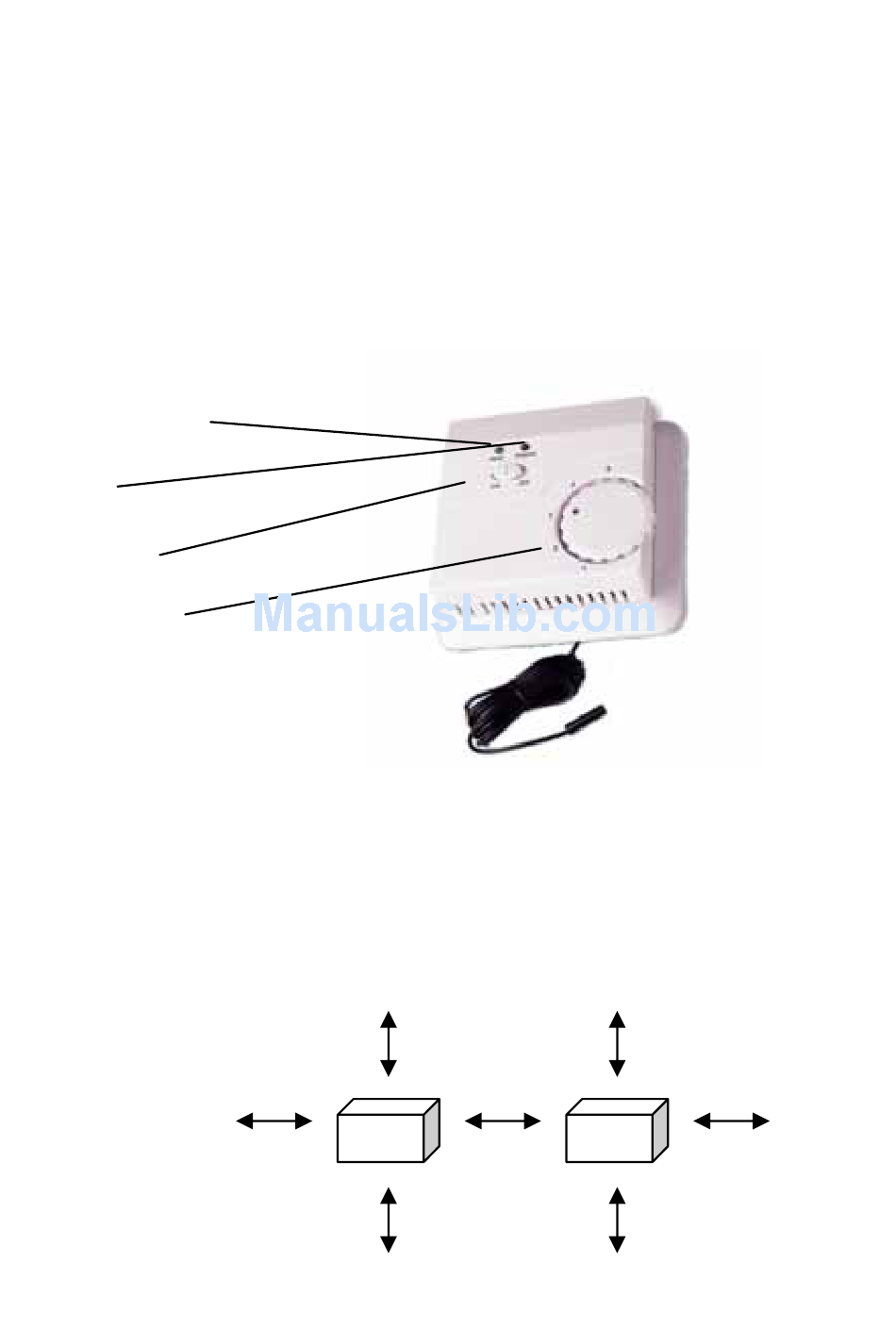

Heater Status indicator
Power indicator
Power Switch
Temperature Setting
Installation Instruction:
1.Slide out the AE-Y310 unit from the panel plate. Fix the panel plate onto a power line
switch box or on the wall.
2.In order to ensure the accuracy of the temperature sensor inside, there should be no
blocking surrounding the unit. The minimum space is indicated as below:
AE-Y310 Simple Installation Type 16A
Electronic Thermostat(3500W)
User Manual and installation Instruction
0.3m
0.3m
0.3m
0.3m
0.3m
0.3m
0.3m
Advertisement
Table of Contents
Summary of Contents for Nanjing Acmelec Electric AE-Y310
- Page 1 Temperature Setting Installation Instruction: 1.Slide out the AE-Y310 unit from the panel plate. Fix the panel plate onto a power line switch box or on the wall. 2.In order to ensure the accuracy of the temperature sensor inside, there should be no blocking surrounding the unit.
- Page 2 3.Connect the AE-Y310 unit with external heater as in the below diagram: 〇 〇 HEATER ● Warning! Beware of electric Shock! Always shut down electric power before installation. 4.Slide the unit back to the panel plate. Check that the unit is firmly fixed onto the panel plate.
