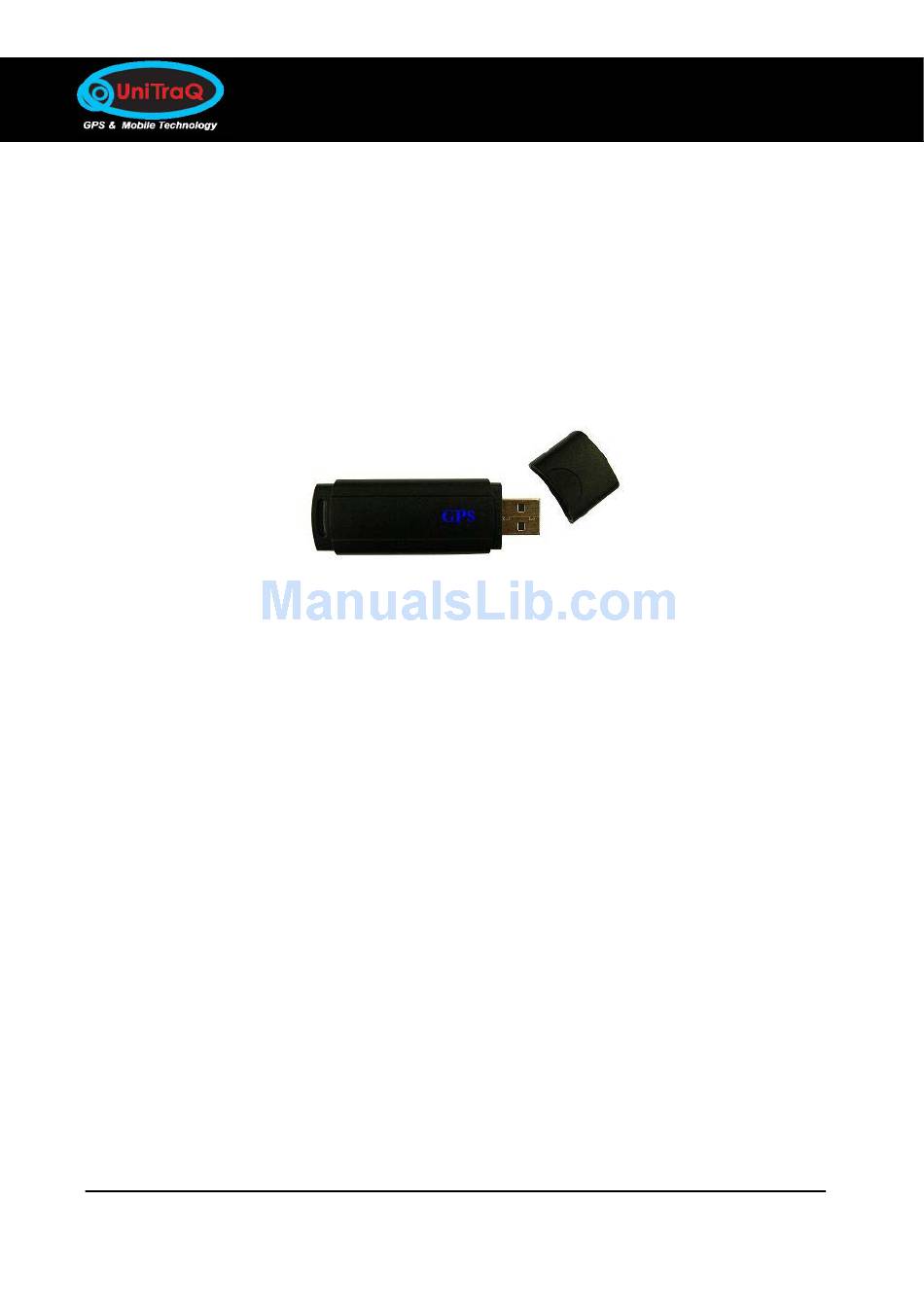

USB Dongle Series Model:UD-731R
USB Dongle Series
Model:UD-731R
User Manual
UniTraQ International Corp. All right reserved, © 2010
2F., No.136, Ziqiang S. Rd., Zhubei City, Hsinchu County 30264, Taiwan (R.O.C.)
TEL：886-3-6578491
FAX：886-3-6578492
MADE IN TAIWAN
UniTraQ International Corp.
RoHS compliance
.
1
2010,08, Version 1.0
Advertisement
Table of Contents
Summary of Contents for UniTraQ UD-731R
- Page 1 USB Dongle Series Model:UD-731R USB Dongle Series Model:UD-731R User Manual UniTraQ International Corp. All right reserved, © 2010 2F., No.136, Ziqiang S. Rd., Zhubei City, Hsinchu County 30264, Taiwan (R.O.C.) TEL：886-3-6578491 FAX：886-3-6578492 MADE IN TAIWAN UniTraQ International Corp. RoHS compliance...
-
Page 2: Table Of Contents
USB Dongle Series Model:UD-731R Contents Introduction ........................3 Package Contents......................3 System Requirements....................... 3 Features ..........................3 Specifications ........................4 5.1 Electronic Characteristics ................... 4 5.2 Physical Characteristics....................5 Getting Started ........................5 LED Status......................5 Software Installation......................6 Overview ......................6 Install USB Driver.................... -
Page 3: Introduction
USB Dongle Series Model:UD-731R 1. Introduction The UD-731R is a GPS USB Dongle and it is optimized for good performance and low cost. Its 44 parallel channels and Venus 5 search bins provide short start-up time and fast signal acquisition. Having fast time-to-first-fix and high sensitivity, the UD-731R offers good navigation performance even in urban canyons. -
Page 4: Specifications
USB Dongle Series Model:UD-731R 5. Specifications 5.1 Electronic Characteristics Parameter Specification Receiver Type 44 channels Re-acquisition sensitivity -155dBm Tracking sensitivity -158dBm Cold start sensitivity -135dBm Receiver frequency 1575.42MHz Code C/A code Accuracy (1) Position 5m CEP (2) Velocity 0.1m/sec Startup Time hot start <... -
Page 5: Physical Characteristics
78.62mm X 24.83mm X 11.15mm Weight 22+-10%g 6. Getting Started There are only a few simple steps that you need to follow before using your UD-731R: Install the USB driver onto your laptop using the included CD-ROM . ... -
Page 6: Software Installation
Using the NMEA data from the GPS receiver, GPSView will display various statuses for evaluating GPS which including latitude, longitude, altitude, speed, azimuth, fix mode and TTFF time. And also can be used to upgrade UniTraQ flash version GPS receiver. - Page 7 USB Dongle Series Model:UD-731R B. Click on Next on the installation welcome dialogue to continue. UniTraQ International Corp. RoHS compliance 2010,08, Version 1.0...
- Page 8 USB Dongle Series Model:UD-731R C. Review the license agreement information, and select I accept to accept the licensing terms, and then click on Next to continue. You may click on Back to go to the previous step, or Cancel to quit.
- Page 9 USB Dongle Series Model:UD-731R E. On the next dialogue, click on Install to start installation CP210X VCP drive. You may click on Back to go to the previous step, and click on Cancel to quit. F. Wait for a few seconds while installation is copying files to your computer. Select Launch the CP210X VCP Driver installer and then click on Finish to complete the laboratories CP210X VCP driver installation.
- Page 10 USB Dongle Series Model:UD-731R G. On the next dialogue, click on Install to start installation CP210X USB to UART bridge driver. If you want to install to a different folder, click on Change install location, and click on Cancel to quit.
-
Page 11: Install Gpsview
USB Dongle Series Model:UD-731R J. Wait for a few seconds while installation is copying files to your computer. Click on Finish to complete the PL2303 USB-to-serial driver installation. 7.3 Install GPSView You need to prepare a PC to install GPSView. The GPSView category depending on your operating system and then please follow the procedure illustrated below to install GPSView. - Page 12 USB Dongle Series Model:UD-731R B. Click on GPS View(XP/VISTA) on the installation welcome dialogue to continue. C. Click on Install to continue. You may click on Cancel to quit. UniTraQ International Corp. RoHS compliance 2010,08, Version 1.0...
- Page 13 USB Dongle Series Model:UD-731R D. Click on OK to complete the installation. E. You can find the icon from StartProgramsUNIGPSAPPgps-view2008.2, or from C:\Program Files\UNIGPS APP\GPSView\gps-view2008.2.exe. Click on the icon to run GPSView in your computer. UniTraQ International Corp. RoHS compliance...
-
Page 14: Install Gpsview Onto Pocket Pc
USB Dongle Series Model:UD-731R 7.3.2 Install GPSView onto Pocket PC A. Link to the following Microsoft web-site for downloading Microsoft ActiveSync. http://www.microsoft.com/windowsmobile/en-us/help/synchronize/activesync45.mspx B. Install Microsoft ActiveSync onto PC. C. Connect cradle to PC, and then the ActiveSync should create access between the PC and pocket PC. - Page 15 USB Dongle Series Model:UD-731R E. Select My Windows Mobile-Based Device on the dialog. F. Determine the desired destination folder you want. In this example, the GPSView will be put on Storage Card. G. Copy GPSViwe-P.exe form CD-ROM to your pocket PC. The GPSViwe-P.exe path is on the CD-ROM...
-
Page 16: Application Software Introduction
USB Dongle Series Model:UD-731R 8. Application Software Introduction 8.1 GPSView Double Click on the gpsview.exe. and Click on the GT-7 Series. Enter the Window below. UniTraQ International Corp. RoHS compliance 2010,08, Version 1.0... - Page 17 USB Dongle Series Model:UD-731R Click on “Auto Scan” or Select “COM PORT” which will connect to UD-731R, then Click on “Start”. It will display the connection status of GPS and NMEA as shown below. Off the GPS connection Series Selection...
-
Page 18: Trouble Shooting
Put GPS receiver inside the car, some of the sun-control film with metal that makes microwave can not be radiate. GPS not fix problem If you see “GPS not fix” message on the screen after you enable the UD-731R GPS receiver, please consider the possible problems below: ... -
Page 19: Gga - Global Positioning System Fix Data
USB Dongle Series Model:UD-731R 10.1 GGA – GLOBAL POSITIONING SYSTEM FIX DATA Time, position and fix related data for a GPS receiver. Structure: $GPGGA,hhmmss.sss,ddmm.mmmm,a,dddmm.mmmm,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx*hh<CR><LF> 5 6 7 8 9 11 12 Example: $GPGGA,060932.448,2447.0959,N,12100.5204,E,1,08,1.1,108.7,M,,,,0000*0E<CR><LF> Field Name Example Description UTC Time 060932.448 UTC of position in hhmmss.sss format, (000000.00 ~... -
Page 20: Gll - Latitude And Longitude, With Time Of Position Fix And Status
USB Dongle Series Model:UD-731R Satellites Used Number of satellites in use, (00 ~ 12) HDOP Horizontal dilution of precision, (00.0 ~ 99.9) Altitude 108.7 mean sea level (geoid), (-9999.9 ~ 17999.9) Geoid Separation Geoid separation in meters according to WGS-84 ellipsoid (-999.9 ~ 9999.9) -
Page 21: Status
USB Dongle Series Model:UD-731R Longitude 14718.5084 Longitude in dddmm.mmmm format Leading zeros transmitted E/W Indicator Longitude hemisphere indicator 'E' = East 'W' = West UTC Time 092204.999 UTC time in hhmmss.sss format (000000.00 ~ 235959.99) Status Status, ‘A’ = Data valid, ‘V’ = Data not valid... -
Page 22: Gsv - Gps Satellite In View
USB Dongle Series Model:UD-731R Field Name Example Description Mode Mode ‘M’ = Manual, forced to operate in 2D or 3D mode ‘A’ = Automatic, allowed to automatically switch 2D/3D Mode Fix type 1 = Fix not available 2 = 2D... -
Page 23: Rmc - Recommanded Minimum Specific Gps/Transit Data
USB Dongle Series Model:UD-731R Field Name Example Description Number of message 3 Total number of GSV messages to be transmitted (1-3) Sequence number Sequence number of current GSV message Satellites in view Total number of satellites in view (00 ~ 12) - Page 24 USB Dongle Series Model:UD-731R ‘N’ = North ‘S’ = South Longitude 14718.5084 Longitude in dddmm.mmmm format Leading zeros transmitted E/W Indicator Longitude hemisphere indicator 'E' = East 'W' = West Speed over ground 000.0 Speed over ground in knots (000.0 ~ 999.9) Course over ground 000.0...
-
Page 25: Vtg - Course Over Ground And Ground Speed
USB Dongle Series Model:UD-731R 10.6 VTG - COURSE OVER GROUND AND GROUND SPEED The Actual course and speed relative to the ground. Structure: GPVTG,x.x,T,x.x,M,x.x,N,x.x,K,a*hh<CR><LF> Example: $GPVTG,89.68,T,,M,0.00,N,0.0,K,A*5F<CR><LF> Field Name Example Description Course 89.68 True course over ground in degrees (000.0 ~ 359.9) Magnetic course over ground in degrees (000.0 ~... -
Page 26: Zda -Time And Data
USB Dongle Series Model:UD-731R 10.7 ZDA -TIME AND DATA Structure: $GPRMC,hhmmss.sss,dd,mm.yyyy, , ,xxx<CR><LF> 4 5 6 7 Example: $GPZDA,104548.04,25,03,2004,,*6C<CR><LF> Field Name Example Description UTC time 104548.04 UTC time in hhmmss.ss format, 000000.00 ~ 235959.99 UTC time: day UTC time: day (01 ... 31) UTC time: month 03 UTC time: month (01 ... - Page 27 © 2010 UniTraQ International Corp. All rights reserved. Not to be reproduced in whole or part for any purpose without written permission of UniTraQ International Corp (“UniTraQ”) Information provided by UniTraQ is believed to be accurate and reliable. These materials are provided by UniTraQ as a service to its customers and may be used for informational purposes only.
