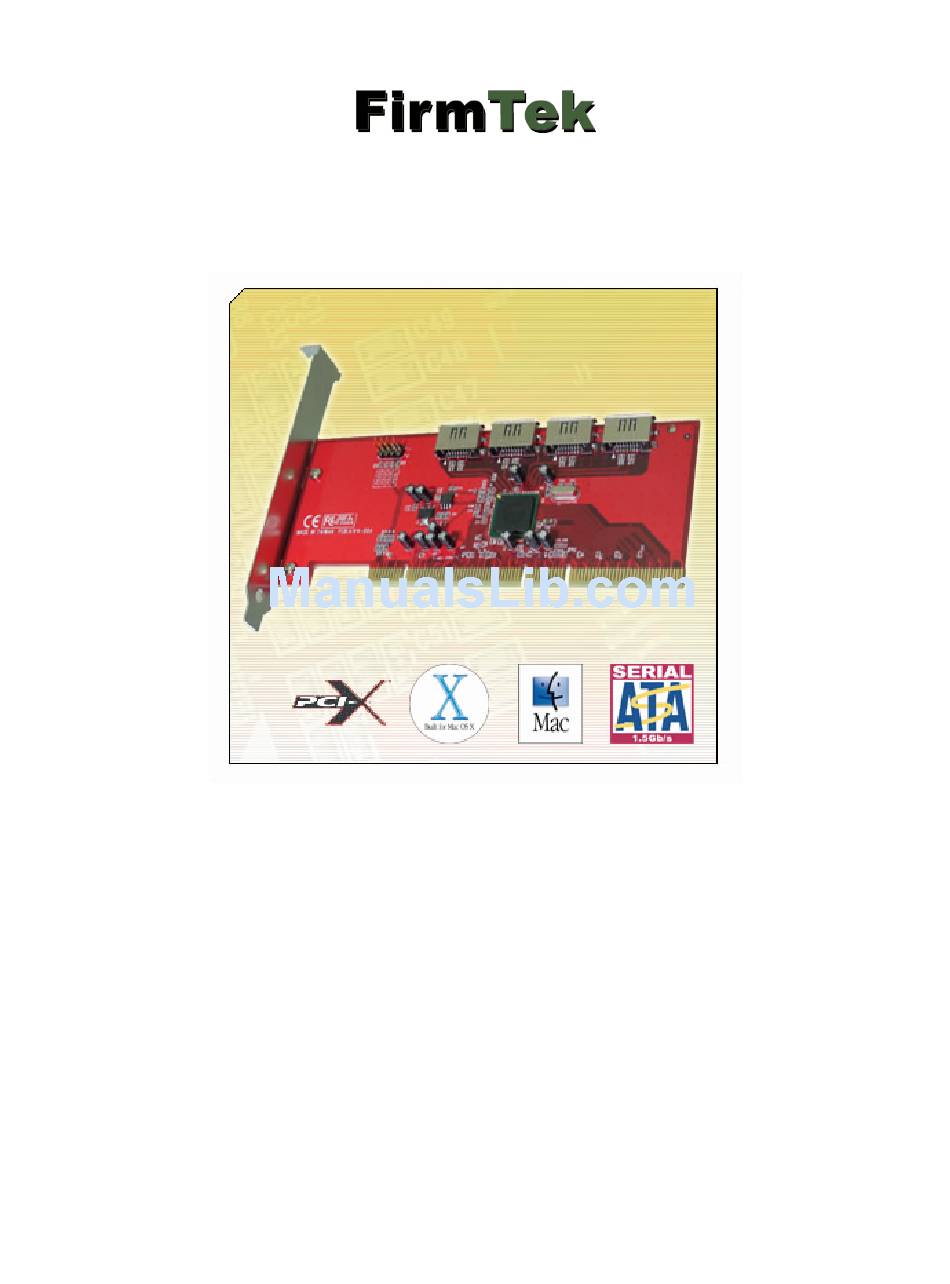

- Page 1 Store and Share your Digital Creations SeriTek /1V4 ™ Four Internal Port Serial ATA PCI-X Host Adapter User Manual for Power Macintosh...
- Page 2 After hardware or software installation, you are responsible for backing up data on any storage devices at frequent intervals. FirmTek, LLC is not liable for any loss of data or damage to equipment resulting from the use of SeriTek/1V4.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction....................1 II. Installing the SeriTek/1V4 ................4 III. Formatting Hard Drives ................5 IV. Troubleshooting ..................14 V. Product Support..................16 VI. Product Warranty and Disclaimers............17 VII. Regulatory Compliance Statements............17... -
Page 4: Introduction
532MB/sec to 1.06GB/sec. PCI-X is also backward-compatible, which allows users to install a PCI-X card such as the SeriTek/1V4 host adapter into a standard PCI slot, allowing the card to match the speed and performance characteristics of the slot it was inserted into. - Page 5 Serial ATA Hard Drive Compatibility Note: Early Hitachi Serial ATA hard drives are incompatible with the SeriTek/1V4 Host Adapter. This is due to a seldom-used Serial ATA feature called SSC, which is enabled on these hard drives.
- Page 6 SeriTek/1V4 Specifications PCI based Power Macintosh with available PCI General System expansion slot PCI-X 1.0a compliant 64-bit at 133/100/ 66MHz bus Hardware Requirements speeds. Backward compatible with standard 32/64- bit PCI at 33MHz and 66MHz bus speeds. Mac OS 9.xx Operating Systems Mac OS X version 10.1.5 or later (works best with...
-
Page 7: Installing The Seritek/1V4
6. Position the PCI card bracket by facing it towards the rear of the computer. Align the gold connectors of the SeriTek/1V4 over the PCI slot and gently press it into the slot until the card is firmly seated. If the card is properly seated, the upper ear of the PCI card bracket should line up with the screw mounting location. -
Page 8: Formatting Hard Drives
11. Attach one end of the Serial ATA data cable to the Serial ATA hard drive or peripheral, and the other end to an open connector on the SeriTek/1V4. Note: If the Serial ATA cable provided has an angled connector on one end, connect this end to the hard disk or peripheral. - Page 9 Figure 1: Finding Apple's Drive Setup Utility...
- Page 10 3. Locate and double click on the Drive Setup “ application program” utility (see Figure 2). Figure 2: Running Apple's Drive Setup Utility...
- Page 11 (See Figure 3). If this is a new, unformatted drive, it may show up as <not initialized>. Note: For ideal performance and compatibility, SeriTek/1V4 uses SCSI emulation which allows your Serial ATA drive to appear as a SCSI drive.
- Page 12 8. Repeat steps 4 through 7 if you wish to format additional hard drives connected to SeriTek/1V4. 9. Select the File pull-down menu within Apple’ s Drive Setup utility and choose Quit to exit the application Formatting Serial ATA Drives Using Macintosh OS X Version 10.1.5 or Later...
- Page 13 Figure 5: Locating Apple’ s Disk Utility Figure 6: Alternate method for locating Apple’ s Disk Utility 3. Review the list of hard drives show within Disk Utility (see Figure 7). Drives currently in use should have a list of volume names below it. New, unformatted drives typically have no volume names listed.
- Page 14 Figure 7: Example hard drive listing 4. After carefully selecting the hard drive you wish to format, select the Erase tab in Apple’ s Disk Utility (see Figure 8). Figure 8: Selecting the Erase tab in Apple’ s Disk Utility 5.
- Page 15 7. If you wish to have your new hard drive be recognized by Mac OS 9.XX, select the Install Mac OS 9 Drivers checkbox. Users who dual-boot both Mac OS 9.XX and Mac OS X 10.2 and later may want to select this option. This will allow the formatted volume to be recognized by both Mac OS versions.
- Page 16 Figure 9: Selecting the RAID tab in Apple’ s Disk Utility 5. Carefully select and drag a hard drive to add as a member of the new RAID volume onto the Disk status window. 6. Repeat step 5 for each member for the RAID volume. 7.
-
Page 17: Troubleshooting
11. After the RAID volume is successfully initialized, it should appear on the desktop. IV. Troubleshooting The SeriTek/1V4 host adapter does not seem to be recognized Check the SeriTek/1V4 adapter by ensuring it is properly seated in the PCI slot on the Macintosh motherboard. My hard drive or peripheral won’ t work Check cables and connections. - Page 18 Figure 12: Selecting Devices and Volumes tab 3. In the PCI section, SeriTek/1V4 should show up as a “ SCSI card” (see Figure 14). Figure 13: Example SeriTek/1V4 depicted in Apple System Profiler 4. If SeriTek/1V4 is not listed, shut down your Macintosh computer and try re-seating it in the PCI slot by removing and reinserting it.
-
Page 19: Product Support
4. If SeriTek/1V4 is not listed, shut down your Macintosh computer and try re-seating it in the PCI slot by removing and reinserting it. Repeat steps 1 through 3. If the SeriTek/1V4 still doesn’ t show up in the Apple System Profiler, try moving it to another PCI slot. -
Page 20: Product Warranty And Disclaimers
VI. Product Warranty and Disclaimers FirmTek warrants to the original buyer only that this product shall be free from defects in material and workmanship for a period of 2 years from the original date of purchase. This warranty is valid only when the original purchase invoice is provided. - Page 21 CE European Union Compliance Statement EMC compliance: Emissions: EN55022: 1998, Class B Immunity: EN55024: 1998 EN61000-4-2: 1995+A1: 1998 EN61000-4-3: 1995+A1: 1998 EN61000-4-4: 1995 EN61000-4-6: 1996 EN61000-4-8: 1993 SeriTek/1V4 TSLKC2KE0126...
