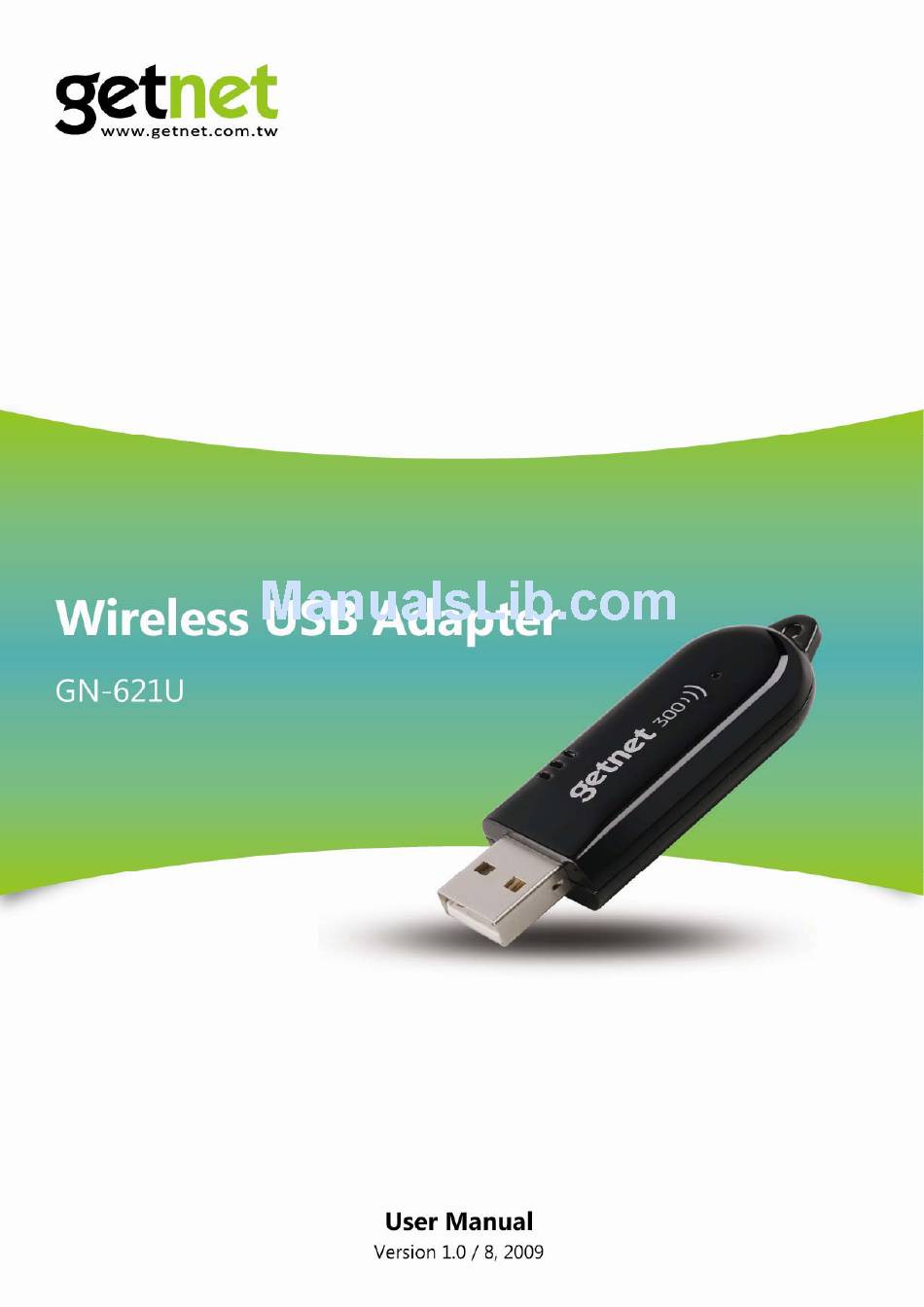

Getnet GN-621U User Manual

Wireless usb adapter
Hide thumbs Also See for GN-621U:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GN-621U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Getnet GN-621U

Summary of Contents for Getnet GN-621U

  • Page 2 QIG. For more detailed information about this product, please refer to the User's Manual on the CD-ROM. The software and specifications are subject to change without notice. Please visit our web site www.getnet.com.tw for the update. All right reserved including all brand and product names mentioned in this...

  • Page 3: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

  • Page 5: Table Of Contents

    CONTENTS INTRODUCTION ................1     1.1  Features ......................... 1  1.2  Specifications ........................ 1  1.3  Package Contents ......................2  INSTALLATION PROCEDURE ............. 3     CONFIGURATION UTILITY ............11     3.1  Utility Overview ......................11  3.2  Available Network ...................... 13  3.3 ...

  • Page 6: Introduction

    1 Introduction Thank you for purchasing this high-speed wireless network card! Excepting common wireless standards 802.11b/g, this wireless network card is also able to access 802.11n wireless networks - data transfer rate is 300Mbps*(Download speed only), and that’s three times faster than 802.11g wireless network! For WLAN security issues, this adapter supports 64/128-bit WEP data encryption that protects your wireless network from eavesdropping.

  • Page 7: Package Contents

    • LEDs: Link/Activity • Transmit Power: 11n: 14±1.5dBm, 11g: 14±1.5dBm, 11b: 17±1.5dBm • Dimension: 10(H) x 19.5(W) x 56(D) mm • Temperature: Operating 32~104°F (0 ~40°C), Storage -13~149°F (-25~65°C) • Humidity: Max. 95% (NonCondensing) • Certification: FCC, CE 1.3 Package Contents Before you begin the installation, please check the items of your package.

  • Page 8: Installation Procedure

    2 Installation Procedure Before you proceed with the installation, please notice following descriptions. Note1: The following installation was operated under Windows XP. (Procedures are similar for Windows 2000/Vista.) Note2: If you have installed the Wireless PC Adapter driver & utility before, please uninstall the old version first.
  • Page 9 B. Select Setup Language and click “OK” to proceed. C. Click “Next” to go to the next step.
  • Page 10 D. Now you’ll see the following message, please click ‘Install’ to begin the installation. E. The system starts to install the driver and utility. F. Click “Finish” to complete the driver and utility installation.
  • Page 11 II. Connect to Wireless Access Point A. To start configuring the adapter, double click the icon in the system tray or right click the icon and select open configuration utility. B. The utility of the adapter is displayed. Click “Available Network” and double-click on the wireless access point you want to connect to.
  • Page 12 C. Input the security setting and click “OK” to start network connection.
  • Page 13 * Use Windows Zero Configuration on Windows Vista: A. For Windows Vista user, you can use Windows Zero Configuration to connect to wireless access point. Click ‘Start’ button, then click ‘Control Panel. Click ‘Network and Internet’ in Control Panel. B. Click ‘Connect to a network’ under ‘Network and Sharing Center’...
  • Page 14 C. Click the access point you want to use if it’s shown, then click ‘Connect’. D. If it’s an unnamed access point (i.e. the SSID of this wireless access point is hidden), you’ll be prompted to input it’s name, and the name must be identical to the SSID setting of the wireless access point you’re connecting to.
  • Page 15 E. If the access point is protected by encryption method, you have to input its security or passphrase here. It must match the encryption setting on the access point. F. If you can see this image, the connection between your computer and wireless access point is successfully established.

  • Page 16: Configuration Utility

    3 Configuration Utility The Configuration Utility is a powerful application that helps you configure the Wireless LAN Mini USB Adapter and monitor the link status and the statistics during the communication process. The Configuration Utility appears as an icon on the system tray and desktop of Windows. You can open it by double-click on the icon.
  • Page 17 Parameter Description Refresh – Refresh adapter list in the “B“ block. Mode – There are two modes: Station and Access Point. If “Station“ is selected, the adapter works as a wireless adapter. If “Access Point“ is selected, the adapter will works as a wireless AP. View –...

  • Page 18: Available Network

    Available Network When you open the Configuration Utility, the system will scan all the channels to find all the access points/stations within the accessible range of your adapter and automatically connect to the wireless network with the highest signal strength. From the “Available Network” tab, all the networks nearby will be listed.

  • Page 19: General

    General To check the connection status of the adapter, select “General“. This screen shows the information of Link Speed, Network Type, Encryption Method, SSID, Signal Strength, Link Quality and Network Address of the adapter. Parameter Description Status It will show the connection status of the adapter. Speed It shows the current speed Type...

  • Page 20: Profile

    SSID The SSID (up to 32 printable ASCII characters) is the unique name identified in a WLAN. The ID prevents the unintentional merging of two co-located WLANs. Signal Strength It indicates the wireless signal strength. Link Quality It indicates the wireless link quality. Network Address It shows the MAC, IP address and other information of the adapter.

  • Page 21: Configure The Profile

    Duplicate If you like to build up the new profile with the same settings as the current profile, then you can select this feature. Set Default To designate a profile as the default network for the connection from the available profiles list, click the button. 3.4.1 Configure the Profile Parameter...
  • Page 22 Ad Hoc – Connect to another wireless adapter in the Wireless LAN network without through an Access Point or Router. If this item is selected, the adapter will work in Ad Hoc mode. Channel This setting is only available for Ad Hoc mode. Select the number of the radio channel used for the networking.
  • Page 23 WPA2 provides data encryption via the AES. In contrast, WPA uses Temporal Key Integrity Protocol (TKIP). WEP 802.1X – It’s a special mode for using IEEE 802.1x/EAP technology for authentication and WEP keys for data encryption. Parameter Description Data Encryption Disabled –...
  • Page 24 Key Index (advanced) Select one of the four keys to be the data encryption key. Network Key Please enter network security key here to make sure the password is correct. Parameter Description Confirm Network Key Please enter network security key here again. EAP Type GTC –...

  • Page 25: Status

    Status This screen shows the information of manufacturer, driver version, settings of the wireless network the adapter is connecting to, linking time and link status. If you don’t ensure the status of the adapter and the network you are connecting, please go to the screen for more details. Statistics You can get the real time information about the packet transmission and receiving status during wireless communication from the screen.

  • Page 26: Wi-Fi Protect Setup (Wps)

    Wi-Fi Protect Setup (WPS) Wi-Fi Protected Setup (WPS) is the latest wireless network technology which makes wireless network setup become very simple. If you have WPS-enabled wireless access point, and you want to establish a secure connection to it, you don’t have to configure the wireless access point and setup data encryption by yourself.
  • Page 27 3. If you click ‘Yes’, and the following message will appear on your computer, please select the SSID of wireless access point that you wish to connect and click ‘Select’. 4. Please wait while the install procedure is running and wait for few seconds to two minutes. If a wireless access point with correct PIN code is found, you’ll be connected to that access point.
  • Page 28 Push Button Config (PBC) 1. Start PBC pairing procedure at access point side (please refer to the instruction given by your access point’s manufacturer), then click ‘PBC’ button in wireless configuration utility to start to establish wireless connection by WPS. Please be patient (This may require several seconds to one minute to complete).

  • Page 29: Software Ap

    Software AP This adapter can run as a wireless AP. The relative configurations of the AP including channel, SSID, WEP encryption and so on are described as follows. Parameter Description SSID The SSID (up to 32 printable ASCII characters) is the unique name identified in a WLAN.

  • Page 30: Ap Properties Setting

    3.8.1 AP Properties Setting Please refer to Section 3.4.1 for the setting of the parameters for AP. Note that Ad Hoc mode is not enabled for AP. 3.8.2 AP Advanced...

  • Page 31: Ap Statistics

    Parameter Description Beacon Interval Beacon Interval that specifies the duration between beacon packets (milliseconds). The range for the beacon period is between 20-1000 milliseconds with a typical value of 100. DTIM Period Determines the interval the Access Point will send its broadcast traffic.

  • Page 32: Softap

    3.8.4 If you want to connect to the internet through this SoftAP, you will need to make a bridge between our SoftAP and your internet connect. Select the internet connection in your SoftAP host machine and press the “Apply” button.

  • Page 33: Troubleshooting

    4 Troubleshooting This chapter provides solutions to problems usually encountered during the installation and operation of the adapter. 1. What is the IEEE 802.11g standard? 802.11g is the new IEEE standard for high-speed wireless LAN communications that provides for up to 54 Mbps data rate in the 2.4 GHz band. 802.11g is quickly becoming the next mainstream wireless LAN technology for the home, office and public networks.
  • Page 34 6. What is BSS ID？ A specific Ad hoc LAN is called a Basic Service Set (BSS). Computers in a BSS must be configured with the same BSS ID. 7. What is WEP？ WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40 bit shared key algorithm, as described in the IEEE 802 .11 standard.
  • Page 35 13. What is Spread Spectrum？ Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communication systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast.
