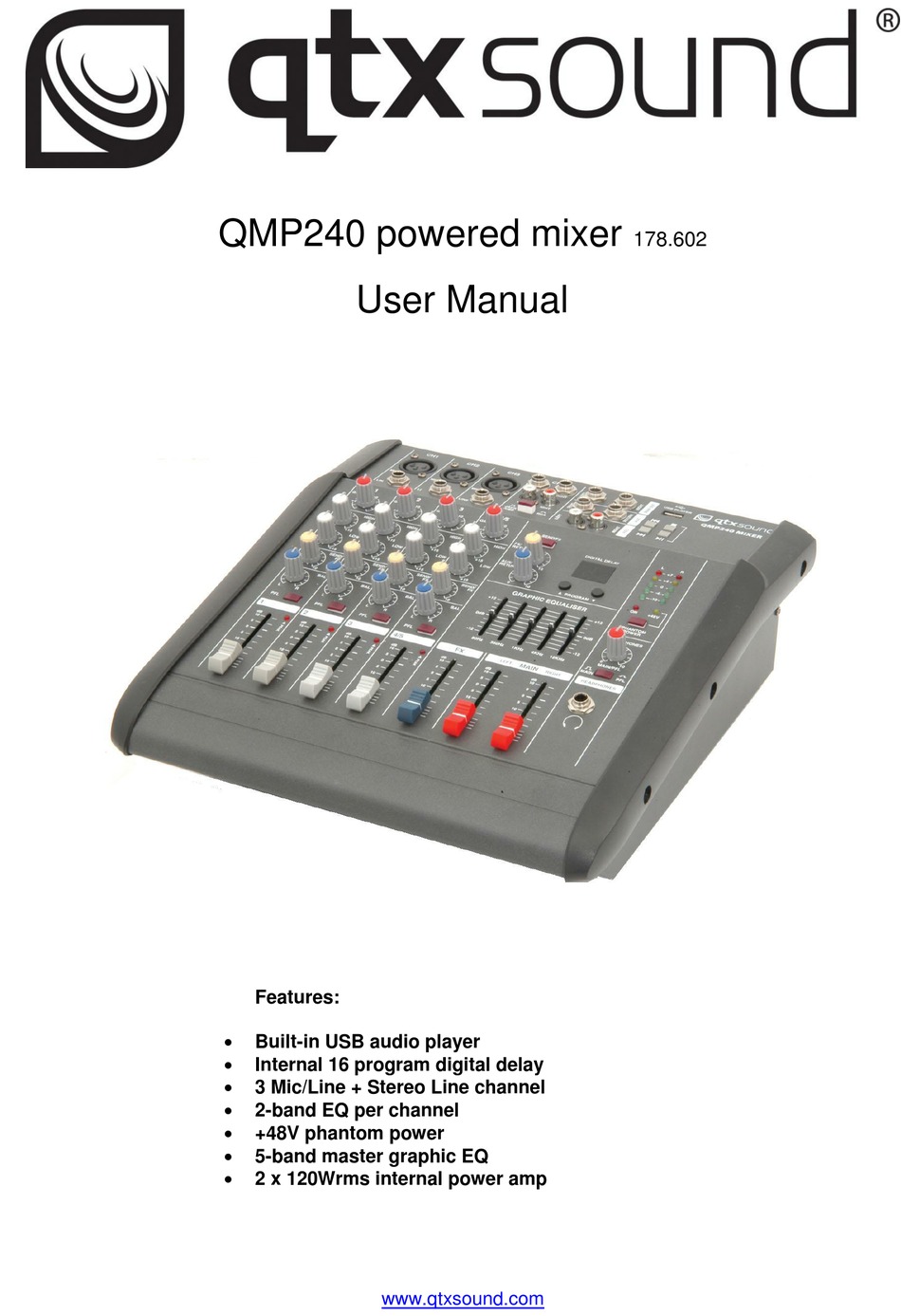

- Page 1 QMP240 powered mixer 178.602 User Manual Features: Built-in USB audio player Internal 16 program digital delay 3 Mic/Line + Stereo Line channel 2-band EQ per channel +48V phantom power 5-band master graphic EQ ...
-
Page 2: Channel Strip
Introduction: Thank you for choosing this QTX Sound QMP240 powered mixer. This product has been designed to offer reliable, sound reproduction for small to medium PA systems. In order to gain the best results from this equipment and avoid damage through misuse, please read and follow these instructions and retain for future reference. -
Page 3: Master Section
Master Section MAIN output L+R 6.3mm jack AUX SEND + RETURN 6.3mm jack REC output L+R RCA DIGITAL DELAY – Program up/down buttons & display FX/PARAMETER - delay regeneration adjustment AUX RETURN level control 5-band master EQ FX level fader MAIN LEFT + RIGHT faders USB connector for pen drive USB player transport controls... - Page 4 With all faders down, connect the supplied mains lead to the mains supply and IEC inlet (ensure correct supply voltage). Switch POWER on and the “ON” LED will illuminate (if phantom power is selected, the “+48V” LED should light also) Checking Set all HIGH, LOW, PAN and BAL controls to the mid position (12o’clock) and SEND/FX controls to zero.
-
Page 5: Specifications
Reduce channel GAIN level and EQ level(s) Feedback (loud squealing or howling from mics) Reduce AUX / EFFECT levels Reduce channel and/or MAIN fader levels Note: for further troubleshooting, refer equipment to qualified service personnel for testing © QTX Sound 2011...
