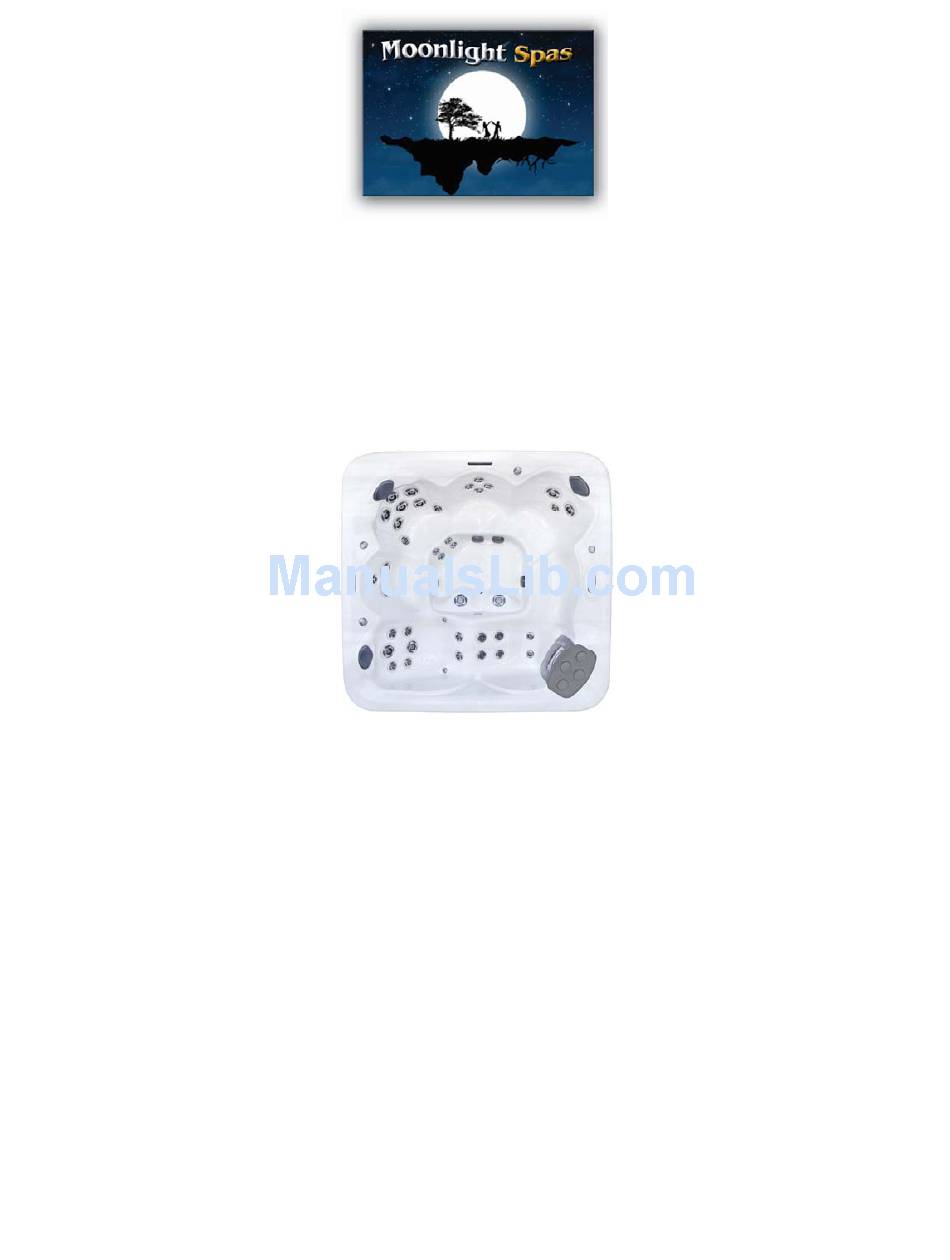

HOT TUB OWNER'S MANUAL
MODELS:
ML 736
(1301ML)
ML 844
(1302ML)
Premium Leisure, LLC
6101 45
th
St. Petersburg, FL 33714
727.573.9611
Part Number 7302
Revised 09/2013
St. N.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML 736 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moonlight spas ML 736

  • Page 1 HOT TUB OWNER’S MANUAL MODELS: ML 736 (1301ML) ML 844 (1302ML) Premium Leisure, LLC 6101 45 St. N. St. Petersburg, FL 33714 727.573.9611 Part Number 7302 Revised 09/2013...
  • Page 2 Owner’s Information Dealer: Date Purchased: __________________________ Company: __________________________ Address: __________________________ Telephone: __________________________ Installer: Date Installed: __________________________ Company: __________________________ Address: __________________________ Telephone: __________________________ Hot Tub: Date Delivered: __________________________ Model: __________________________ Color: __________________________ Serial Number: __________________________ Your unique hot tub serial number is located on a data plate outside the cabinet at ground level directly below the topside control panel.

  • Page 3: Table Of Contents

    Specifications ..................38   Important: Moonlight Spas is dedicated to offering you the best in customer satisfaction and service. Be sure to read, complete, sign, and send in the limited warranty card within 30 days of purchase to ensure you understand what you are entitled to in terms of service.

  • Page 4: Introduction

    I n t r o d u c t i o n ™ Your choice of a Moonlight Spas hot tub indicates that you are devoted to excellence. The management and staff appreciate your patronage and takes pride in the tradition of quality hot tubs that our company represents.

  • Page 5: Important Safety Information

    I m p o r t a n t S a f e t y I n f o r m a t i o n IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS Your physiological response to hot water depends on subjective factors such as age, health, pregnant women, temperature sensitivities, chemical sensitivities, and medical history.
  • Page 6 Warnings TO REDUCE THE RISK OF INJURY:  The water in a spa should never exceed 40˚C (104˚F). Water temperatures between 38˚C (100˚F) and 40˚C (104˚F) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.

  • Page 7: Save These Instructions

    Warning Sign Warning Sign Must Be Posted – The red WARNING sign like the one shown is packed with your new hot tub. This sign must be posted in a prominent place in close proximity to the hot tub installation site immediately upon completion of hot tub installation.
  • Page 8  Persons under the influence of medication, drugs, or alcohol should not be allowed into your tub.  Remove all jewelry, metal, and watches from your person before entering your hot tub.  Do not allow children to use your hot tub without continuous supervision of an adult.

  • Page 9: Site Selection And Installation

    S i t e S e l e c t i o n a n d I n s t a l l a t i o n Proper planning is an important consideration when installing your new tub. Site selection is a critical step and requires serious thought. Planning ahead makes the installation process easier.
  • Page 10 The following dimensions can be used to determine the proper location of submerged conduits in concrete slab installations. All dimensions are made from the outside of the hot tub’s frame with the access panels removed. The topside control panel is shown at bottom of diagram for reference. Figure 2 –...
  • Page 11 Electrical Specifications Important – Qualified and licensed electricians must perform all electrical hookups. The following specifications must be followed in order to ensure proper performance and safety. WARNING: Starting an incorrectly wired hot tub could cause severe damage to the mechanical equipment or even bodily harm. Have your licensed electrician verify GFCI (or RCD) wiring with the diagrams on pages 10-18 prior to starting the hot tub or call the technical support line at 727.573.9611.
  • Page 12 Parts with extra low voltage not exceeding 12v must be inaccessible to a person in the hot tub. Earthed appliances must be permanently connected to fixed wiring. Parts incorporating electrical components, except remote control devices, must be located or fixed so that they cannot fall into the hot tub. Means for disconnection must be used in fixed wiring in accordance with wiring rules.
  • Page 13 Figure 5 – U.S. and Canada Wiring Diagram See wire size chart on page 9. Page 11 For HELP, call 727.573.9611...
  • Page 14 Figure 6 – European 1x32A Wiring Diagram All wiring is 3x4 mm , solid copper See wire size chart on page 9. Note: Make sure that the DIP switches in the hot tub Pack are properly set for 50Hz operation and Jumper A is in place. Page 12 For HELP, call 727.573.9611...
  • Page 15 Figure 7 – European 2x16A Wiring Diagram All wiring is 5x 1.5 mm , solid copper See wire size chart on page 9. Note: Make sure that the DIP switches in the hot tub Pack are properly set for 50Hz operation and Jumper A is removed. Page 13 For HELP, call 727.573.9611...
  • Page 16 Figure –Wiring Diagram for All Domestic Models. See wire size chart on page 9. Page 14 For HELP, call 727.573.9611...
  • Page 17 Figure 8 – Board Diagram Single-phase 240V Domestic version Figure 9 – Panel Button Positions for Models Single-phase 240V Domestic version Page 15 For HELP, call 727.573.9611...
  • Page 18 Page 16 For HELP, call 727.573.9611...
  • Page 19 Figure 12 – GS510SZ Board Diagram for All EXPORT Models Page 17 For HELP, call 727.573.9611...
  • Page 20 Figure 13 – Board Diagram and Panel Positions for all EXPORT Models Figure 14 – Panel Button Positions for export models. Page 18 For HELP, call 727.573.9611...

  • Page 21: Startup

    S t a r t u p Important – Read these step-by-step startup procedures before starting your hot tub. Failure to follow any of these steps listed may result in damage to the equipment and may void your warranty. Note: If you are unsure of any of the above startup procedures, please call our customer care center, at 727.573.9611.
  • Page 22 Before Adding Water Before adding water, go through these simple steps now to prevent common issues when setting up your hot tub for the first time. Verify that the following have all been rechecked. Turn off all power to the hot tub at the main breaker panel.
  • Page 23 Filling Your Hot Tub Now it's time to fill your hot tub with water. Do not turn on the electricity yet until the hot tub is completely filled. To properly fill your tub: Make sure that the filters (in the filtration canister) are gently screwed into place.
  • Page 24 Turn on the breaker and test the operation of the Ground-Fault Circuit Interrupter (GFCI) breaker by pushing the small button. This should automatically trip the hot tub's circuit breaker. DANGER: If this breaker does not trip, immediately call your electrician. Do not use your hot tub! Only if pushing this button successfully trips this circuit breaker should you reset this breaker and proceed to the next step.

  • Page 25: Water Balancing

    W a t e r B a l a n c i n g Note: Perform water balancing weekly and whenever your water is changed (or when the hot tub is first filled) to assure proper water condition. Once your hot tub reaches 95ºF, use our Bromine Test Strips (not included) and add the necessary chemicals (not included) to stabilize your water chemistry.

  • Page 26: Topside Control

    T o p s i d e C o n t r o l Programming Instructions VL600S Figure 20 – Topside Callouts for VL600S Controls Initial Start Up When your hot tub is first actuated, it will go into Priming mode, indicated by “Pr.” The priming mode will last for less than five minutes.
  • Page 27 15 minutes and the low speed of Pump 1 automatically will turn off after 4 hours. The low speed of Pump 1 runs when the “AUX” Blower (if equipped) is on. It may also active for at least two minutes every half hour to detect the hot tub temperature and then to heat to the set temperature if needed (depending on mode).
  • Page 28 If the system (sensor located inside heater) detects ambient conditions below 44ºF/6.7ºC, it automatically enters the Smart Winter Mode for period of four minutes after it detects the hot tub temperature has risen to 45ºF/7.2ºC. Programming Summary Figure 21 – VL600S Programming Summary Page 26 For HELP, call 727.573.9611...

  • Page 29: Cover

    C o v e r Place the insulated cover on your hot tub. Keeping the cover in place anytime the hot tub is not in use reduces the heating time and minimizes operating costs. The time required for initial heat-up varies depending on the starting water temperature, ambient temperature, and the capacity of your hot tub.

  • Page 30: Frequently Asked Questions

    Who are the service companies in my area? Moonlight Spas contracts with several service companies in your area to ensure the best possible response time. Our customers are guaranteed to receive service response priority. If you encounter a matter that can’t be easily resolved over the phone, a local technician can be dispatched to your home.
  • Page 31 What happens when my warranty expires? Moonlight Spas will continue to provide service for your hot tub after your warranty has expired via our customer care center at 727.573.9611. Where can I get more Chemicals or other accessories? Visit www.hottubparts.com or call 877.530.PARTS.
  • Page 32 What is the shell made of? We use Lucite® Cast Acrylic with Microban® Antimicrobial Protection for most of our hot tub shells. Microban antimicrobial product protection is built-in to Lucite acrylic during the manufacturing process to help prevent the growth of stain causing bacteria on the surface of the hot tub.

  • Page 33: Troubleshooting

    T r o u b l e s h o o t i n g If a problem arises, you can check this list for a quick solution. If this does not resolve your problem, please call our customer care center, at 727.573.9611. Additional information is also available at www.PremiumLeisure.com.
  • Page 34 PROBLEM CAUSE SOLUTION Water does Air lock Bleed air from the system (page 28) not flow Closed jets Open all jets by turning counterclockwise ACV open Close air control valves Water too hot High set Turn down set temperature on topside temperature control panel High ambient...
  • Page 35 MESSAGE MEANING ACTION REQUIRED Sensor A is not Check the sensor "A" plug connection to working correctly. circuit board. The problem may appear Hot tub is shut temporarily in an overheat situation and down. disappear when the heater cools. If the problem persists, contact service.

  • Page 36: Maintenance And Care

    MESSAGE MEANING ACTION REQUIRED - - C Temperature After the pump runs for two minutes, the unknown temperature displays - - - Temperature not The hot tub is in either Economy or Sleep current modes and the pump has not run for a while. To view the current temperature, switch to Standard mode or operate Jets 1 for at least one minute.
  • Page 37 Draining and Refilling Figure 25 - Drain Operation Turn off the GFCI breaker. Remove hot tub cover and allow water to cool down. Select a safe, suitable drainage area capable of safely assimilating 300 plus gallons of water that may contain unsanitary contaminants and chemical residue that could cause harm to plants or grass.
  • Page 38 Shutdown / Winterizing Your Moonlight Spas hot tub is designed to operate year round. If you plan to leave your hot tub unused for long periods of time in severely cold weather, you should winterize your hot tub to avoid accidental freezing due to a power or equipment failure.

  • Page 39: Specifications

    Water Management Our chemical water purification system is a perfect match for your hot tub. Depending on usage, the water in your hot tub should be changed every 1-3 months. Upon each change of water it is a good practice to wipe down the hot tub.
  • Page 40 ML 736 (Model 1301) Specifications* Dimensions 83.5”L x 83.5”W x 35”D 212cm x 212cm x 89cm Seats Water Jets Air Jets Water Capacity 310 USG /1,173 L Dry Weight 640 Lbs./380 Kg Filled Weight 3,427 Lbs./1,554 Kg Electrical 230VAC 48A 60Hz GFCI * Specifications are subject to change without notice.
  • Page 41 ML 736 Callouts Page 39 For HELP, call 727.573.9611...
  • Page 42 ML 844 (Model 1302) Specifications* Dimensions 90.5”L x 90.5”W x 35”D 230cm x 230cm x 89cm Seats 6 (1 Lounger) Water Jets Air Jets Water Capacity 375 USG /1,420 L Dry Weight 900 Lbs./408 Kg Filled Weight 4,030 Lbs./1,828 Kg Electrical 230VAC 48A 60Hz GFCI...
  • Page 43 ML 844 Callouts Page 41 For HELP, call 727.573.9611...
  • Page 44 N o t e s Page 42 For HELP, call 727.573.9611...
  • Page 45 L i m i t e d W a r r a n t y Premium Leisure, LLC (“Premium Leisure”) provides a limited Warranty for the Moonlight Spa (the “Spa”) in accordance with the time periods and  other terms and conditions described below (the “Warranty”).  If you have any questions regarding Warranty issues, please contact us.    Structural and Manifold Plumbing Parts (Lifetime):  Premium Leisure warrants the Spa’s shell structure against the loss of water through the  fiberglass  laminate of the shell  caused  by  defects  in materials  and  workmanship.  Premium  Leisure  also warrants  that  the  plumbing  manifold  system (i.e. manifold, fittings and related parts) will be free from defects in materials and workmanship.  The Warranty for these components  covers only parts and extends for as long as the original purchaser owns the Spa.  In the event the Spa is not owned by the original purchaser, the  Warranty for these components is limited to one (1) years from the original purchaser’s date of purchase.    Spa Surface (Five (5) years, pro‐rated):  Premium Leisure warrants the Spa’s interior acrylic spa surface against blisters, cracks, or delaminating  resulting from a defect in materials or workmanship of the acrylic surface material for a period of five (5) years from the original date of purchase.   The Warranty for the acrylic spa surface covers both parts and labor, and is pro‐rated based on the following formula:  Suggested retail price  divided by months covered (60), multiplied by months owned plus shipping = replacement cost.     Major Spa Components (One (1) years):  Premium Leisure warrants the Spa’s major electrical equipment (electrical system, Spa controls and ...
  • Page 46 6101 45 St. N. St. Petersburg, FL 33714 727.573.9611...
