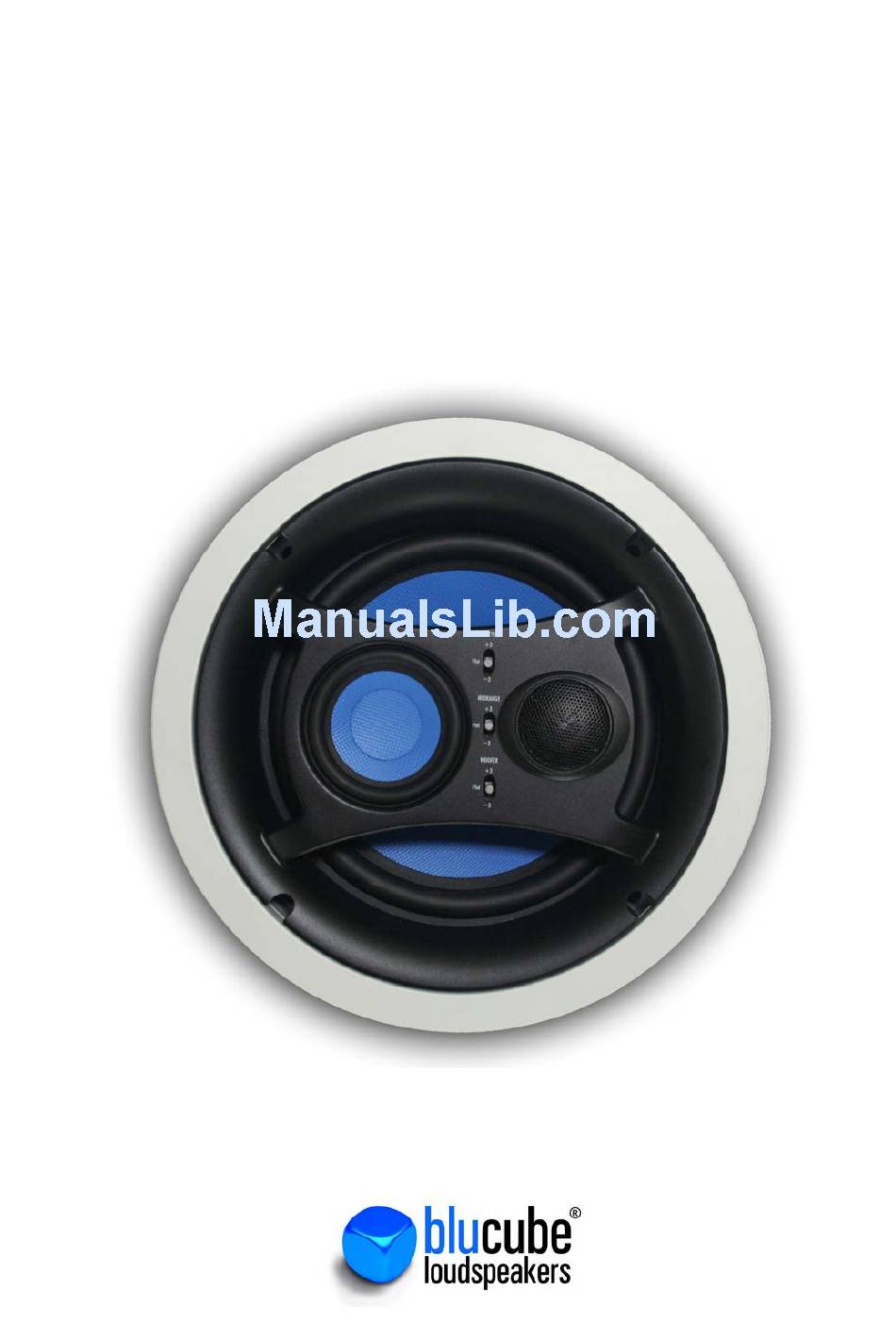

- Page 1 ® BluCube CXC Series Circular, flush-mount, in-wall/in-ceiling loudspeakers Owner’s Manual & Installation Guide CXC‐650 CXC‐800‐3 CXC‐650‐S www.blucubespeakers.co.uk ...
-
Page 2: Important Safety Information
Your BluCube flush-mount loudspeakers are designed to blend into your home interior while providing superior sound quality. At BluCube we continuously strive to improve our products and it is for this reason that we reserve the right to change product specifications without notice. The information concerning product specifications and instructions in this manual do not necessarily set forth all technical or other specifications of BluCube products. - Page 3 • Paint Mask: BluCube loudspeakers come with a paint mask to allow the installer to protect the surface of the tweeter and the woofer cone while (optionally) painting the surrounding speaker baffle.
-
Page 4: Speaker Placement
Installation Guide Stereo Sound Layout It is BluCube’s aim to continuously improve our products. We therefore reserve the right to change product specifications without notice. The Right Left information concerning product specifications in this manual do not Channel Channel necessarily set forth all technical or other specifications of BluCube products. - Page 5 BluCube directly before commencing installation. As an example, a typical amplifier may specify an operational acceptable impedance range of 4 to 8 ohms. If you connect two pairs of BluCube Loudspeakers (set to 8 ohm impedance on the circuit board) in parallel, the impedance you will present to the amplifier is 4 ohms.
- Page 6 0.56 0.67 Running Speaker wires Each BluCube loudspeaker will require a separate two-core speaker cable run from the speaker to the chosen location of your amplifier. In the case of the CXC-650-S (a single-stereo loudspeaker incorporating both left and right channels) you must treat this as a pair and run two 2-core speaker cables from the speaker to the amplifier.
- Page 7 Music System) will greatly assist the installation of flush-mount speakers in homes where construction is already completed. For instance, if you are wishing to install your BluCube loudspeakers in upstairs rooms, consider whether the attic space is a suitable location for your amplifier.
- Page 8 The first step in installing flush-mount loudspeakers in a pre-existing construction is to establish the location of the ceiling joists or wall studs. You may be able to do this by lifting upstairs floorboards or stud finding tools. If not, you may need to make pilot holes and a probe but recognise this may entail making good afterwards.
- Page 9 If your speakers are widely separated and the music fails to blend into a central image when the system is operated in stereo mode, you should orientate the tweeters toward the listening area. If you are using your BluCube loudspeakers in a home theatre environment, you can point the ...
- Page 10 BluCube® CX‐Series Specifications CXC-650 6.5” 2-Way Circular Flush-Mount speaker Woofer: 6.5” woven Kevlar cone, rubber surround, 22oz magnet, bumped back plate, 1” voice coil, vented pole piece Tweeter: 1” Titanium Dome Tweeter, Ferro-fluid cooled, Neodymium magnet, 30° swivel & pivot Crossover:...
-
Page 11: Warranty
Your authorised BluCube dealer will inspect the product and, if your dealer is not equipped to perform the repair of your BluCube product, they will replace your product or return it to BluCube for repair, at their discretion. Proof of purchase in the form of a receipted invoice, which is evidence that this product is within the warranty period, must be presented to obtain warranty service.
