Summary of Contents for AV TOOL VTB-108

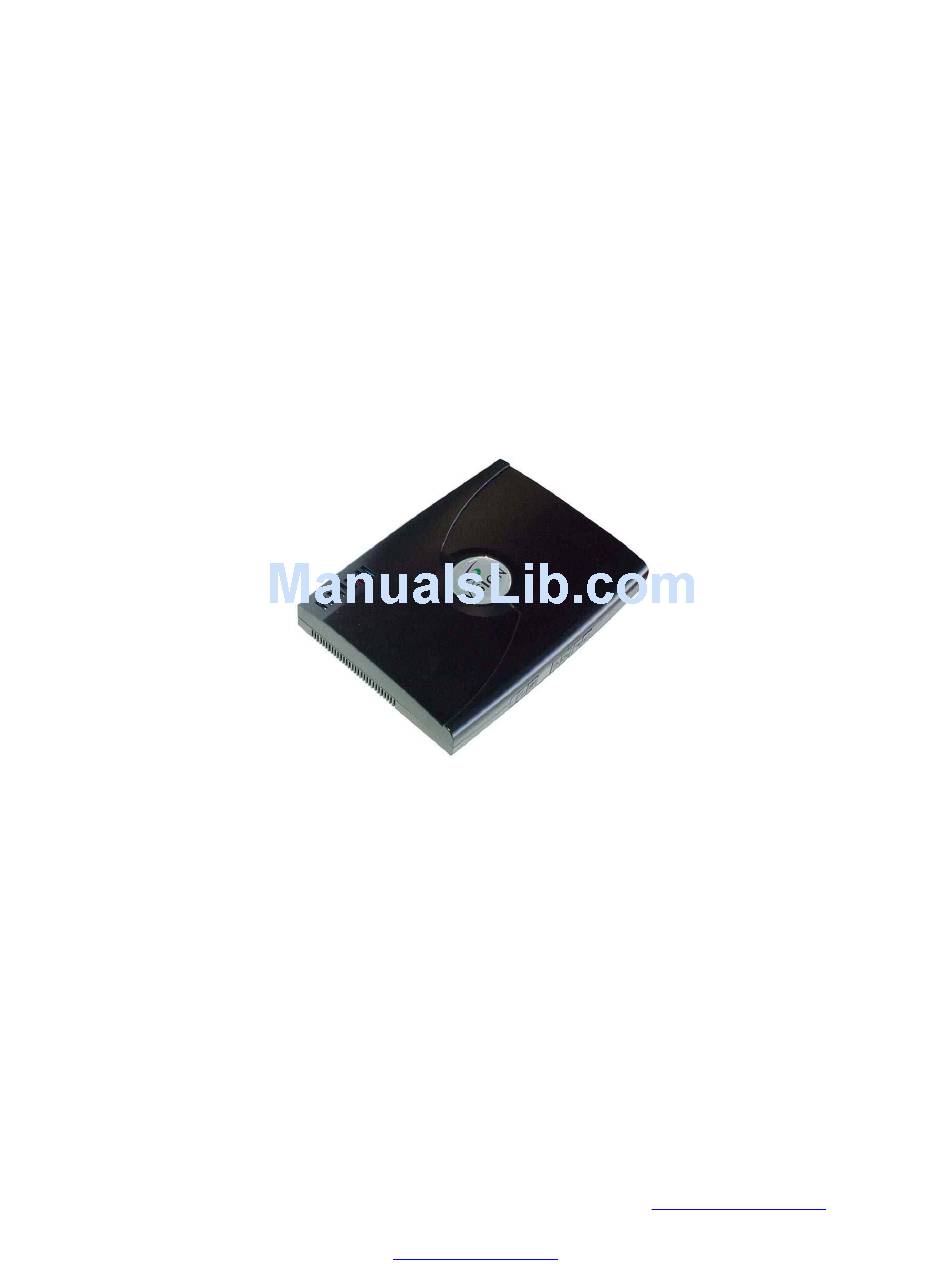

- Page 1 VIVID TV Box Pro VTB-108 Operation Manual Please browse our online catalogue to view our full product range. 44-48 Maitland Road, Mayfield East, NSW, 2304 Australia, sales@converters.tv Phone +61 249689313 Fax +61 249689314 www.converters.tv...
- Page 2 Introduction This unit is a state-of-the-art TV to PC Video converter. The compact unit easily turns your LCD, CRT monitor, plasma display or projector into a multimedia center. With a built-in TV tuner and multiple video ports, you can connect DVD players, digital cameras, VCRs or even game consoles.
- Page 3 Features • Plug-N-Play, no software & driver required, applicable to all O/S • Provide user-friendly OSD(on screen display) to control functions • Fully functional infra-red remote control • Support removing & adjustable P.I.P(Picture in Picture) function to enjoy TV/Video program and work on the PC at the same time •...
- Page 4 Operation Controls and Functions Front Panel POWER Pressing this button to switch the unit On or Off. VIDEO SOURCE SELECTION Select the video source between TV/Cable, S-Video, AV or PC 3. POWER LED / INFRARED RECEIVER Lights when the TV BOX is powered up and ready to operate. Receive the Infrared signal from the remote control.
- Page 5 Rear Panel 1. DC In- Connect to a 12V power supply 2. VGA Out- Connect your 15 Pin Monitor to the VGA output. 3. VGA In- Using the 15 pin VGA cable provided, connect one side to the VGA output on your pc and the other side to the VGA In of your unit. 4.
- Page 6 Side Panel 1. Component (Y, Cb, Cr) Input- Please connect them to the Component (Y,Cb,Cr). In port when the external video device has Y, Cb, Cr Output’s support. Please browse our online catalogue to view our full product range. 44-48 Maitland Road, Mayfield East, NSW, 2304 Australia, sales@converters.tv Phone +61 249689313 Fax +61 249689314 www.converters.tv...
- Page 7 Connection and Installation To prevent damage to your equipment due to ground potential influence, make sure that all devices on the installation are properly grounded. Consult your dealer for technical details if necessary. Please turn off the power of all devices before connection. To install the unit for the analog TV and A/V device connection, please refer to the diagram below.
- Page 8 Operation Instructions Initial Settings For all the function settings of the VTB108, you can use the supplied remote control unit to perform the functions. Please refer to the following steps below: 1. Please install 2 AAA batteries into the remote control. 2.
- Page 9 PICTURE setting The PICTURE Setting Menu provides picture settings including BRIGHTNES, CONTRAST, SATURATION, SHARPNESS, HUE adjustment modes AND RESET. 1. In the Picture MENU, PRESS button to choose the required item. 2. Press button to adjust the selected item. Please refer the figures below. 3.
- Page 10 5. When finished making all picture adjustments, press the EXIT button to close the OSD menu. TV FUNCTION setting The TV FUNCTION Menu provides TV SYSTEM, AUTO SCAN, FINETUNE, CHANNEL RENAME, CHANNEL SWAP AND RESET functionalities. 1. TV SYSTEM setting Before scanning channels, please select the appropriate broadcasting system in AIR (ANTENNA) and CATV (Cable).
- Page 11 2. “CHANNEL SCAN” is to search the active channels based on the frequency table in your country, and “FREQUENCY SCAN” is to scan the channels by increment of 500 KHz. 3. FINE TUNE setting 1. Press to fine-tune the frequency of the current channel to make it clear, then press “...
- Page 12 1. The Original column shows the present channel number. Input the desired channel to swap in the TARGET column. 2. For example, to change the channel 7 to channel 22, press the number key on the remote control unit. After you key in number 22, channel 7 will be swapped with channel 22.
-
Page 13: System Setting
3. To clear the memory of the station of you designated, make sure to jump to the same channel as memorized first. Press “FAV SET” to enable Channel Memory OSD and button to select the station position you demand, then press “OK” to erase. 4. - Page 14 Exit to close the OSD menu 5. DISPLAY TYPE setting To fit all displays popular in the market, VTB-108 is preset three (3) types of display, LCD, CRT and PDP, with different settings for the best image quality. Please use button to select the display VTB-108 is connected to, then press “OK”...
-
Page 15: Osd Setting
The Source Select Sub-Menu provides TV, AV, S-VIDEO, YCbCr and PC mode selections, press button to choose the Video Source - TV; AV; S-video; YCbCr; PC, then press “OK” to confirm the setting and Exit to the OSD menu OSD SETTING The OSD SETTING Menu provides OSD POSITION, OSD TRANSPARENCY, LANGUAGE AND INFROMATION functionalities. - Page 16 3. OSD LANGUAGE setting 4. INFORMATION You can recognize the firmware version of the TV box from the Information Sub- menu. SOUND setting The SOUND SETTING Menu provides VOLUME, TREBLE, BASS, SURROUND, LOUDNESS adjustment and the RESET mode. In the SOUND Setting MENU, Press button to choose the required item.
- Page 17 2. Press the keys to select the item. 3. To adjust the selected item by button. 4. When finished, press EXIT to close the OSD MENU. 5. Select RESET to clear all adjustments and return to the factory settings. 6. When finished, press the EXIT button to close the OSD MENU. PIP (Picture-In-Picture) Function The Picture-In-Picture function provides the user the ability to see the TV and work on the PC at the same time.
- Page 18 Moving the PIP screen by pressing the menu button, and use the buttons to move the PIP screen position and press the EXIT button to return to the other operation. Remote Control Functions 1. POWER Powers the unit on and off. 2.
- Page 19 5. RESOLUTION Adjusts the video resolution – 1280x1024, 1024x768, 800x600, 640x480 6. FAVORITE Press the button to switch the channel on the “Favorite Channel” group 7. FAV.SET Sets the current channel to “Favorite Channel”. 8. DISPLAY Displays current setting information on your screen. 9.
-
Page 20: Number Keys
22-25. Arrow Buttons Press the “Arrow” button to choose the items on the menu. Press button to choose item on the menu or to move the OSD position. 26. OK Selects the currently highlighted menu item or to confirm the setting. 27. -
Page 21: Troubleshooting
Select a Teletext Page: Enter the desired page number on the index with the digit keys on the remote control. Press ’’PAGE +’’ and ‘’PAGE - ’’ on the remote control to search subject pages foward and backward. It shall remain the current page with the top line blinking in green color when you have entered a non-existent or incorrect page number. - Page 22 Specifications Power 12VDC, 1000mA Video Input Composite video RCA connector YCbCr(Component) Input Component video Y.U.V connector S-Video Input S-Video 4-pin mini DIN connector Audio Input Stereo R+L RCA connectors Line In Phone Jack 3.5φ Line Out Phone Jack 3.5φ RF In F-Female connector for NTSC system EC-Female connector for Pal system VGA Output...
