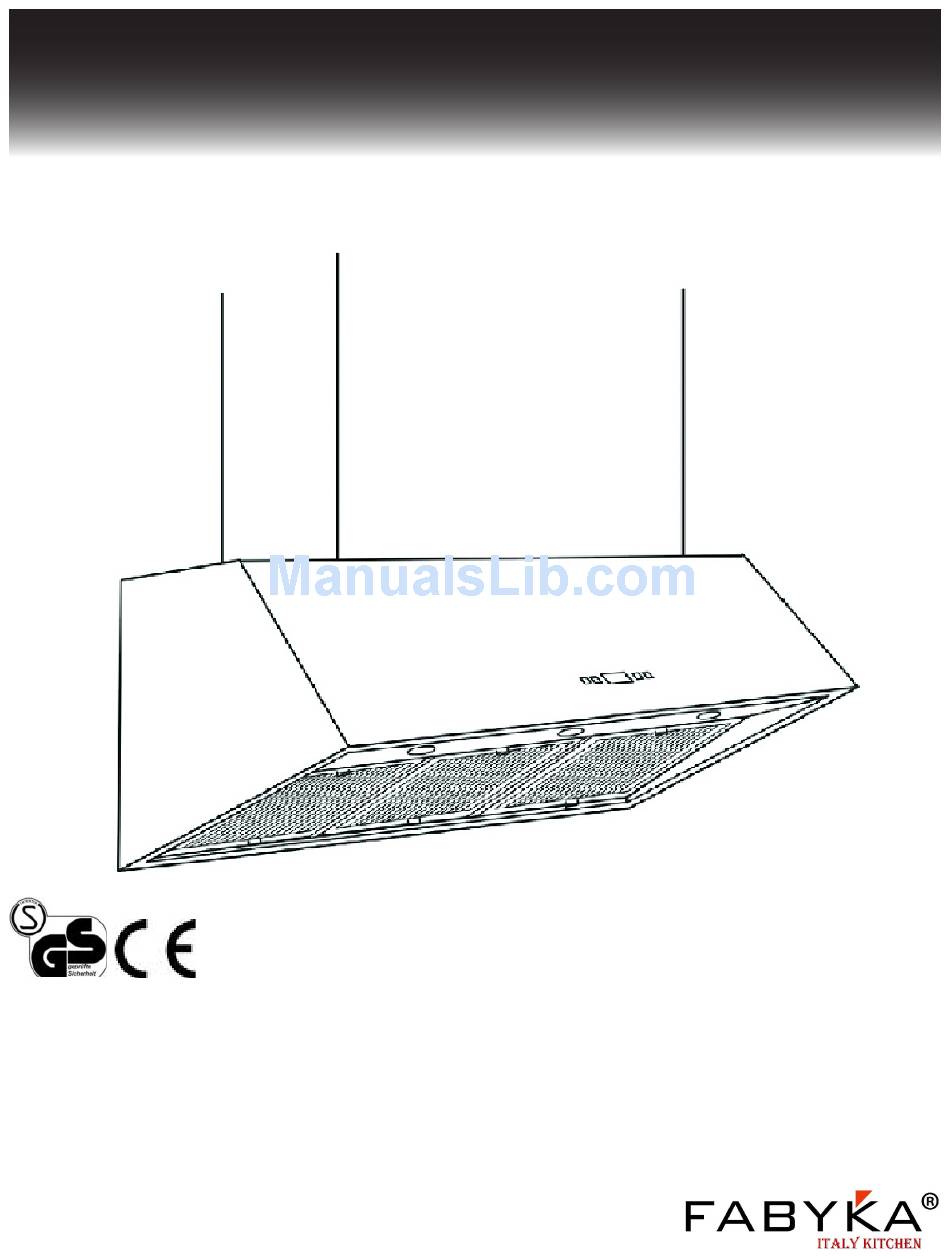

- Page 1 Installation Guide and Users Manual FA Series IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Wall Mount Range Hood...
-
Page 2: Important Safety Notice
Call our service center for removal instructions. FABYKA and it’s Authorized Dealer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. -
Page 3: Before You Start
Before you start... Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instruc- tions are not followed. -
Page 4: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Range hood operations......-3 Parts supplied...........4 Troubleshooting...........14 Venting requirements........5 Use and care information.......15 Mount heights & clearance......5-6 Specifications..........15 MAINTENANCE Calculating vent system length.......6 Venting methods..........7 Cleaning..........16 Electrical requirements........8 Replacing the filter & light bulb.....16 WARRANTY Preparation............9 Installation..........0-... -
Page 5: Parts Supplied
Parts supplied: Range Hood (vary with model) Grease cup Lower standard chimney Upper standard chimney Screw Set Mounting Bracket For sheet rock only Optional Duct Tube Page 4... -
Page 6: Venting Requirements
Use duct tape to seal all joints in the vent system. • Use caulking or silicon to seal exterior wall or roof opening around the cap. Base: 36” (90 cm) * Higher ceiling requires chim- ney extension. Available at FABYKA Page 5... -
Page 7: Calculating Vent System Length
IMPORTANT: • A minimum of 8” (20 cm) round (standard for this range hood) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. Please use Duct Run Calculation below to compute total available duct run when using elbows, transitions •... -
Page 8: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. -
Page 9: Electrical Requirements
Electrical Requirements IMPORTANT: For Europe and Other Countries with 220~240V/50Hz, please observe your local governing codes and ordinances. It is the customer’s responsibility: • To contact a qualified electrical installer. • To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 —... -
Page 10: Preparation
Preparation WARNING Advanced Preparations: Be familiar with the controls of the range hood by reading through Range Hood Operations, Page . Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet, 110~120V/60Hz Require three or more person to move and (220~240V/50Hz for Europe &... -
Page 11: Installation
Installation Installations (refer to page 4 & 11 for parts): Measure the distance between stove top and the bottom of range hood. A distance of 28” (71 cm) to 33” (84 cm) is required. Make sure the range hood is level and not tilted. Mark the locations of the hanging bracket holes on the wall as shown in Figure 3A and Figure 3B. -
Page 12: Installation Overview
Installation (Continued) the height of the duct tube and extend approximately 6” (15 cm) longer than required, connect the Calculate lower end of the duct tube to the range hood and the upper end to the vent system. Make sure the main electri- cal supply remains disconnected then connect power plug to the electrical cord or wall plug. -
Page 13: Range Hood Operations
Range Hood Operations Control Panel Layout and Buttons Configurations: Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator The island canopy hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking incom- plete to clear all smoke and odors from the kitchen. - Page 14 Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator • Controls: • Adjusting the timer function: •...
-
Page 15: Troubleshooting
Reduce the number of elbows and length of duct work. Check if all joints are properly connected, sealed, and taped. • Make sure the power is on high speed for heavy cooking NOTE: For all other inquiries, please contact FABYKA’s customer service. Page 4... -
Page 16: Use And Care Information
Dual Centrifugal / Sirocco Control Type 6 Speed Electronic Control Panels with LED Display Illumination 35W Dimmable Venting Size 8 inch (20 cm) Round Interference Protection Radio Frequency Interference Protected * Subject to change without notice, please contact FABYKA for details. Page 5... -
Page 17: Cleaning
Dry filters and re-install before using hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact FABYKA for replacement filters. • Note: Also replace damaged filter that has punctured or broken mesh, bent or broken frame. -
Page 18: Coverage & Exceptions
Damage of product caused by accident, fire, floods or act of God. FABYKA is not liable for, and does not cover under warranty, any loss of properties or any costs associated with removing, servicing, installing, or determining the source of problems with FABYKA brand products. -
Page 19: Service Note
Service Note Page 8...
