Summary of Contents for Quality Espresso Q9 series
- Page 1 User Manual 09105600...
-
Page 3: Table Of Contents
Table of Contents Safety Instructions 1.1 Symbols ..........1.2 Brief Description of the Grinder . -
Page 4: Safety Instructions
See attached documentation. 1.2 Brief Description of the Grinder Q9 Series is a completely automatic grinder that pre-grinds or instantly grinds coffee beans. Simply insert the filter holder into the corresponding space to obtain one or two servings of fresh-ground coffee. -
Page 5: Overview

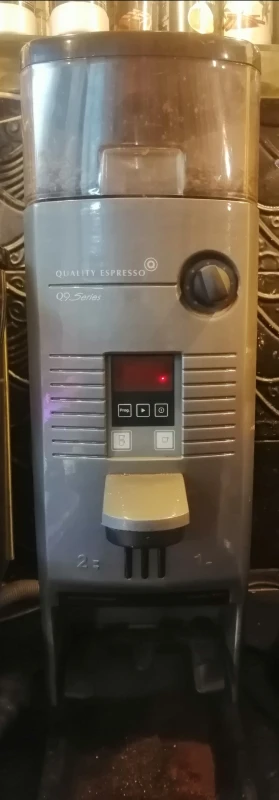

Overview 2.1 Overview Removable hopper Hopper closed. Hopper open. Coffee identification label Grinding point adjustment knob Display and keypad Coffee press Single serving switch Double serving switch Grinds tray Filter holder area Characteristics: HEIGHT: 610 mm. General switch WIDTH: 193 mm. DEPTH: 391 mm. -
Page 6: Installation
Installation Once unpacked, set up the machine in the desired location (an electrical plug is required), making sure it is on a stable surface. Connect the mains cable, place coffee in the hopper, open the hasp and press the general switch located under the grinds tray. The grinder is now ready for use. Warning: - The manufacturer is not responsible for breakage or damages due to failure to follow the... -
Page 7: Internal Cleaning Of The Grinder
Internal Cleaning of the Grinder See attached documentation For this cycle, the two chutes that dispense ground coffee are opened so as to carry out a cleaning of both using the cleaning brush provided. To access this cycle, press the 1 coffee key and the 2 coffees key at the same time for 3 seconds. A message that reads “CLEA”... -
Page 8: Programming: User Menu
Programming: User Menu The grinder has a programming keypad which allows the user to program both single and double servings quickly. It is also possible to program the work mode: PREGRIND: after filling a serving, leave the next serving pre-ground. INSTANT: grind the coffee serving right when you need it. -
Page 9: Programming
8.3 Programming work mode It is possible to select the mode in which the Q9 grinder dispenses ground coffee: either the Pre-grinding mode or the Instant mode. PREGRIND: coffee is already ground for the next coffee. INSTANT: coffee is ground at the time of requesting it. Nota: We recommend the Pregrind mode to maximize the grinder´s efficiency. -
Page 10: Warning Messages
If the blinking message “Grdr” appears on the display screen, this means Technical Service must be called to change the grinder blades. The factory default number is 150,000 coffee servings. Contact Information 10.1 Contact Address Quality Espresso S.A. Leading manufacturer of espresso machines since 1952 Motores, 1-9 08040 Barcelona Tel.
Need help?
Do you have a question about the Q9 series and is the answer not in the manual?
Questions and answers
احتاج فيديو يشرح طريقة التعامل مع لوحة البرمجة لضبط كل ما أحتاج اليه
To use the programming panel on the Quality Espresso Q9 series:
1. Programming a Single Serving:
- Access the programming menu.
- Adjust the coffee grind time as needed.
- To reduce the serving volume, press and hold the button for 3 seconds.
- To increase the serving volume, press the button.
2. Programming a Double Serving:
- Follow the same steps as for a single serving.
- Adjust the coffee grind time accordingly.
3. Programming Work Mode:
- Choose between Pre-grinding mode (leaving the next serving pre-ground) or Instant mode (grinding coffee right when needed).
4. Automatic Exit:
- If no key is pressed for 20 seconds, the system returns to its normal work mode.
5. Clearing Counters:
- Users can clear the partial counter.
- Only technical personnel can reset the total counter.
6. Warning Messages:
- If "CLEA" appears, perform a cleaning cycle as described in the manual.
- If "Grdr" appears, contact Technical Service to replace the grinder blades.
These settings allow customization of coffee servings and maintenance of the espresso machine.
