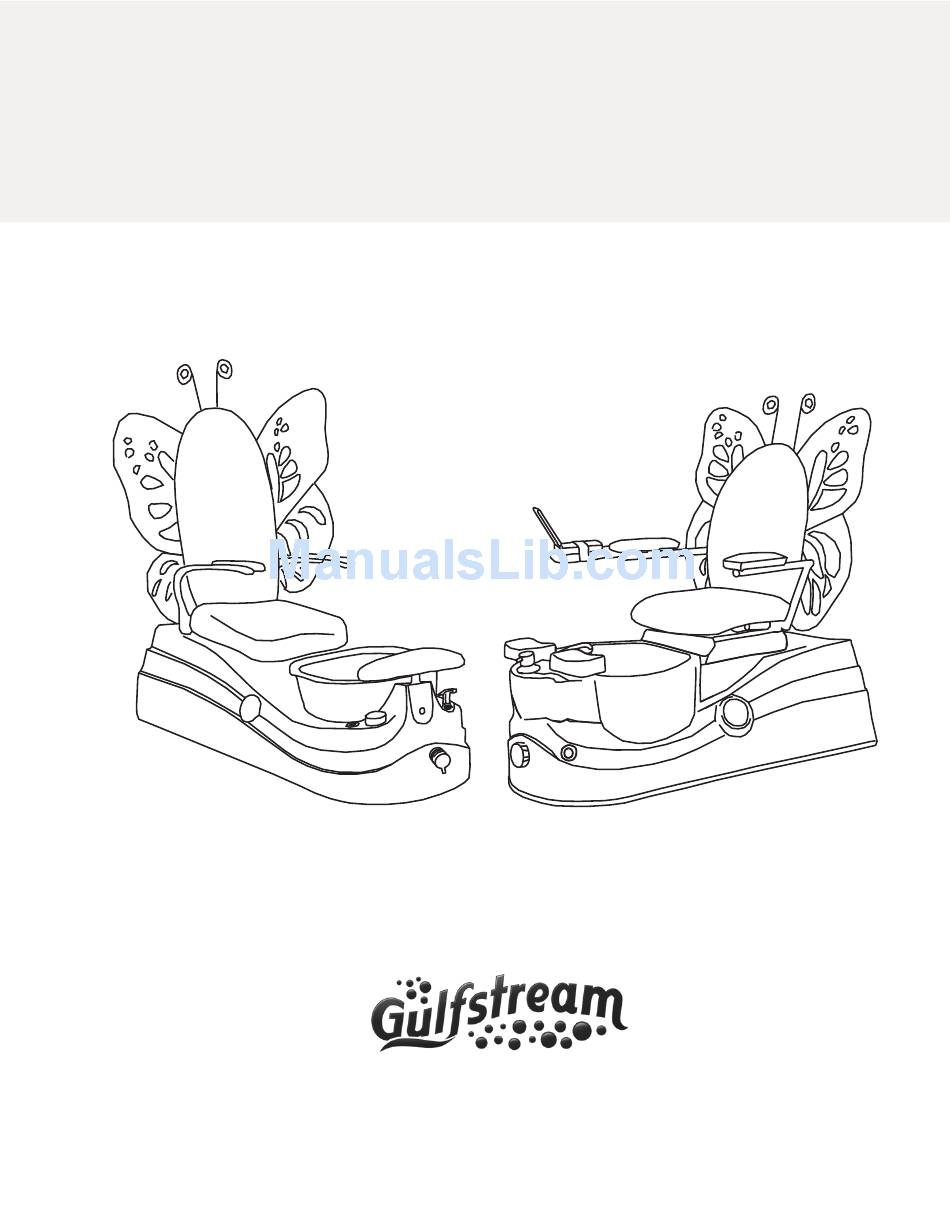

OWNER MANUAL
PLEASE SAVE THIS MANUAL
FOR FUTURE REFERENCE
Mariposa
TM
FOOT-SPA
Acrylic Tub
Glass Bowl
Patent Pending
®
®
TM
Cleanjet
, Mariposa ,
Gulfstream Inc
are trademarks of
Gulfstream Inc
.
Patent #D610697, #D600950
©
2011 All rights reserved.
Design and Specifications are subject to change without notice
Advertisement
Table of Contents
Related Manuals for Gulfstream Mariposa
Summary of Contents for Gulfstream Mariposa
- Page 1 FOR FUTURE REFERENCE Mariposa FOOT-SPA Acrylic Tub Glass Bowl Patent Pending ® ® Cleanjet , Mariposa , Gulfstream Inc are trademarks of Gulfstream Inc Patent #D610697, #D600950 © 2011 All rights reserved. Design and Specifications are subject to change without notice...
-
Page 2: Table Of Contents
Table of Contents Owner Manual Safety and Precautions Identifying Parts Foot-spa Clearance INSTALLATIONS Attaching Seat Jet Cover Assembly 9-10 Plumbing Connections Operations and Use 11-12 Cleaning & Maintenance 13-14 Warranty & Service... -
Page 3: Safety And Precautions
Under no circumstances must the bowl be used by your customers as you can be held accountable for Warning any injury that may occur. Gulfstream is not liable for any injury that may occur. BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING: 1. -
Page 4: Safety And Precautions
SAFETY & PRECAUTION GROUNDING METHODS Because this unit must be connected to a circuit with a ground-fault circuit interrupter (GFCI), DO NOT use a grounding adapter. The use of a grounding adapter is prohibited in Canada by Part I of the Canadian Electrical Code. GROUNDING INSTRUCTIONS This appliance must be plugged into an outlet equipped with a ground-fault circuit interrupter. -
Page 5: Identifying Parts

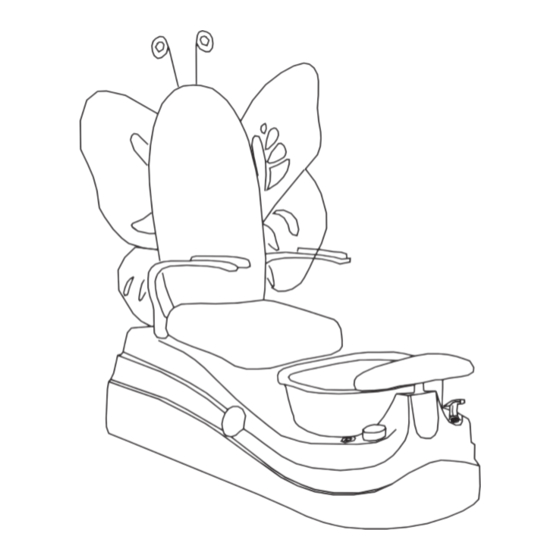

IDENTIFY YOUR FOOT-SPA Glass Bowl Model Front Back 1. Glass Bowl 2. Seat Cushion 3. Wings Control Panel 4. Back Cushion 5. Armrest 6. Manual Seat Adjustment Handle 7. Adjustable Footrest 8. Adjustable Footrest Lock 9. Front Control Panel 10. Jet 11. - Page 6 IDENTIFY YOUR FOOT-SPA Acrylic Tub Model Acrylic Tub 2. Seat Cushion Control Panel 3. DVD Player Optional 4. Wings 5. Back Cushion 6. Arm Rest 7. Manual Seat Adjustment Handle 8. Adjustable Footrest 9. Front Control Panel 10. Drain 11. Jet 12.
- Page 7 IDENTIFY YOUR FOOT-SPA SEAT OPERATION Adjustment Handle Manually Sliding Forward or Backward SPA DIMENSION...
-
Page 8: Foot-Spa Clearance
FOOT-SPA CLEARANCE WALL CLEARANCE Wall 16’’ Distance from center drain Mariposa 1: 35’’ to the back of the spa Mariposa 2: 36’’ TYPICAL FOOT-SPAS Center Center 60’’ Foot-spa #2 Foot-spa #1 16’’ 16’’ 28’’ Clearance 60’’... - Page 9 INSTALLATIONS Attaching The Seat to The Base Attach Wings Align the seat with the pre-drilled holes on the base then tightly secure with the nuts and bolts provided. Using the same steps for Acrylic Tub Model...
-
Page 10: Installations
INSTALLATIONS Cleanjet Unit Removal To remove the jet unit components. To remove the jet unit from tub/bowl. Turn the top plate counter-clockwise in the arrow direction Gently pull out the jet unit from the anchor pegs Jet Unit Components Top Plate Impeller Housing Plate &... -
Page 11: Plumbing Connections
INSTALLATIONS Plumbing Connections 1. Discharge pump may be connected to an existing sink drain or floor drain. It can also pump up to 7 ft high, but this will increase the length of the drain time. The drain connection is at the rear of the unit by a 3/4” fitting. 2. - Page 12 INSTALLATIONS Typical Discharge Pump Installation Wall GFI Outlet Required Backwater Valve sold separately Existing Drain Pipe Existing ½’’ Hot & Cold Water Supply Backwater valve sold separately ½” Hot & Cold Hoses Discharge Pump Drain Elbow Floor Typical Gravity Sink (Direct Drain) Installation Wall GFI Outlet Required...
-
Page 13: Operations And Use
OPERATIONS & USE Control Panel Glass Bowl Model Control Panel Acrylic Tub Model Hand Spray Model # ST700.20 Water Control Drain Control Hand Spray Model # ST700.20 Drain Control Water Control Jet (On/Off) Jet (On/Off) 1. To fill water: The foot-spa is provided with a single hot and cold mixing valve located on the front of your spa. This is a pressure balance valve that requires you to lift the handle to start the water flow and to adjust to the temperature that is desired. -
Page 14: Operations And Use
OPERATIONS & USE 9620, 9700, 9600 Shiatsu Remote Control Please refer to instruction manual for operations Power Timing TT960 Timing Power Auto Neck Upper Knead Pause Back Waist Knead Flap Shoulder Body Flap Kneading Knocking Kneading Knocking Neck Press Manual Knock Shoulder Speed... -
Page 15: Cleaning & Maintenance
The use of oil based products can build up in the whirlpool system causing clogging in the jets. Adherence to the above cleaning will minimize build up. Gulfstream does not recommend the use of mineral oil based products. TESTING/FLUSHING FOOT SPA After foot spa has been installed, fill tub with water just above the jets. -
Page 16: Cleaning & Maintenance
CLEANING & MAINTENANCE Cleaning The Magnet Jet (Step by Step) ® - Do not run Cleanjet MAX without water. This will void your warranty - Do not place two wet ends in the same bowl when cleaning Warning the jet’s strong magnets could cause injury (pins your fingers) - Do not attach two wet ends to each other. -
Page 17: Warranty & Service
8. Each service call from the customer will be assigned a Claim Number. The Claim Number will stay open until the problem is resolved. No dealer or other person has any authority to bind Gulfstream Inc. to changes or additions to this warranty or its products. Accordingly, Gulfstream Inc. Is not responsible for such warranties or representations. - Page 18 Manufacturer of Acrylic Bath Whirlpool & Pedicure Foot Spas Gulfstream Inc. Cambridge, Ontario, Canada N1R 5X5 Tel.: 519-622-0950 Fax: 519-622-6926 www.gulfstreaminc.com © 2011 All rights reserved. Design and Specifications are subject to change without notice...
