Hubbell Full-Size Transmitter 31.310 Spec Sheet

Hubbell Industrial Controls, Inc.
Full-Size
Transmitter
Hubbell Radio Remote Control Systems
Spec Sheet 31.310 • May 2000 • New

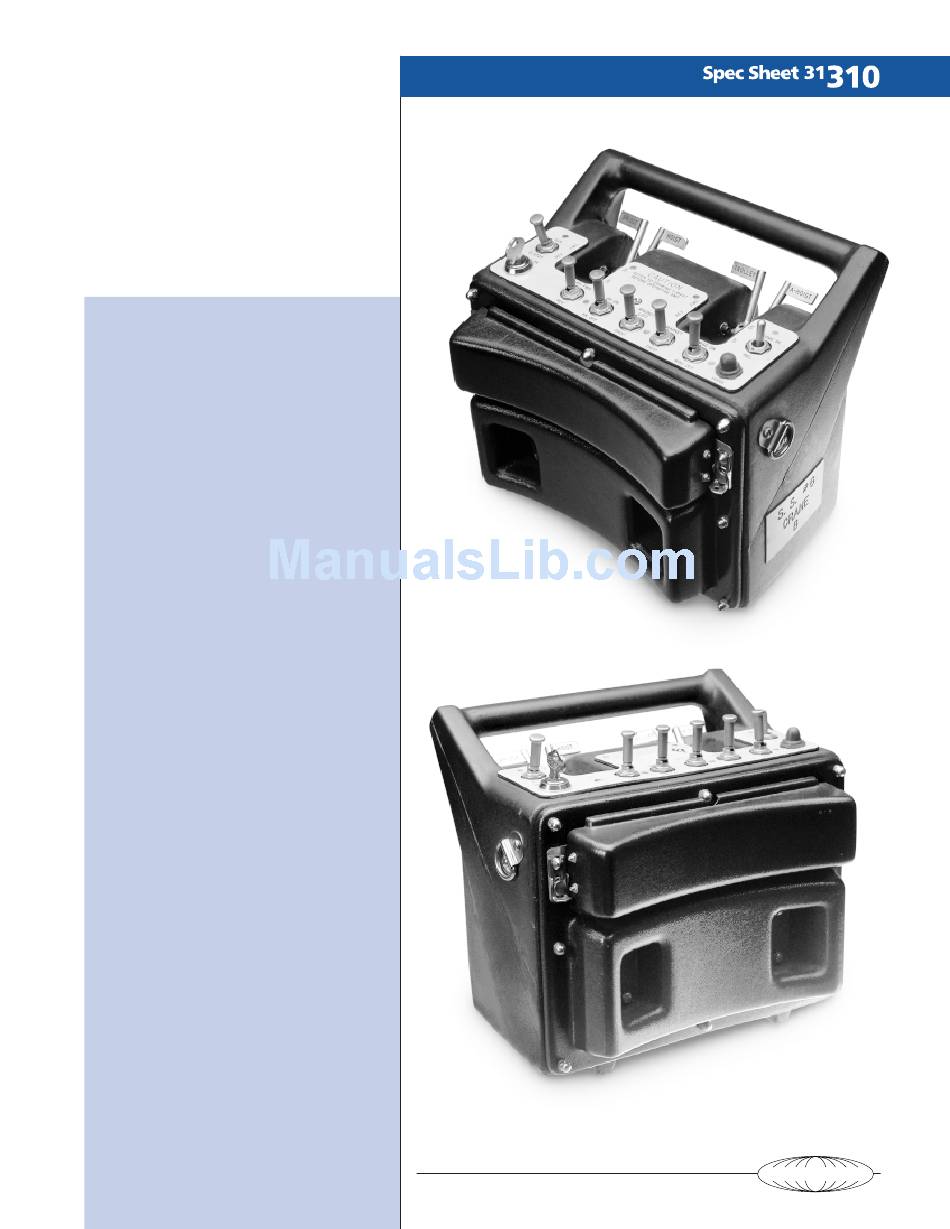

This Hubbell portable transmitter is housed
in a light, rugged, weather proof plastic
case suitable for severe industrial
environments. The switches for control of
Bridge, Trolley and Hoist are reliable return-
to-center devices with positive detents in all
positions. Up to five-speed, or stepless
reversing control of all motors can be
provided.
Auxiliary functions such as: horn, bridge
brake and magnet lift/drop are controlled
by high quality toggle switches with sturdy
operating handles. All switches are located
for ease of operation and identified on an
engraved legend plate.
The RF transmitter is crystal controlled and
all logic is handled by a microcontroller.
The antenna is completely enclosed within
the transmitter case.
The unit is powered by a rechargeable
12 volt nickel cadmium battery capable of
500 or more recharge cycles. The quick
disconnect battery module provides up to
5 shifts continuous service (40 hrs.) — more
in normal intermittent day to day operation.
A low battery LED indicator is provided. The
bench top charger will recharge a battery
within 8 hours.
A shoulder-type carrying harness is provided
which is adjustable over a wide range of
sizes to accommodate operator comfort and
clothing differences.
