Gleason Reel Dual Hose Reel-Direct Drive K-18 Installation And Maintenance Instructions

INSTALLATION and MAINTENANCE INSTRUCTIONS
All units are provided with right hand rotation unless otherwise
specified. This means that hose is pulled off spool top left or bottom
right (spool rotates clockwise to wind hose) when viewing spring
end of reel. See diagram on parts page.
Clock-type springs provide power for automatic hose take-up.
Spring must be pretensioned at time of installation to insure
that tension is applied to hose at all times. A tension adjustment
spanner wrench is provided with each reel.
If machine pull reel, move machinery to position
closest to reel before adjusting spring tension.
Adjusting tension with hose extended may result in
damage to reel or personal injury.

INSTALLATION

1. Install hoses if reel was purchased without hoses. See
instructions on page 4.
2. Insure that machinery to be serviced by reel is at
position closest to reel.
3. Securely mount reel in desired position using 1/2"(M12).
Be sure spool is aligned with hose run.
4. Connect free end of hoses to connections on machine.
5. Connect flexible supply lines to swivel fitting. See HOSE
INSTALLATION REFERENCE DRAWING.
NOTE: Do not hard plumb to swivel fitting.

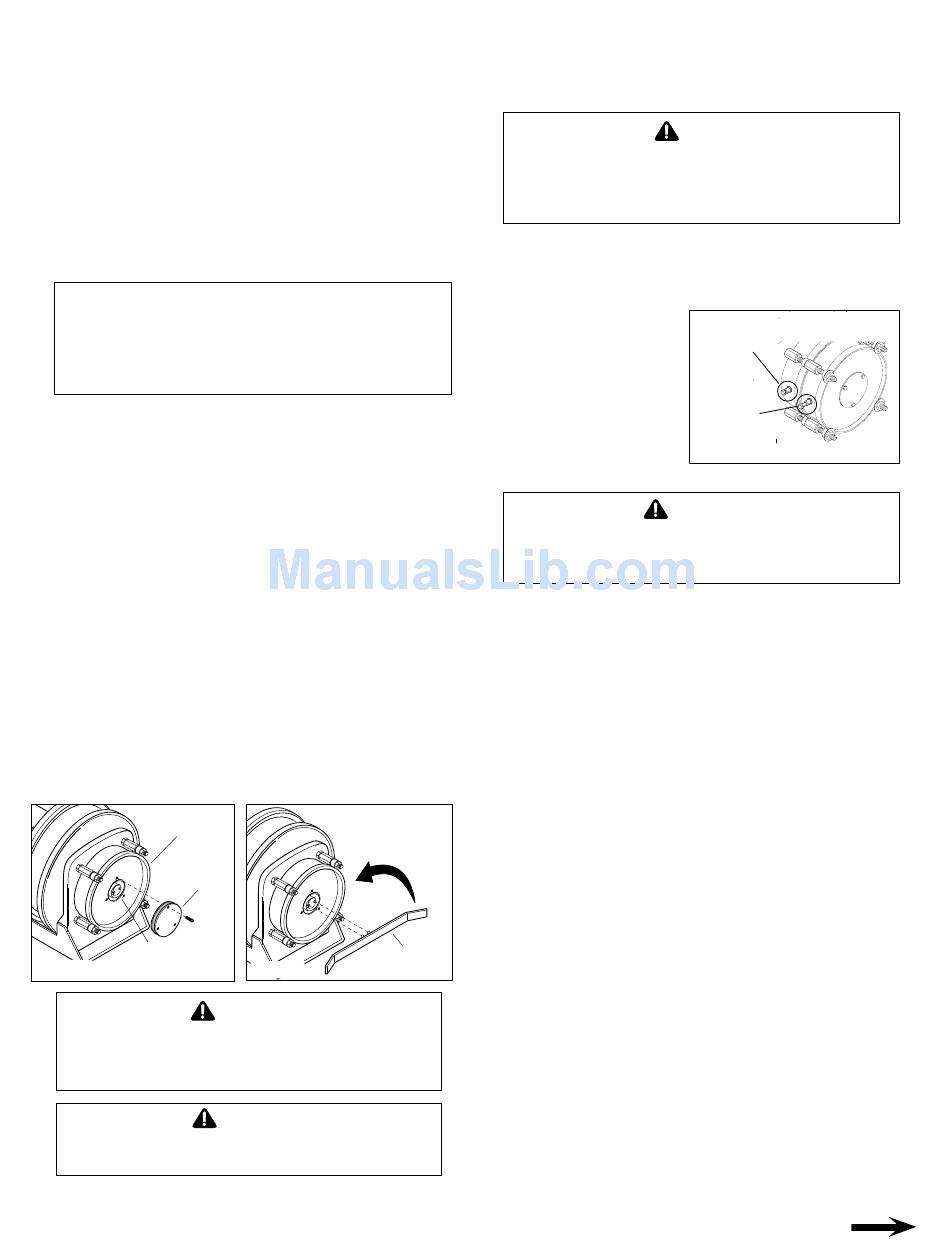

6. Remove cover plate on spring housing to expose
shaft and spring hub. (See Figure 1).
7. Insert spanner wrench into holes in spring hub (Fig 2). Rotate
spanner wrench counter-clockwise. Number of 360° turns
should match last digit in model number on serial plate.
SPRING
HOUSING
COVER
PLATE
SPRING
HUB
Figure 1
Do not exceed number of turns indicated on serial
plate. Over-tensioning can cause a broken spring,
sheared shaft or other damage.
Do not attempt to relieve spring tension using spanner
wrench. Doing so may result in personal injury.
"K-18" DUAL HOSE REEL-DIRECT DRIVE
WARNING
COUNTERCLOCKWISE
FOR STANDARD
ROTATION
SPANNER
WRENCH
Figure 2
CAUTION
WARNING
Some reels with large or multiple springs are equipped
with a ratcheted adjustment wrench. Follow separate
instructions for its use. Failure to use ratcheted wrench, on
reels so equipped, could result in serious personal injury.

MAINTENANCE

Periodically:
A. Inspect hose for wear and check mounting bolts and other
hardware for tightness.
B. Check for broken springs
by pulling about 2/3 hose off
reel and observing "Broken
Spring Indicators" on sides
of spring canisters (Fig. 3).
NOTE: Bearings and
springs are prelubricated
and require no periodic
maintenance.
Do not attempt to remove spring from its housing. Clock
type springs can be dangerous to handle. Removal
of spring from housing could result in personal injury.

SPRING REPLACEMENT

The unique SAFETYCHANGE® spring motor consists of a spring
and hub sealed within a housing. A replacement spring is supplied
sealed in its housing and the old unit should be
discarded completely.
1. Turn off supply pressure to reel.
2. Insure that machinery to be serviced by reel is at
position closest to reel. Disconnect hose from
machine connections.
3. Wind all hose onto reel to relieve all spring tension.
4. Remove inspection cover from face of spring housing.
5. Rotate spool clockwise and observe inner shaft.
Shaft should rotate clockwise and hub (with
spring attached) should remain stationary.
NOTE: Do not attempt to remove spring if resistance is met
or hub tends to rotate with shaft. Continue to rotate spool and
strike end of shaft several sharp blows with a rubber mallet until
shaft rotates freely and hub remains stationary.
6. Remove (4) bolts which secure spring motor to frame.
7. Slide spring motor off shaft and discard.
8. Install replacement spring motor, pawls and pawl springs.
NOTE: Pawl springs must be located between the pawls
and the deepest section of the shaft grooves.
Make sure that pawls and pawl springs are inserted flush
with ends of shaft and hub or they may rub against
inspection cover. See Fig 4, page 4.
9. Tighten bolts securing spring housing to reel frame.
WARNING
"IN" with 2/3
BROKEN SPRING
cable off reel–
INDICATORS
SPRING OK
"OUT" with 2/3
cable off reel–
SPRING
BROKEN
Figure 3
WARNING
CONTINUED ON BACK PAGE
