Summary of Contents for Gleason Reel Motor Reel MRH

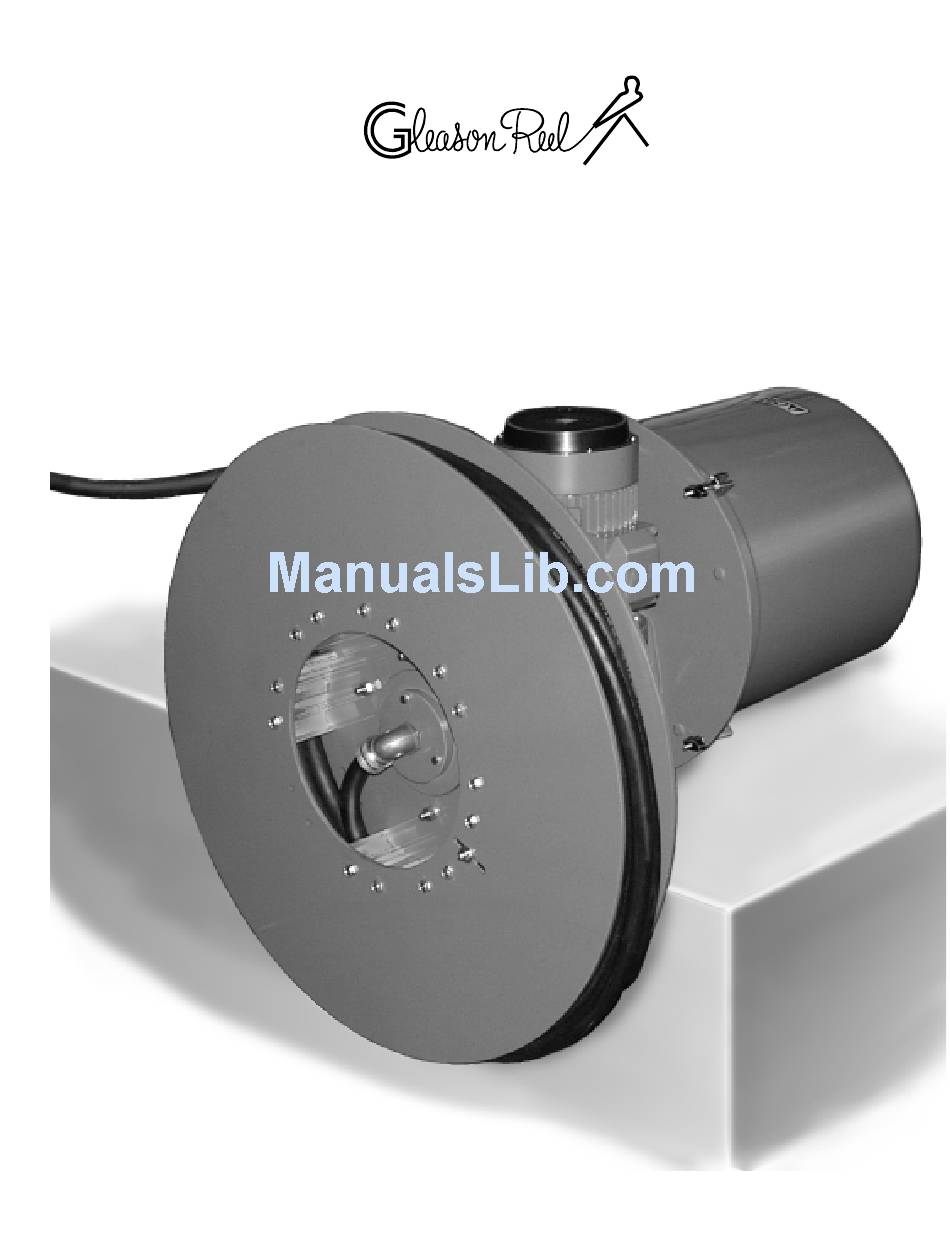

- Page 1 ® Maintenance Instructions MRH Motor Reel...
- Page 2 Motor can be wired for either 230 volt or 460 volt, 3 phase, 60 hz A.C. Follow jumper diagrams below. Wiring should be done only by qualified, licensed electrician. Failure to follow standard safety precautions could lead to serious injury. View inside Motor Junction Box 230 volts Jumpering Diagrams...
- Page 5 HOW TORQUE UNIT WORKS Gleason series MRH reels feature torque units which work on a patented self braking hydro- dynamic clutch system. The Functions of the torque unit are: • To provide a constant torque on the drum shaft. • To gear the drum rotating speed to the reeling diameter of the cable. •...
- Page 6 Following is a brief description of the torque unit components: (Please refer to drawing on page 5) The bronze crown gear (item 3) has specially machined surfaces on both sides. Freely mounted on the drum shaft (item 1), the crown gear is linked to the motor via a worm gear (item 2).
- Page 8 Torque Unit Oil Capacity Torque Unit Oil Capacity U.S. gal 10.0 20.0 40.0 4.24 120.0 7.16 200.0 17.76 300.0 17.76 550.0 25.97 700.0 25.97...
- Page 12 Gleason Reel Corp. 600 South Clark St. • P.O Box 26 ® Mayville, WI 53050 920-387-4120 ® www.hubbell-gleason.com A Hubbell Company HUBBELL Bulletin 049964...
