Summary of Contents for Jolimark DX-400

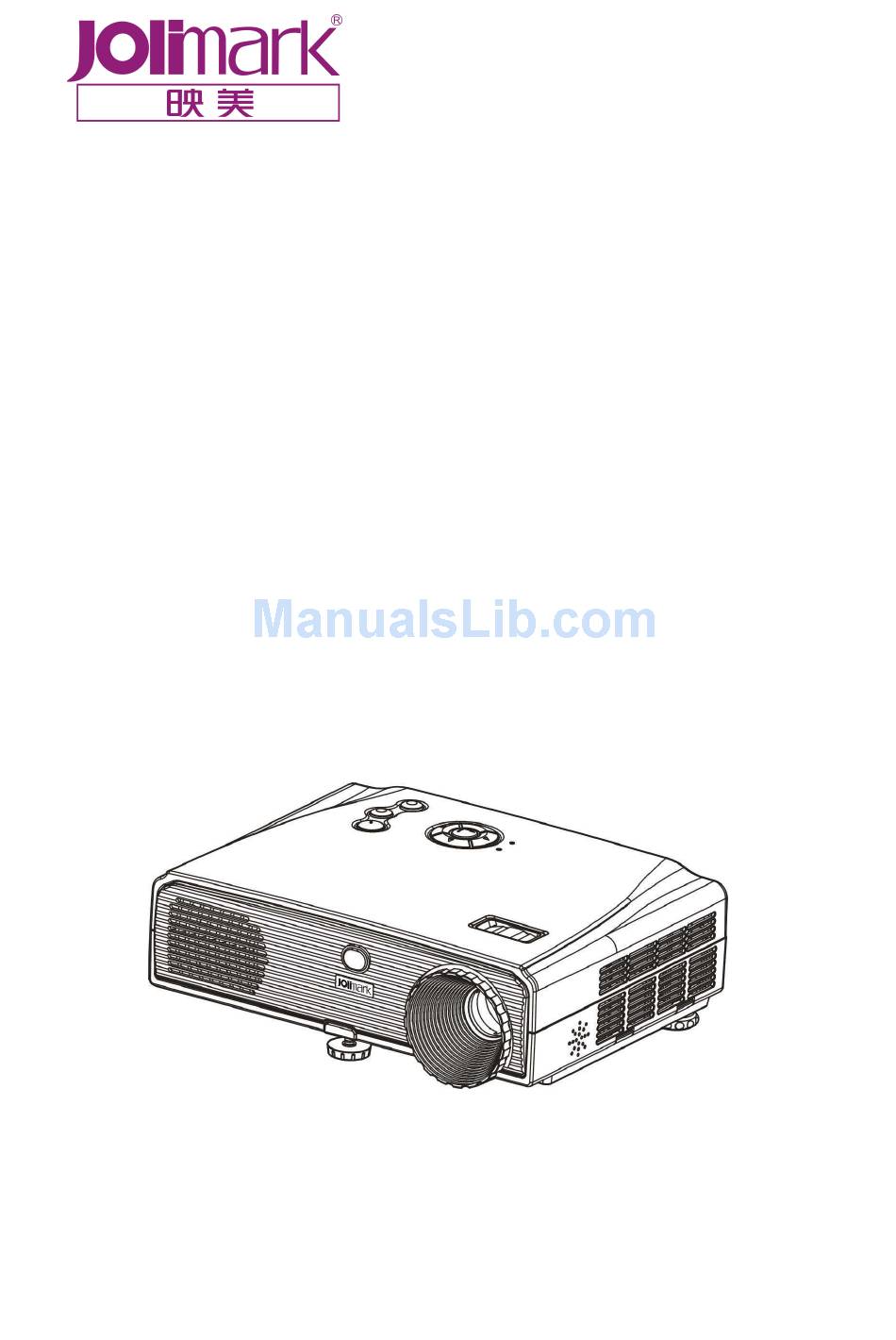

- Page 1 User’s Manual Data Projector DX-400 DX-380 DX-300 DX-280 DS-250...
-
Page 2: Safety Instructions
User’s Manual Safety Instructions Please read this manual carefully before using your projector. Any action without specific description in this manual is regarded as unauthorized operation. It may cause errors and accidents. The manufacturer will not be responsible for the faults caused by unauthorized operations. -
Page 3: Safety Instructions Of Lamp
Notes: • This manual is subject to change without notice. • All the parts of this product are recyclable. When you dispose of this product, please contact the Jolimark service center or your local dealer to recycle without any paying. - Page 4 User’s Manual Before using the projector, please read this manual carefully. You can get below information: ◆ How to use the projector safely. ◆ How to use the remote control. ◆ How to install and connect the projector. ◆ How to turn on and turn off the projector. ◆...
-
Page 5: Table Of Contents
User’s Manual Contents Safety Instructions ......................i Safety Instructions of Lamp....................ii 1. Projector Features ......................1 2. Projector Overview ......................2 ① Package Contents ......................2 Projector and Accessories ..................... 2 ② Recognize the Parts ..................... 3 Front/Top ........................3 Control Panel......................... - Page 6 User’s Manual Resetting the Lamp Timer.................... 24 Appendix C. Indicator Messages and Remedies............. 25 Appendix D. Troubleshooting ..................26 Does not Project ......................26 No Picture........................26 Picture is out of Focus and Fuzzy................26 Interference or Distortion Appear in Images ..............27 The Image is Truncated (Large) or Small ..............
-
Page 7: Projector Features
User’s Manual 1. Projector Features ® It is appreciated that you have bought the Jolimark projector. This product is a high performance and rich functions multimedia projector which can meet your needs. The projector offers the following features： ◆ Optics by Carl Zeiss. -
Page 8: Projector Overview
User’s Manual 2. Projector Overview ① Package Contents Projector and Accessories When you unpack the projector, make sure you have all these components (Accessories and components may vary by dealer and region). If any of the components is missing or incorrect, please contact the dealer. Note: Please save the original shipping carton and packing material in order to transport the projector in the future. -
Page 9: ② Recognize The Parts
User’s Manual ② Recognize the Parts Front/Top Control Panel Status Indicator Zoom Ring Adjust the image size. ON Indicator Focus Ring Adjust the image focus. Ventilation Holes Remote Sensor Receive signals from the Air Filter remote control. Elevator Button Press and hold the Elevator Foot button, you can draw Raise or lower the foot to... -
Page 10: Control Panel
User’s Manual Control Panel MENU Button ON/OFF Button STATUS Indicator Displays or closes the Turns the projector The color of the indicators and on-screen display menu. power on or off. whether they are blinking or lit indicates the status of the projector. -
Page 11: Bottom
User’s Manual Bottom Lamp Cover Remove the lamp cover to replace the lamp. Tilt-Adjustment Foots Extend to adjust the projection angle so that the projector is horizontal when placed on desktop. Suspension bracket fixing points (4 points) Install the optional ceiling mount here when suspending the projector from a ceiling. -
Page 12: ③ Remote Control
User’s Manual ③ Remote Control Appearance Infrared Transmitter Outputs remote control Picture Mode Key On/Off Key signals. Selects the appropriate Turns on/off the picture mode to match the projector. projecting image best. Keystone Key Volume Key Adjust image distortion Adjust volume of caused by tilting the the projector projector. -
Page 13: Remote Control Operation
User’s Manual Remote Control Operation Point the remote control to the infrared remote sensor and press a key. Infrared Transmitter Infrared Sensor Notes: • The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor. -
Page 14: Installation And Connections
See the following table to choose the best position for your projector. There may be a slight different between the actual value and the design value, use the table as a guide. MODEL DS-250、DX-280、DX-300 DX-380、DX-400 Throw ratio 1.94 2.27 Screen... -
Page 15: ② Connections
User’s Manual Notes: •Installing your projector on the ceiling must be done by a qualified technician. Contact your dealer for more information. •Ensure that you have enough Screen ventilation around your projector so heat can dissipate. Do not cover the vents of the ○... -
Page 16: Connecting To Equipment With Video Output
User’s Manual Connecting to Equipment with Video Output Connect your DVD’s composite video and audio outputs with the supplied AV cable. Note: •Usually, connect the video signal with the yellow line of the AV cable. And the white line for mono audio or the left of stereo audio, the red line for right of stereo audio (Yellow = Video, White = Mono/L, Red = R). -
Page 17: Connecting To Equipment With Component Video Rca Output
User’s Manual Connecting to Equipment with Component Video RCA Output Connect your DVD’s component video outputs with the supplied AV cable. One more AV cable is needed (commercially available) when you want to output audio from the projector’s speaker. When connecting the component cable, match the jack colors with the component cable (Green = Y, Blue = Pb, Red = Pr). -
Page 18: Basic Operation
User’s Manual 4. Basic Operation ① Turning On the Projector Preparations Turn off all the equipments. Remove the lens cap. Complete the AC power cable and peripheral signal cables connections. Note: •Remove the lens cap before powering on. Projecting Press the main power switch to the on position (I).The STATUS Indicator will blink for several seconds, do not operate the projector until the STATUS Indicator is lit. -
Page 19: ② Adjusting The Image Size
User’s Manual ② Adjusting the Image Size The image size is determined by the distance between the projector and the screen. Operations: •Slide the Zoom Ring to adjust the image size. •You can only enlarge the image by 1.16 times at most by sliding the Zoom Ring. If you want more, position the projector farther away from the screen. - Page 20 User’s Manual Down 15° 15° Up 15° ° Operations: Lift the front edge of the projector. Push and hold the Elevator Button to extend the Elevator Foot. Lower the front of the projector to the desired height. Release the Elevator Button to lock the Elevator Foot. Rotate the Tilt-Adjustment Foots to make fine adjustment.
-
Page 21: ④ Turning Off The Projector
User’s Manual ④ Turning off the projector Turn off the projector with the following steps. Press the ON/OFF button on the cabinet panel or the ON/OFF key on the remote control. Appear the message: Press the ON/OFF button again to confirm. Press the ON/OFF button in 5 seconds Blinking while the confirmation message is displayed. -
Page 22: Advanced Functions
User’s Manual 5. Advanced Functions ① Menu Navigator... -
Page 23: ② List Of Menu Functions
User’s Manual ② List of Menu Functions The projector has multilingual on-screen display menus that allow you to make image adjustment and change a variety of settings. Top Menu Sub Menu “Display” Menu Sub Menu Function Default Brightness Set the brightness of the image. Contrast Set the difference between light and dark areas. -
Page 24: Image" Menu
User’s Manual “Image” Menu Sub Menu Function Default Sharpness Sharpen or soften the image. Adjust the intensity of colors. Color (available in S-video, Video, YPbPr) Shift colors toward red or green. Tint (available in S-video, Video, YPbPr) Set the color space for signals input. Color Space (available in RGB, YCbCr, YPbPr) Wide Image... -
Page 25: Language" Menu
User’s Manual “Language” Menu Sub Menu Function Default English Set the OSD language to English. 中文 Set the OSD language to Chinese. “Advanced” Menu Sub Menu Function Default When this option is selected you can enable the projector to No Signal Power Off automatically turn off (at the selected time: 3,6,9,12 min.) if there is no signal received by any input. -
Page 26: About" Menu
User’s Manual “About” Menu This menu shows the information of the projector. User can not perform any operation. ③ Using the Menus The OSD menus can be performed by using the buttons on cabinet panel or the keys of the remote control. Operations: Press the [MENU] button to call out the OSD menu. -
Page 27: ④ Rs-232C
User’s Manual ④ RS-232C A computer can be used to control the projector by connecting a RS-232C cable between them. RS-232C Setup Baud rate 115200 Data length Parity bit None Stop bit Flow control None Control Commands Send command codes listed in the following table to control the projector. Operation ASCII Power On... -
Page 28: Appendix
User’s Manual Appendix Appendix A. Maintenance Cleaning Clean the projector if it becomes dirty or if the quality of projected images starts to deteriorate. Turn off the projector and unplug the power cable before any cleaning. Cleaning the Projector’s Surface Clean the projector's surface by wiping it gently with a soft cloth. -
Page 29: Appendix B. Replacing The Lamp
• Be careful not to touch the glass surface of the lamp. Insert the new lamp module, tighten the two screws, and connect the lamp wire. Notes: • Ensure the screws are tightened properly. • Jolimark replacement lamp module: Optional Spare Lamp Module Applying Projector JMSP010 DS-250/DX-280/DX-300... -
Page 30: Resetting The Lamp Timer
User’s Manual Cautions: □ Use a Jolimark JMSP010 (DS-250/DX-280/DX-300) or JMSP020 (DX-380/DX-400) lamp module as the replacement lamp. Using the other lamps may cause damage to the projector and our company will not offer the free repair for that. □... -
Page 31: Appendix C. Indicator Messages And Remedies
User’s Manual Appendix C. Indicator Messages and Remedies When any fatal error occurs or the environment effects, the projector can not work normally. It will perform the warning and protection mechanism to protect itself. The indicators on the projector will illuminate to let you know what happens inside the projector. Important Note: •... -
Page 32: Appendix D. Troubleshooting
User’s Manual Appendix D. Troubleshooting Please read the following section when you encounter problems in using the projector. If the problem persists, contact your local dealer or service center. Does not Project •Have you pressed the main power switch to “I” position? •Have you removed the lens cap? •Have Remote control batteries run out. -
Page 33: Interference Or Distortion Appear In Images
User’s Manual Interference or Distortion Appear in Images •Are all the cables tied together? •Is the image signal format setting correct? Change the setting according to the signal for the connected equipment. •Are “Phase” and “Tracking” settings adjusted correctly? Press the [SOURCE] button on the projector’s control panel or the remote control to search the signal again. -
Page 34: No Sound
User’s Manual No Sound • Is the audio source connected correctly? • Is the volume setting adjusted to the minimum? The Remote Control does not Work ？ • Is the infrared transmitter of the remote control pointing towards the infrared sensor on the projector when it is operated? The operating angle for the remote control is described in Page 7. -
Page 35: Appendix E. Compatible Input Signal List
User’s Manual Appendix E. Compatible Input Signal List Computer Picture Horizontal Vertical Signal Resolution Input Port Frequency(kHz) Frequency(Hz) 640×480 31.5 VGA、DVI 37.9 37.5 43.3 SVGA 800×600 37.9 VGA、DVI 48.1 46.9 53.7 1024×768 48.4 VGA、DVI 56.5 68.7 SXGA 1152×864 63.8 67.5 77.1 1280×960 1280×1024... -
Page 36: Appendix F. Appearance Dimensions
User’s Manual Appendix F. Appearance Dimensions (Unit: mm) - Page 37 User’s Manual Suspension Installation Dimensions Screws spec: M5 Unit: mm...
- Page 38 This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. JIANGMEN KONGYUE JOLIMARK INFORMATION TECHNOLOGY LTD. Add: KongYue Industrial Park, 18 KongYue Road, JinGuZhou Zone, XinHui District, JiangMen City, GuangDong Province, P.R.C.
