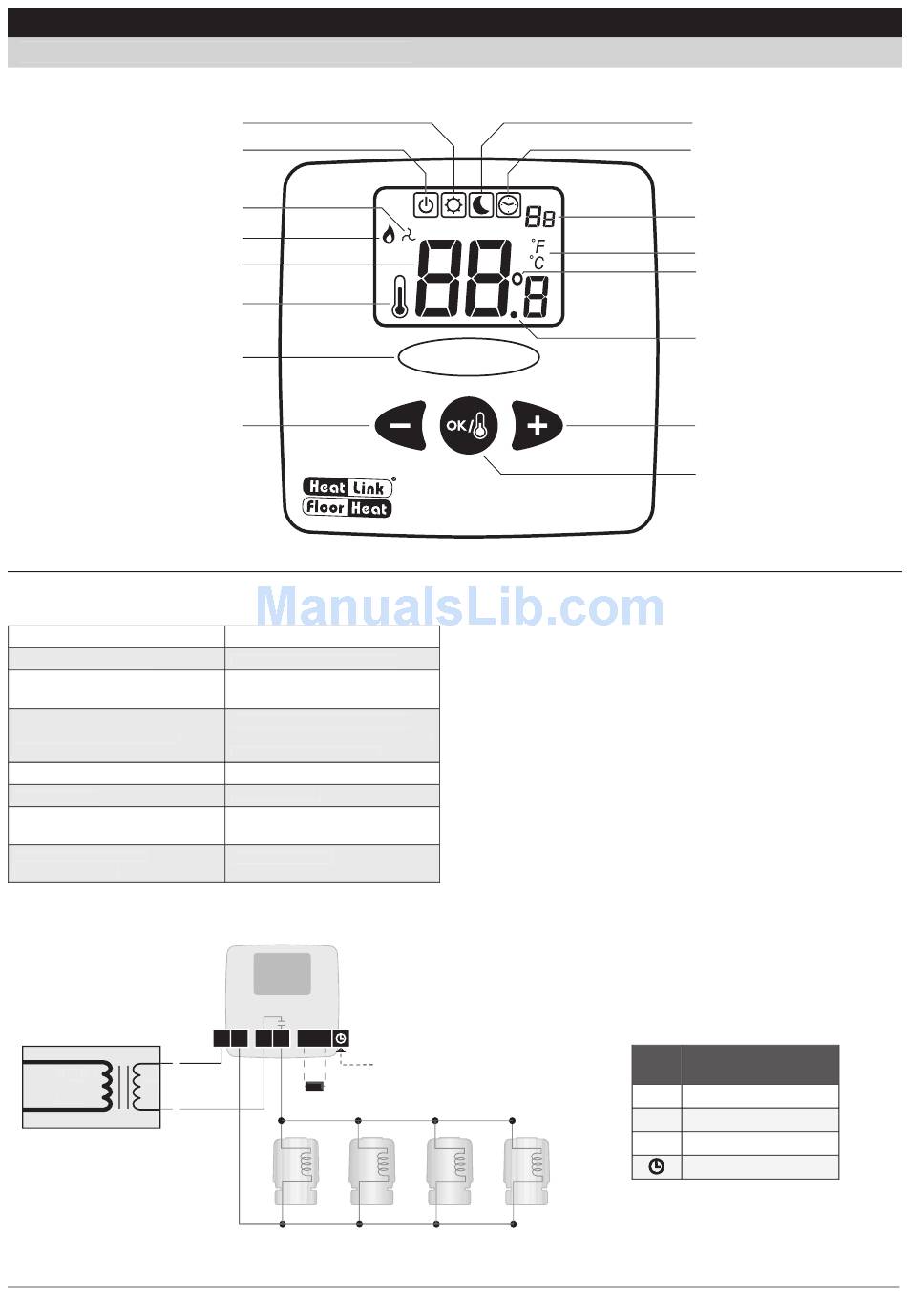

HeatLink 46543 User Manual

#46543 User Guide
HeatLink Digital Thermostat
COMFORT MODE
FREEZE PROTECTION
Cooling Demand Indicator
Heat Demand Indicator
Temperature Display
Indicates Temperature Display
is measured
Screw Cover
(not a button)
Left Minus Button
Technical Information
Measured temperature precision 0.1°C (or 0.2°F)
Operating temperature
Setting temperature range
Regulation characteristics
Electrical protection
Power supply
Output
External floor sensor
(sold separately)

Wiring Diagram

24 Vac Class II 24 Vac Class II 24 V
Transformer
L
C
110 V
or
24 V
220 V
N
R
L646543
0°C - 50°C (or 32°F – 122°F)
5°C - 37°C by 0.5°C step
(or 41°F - 99°F by 0.5°F step)
Proportional Integral regulation
(adjustable, see installation menu)
or Static differential 0.3°K
Class II - IP30
24 Vac +/- 10%
TRIAC output 24 VAC, 15 W max.
(4 actuators)
NTC (10K Ohms)
46543
C C R W NTC
Setback Signal Input (optional)
Floor Sensor (optional)
Actuators (4 max)
The 46543 HeatLink Digital Thermostat is a 24Vac electronic thermostat
designed to provide accurate temperature control of hydronic floor heating
systems. Features include:
• Large 2" (50 mm) LCD display, with a large temperature display.
• Proportional plus Integral (PI) controlled temperature regulation.
Proportional moves quickly to the desired setpoint and slows down when
the desired setpoint is near. Integral compensates the proportional offset
(overshoot) and stays close to the setpoint.
• Fast switching between modes; temperature setpoint is adjustable at the
press of a button.
• Accepts timer signal for automated setback operation (requires 46643
Timer Thermostat or 46673 Heat/Cool Thermostat).
• Floor warming functionality is available through NTC terminal by adding
an optional 10K floor sensor; the sensor acts as a floor temperature limiter
(min / max floor temperatures are adjustable in the Parameter Menu).
Page 1
SETBACK MODE
AUTO-SETBACK MODE
Parameter Display
Temperature Unit
Degree Symbol
Decimal
Right Plus Button
OK button
Color-coded Wiring Scheme
FAS105 (red jacket)
Wire
StatLink default
®
C
green
R blue
W red
black
November 6, 2007
