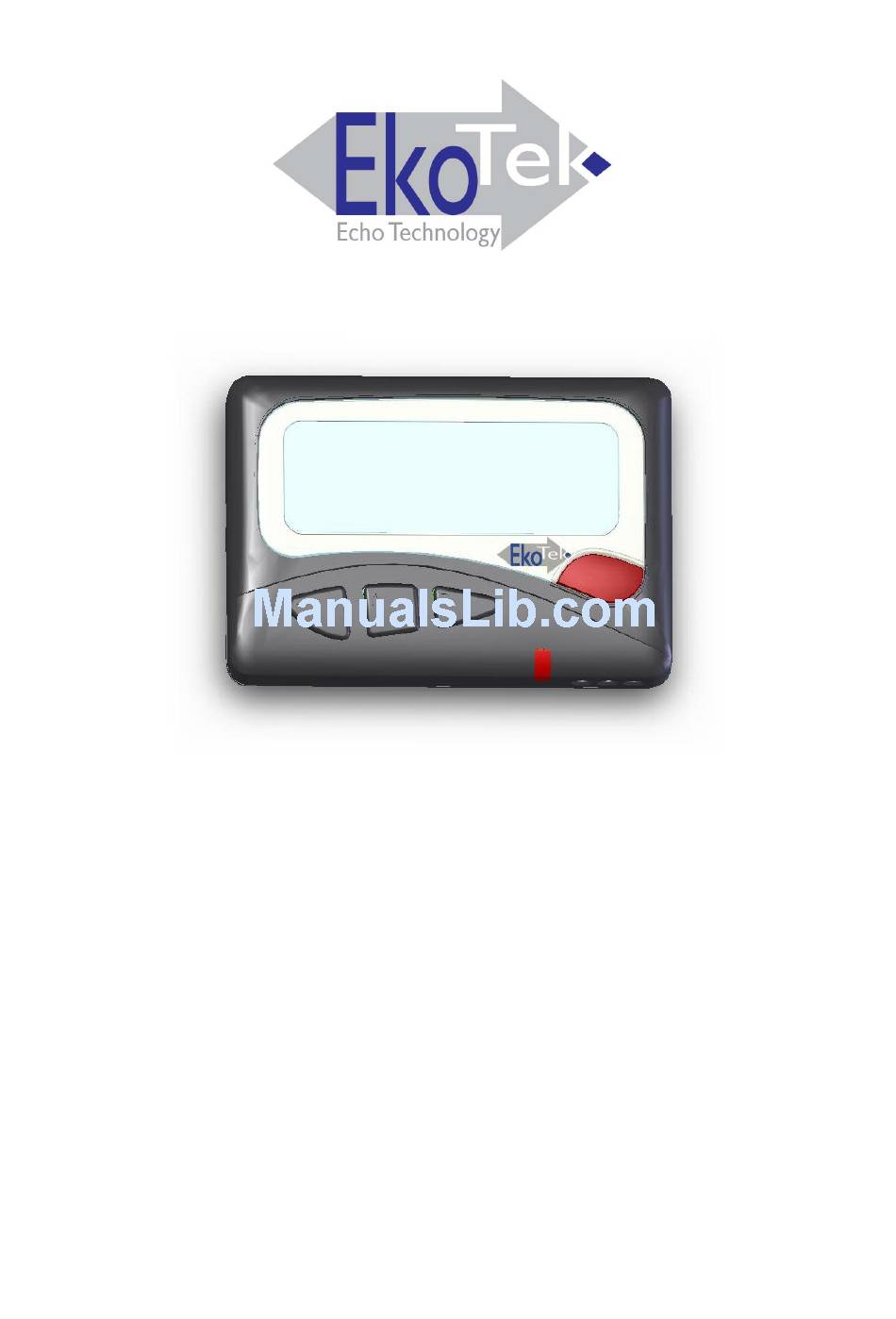

  • Page 1 EkoTek Pager USER GUIDE EkoTek Pager 9261-8275 (Issue 3.0)

  • Page 2: Table Of Contents

    CONTENTS Introduction Compliance General User Information EkoTek System Schematic Switching On Your EkoTek pager Switching On Your EkoTek pager Status and Warning Messages Switching Off Your EkoTek pager Using the Emergency / Assist Button Dead Man & Man Down Alert...
  • Page 3 EkoTek Pager Delete All Archived Messages Set 12/24 Hour Mode Power Save Setting the Alert options Setting the Message Display options Setting Auto Delete Changing the Battery Part No. 9261-8275 Issue 3.0...

  • Page 4: Introduction

    EkoTek Pager Introduction Your EkoTek pager is an alphanumeric two-way messaging device, incorporating an emergency calling/assist facility. The EkoTek pager is able to receive text messages, allows basic responses and provides the ability to store messages for later viewing. The high contrast screen is capable of displaying up to 150 characters and all menus are displayed in plain language text.

  • Page 5: Compliance

    EkoTek Pager Compliance This product complies with the requirements of the EU Radio & Telecommunications Terminal Equipment Directive 99/5/EC. FCC & Industry Canada Statement Of Compliance This device complies with Part 15 of the FCC Rules and Industry Canada Standard RSS 210.

  • Page 6: General User Information

    Do not leave your pager exposed to strong sunlight. Servicing Should your EkoTeK pager need repair, return it to the designated service agent. Do not attempt to open or repair the product, as it contains delicate components and requires specialised test equipment.

  • Page 7: Ekotek System Schematic

    EkoTek Pager EkoTek System Schematic EkoTek Self Organising & Repairing Wireless Mesh Network Call Fob Wireless Power Repeater Adaptor Battery Powered Repeater With Web Server Pager Repeater Repeater Includes Personal Security Alarm Repeater to Repeater Distance Typically 10 to 15m...

  • Page 8: Switching On Your Ekotek Pager

    ‘colon’ or ‘period’ symbol. If your EkoTek pager does not switch on, check that a fresh battery is correctly installed, see section: Changing the Battery. The fourth line of the screen will display a location name once the pager has received its configuration from the network.

  • Page 9: Status And Warning Messages

    ‘Replace Battery’ message is displayed. If the EkoTek pager is out of range from the wireless network the Out of Range message will also be displayed. In situations where the ‘battery requires replacement’...

  • Page 10: Switching Off Your Ekotek Pager

    Options Set 12 Hour Mode Enable Powersave ??> Power Off <?? Press the button again and your EkoTek pager will switch off. Part No. 9261-8275 Issue 3.0...

  • Page 11: Using The Emergency / Assist Button

    Please confirm this with your EkoTek system supervisor. On pressing the red button the EkoTek pager will either beep and/or vibrate in sequence with a flashing alert lamp. Please note that the precise nature of this acknowledgement is subject to configuration.

  • Page 12: Dead Man & Man Down Alert

    EkoTek Pager Dead Man & Man Down Alert Your EkoTek pager is equipped with a ‘Dead Man Alert’ and a ‘Man Down’ alarm facility. These features have to be enabled by the system supervisor. Dead Man Alert The ‘Dead Man’ alert operates by initiating an alert to the EkoTek...
  • Page 13 The ‘Man Down’ alert operates by automatically initiating an alert sequence if the EkoTek pager is tipped over: If the EkoTek pager is tipped-over after a pre-set time interval the pager will beep and will display following warning: 11:34AM 12.03.07...
  • Page 14 EkoTek Pager Please note that at any stage during the ‘Man Down’ alert process it is possible to cancel the alarm by pressing the button. Part No. 9261-8275 Issue 3.0...

  • Page 15: Receiving A Message

    To see the rest of the message, simply press the button: before Wednesday. JILL■ If the message is not acknowledged the EkoTek pager will return to the standby screen indicating that a message has been received: 3:54 PM 12.03.07 1 Unread Message...
  • Page 16 As each new message is received it is stored. The maximum number of messages that can be stored is 6. To make room for new messages your EkoTek pager will start to delete the oldest read messages. If there are no read messages it will delete the oldest unread message.

  • Page 17: Reading A Message

    EkoTek Pager Reading a Message To read a message, press the button whilst your EkoTek pager is in the standby screen. The most recently received unread message will be displayed: 4:38 PM 12.09.06 Unread Your car will be ready for collection next Monday afternoon■...

  • Page 18: Viewing A Message Again

    Both options allow you to view the message. Press the button again to select View Again the EkoTek pager will display the last message again, which will then remain in the memory for you to view in future, until deleted.

  • Page 19: Accepting, Rejecting & Deleting Two-Way Messages

    Reject ??> Delete <?? To confirm the action press the button, the EkoTek pager will briefly display the following depending on the action selected: For Accept the response is: Sending Accept Response For Reject the response is: Sending Reject Response For Delete the response is: Deleting Part No.

  • Page 20: Deleting A Message

    EkoTek Pager Deleting a Message To delete a message, press the button when the ■ appears at the end of the message. The message option screens will be displayed depending on the message type received: For 1-way **> View Again <**...
  • Page 21 EkoTek Pager When the current message has been deleted, the previously received message will be displayed. If you wish to delete this message repeat the procedure above. To return to the standby screen press and hold the button for one second, if there are no...

  • Page 22: Delete All Messages

    EkoTek Pager Delete All Messages Note: The delete all feature is available to all 1-way messages. However, for 2-way messages the delete all feature can only be accessed once the message has been viewed and appropriate action taken. To delete all the messages, press the button when the ■...

  • Page 23: Archiving A Message

    Messages may be stored for reference, by using the archive facility. The EkoTek pager cannot automatically delete archived messages when the message memory is full, only the user can delete messages. At the end of the message you wish to archive, press button to see the message option screen.

  • Page 24: Reviewing Archived Messages

    EkoTek Pager Reviewing Archived Messages To review your archived messages, press the button whilst your EkoTek pager is displaying the standby screen: 10.50AM 12.09.06 Archive Bring 2 new demo models to the meeting at 11.30 next Tuesday. Ruth■ The first screen of the most recent archived message will be displayed.

  • Page 25: Deleting Archived Messages

    EkoTek Pager Deleting Archived Messages To delete an archived message, press the button when the ■ symbol appears at the end of the message. The message option screen will be displayed: **> View again <** Delete Delete All Press the...

  • Page 26: Delete All Archived Messages

    EkoTek Pager Delete All Archived Messages To delete all of the archived messages, press the button when the ■ symbol appears at the end of a message. The message option screen will be displayed: **> View again <** Delete Delete All Move the pointers to the Delete All item by pressing the button.

  • Page 27: Set 12/24 Hour Mode

    EkoTek Pager Set 12/24 Hour Mode The set 12/24 hour mode function allows you to set 12 hour to 24- hour mode only. From the standby screen press the button. From the options screen move the pointers to Set 12 Hour Mode or Set 24 Hour...

  • Page 28: Power Save

    EkoTek Pager Power Save The power save function allows the display to blank after a period to extend the battery life. From the standby screen press the button. From the options screen move the pointers to ‘Enable Powersave’ by pressing the...

  • Page 29: Setting The Alert Options

    EkoTek Pager Setting the Alert Options The EkoTek pager allows full control of how the pager alerts when messages are received, the audible alert and vibrate alert can be set to ‘off’ or ‘on’. From the standby screen press the...
  • Page 30 The Audible Alert can be either enabled, or disabled. The Vibrate Alert can be either enabled, or disabled. Once your desired alert options have been selected, press and hold button for one second and the EkoTek pager will return to the standby screen. Part No. 9261-8275 Issue 3.0...

  • Page 31: Setting The Message Display Options

    EkoTek Pager Setting the Message Display Options Your EkoTek pager is equipped with display options and these may be set according to your personal requirements. To change the message display options, press the button from the standby screen. The options screen will now be displayed and select ‘Options’...
  • Page 32 EkoTek Pager The Font option can be set to 1, 2 or 3: • Font option 1: - Corresponds to a text size allowing up to 6 lines per screen (this text size option may be disabled via the programming software).

  • Page 33: Setting Auto Delete

    EkoTek Pager Setting Auto Delete The Auto Delete function allows you to set the maximum number of stored messages, excluding those in the Archive memory. If the number of messages in the memory exceeds the selected number, then the oldest read message is deleted. Should there be no read messages, then the oldest un-read message is deleted instead.

  • Page 34: Changing The Battery

    The pager displays the battery condition ( ) in the top line of the display. The black bar indicates the level of charge. When the battery is near the end of its operating life, the EkoTek pager is programmed to provide a visual, audio and vibrate alert warning.
  • Page 35 AAA sized cell as soon as possible. To remove the battery door, press and hold the battery door lock "pip" on the back of your EkoTek pager. At the same time slide the battery door off in the direction of the arrow.
  • Page 36 EkoTek Pager Notes: Part No. 9261-8275 Issue 3.0...
  • Page 37 EkoTek Pager Part No. 9261-8275 Issue 3.0...
  • Page 38 EkoTek Pager Multitone Electronics plc Multitone House, Shortwood Copse Lane, Basingstoke, Hampshire, England RG23 7DH Part No. 9261-8275 Part No. 9261-8275 Issue 3.0...
