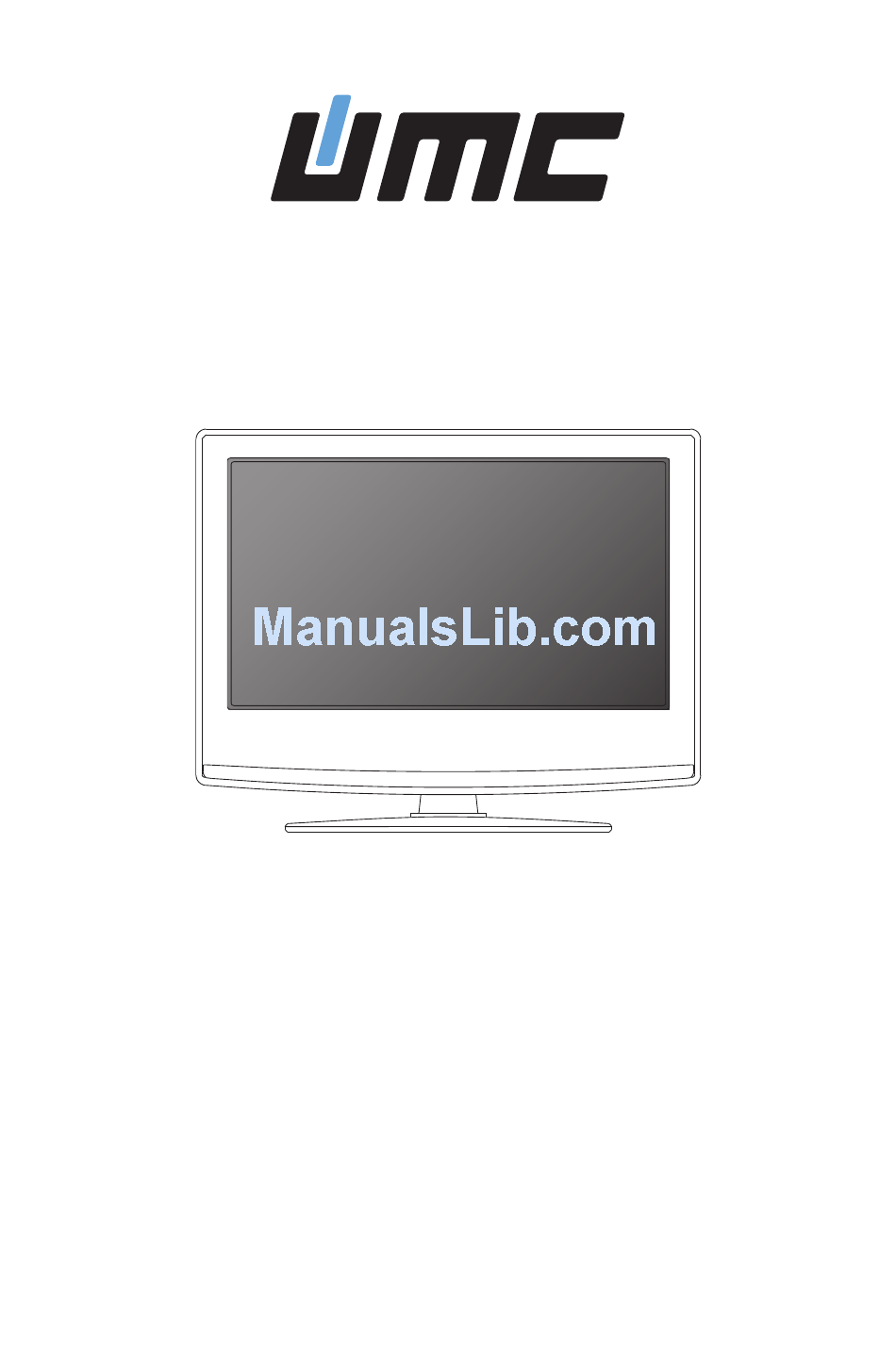

Page 1: Important Guarantee Information
HD Ready LCD TV with Freeview & DVD User Guide Model No X32/16B-GB-TCD-UK... - Page 3 Important information regarding the digital TV switchover Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region. How the switchover affects your TV equipment.
-
Page 4: Warnings
WARNINGS Caution This television contains no user serviceable parts. Please refer to the manufacturer or authorised repair agent in the event of malfunction. Do not remove the back cover from the television. Warning To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television. -
Page 7: Table Of Contents
CONTENTS - Important Guarantee Information - General Settings Menu - On Screen Display Language - Digital Switchover information 2 - 3 - Picture Format - Warnings 4 - 5 - Blue Screen - Contents - Child Lock / Key Lock - First Time Installation SETTING UP YOUR TV - Reset Television... -
Page 9: What Is Included In The Box
WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories: 1x - User Guide Book 1x - Remote control DISPLAY PICTURE FORMAT 1x - RF lead 2x - AAA batteries 1x - Quick Start Guide 1x - TV 1x - Blank plate for wall mounting Please save your packaging as you will need this in the event... -
Page 10: Removing The Stand & Wall Mounting
REMOVING THE STAND & WALL MOUNTING Removing the stand Important – If wallmounting this TV, 1) Remove the 4 screws indicated. only use the screws already 2) The stand will now slide off provided in the wallmounting holes. 3) There is a blank panel included in the box, this should be inserted into where Using other screws which are longer the stand was removed... -
Page 11: Initial Set Up
GETTING STARTED - INITIAL SET UP IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL INFORMATION CAN BE STORED. TUNING IN IMPORTANT — Please ensure the TV has If no channels are found the following screen will appear, reached room temperature before please refer to additional information below. -
Page 12: Remote Control Buttons
REMOTE CONTROL BUTTONS DISPLAY Digital mode: Exit the Digital menu. DVD mode: Stop the DVD playing. Digital mode: press to select NICAM. DVD mode: press to select DVD audio channels. Teletext mode: press to enter the teletext mode. DVD mode: press to play a DVD program in fast rewind mode. -
Page 13: Tv Buttons And Their Functions
TV BUTTONS & THEIR FUNCTIONS SIDE PANEL BUTTONS Volume up and menu up Volume down and menu down Program/Channel up and menu up Program/Channel down and menu down Displays Menu/OSD Select the input source Switch between standby and television on DVD - Eject DVD - Play/Pause DVD - Stop... -
Page 14: Changing Source
INPUTS & CONNECTIONS REAR CONNECTIONS HDMI 1 HDMI input HDMI 2 HDMI input VGA-PC input CI Port S-VIDEO S-Video input AUDIO x 2 Audio input VIDEO Video input YPbPr Component input Audio input for Video & S-Video Video/S-Video Audio YPbPr Audio Audio input for YPbPr POWER SCART 1... -
Page 15: Tv Menu Operation
TV MENU OPERATION Using the TV menu The following section will explain how to operate before explaining all the options available to you. 1) Press [LCD MENU] and the menu will appear 2) Press [>] to select the next menu until you reach the menu you require Picture Settings Menu Sound Settings Menu Tuning Settings Menu... -
Page 16: Picture Settings Menu
TV MENU OPERATION Normal For standard use PICTURE SETTINGS MENU Sharp For pictures with little movement Lets you adjust picture mode, contrast, Sharpest For pictures with nearly no movement brightness, colour, tint and sharpness Soft For pictures with large amount of movement to enhance the viewing experience. -
Page 17: Sound Settings Menu
TV MENU OPERATION SOUND SETTINGS MENU Adjusting Volume Lets you adjust the volume of the television Voice Emphasises voice over other sounds Music Emphasises music over voices Theatre Provides liver and full sound for movies Personal Selects your personal sound settings Selecting Sound Mode Preset Switch between different preset sound options... -
Page 18: Tuning Settings Menu
TV MENU OPERATION TUNING SETTINGS MENU BBC1 BBC1 (Only Freeview & Analogue TV modes) BBC2 BBC2 ITV1 ITV1 Adjusting Country If you are moving country you may wish to change the Country Settings ITV2 BBC3 Auto Tuning BBC4 To swap channel press on remote Scan for all channels based on the current move to the desired location and press... -
Page 19: Timer Settings Menu
TV MENU OPERATION GENERAL SETTINGS MENU TIMER SETTINGS MENU Lets you adjust the language, picture size, Lets you adjust the OSD timing and blue screen, add child lock, complete first the sleep timer time installation and reset the television. Sleep Timer Lets you set the sleep timer so On Screen Menu Language the television automatically switches off... -
Page 20: On Screen Display Language
ELECTRONIC PROGRAM GUIDE & DIGITAL TELETEXT Electronic Program Guide (EPG) Digital TV Teletext The Electronic Program Guide (EPG) is With Digital TV (Freeview) there is also available in Digital TV mode. It is a 7 day digital teletext available on some TV guide and provides information channels. -
Page 21: Using Analogue Tv Teletext
TELETEXT OPERATION (ANALOGUE TV ONLY) Teletext is a service offered by some broadcasters. Teletext Operation 1) Press [TEXT], after a few seconds teletext page 100 should appear. Here is an example of BBC1 2) You can now navigate to the page you require in a number of ways: a) Press the page you require using the number buttons i.e. -
Page 22: Dvd Menu Operation
DVD MENU OPERATION SYSTEM SET UP Returning to Default This lets you switch the DVD menus show above Adjusting TV System back to Default settings Lets you adjust between NTSC, PAL, AUTO (PAL is default for the UK) 1) Press [DVD-SETUP] to enter menu 2) Press [>] to select TV System 1) Press [DVD-SETUP] to enter menu 3) Press [\/] to select Default... -
Page 23: Audio Set Up
DVD MENU OPERATION AUDIO SET UP Adjusting the Sound Adjusting Tone Lets you change the sound between Stereo, Lets you increase or decrease the Tone Mono Left, Mono Right and Mixed Mono. of the sound 1) Press [DVD-SETUP] to enter menu 1) Press [DVD-SETUP] to enter menu 2) Press [\/] twice to select Digital Set Up 2) Press [\/] to select Audio Set Up... -
Page 24: Connecting To A Pc
CONNECTING TO A PC - WINDOWS XP 4) Left click your mouse on Settings, this screen will appear. Check the screen resolution is set to what IMPORTANT— Before connecting to is show in the technical specifications section. You a PC you must ensure that the settings can adjust the resolution by moving the slider on of the PCs output are correct for the new screen. -
Page 25: Pc Menu Settings
PC MENU OPERATION (VGA) Auto Configuration of Screen Lets you automatically configure the television to be used as a computer monitor Phase To adjust delay time of phase in order to reduce the noise of picture Clock Alter this in order to reduce the noise within the picture Horizontal Position Changes the horizontal position of the picture... -
Page 26: Connecting A Games Console
CONNECTING A GAMES CONSOLE Many people may wish to connect Option 2 – With optional HDMI cable. a games console to the TV, here are some A HDMI cable can output both video and of the most common examples: audio and enables you to enjoy digital-quality video and audio with minimal loss of picture quality Nintendo Wii... - Page 27 CONNECTING A GAMES CONSOLE Option 2 – With the HDMI to HDMI cable A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of picture quality Option 3 – With Component Cables (Red, Green, Blue cables - Picture) and Audio cables (Red &...
-
Page 28: Connecting To A Cable/Satellite Box
CONNECTING TO A CABLE/SATELLITE BOX You may wish to connecting your TV to Once tuning is complete the first channel a cable or satellite box. will appear. Press [CH+] to move through the channel until you find the Sky channel. The channel can then be moved if you Connecting via SCART wish, please refer to the Tuning Setting... -
Page 29: Trouble Shooting
TROUBLE SHOOTING 1) Check you are in an area that can receive Freeview. I have tuned in Digital TV but I am not Visit www.freeview.co.uk or call 08701 111 270. receiving any or all of the channels 2) Check you have a suitable aerial. Many indoor and/or the channels I receive aerials will say they are digital ready, but you will are breaking up... -
Page 30: Technical Specifications
TECHNICAL SPECIFICATION X32/16B-GB-TCD-UK " 2 Resolution 1366x768 Panel Contrast Ratio 800:1 Brightness cd/m 2 x SCART, 1 x S-Video, 1 x Video, 1 x Video Input Signal Component (YPbPr - 1080i) 1 x 3.5mm jack for PC, 1 x pair RCA for YPbPr, 1... -
Page 31: Index
INDEX Manual Tuning Adjusting Tone Nintendo Wii Analogue TV teletext On Screen Display Language Removing the stand & wall On Screen Display Timer mounting PC Menu Settings Audio Set Up Picture Format Auto Tuning Picture Format Balance Bass Picture Mode Presets Blue Screen Picture Settings Menu Brightness... - Page 34 X32/MAN/0005...
