Since 1964, the leader in effective, safe and reliable products for fisheries conservation.
Knowledgeable biologists depend upon Smith-Root equipment.

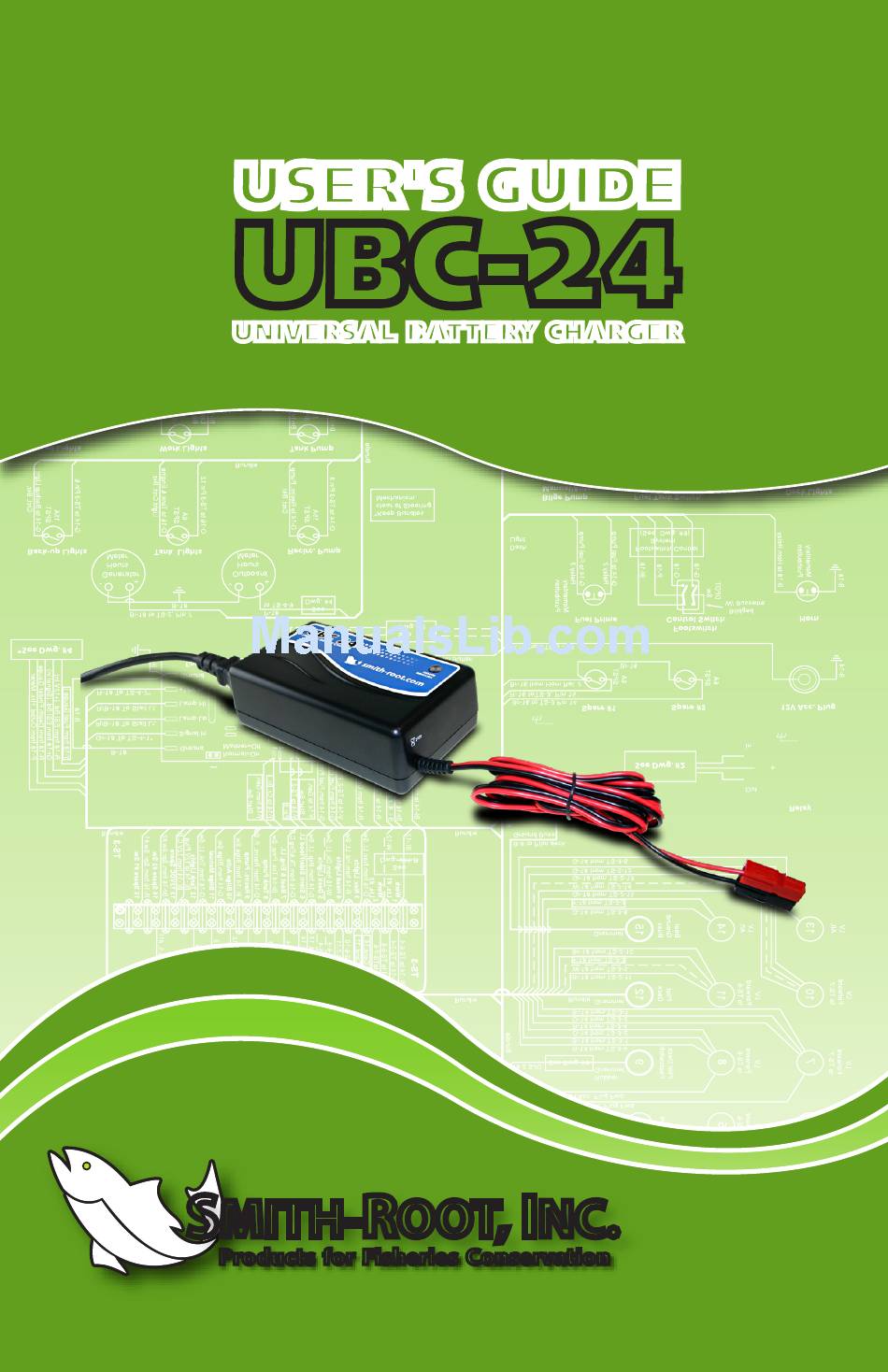

USER'S GUIDE
UBC-24
UNIVERSAL BATTERY CHARGER
S
S
MITH-
MITH-
Products for Fisheries Conservation
Products for Fisheries Conservation
R
R
OOT,
OOT,
WWW.SMITH-ROOT.COM
I
I
NC.
NC.
07292.10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smith-Root UBC-24
Summary of Contents for Smith-Root UBC-24
- Page 1 Since 1964, the leader in effective, safe and reliable products for fisheries conservation. Knowledgeable biologists depend upon Smith-Root equipment. USER'S GUIDE UBC-24 UNIVERSAL BATTERY CHARGER MITH- MITH- OOT, OOT, Products for Fisheries Conservation Products for Fisheries Conservation WWW.SMITH-ROOT.COM 07292.10...
-
Page 2: Table Of Contents
Please contact product manufacturer for return instructions. All Smith-Root, Inc. manufactured products are covered by a one year warranty. Credit & Refund Policy: Customers returning equipment, in new condition, will be given credit five days from the date of the return. A return authorization must accompany returns. Valid equipment returns include, but are not limited to, ordering incorrect equipment, funding deficits, and defective equipment returned for reimbursement. -
Page 3: Charger Description
LR-24 LR-20 Series Smith-Root 24V models) Electrofisher Systems. The UBC-24 is a truly automatic charger tailored for maintenance- free batteries as well as other types of lead acid batteries. The UBC-24 has a fully automatic, three stage charge sequence with an electronically timed routine and a desulfation mode. -
Page 4: How To Charge Batteries
Even though a battery in this condition should be replaced, it will retain a small charge. If mounted in a vehicle, the charger can only be used when the vehicle is not in use. smith-root.com... - Page 5 Battery Under Test BAT-01 HoW To CHARGE BATTERIES The charger and battery should be placed in a well-ventilated area during charging. Do not connect the charger to the mains before it is connected to the battery. Verify that the polarity is correct and connect the charger cable: Red to red;...
-
Page 6: Leds And Charge Status
The charge voltage is at standby level, which means the charger The charger can return to rapid charging if the battery is used. can continue to be connected to the battery. The charger can return to rapid charging if the battery is used. Charging diagram smith-root.com... -
Page 7: Connectors And Indicators
(see page 4). Users that have an inventory of older style Smith-Root Electrofisher batteries that wish to charge and maintain them with the UBC-24 may do so using adapter cables available from SRI (See page x). 2009... -
Page 8: Charger Operating Instructions
From AC Connect charger to battery. UBC-24 Connect the charger to the AC power supply and switch on. The state of charge is shown by the LED indicators on the battery charger as follows. -
Page 9: Storage Instructions
SToRAGE INSTRUCTIoNS When not in use, store the charger indoors in a cool dry place, preferably with its original packing and carton. Place these instructions with the charger during storage. MAINTENANCE AND CLEANING Very little maintenance is required other than protecting the charger from damage and weather. -
Page 10: Charging Other Sri Batteries
USER’S GUIDE CHARGING oTHER SMITH-RooT BATTERIES The UBC-24 Battery Charger is designed to charge batteries for the LR-24 Electrofisher System. However, users that have an inventory of older style Smith-Root Electrofisher batteries can charge and maintain them with the following adapters:... -
Page 11: Specifications
SpECIFICATIoNS Input Rating: nominal 90-264VaC/47-63hz Maximum Output Power: 60W Load Regulation: <200mV Line Regulation: <100mV Switch Frequency: ≈40 khz Temperature Range: -10°C to +40°C Ripple: <100mVp-p Efficiency (At 100% Load): 80% Insulation Class: Class i Electrical Safety: uL 60601-1, en 60601-1, en 60950, en 60335-2-29 EMC Standards: en 60601-1-2 (Medical), en 61000-6-3 (emission), en... - Page 12 USER’S GUIDE BATTERY CYCLE NoTES Use this form to record the number of times a battery has been cycled: DATE: SERIAL #: NOTES: smith-root.com...
- Page 13 SMITH-ROOT, INC. 14014 NE Salmon Creek Ave. Vancouver, WA 98686 USA 360.573.0202 Voice 360.573.2064 FAX info@smith-root.com www.smith-root.com...
