E-CPM-4-8-10-SL8-I-0309

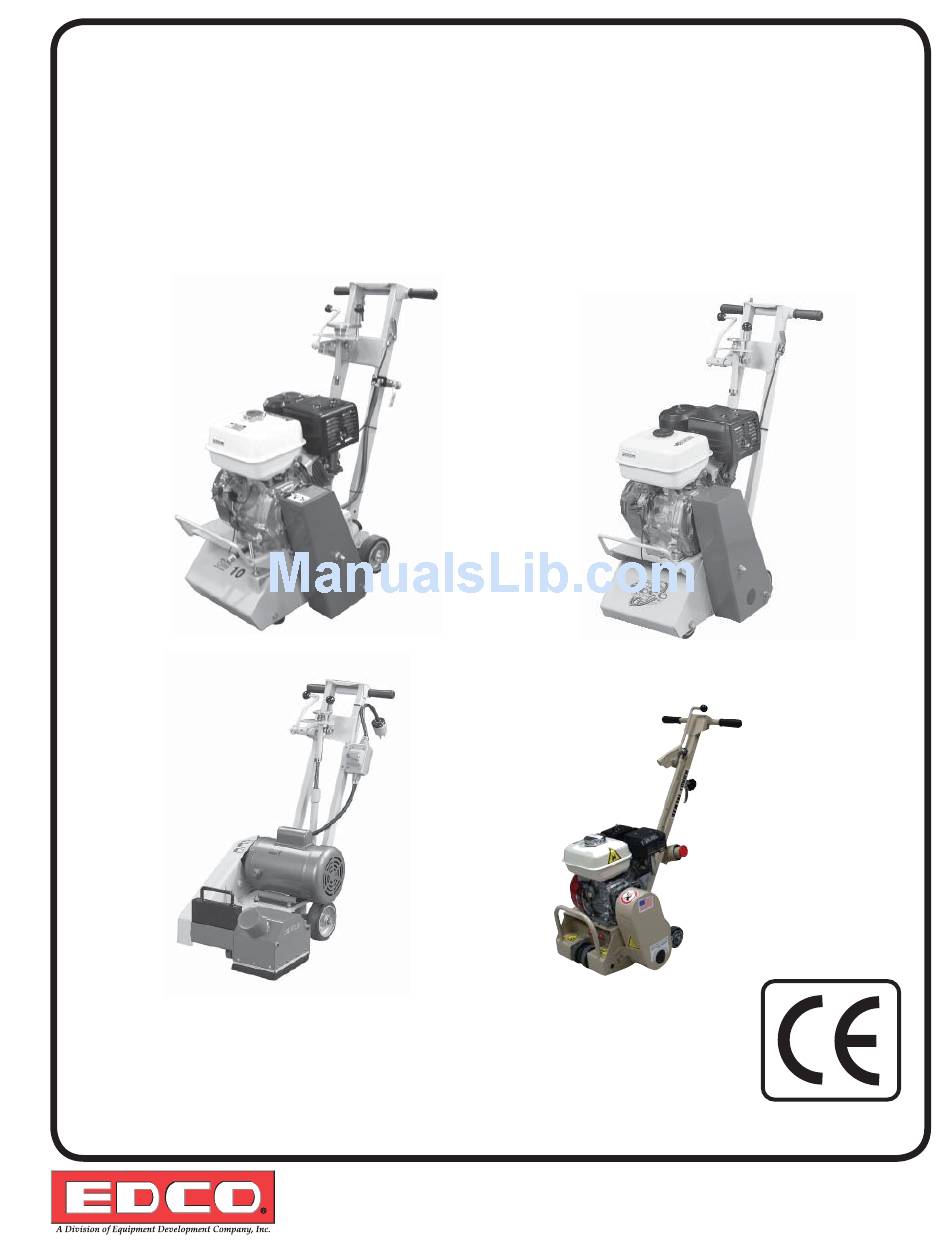

Operator's Instruction Manual

COMPACT PLANER

Models CPM-4, CPM-8, CPM-10

ScariLite-8

CPM-10

CPM-8

ScariLite-8

CPM-4

Gasoline/Electric/Propane

Concrete/Asphalt Planer

Manual - Portable

100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA

Phone (301) 663-1600 • 1-800-638-3326

Printed in USA

Fax (301) 663-1607 • 1-800-447-3326

Website: www.edcoinc.com

TVW

Email: sales@edcoinc.com

Page 1

Table of Contents

Need help?

Do you have a question about the CPM-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Edco CPM-4

Page 1 E-CPM-4-8-10-SL8-I-0309 Operator’s Instruction Manual COMPACT PLANER Models CPM-4, CPM-8, CPM-10 ScariLite-8 CPM-10 CPM-8 ScariLite-8 CPM-4 Gasoline/Electric/Propane Concrete/Asphalt Planer Manual - Portable 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2009...
Page 2: Safety Messages
E-CPM-4-8-10-SL8-I-0309 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY SAFETY MESSAGES the plug, not the cord.
Page 3: Table Of Contents
Safety Messages..........................Table of Contents and Speciﬁ cations....................Safety Guidelines..........................Operating Instructions.......................... Cutting, Drum Removal/Replacement....................8-12 Dry Grinding............................What to expect from your EDCO product, Maintenance Instructions..........14-18 Maintenance Schedule......................... Limited Equipment Warranty....................back cover Note: All dimensions and weights are for...
Page 4: Safety Guidelines
Replace damaged or missing decals immediately. • The CPM-4-8-10 and ScariLite-8 Planers are designed to plane ﬂ at, horizontal concrete or asphalt slabs. They may be called Planers, Mills, Grinders or Scariﬁ ers and may be equipped with gasoline, propane engines or electric motors.
Page 5: Operating Instructions
Water Hook Up Depth Control Knob Fuel Tank * Emergency Stop Tether (CPM-10) Emergency Stop Switch Lanyard Stop button on (CPM-4 & CPM-8) * (CPM-10) * Cushioned Handles 10. Easy Lift Handle Ignition Switch (Position will vary) * 11. Fuel Lockoff Solenoid Toggle Throttle Control * For Propane Models Only.
Page 6 * Disengage Lever 8. All EDCO gasoline engine operated planers are equipped with a STOP switch, Position usually located on the handle. Use this switch for emergency engine shut-off. * 9. Cold engine starting: Be sure fuel line valve is open. Set choke (separate lever on some engines - others have choke as part of throttle control).
Page 7 • Check all connections for tightness and leaks. If you detect an odor, IMMEDIATELY shut off the main fuel valve and consult a qualiﬁ ed LP-gas service person or EDCO directly. 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 •...
Page 8: Cutting, Drum Removal/Replacement
E-CPM-4-8-10-SL8-I-0309 NEVER check for propane leaks using an open ﬂ ame. Instead, use a leak-testing solution. NEVER allow propane fumes to escape in a closed area; propane is heavier than air and will “settle.” • To start this propane powered equipment, open the main fuel valve located on the propane tank (Figure 3). Open the throttle wide open and start the engine.
Page 9 Drum assembly revolves at approximately 1200-1800 R. P. M.; Model CPM-10 is a “down-cut” planer, Model CPM-8 is a “down-cut” planer, and ScariLite-8 is a down-cut planer, Model CPM-4 is an “up-cut” planer. Depth of cut is completely determined by the material to be cut, horsepower of the engine/motor and spacing of the cutter wheels on the cutter head.
Page 10 E-CPM-4-8-10-SL8-I-0309 CPM-4 DRUM REMOVAL / REPLACEMENT CPM-4 and CPM-8 EDGER ATTACHMENT To remove or replace drum assembly on the CPM-4 remove the two (2) bolts circled securing the drum cover plate in the photo on the left. Next remove the socket head screw as shown in the photo on the left.
Page 11 E-CPM-4-8-10-SL8-I-0309 ScariLite-8/CPM-8 DRUM REMOVAL / REPLACEMENT To remove cutter drum assembly or perform drum maintenance TILT MACHINE FORWARD WRONG RIGHT DO NOT TILT CPM-8 ON TO HANDLE Engine damage and/or operator injury may result. 1. Remove plastic plug from belt guard, set aside for later use.
Page 12 E-CPM-4-8-10-SL8-I-0309 CPM-10 DRUM REMOVAL / REPLACEMENT To remove or replace the drum assembly on the CPM-10 remove the four (4) bolts circled securing the bearing plate in the photo on the left . NOTE: Bearing grease point. Next remove the bearing plate as shown in the photo on the left.
Page 13: Dry Grinding
E-CPM-4-8-10-SL8-I-0309 DRY GRINDING Dry Grinding: Dry Grinding creates a large volume of airborne dust. For health reasons, the operator should wear an applicable respirator. The dust may contain chemicals known to cause serious illnesses, including Silicosis a fatal disease of the lungs.
Page 14: What To Expect From Your Edco Product, Maintenance Instructions
Since the maximum depth of cut is 1/2” (2 cm) in increments We at EDCO are prepared to assist the user. We can of 1/32” to 3/16”, it is not suited for removal of very hard...
Page 15 Refer to the CPM-4, CPM-8, CPM-10, ScariLite-8 Assembly Instructions booklet for suggested Cutter Drum setups. Cutter Wheels Use only EDCO approved cutter wheels. Cutter wheels for all application are available - sizes and types vary. Complete information is available from EDCO. Genuine EDCO Tungsten Carbide Cutters are...
Page 16 E-CPM-4-8-10-SL8-I-0309 TYPICAL DRUM SET-UPS Surface preparation Surface preparation six shaft drum CPM-4 six shaft drum CPM-8 Surface preparation Surface preparation six six shaft drum CPM-8 shaft drum ScariLite-8 Surface preparation Grooving six shaft eight shaft drumCPM-10 drum CPM-10 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 •...
Page 17 E-CPM-4-8-10-SL8-I-0309 Remove spark plug lead on gasoline/propane engine models or disconnect the supply voltage connector on electric models before performing any maintenance. Disconnect the power cord at the machine. Maintenance Instructions Refer to the Engine/Motor Manufacturer’s Owner’s Manual for maintenance information speciﬁ c to the engine/motor used.
Page 18 E-CPM-4-8-10-SL8-I-0309 CPM-4-8-10-ScariLite-8 MAINTENANCE INSTRUCTIONS Important! • Check oil level before operation. Change engine oil and ﬁ lter according to engine manufacturers recommenda- tions. • Clean air ﬁ lter element daily. Belts: • On new equipment, and after replacing a set of belts, they should be re-tensioned after the ﬁ rst four hours of use.
Page 19: Maintenance Schedule
E-CPM-4-8-10-SL8-I-0309 Maintenance Schedule Read and follow instruc- Repairs are to be done tions in the engine owner’s by authorized EDCO manual. Dealers only. All maintenance to be performed by qualiﬁ ed personnel. Visual Inspection of Entire Machine Check Engine Oil*...
Page 20 *Seller reserves the right to alter payment terms. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been 3.
