1. Connections

1
1) USB input. Connect directly to the USB 3.0 or 2.0 or 1.1* port of a PC, Mac or Linux-
based computer, or use an USB extender (A male to A female). In the latter, the extender
must be compliant with USB 2.0 and less than 3m, otherwise the bus performance will
decrease and the correct operation of the interface will not be guaranteed. USB type A
male connector
2) S/PDIF output. Connect to the DAC input with a 75 Ohms digital cable. RCA male
connector or BNC 75 Ohms male connector.
F T
* hi ace wo performance on USB 1.1 are limited to 96kHz. Please note that 1.0 ports
won't work.
5

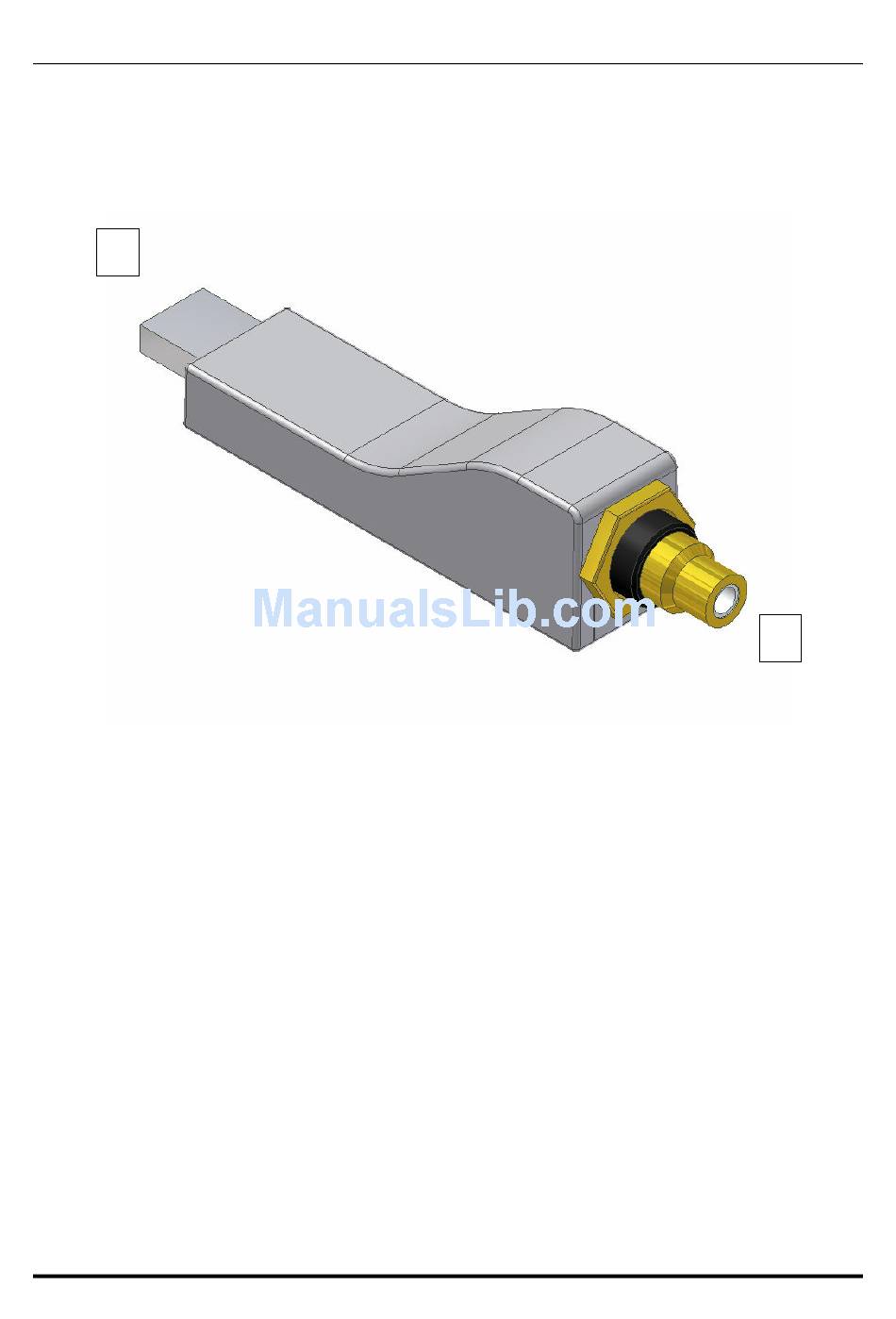

Figure 1
