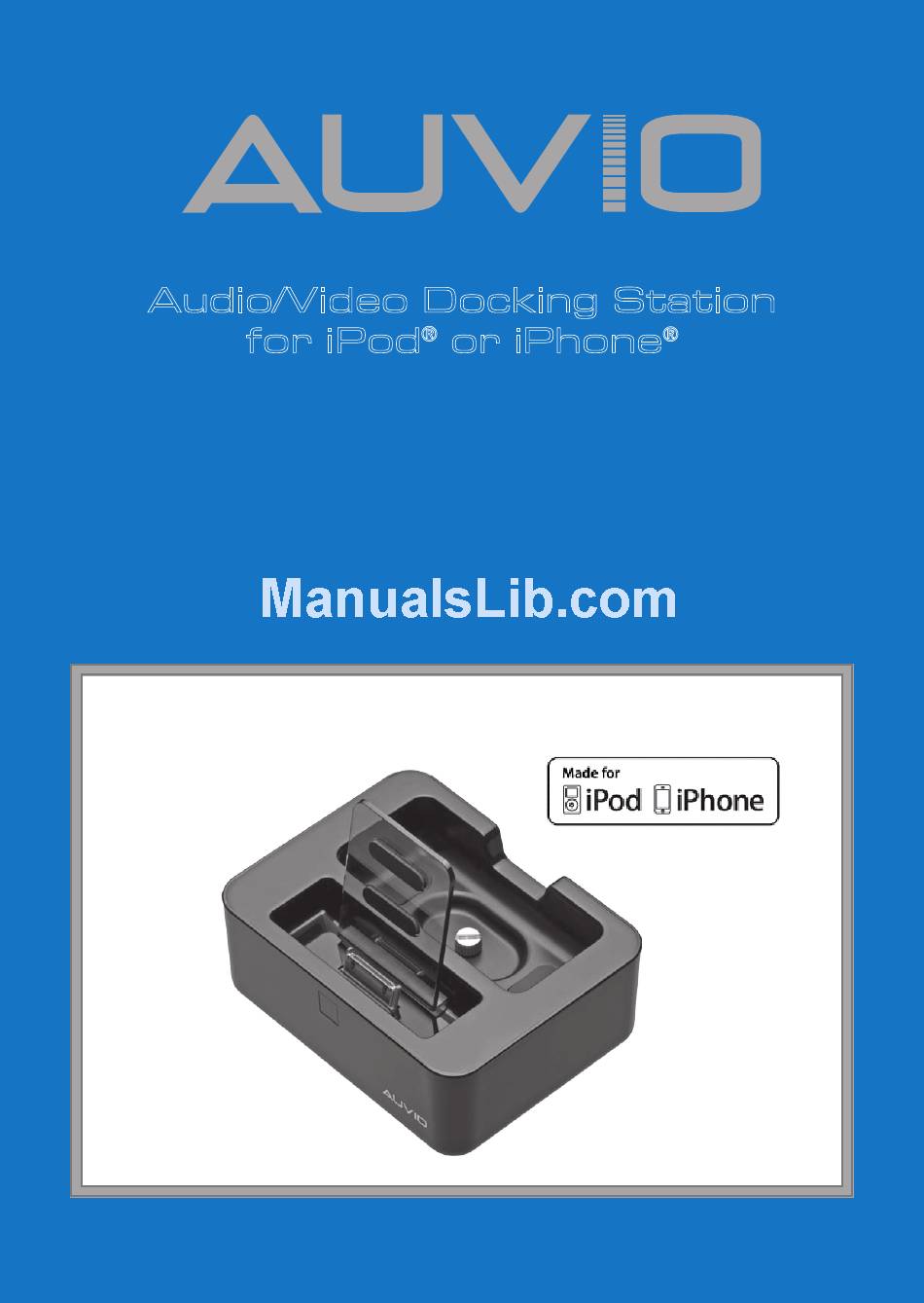

- Page 1 ® TH E PERFO RMAN CE Y OU NE ED ® Audio/Video Docking Station for iPod or iPhone ® ® Please read this user’s guide before using your new docking station. User’s Guide 1200877...
-
Page 2: Package Contents
Package Contents Docking station Remote control „ „ AC adapter AV cable „ „ User’s guide Quick start „ „ Features Charges your iPod or iPhone „ Listen to music through a stereo system, or „ watch video files on your TV Supports iPod nano (4th, 5th and 6th generation), „... -
Page 3: Connect The Ac Adapter
Connect the AC Adapter Use the supplied AC adapter to connect the docking station to a standard AC outlet. Install Batteries in the Remote Install 2 AAA batteries (not included), matching the polarity symbols (+ and –) marked inside. Battery Notes: If the remote control stops operating, or its control range decreases, replace the batteries. -
Page 4: Dock And Charge Your Ipod/Iphone
Dock and Charge Your iPod/iPhone Loosen the remote control holder lock screw to release the support plate. Insert your iPod/iPhone and adjust the support plate to fit your iPod/iPhone. Lock the plate in position. Support Lock screw plate Remote sensor iPod/iPhone Remote control dock connector... - Page 5 S-VIDEO DC 12V For better picture quality, use an S-VIDEO cable (not Connect a USB included). cable (not included) to charge and sync VIDEO, L – AUDIO – R your iPod/iPhone Connect the docking station with your computer. to your AV input using the included AV cable.
-
Page 6: Remote Control Functions
Remote Control Functions Turn off the screen lock and auto-lock timer on your iPod Touch/iPhone. Go into the desired iPod mode using your iPod Touch/iPhone. Select functions with the remote control. MENU Return to a previous menu. Next. Press Select menu items. - Page 7 Synchronize with Your PC Install the latest iTunes software. Connect the docking station to your computer’s USB port using a standard USB 2.0 cable (not included). Dock your iPod/iPhone. Notes: Do not remove the iPod/iPhone from the docking station while synchronizing files. A USB cable longer than 4ft.
-
Page 8: Specifications
Specifications Input/output Left/right audio ..........analog audio output Maximum operating temperature ......104ºF (40ºC) Typical output audio loading .........47 kOhm Video .............composite video output S-Video ........separated analog video output Power adapter input...........120V AC, 60 Hz Power adapter output ..........12V, 650mA USB-B ........ -
Page 9: Fcc Information
Make sure the AC adapter is correctly connected „ to the dock and plugged into the wall. Make sure your iPod/iPhone models supported „ by this docking station. The remote does not function. Remove all obstacles between the remote „ control and the remote sensor. -
Page 10: Limited Warranty
Ignition L.P . warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase. IGNITION L.P . MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by... - Page 11 Ignition L.P . will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Ignition L.P .
- Page 12 RoHS environmental restrictions. © 2011. Ignition L. P . All rights reserved. Auvio is a registered trademark used by Ignition L.P . Package and insert are recyclable. Printed 06B11 Insert contains recycled material.
