EXCEPTIONALLY RADIANT
INSTALLATION &

OPERATING INSTRUCTIONS

(READ CAREFULLY BEFORE ANY OPERATION - DOCUMENT TO BE KEPT BY END USER)

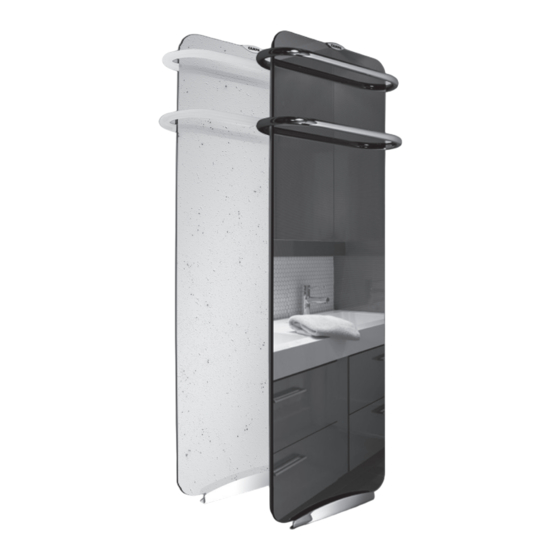

IMPRESARIO – TOWEL DRYER
MODEL NUMBER : 7630-C16
MODEL NUMBER: 7625-C12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPRESARIO 7630-C16 and is the answer not in the manual?

Questions and answers

Summary of Contents for CONVECTAIR IMPRESARIO 7630-C16

  • Page 1: Operating Instructions

    EXCEPTIONALLY RADIANT INSTALLATION & OPERATING INSTRUCTIONS (READ CAREFULLY BEFORE ANY OPERATION - DOCUMENT TO BE KEPT BY END USER) IMPRESARIO – TOWEL DRYER MODEL NUMBER : 7630-C16 MODEL NUMBER: 7625-C12...
  • Page 2: Table Of Contents

    INTRODUCTION Dear owner, Congratulations on the purchase of this premium electric heater. CONVECTAIR develops and produces the highest quality heating products in the electrical industry. To obtain the best results and the ultimate in performance and comfort, please take a moment to read the installation, operation and maintenance instructions detailed in this manual.
  • Page 3: Quickstart Guide

    To set the duration : turn the Timer adjustment knob (“D”) (0 à 120 min, factory setting is 20 min). To start or to stop the timer, press knob (“D”) (page 10). Troubleshooting : (page 13). To contact CONVECTAIR : (Back Cover). Page 3...
  • Page 4: Specifications

    Optional setback system (sold separately) : Your IMPRESARIO can be fitted with the optional CONVECTAIR Programmer Modules to program temperature setbacks in periods of prolonged absence, providing the same comfort and more savings. For more information, contact your electrical contractor or dealer, or call CONVECTAIR (see Back Cover).
  • Page 5 325 m 35 lbs 47 1/2 po. 13 7/8 po. 5 1/2 po. 10 3/8 po. 4 1/8 po. 20 1/4 po. 10 1/2 po. 7630-C16 1600W 75 cm (30 in.) 40 Kg 1514 mm 427 mm 215 mm 505 mm...
  • Page 6: Installation And Mounting

    INSTALLATION AND MOUNTING CAUTION Because of the heavy weight of this heater, particular care must be taken when handling and installing it. Use screws and anchors adapted to the wall type and weight of the heater. - Remove the mounting bracket by loosening and sliding the locking knob (Fig. B). - Respect all mimum clearances (page 5 Fig.
  • Page 7 INSTALLATION AND MOUNTING (continued) - Position the towel bar over the top of the heater (Fig. 1). - Slide the two mounting tabs into position (Fig. 2). - There are two towel bar locations above the thermostat and an optional third one below (Fig.
  • Page 8: Electrical Connection

    To prevent short circuits and electrical shocks, turn the power off at the main panel before installing or repairing the heater. If the power cord of the appliance is damaged, it must be replaced by CONVECTAIR or an approved service depot to avoid any danger CONVECTAIR recommends that the heater be installed by a qualified electrician and in accordance with national and local codes.
  • Page 9: Operating Instructions

    On / Stanby switch Heating indicator light Throughout the heating season, your CONVECTAIR heater stays warm and maintains a constant temperature in the room. During cold spells, it is normal for the heater to become hotter. Young children should be cautioned about this and be supervised when they are in the heater vicinity.
  • Page 10 OPERATING INSTRUCTIONS (continued) OPERATING INSTRUCTIONS RADIANT HEAT ONLY 1. Place the On/Stanby switch to I (“B” page 9 Fig. D). 2. Close all doors to the room where the heater is located and turn the temperature adjustment knob (“F” page 9 Fig. E) to MAX (Fig. 4). 3.
  • Page 11 OPERATING INSTRUCTIONS (continued) FROST PROTECTION SETTING Turn the temperature control knob (“F” page 9 Fig. E) counter clockwise to the snow flake sym- bol. This setting will maintain a minimum temperature of 5 to 7 °C (40 to 45 °F). BLOCKED FILTER INDICATOR The fan-forced heating element is equiped with a lint filter.
  • Page 12: Maintenance And Advice

    Note : The first time your CONVECTAIR heater is used, a light smoke could be re- leased. This is normal and should disappear after about 2 to 3 minutes. ANY REPAIR ON YOUR CONVECTAIR HEATER SHOULD ONLY BE DONE BY A QUALIFIED TECHNICIAN, AND ONLY AFTER THE HEATER HAS BEEN DISCONNECTED.
  • Page 13: Troubleshooting

    Programmer  Refer to the Programmer instruction manual. IN ALL OTHER CASES, CONTACT YOUR ELECTRICIAN OR THE CLOSEST AUTHORIZED CONVECTAIR SERVICE CENTER OR CALL THE CONVECTAIR HELP LINE AT 1 800 463-6478. OVERHEAT CONTROL This heater is equipped with separate overheat controls for the radiant panel and for the fan-forced heat.
  • Page 14: Identification Of Your Heater

    IDENTIFICATION OF YOUR HEATER IMPORTANT Product information appears on the heater’s identification label. The identification label is located on the lower right hand side of the heater (same side as the thermostat). It includes : - The complete model number and its production reference number (A) that must be included in any warranty claim.
  • Page 15 NOTE : Page 15...
  • Page 16 WARRANTY 2 years against all defects/ 5 years on heating element. All CONVECTAIR heaters are subject to a double warranty: 2 years on all parts and manufacturing defects and 5 years on the heating element itself. Warranty is applicable from date of purchase by the customer and under certain specific conditions.

This manual is also suitable for:

Impresario 7630-c12
