Before operating this unit, please read this user's

manual completely and keep this manual carefully.

American Audio Lab Audio System

MIC 1

MIC 2

GO-210 TUTTI

USER'S MANUAL

DMOS AMP

Put in

Take off

Push

SD Cared reader

DIRECT SEARCH SYSTEM

GO- 210 TUTTI

KARAOKE

L R

VOCAL

CANCEL

ON/OFF

MIC 1 VOL

MIC 2 VOL

ECHO

MASTER VOL

Table of Contents

Need help?

Do you have a question about the GO-210 TUTTI and is the answer not in the manual?

Questions and answers

Summary of Contents for American Audio Lab GO-210 TUTTI

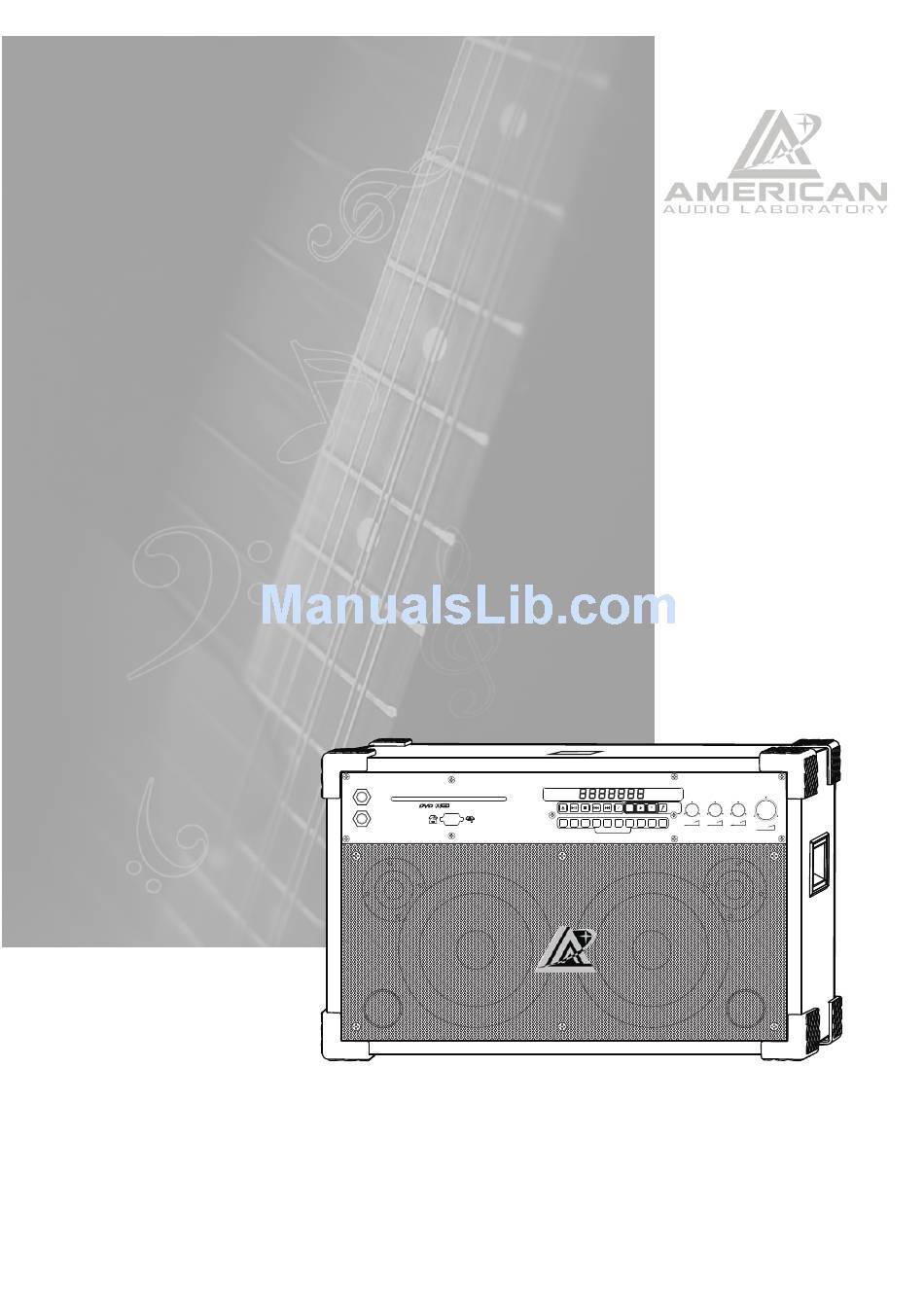

Page 1 American Audio Lab Audio System GO-210 TUTTI USER’S MANUAL GO- 210 TUTTI American Audio Lab Audio System DMOS AMP MIC 1 KARAOKE VOCAL CANCEL ON/OFF Put in Take off Push MIC 1 VOL MIC 2 VOL ECHO SD Cared reader...
Page 2: Table Of Contents
TABLE O F CONTENTS Warnings, C autions and Safety --------------------------------------------- Controls and F unctions---------------------------------------------------------- Introduction----------------------------------------------------------- USB Port and Operation--------------------------------------------- 18 AUX S peaker Connection------------------------------------------- 18 Input Select Modes--------------------------------------------------- Functions and O perations----------------------------------------------------- Setup - ------------------------------------------------------------------------------- Specifications -------------------------------------------------------------------- Trouble shooting -----------------------------------------------------------------...
Page 3: Warnings, C Autions And Safety
WARNINGS, CAUTIONS A ND OTHERS Mises e n garde,precautions et indications diverses For C anada/Pour le Canada CAUTION CAUTION: TO PREVENT ELECTRIC SHOCK, RISK OF ELECTRIC SHOCK DO NOT OPEN MATCH WIDE BLADE OF PLUG TO WIDE SLOT, AND FULLY INSERT. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK.
Page 4 SAFETY I N STRUCTIONS Before using the unit, b e s ure t o r ead all operating instructions carefully . P lease note t hat these are general precautions and may not pertain to your unit. Read Instructions Grounding and Polarization All the safety and operating instructions should be read This product is equipped with a polarized alternating- before the product is operated.
Page 5 Damage Requiring Service Servicing Unplug this product from the wall outlet and refer Do not attempt to service it yourse lf as operating servicing to qualified service personnel under the instructions, do not attempt to service it yourself as following conditions: opening or removing covers may expose you to dangerous voltage or other hazards.
Page 6 Thank you for purchasing products from American Audio Lab! Contact us: Interested in becoming a retailer or distributor of American Audio Lab products ? Contact our sales department at 1-626-5828098. For general information about American Audio Lab products, contact us at 1-626-5828099.
Page 7: Controls And F Unctions
CONTROLS & F UNCTIONS Remote Control Functions Mute Eject 1. Mute 2. Eject 3. USB (DVD/USB mode) Slow 4. DVD (DVD/USB mode) Video Audio 5. SD (DVD/USB mode) 6. Slow play 7. NTSC/PAL selector 8. Video Repeat 9. Audio 10. L/R selector 11.
Page 8: Eject
Front Panel Functions 27/28 GO-210 TUTTI American Audio Lab Audio System DMOS AMP KARAOKE MIC 1 VOCAL CANCEL ON/OFF Put in Take off Push MIC 1 VOL MIC 2 VOL ECHO MIC 2 SD Cared reader MASTER VOL DIRECT SEARCH SYSTEM 2.Eject button...
Page 9 VIDEO IN OPTI S-Video AUX:AUDIO/ VIDEO D- OUT VIDEO OUTPUT VGA OUT American Audio Lab Audio System MODEL NO:GO-210 TUTTI W A R N I N G INPUT:AC110V,60Hz POWER CONSUMPTION:200W MAX RISK OF ELECTRIC SHOCK P.M.P.O:2×200W / 4 ohms DO NOT OPEN...
Page 10 Connection Microphone Connection There a re two microphone jacks in the front panel of the machine.Plug the microphone cable into jacks. GO- 210 TUTTI American Audio Lab Audio System DMOS AMP MIC 1 KARAOKE VOCAL CANCEL ON/OFF Put in Take off...
Page 11 Apply V ideo Cord ( the one with y ellow head) to connect V IDEO OUT jack o n G O-210 TUTTI with VIDEO IN jack on TV. Apply Audio Cord (white and red head) to connect AUX OUT jacks (L,R) on GO-210 TUTTI with AUDIO IN jack on TV.
Page 12 Y.Pb.Pr C onnection Apply Y. Pb.Pr c ords to connect Y. Pb. Pr jacks on GO-210 TUTTI with Y. Pb. Pr IN jacks on the T V. TV should be set in Y.Pb.Pr mode. For player setting, please see PAGE 20.
Page 13 AUDIO CONNECTION There a re 6 w ays t o c onnect t he GO-210 TUTTI with dif ferent machines.I n a ddition, GO-210 TUTTI is an all-in one machine with amplifier and speaker. Coaxial output Apply a C oaxial cord to connect t he digital amplifier/d ecoder with GO-210 TUTTI on COAXIAL jacks.
Page 14 2 Channel Stereo output Apply Audio Cord( white and red head) to connect AUX O UT (L, R) jacks o n the back of GO-210 TUTTI with D VD jacks on HiFi amplifier. Mixed music with vocal will be output when opened the micophone.
Page 15 Canon input Apply Canon Cord to connect XLR-1/XLR-2 jacks on GO-210 TUTTI rear panel with external audio source or microphone especially for long distance and better effect. Audio source microphone GO-210 TUTTI MIC CONTROL MUSIC CONTROL iPod MIC TRE MUSIC VOLUME...
Page 16 Audio effect GO-210 TUTTI could connect such as EQ、 TYPE jacks etc to the Audio Effect jacks according to their tastes. GO-210 TUTTI MIC CONTROL MUSIC CONTROL iPod MIC TRE MUSIC VOLUME MUSIC TRE MUSIC BAS BBE SOUND INPUT SELECT...
Page 17: Introduction
INTRODUCTION Your GO-210 TUTTI is a m ulti-format d iisc p layer with a b uilt-in s tereo a mplifier and s peakers. Simply connect your unit to a power source and you are ready to begin listening to CDs、MP3s or singing karaoke.
Page 18: Usb Port And Operation
Video (MPEG 4,DIVX 5.0 UP) , Audio ( MP3 ) , Picture ( JPEG ).That is applied to both USB disk and SD card. AUX S PEAKER CONNECTION GO-210 TUTTI provides you t he option to connect a p air of external speakers through the Auxiliary speaker connectors(#70,pg.9) located on the back of the unit. GO-210 TUTTI...
Page 19: Input Select Modes
INPUT SELECT MODES There are three modes to have to different audio/video source by the INPUT SELECT knob(#53,pg9). DVD/USB/SD MODE With the player stopped, turn Input Select knob(#53,pg.9) to DVD on the back of the unit to enter this mode.There will be audio avaible at the COAX、OPTI、and AUX OUT jacks. Video can also be output at the S-Video、Video、Y.Pb.Pr and VGA OUT jacks.
Page 20: Functions And O Perations
To reset all functions to the factory default: Turn the power of f u sing the P ower button o n t he GO-210 TUTTI. Turn the power back on.
Page 21: Audio
Audio Output The Audio button( #9, pg.7) is used to access different audio output modes available when Input Select is in the DVD/USB mode. Audio Playback M ode The / button( #10, pg.7 ) is used when playing CD,CD-G,VCD and MP3 format discs to select the audio playback mode.
Page 22 Program Mode Press S TOP button( #29, pg.7) when the machine finish reading disc.Then press Program button ( #14, pg.7) to enter this mode.You can select playing order of tracks or choose tracks you want to play. The PROG word will light upon VFD when the mode is on. This program function is in applicable for DVD,MP3 or VCD2.0 discs.
Page 23: Angle
Change Angle Play When playing a D VD disc t hat incorporates multi-angle playback,the A ngle ( #18, pg.7) allows switching between the video angles. Angle 3 Angle 1 VCD M enu (PBC) The PBC(Playback C ontrol) ( #19, pg.7 ) is used with VCD discs exclusively.
Page 24 & Play, P ause & S top Pressing the P lay ( #28, pg.7) starts playback of the currently playing disc. Pressing the Pause (#27, pg.7) pauses the playback of the currently playing disc. Pressing the Stop (#29, pg.7) stops playback of the currently playing disc. Step Button The S tep ( #30, pg.7) causes the DVD to pause playback.
Page 25 BBE Sonic Maximizer on and off. Headphone Output A headphone jack( #65, pg9) is located o n t he rear panel of your GO-210 TUTTI. The a mplifier of the machine shuts down automatically and audio is redirected when ahead phone is connected.
Page 26: Setup
SETUP Stop any playback. Press S etup ( #22,pg7) to enter the setup menu. Use the Directional Arrow (#23,pg7) and Enter (#24,pg7) to select the desired operation. To exit setup, press Setup or choose the Exit Setup option on the attached video display. Language Setup 1.OSD L ANGUAGE 2.SUBTITLE LANGUAGE...
Page 27 3.TV TYPE 4.VIDEO OUT Use to select the TV type that Set t he video output that matches your television's matches your television's system format. system format. 5.SMART PICTURE Use to select the picture mode for viewing better. Audio Setup 1.BASS MANAGEMENT 2.FRONT SPEAKERS Turn off to disable the bass...
Page 28 9.DIGITAL OUTPUT 10.NIGHT MODE Use to select the digital Use to turn off/on to output mode. change the dynamic range of the music. 11.DOWN SAMPLING 12.SMART SOUND Use to turn the down Use to select the sound sampling off or on. mode as customer desired .
Page 29: Specifications
SPECIFICATIONS Stereo, Audio Model NO. GO-210 TUTTI optical,coaxial output format AC 100V/60Hz Power DVD f requency 20Hz-20KHz requirements DC10.8V--16V response Power 200W DVD S /N ratio 80dB consumption DVD,MPEG-4,VCD1.0-3.0, Readable DVD harmonic MP3,CD+G,CD,JPEG,WMA, 0.3％ discs distortion CD-R/RW,DVD+R/-R/RW Microphone Discs size...
Page 30: Trouble Shooting
TROUBLE SHOOTING Symptom Possible Reasons Solution Make sure the power 1.The power cord hasn’t been cord is plugged into an outlet connected No power 2.The power supply hasn’t been Make sure the power switched ON the outlet is switched on Disc format is not matched Try correct disc format (Please refer to page 25)
Page 31 Note: BBE and i ts designs are t he registered t rade marks of BBE S ound Incorporated,registered i n t he U.S. and o ther countries. American Audio Laboratory Inc. 9528 Rush St, Suite i,South E l M onte CA, 9 1733 Tel: 6265828099 Fax: 6265828908...
