Response CA2000KP Installation And Operating Instructions

CA2000KP
Installation and Operating Instructions
These instructions should be read in conjunction with your
system Installation and Operating Manual and retained for
future reference.
Introduction
The CA2000KP enables any authorised user to
Alarm System by simply entering a four digit 'Access Code' at the
Keypad, and is only suitable for use with the following Response
alarm systems: CA610, E100, E200, S100 variants, SA1, SA2, S200
and WA510.
The Keypad is designed for wall mounting
within a protected area (usually in the Hall adjacent to the main
entrance door) and therefore always arms your system with a 15
second Entry/Exit Delay,
arming, and to enter the property and disarm at the keypad during
the Entry Delay period. The keypad also incorporates a 'PANIC'
facility to initiate a full alarm in the event of threat or danger.
Installation
IMPORTANT: DO NOT fix the Keypad to metalwork or locate the
unit within 1m of metalwork (ie. radiators, water pipes etc.) as this
could affect the radio range of the keypad. This Keypad is not
weatherproof and must be installed indoors.
1. Before commencing installation of the keypad you should
set your system to Test/Service mode (refer to your system
Installation and Operating Manual for details).
2. Undo and remove the back-plate securing screw from the
bottom of the unit and remove the back-plate.
3. Using the back-plate as a template, mark the positions of the
two fixing holes on the wall, remove the back-plate and drill two
4mm holes and insert the plastic wall plugs supplied. Secure
the back-plate directly to the wall using the screws supplied.
4. Using a ball point pen set the miniature dip switches 1- 8 to the
same combination of 'ON' and 'OFF' as the House Code dip
switches in the other items in your system.
5. Connect the 9 Volt battery to the connector and place the
battery into the battery compartment.
6. Fit the Keypad to the back-plate and secure using the fixing screw.

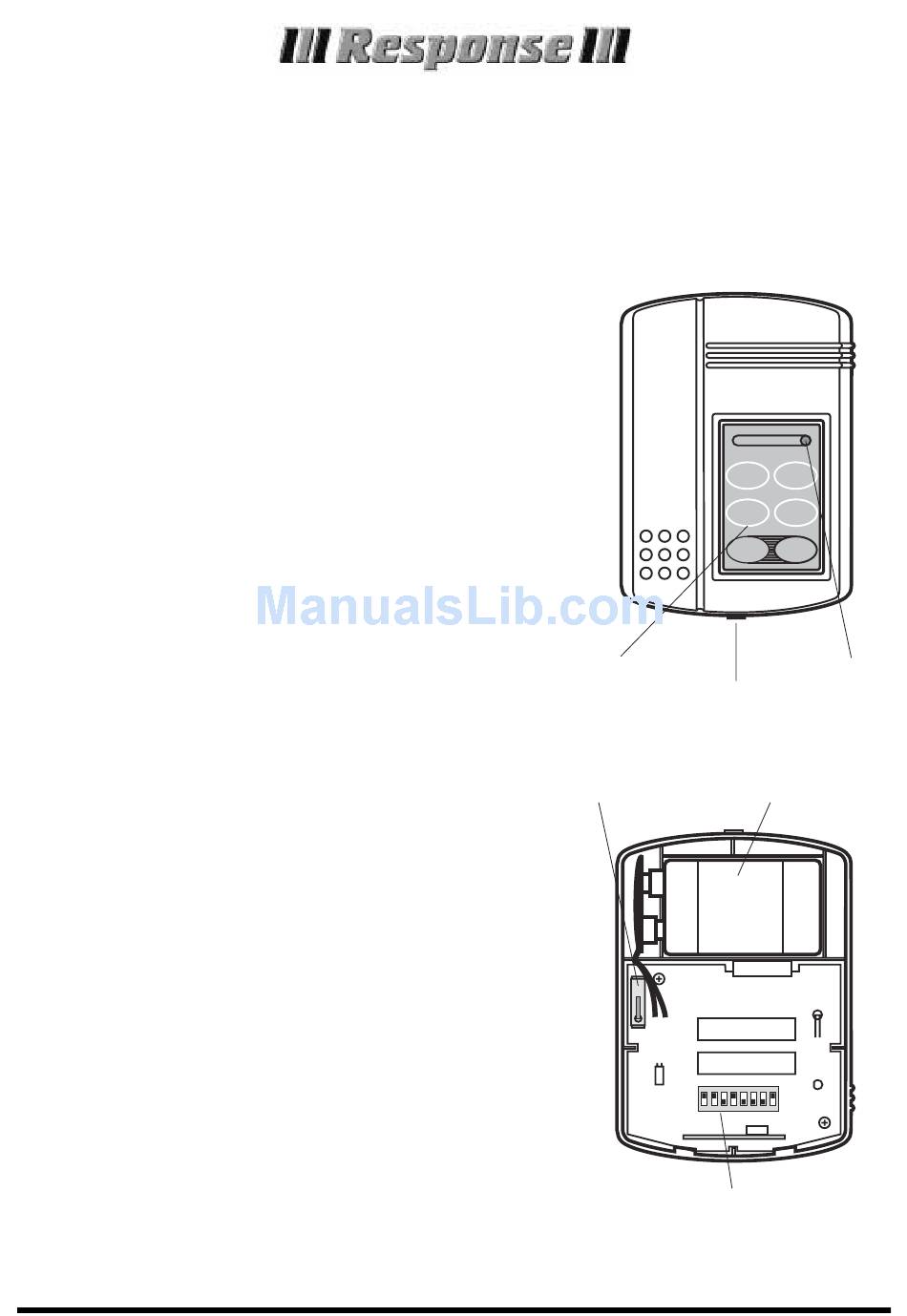

- Wirefree Security Keypad
Arm and Disarm the
inside the
to enable you to leave the
property
property after
Push Button
Anti Tamper
Switch
1
3
ON
keypad
Back-plate
Securing Screw
9 Volt PP3 Alkaline Battery
ON
1 2 3 4 5 6 7
House Code Dip Switches 1-8
View Inside Keypad
(Viewed upside down)
2
4
OFF
On-Air
Light
8
