Summary of Contents for Afresco AO001

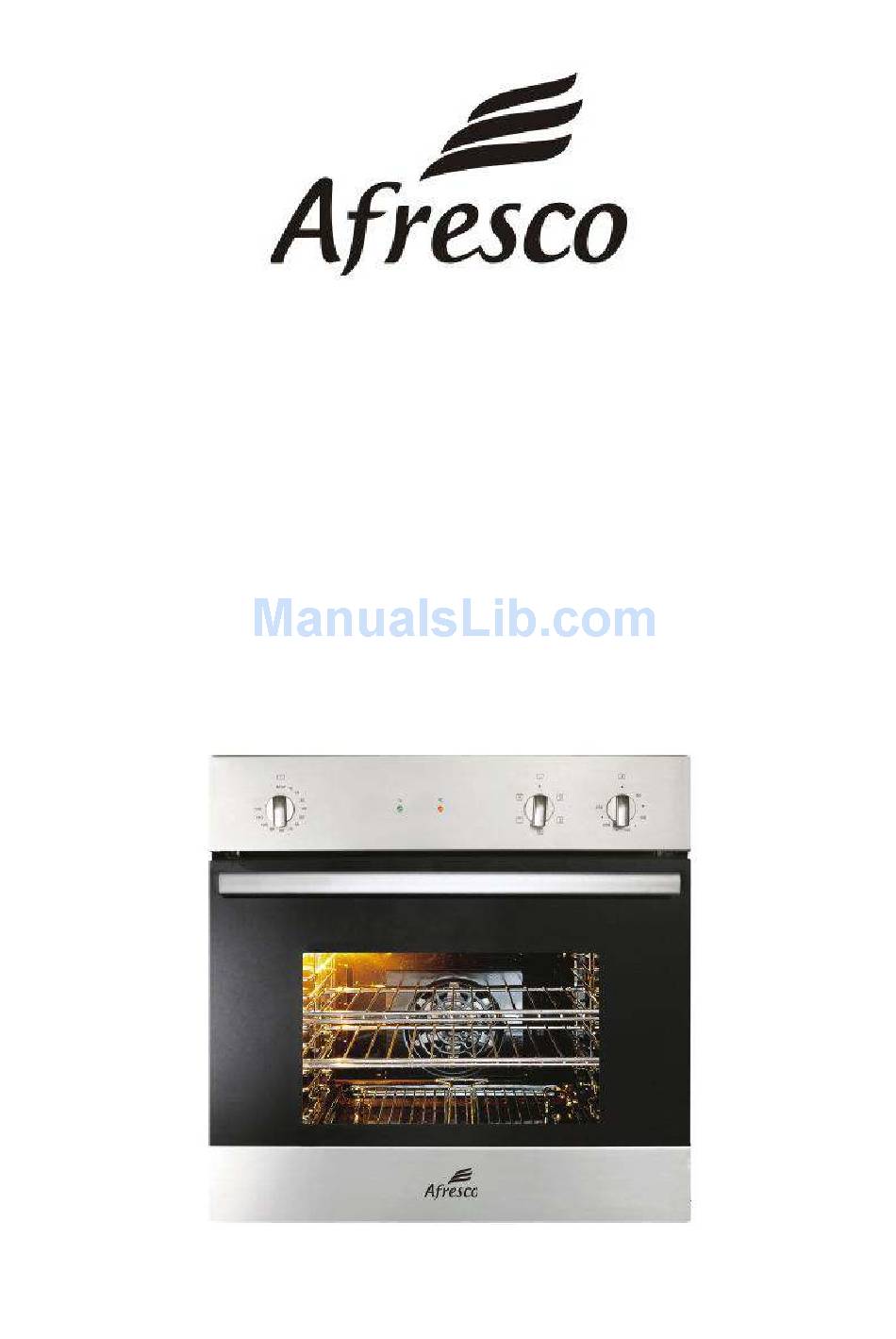

- Page 1 Built-In Electric Multifunction Oven AO001 User Manual...
-
Page 2: Table Of Contents
CONTENTS DESCRIPTION OF MULTIFUNCTION OVEN AO001 WARNING CABINET INSTALLATION ELLECTRICAL INSTALLATION AND POWER CONNECTION PREPARING YOUR OVEN FOR THE FIRST TIME COOKING AND TEMPERATURE GUIDE CLEANING AND MAINTENANCE TROUBLESHOOTING... -
Page 3: Description Of Multifunction Oven Ao001
DESCRIPTION OF THE MULTIFUNCTION OVEN AO001 A The 2-hour timer features an automatic oven “cut-off”, allowing a cooking period of up to 120 minutes to be set. Turning this knob clockwise will switch on the oven. The interior light will come on automatically when the appliance is in use. -
Page 4: Warning
area and faster cooking time. For best results it’s recommended to preheat your grill for 3 minutes. Maxi Grill with Fan- An addition of the fan to the grill offers you the benefits of both “bake” and traditional “grill” functions. The two grill element turns on and off to maintain the set temperature while the fan circulates the heated air. -
Page 5: Cabinet Installation
Do not leave the grill on unattended To avoid an accident or fire, ensure that shelves, grill trays and fittings are always inserted into the correct way. Do not put thick portions of the food under the grill. Foods may catch the grill and ignite. -
Page 8: Ellectrical Installation And Power Connection
Oven must be mounted on a flat horizontal surface. In order to ensure adequate ventilation, the back panel of the cabinet must be removed to ensure a gap at least 50mm at the rear. ELLECTRICAL INSTALLATION AND POWER CONNECTION Installation must comply with SAA Wiring Rules and with local electrical and building regulations. -
Page 9: Preparing Your Oven For The First Time
POWER APPLIANCE CABLE SIDE Brown Blue Yellow & Green EARTH GROUND CUSTOMER SIDE AC220-240V 50Hz 3*1.5mm WARNING: ELECTRICAL SHOCK HAZARD Proper electrical ground is required on this appliance. Do not connect to the electrical supply until the oven is permanently grounded. Disconnect power to the junction box before making the electrical connection. - Page 10 Energy saving hint The oven can be switched off shortly before the cooking time ends, the residual temperature is enough to complete cooking. Open the oven door only when it is necessary. To check on progress, look through the glass, the oven light is automatically on during cooking.
-
Page 11: Cleaning And Maintenance
APROXIMATE GRILLING TIMES TYPE OF MEAT, POULTRY,FISH TEMPERATURE APROXIMATETIME Chicken Whole 30mins per 0.5kg Pieces 15-20mins Lamb Loin/Rack 25mins per 0.5kg Chops, med/rare 10-12mins Chops, medium 15mins Beef Steak, rare 6-8mins Steak, medium 12mins Steak, well-done 12-15 mins Pork Chops, med/rare 6-8mins Chops, medium 10-12mins... -
Page 12: Troubleshooting
Replacing the oven bulb NOTE: The glass cover should be removed only when cold. Let the bulb cool completely before removing it. Wearing rubber gloves may offer a better grip. Before replacing the bulb, disconnect electrical power to the oven For your safety, do not touch a hot bulb with a damp cloth.
