Cooper Bussmann 945U-E User Manual

Wireless ethernet modem & device server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Cooper Bussmann
Read and
945U-E Wireless Ethernet Modem
Retain for
& Device Server
Future
Reference

User Manual

Version 2.14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 945U-E and is the answer not in the manual?

Questions and answers

Related Manuals for Cooper Bussmann 945U-E

Summary of Contents for Cooper Bussmann 945U-E

  • Page 1: User Manual

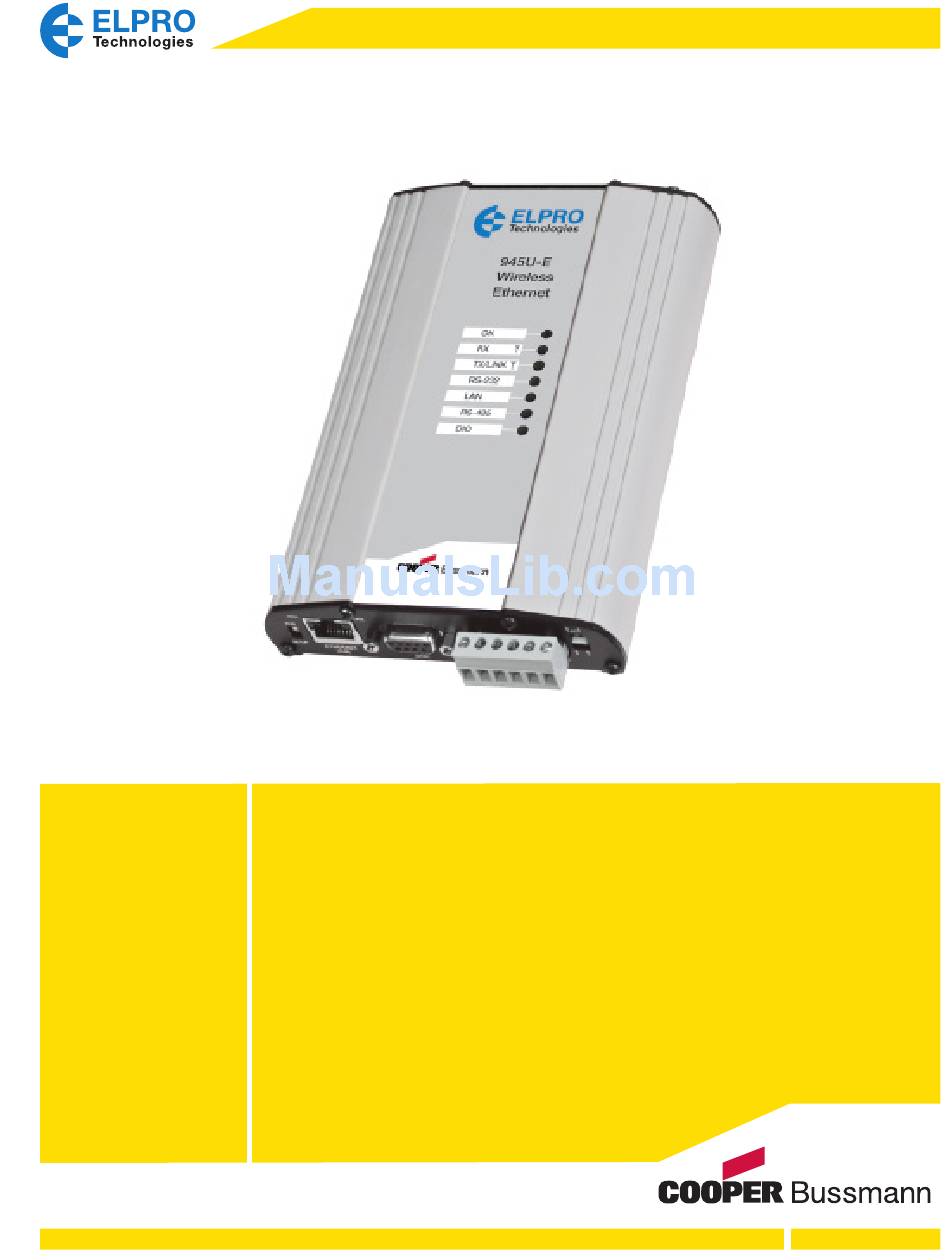

    Cooper Bussmann Read and 945U-E Wireless Ethernet Modem Retain for & Device Server Future Reference User Manual Version 2.14...

  • Page 2: Fcc Notice

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual ATTENTION! Incorrect termination of supply wires may cause internal damage and will void warranty. To ensure your 945U-E enjoys a long life, double check ALL your connections with the user manual before turning the power on.
  • Page 3 Systems should be designed to be tolerant of these operational delays. 3. To avoid the risk of electrocution, the aerial, aerial cable, serial cables and all terminals of the 945U-E module should be electrically protected. To provide maximum surge and lightning protection, the module should be www.cooperbussmann.com/wirelessresources...
  • Page 4 Before deploying a system make sure you have considered the security aspects of your installation carefully. Release Notice This is the April 2013 release of the 945U-E Ethernet Modem User Manual version 2.14, which applies to version 2.16 modem firmware. Follow Instructions Read this entire manual and all other publications pertaining to the work to be performed before installing, operating, or servicing this equipment.

  • Page 5: Table Of Contents

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual CONTENTS Chapter 1 - INTRODUCTION ....7 WPA Enterprise - Supplicant (Client) Configuration .
  • Page 6 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual 4.2 Channel Survey (Utilization) ....75 Channel Utilization on a Live System ..76 Channel Utilization for Channel Selection or RF Path Testing .

  • Page 7: Chapter 1 - Introduction

    4 x 1.25 MHz, 4 x 2.5 MHz, 3 x 5 MHz or 1 10 MHz channels, etc. For a more information see “3.1 Selecting a Channel.” The 945U-E unit also provides two serial connections as well as the Ethernet connections. It is possible to use all three data connections concurrently, allowing the 945U-E to act as a Device Server. Wireless connections can be made between serial devices and Ethernet devices.

  • Page 8: Access Point Vs. Client

    Figure 2 shows a connection between two Ethernet devices using 945U-E Ethernet modems. In this example one 945U-E is configured as an Access Point and the other as a Client. The Access Point can be connected. Figure 2 Access Point and Client (Example 1) Figure 3 shows an existing LAN being extended using 945U-Es.

  • Page 9: Bridge Vs. Router

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual An Access Point could be used as a repeater unit to connect two 945U-E Clients that do not have direct reliable radio paths. There is no special repeater module—any 945U-E can be a repeater and at the same time can be connected to an Ethernet devices or on a LAN.

  • Page 10: Getting Started Quickly

    The 945U-E is now ready to use. Before installing the 945U-E, bench test the system. It is much easier to locate problems when the equipment is altogether. There are additional configuration settings, that may improve the operation of the system. For more information, see “3.0 Startup.”...

  • Page 11: Chapter 2 - Installation

    The 945U-E unit has two antenna connections at the top of the module, allowing for two antennas to be fitted to the module if need be. By default the right connector labeled TX/RX is the main connection used to transmitter and receiver.

  • Page 12: Bench Test And Demo System Setup

    In the US this is 630 mW or 1000 mW for the 945U-E-H of transmit power and 4 watts EIRP (Effective Isotropic Radiated Power) from the antenna.

  • Page 13: Line-Of-Sight Installations

    The net gain of an antenna-cable configuration is the gain of the antenna (in dBi) less the loss in the coaxial cable (in dB). The 945U-E maximum net gain for US and Canada is 10dB (4W ERP) and 0dB for Australia and NZ (1 W ERP).

  • Page 14: Dipole And Collinear Antennas

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 9 Vulcanizing Tape Dipole and Collinear Antennas A dipole or collinear antenna transmits the same amount of radio power in all directions—as such they are easy to install and use. The dipole antenna with integral 15 ft (5 m) cable does not require any additional coaxial cable.

  • Page 15: Power Supply

    2.2 Power Supply The 945U-E module can be powered from a 9–30 Vdc power supply. The power supply should be rated at 1 Amp minimum. The positive side of the supply must not be connected to earth. The supply negative is connected to the unit case internally.

  • Page 16: Serial Connections

    Hardware handshaking using the CTS/RTS lines is provided. The CTS/RTS lines may be used to reflect the status of the local unit’s input buffer. The 945U-E does not support XON/XOFF. Example cable drawings for connection to a DTE host (a PC) or another DCE hosts (or modem) are detailed in Figure 13.

  • Page 17: Discrete (Digital) Input/Output

    Figure 15 End Plate 2.4 Discrete (Digital) Input/Output The 945U-E has one on-board discrete/digital I/O channel. This channel can act as either a discrete input or discrete output. It can be monitored, set remotely, or alternatively used to output a communications alarm status.
  • Page 18 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 16 DIO Input The I/O channel may also be used as a discrete output. The digital outputs are transistor switched DC signals, FET output to common rated at 30 Vdc 500 mA.

  • Page 19: Chapter 3 - Operation

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual 3 - OpEraTION hapTEr 3.0 Startup Access Point Startup When an access point (AP) unit starts up, it will immediately begin transmitting periodic messages (beacons) on the configured channel. Beacons include information that a client may examine in order to identify if the access point is suitable for link establishment.

  • Page 20: Led Indication

    3.1 Selecting a Channel 802.11 (900 MHz) Channels The 945U-E conforms to the IEEE 802.11 Wireless LAN specification and supports various channels depending on regulations within the country of use. If operating in the US, Canada, the frequency range is 902–928 MHz and the available channels are as follows: • 9 x non overlapping 1.25-MHz channels...

  • Page 21: Radio Throughput

    (for example, 10 MHz or 5 MHz) the maximum data throughput will also be reduced. For an indication of the data throughput levels used with different channel bandwidths see the 945U-E Radio Data Throughput table in the next section.

  • Page 22: Throughput And Repeaters

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual 945U-E Radio Data Throughput 900MHz Data Rate in Mbps Signal Strength 20MHz 10MHz 5MHz 2.5MHz 1.25MHz -72 dBm 22.0 11.0 -75 dBm 20.0 10.0 -81 dBm 17.0 -84 dBm 11.0...

  • Page 23: Configuring The Unit For The First Time

    Ethernet cable between the PC Ethernet port and the 945U-E. The factory default Ethernet address for the 945U-E is 192.168.0.1XX, where “XX” is the last two digits of the serial number (check the label on the back of the module).
  • Page 24 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual 6. Select Internet Protocol (TCP/IP) and click Properties. Figure 19 Local Area Connection 7. On the General tab, enter IP address 192.168.0.1, subnet mask 255.255.255.0 and click OK. Figure 20 TCP/IP Properties 8.
  • Page 25 945U-E is issued by ELPRO and matches the IP address 192.168.0.100. When you first connect to the 945U-E, your Web browser will issue a warning that ELPRO is not a trusted authority. Ignore this warning and proceed to the configuration webpage.
  • Page 26 This option may be modified by opening Tools -> Internet Options -> Connections Tab -> LAN Settings->Proxy Server -> bypass proxy for local addresses. 8. Enter the IP address for the 945U-E into the Internet Explorer address bar. For example, if you changed the temporary address in step 5 to “10.10.0.6,” you would enter http://10.10.0.6.

  • Page 27: Quick Start

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual 3.3 Quick Start The 945U-E has a Quick Start Configuration option that covers the most important parameters needed to get an initial connection. This is the first stage of the module configuration. For most applications, no further configuration is required.

  • Page 28: Network Configuration

    “1.0 Network Topology.” The 945U-E supports several different radio encryption schemes. If utilizing any form of encryption, all modules in the system that communicate with each other will need the same encryption method and encryption keys.
  • Page 29 Configuration of WPA-enterprise differs when the unit is configured as an access point (Authenticator) or client (Supplicant). If WDS interfaces are used, it is possible for one 945U-E to act as both an Authenticator and a Supplicant, but in this situation only one set of user credentials can be entered for all Supplicants.

  • Page 30: Spanning Tree Algorithm

    Router Mode—Separate IP addresses are required for each interface. IP addresses must be different. IP Subnet Mask The IP network mask of the 945U-E module. This should be set to the appropriate subnet mask for your system (typically, 255.255.255.0). In Router mode, each interface will have its own netmask.

  • Page 31: Security Menu

    Buy default, the 945U-E is configured with a bridge priority of 32768. The intention is to reduce traffic that the 945U-E must handle by placing it at the branch level in the network tree.

  • Page 32: Wep (64 Bit) And (128 Bit)

    These are the keys used to encrypt radio data to protect data from unwanted eavesdroppers when WEP Encryption is selected. These keys should be the same for all 945U-E units in the same system. WEP keys must be entered as pairs of hexadecimal digits separated by colons.

  • Page 33: Wpa Enterprise - Authenticator (Ap) Configuration

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual For optimal security consider using a passphrase consisting of a combination of letters and numbers (not just a simple word or phrase), as well as upper and lowercase. For example, “WiReLeSs TeChNoLoGy 2010.”...

  • Page 34: Wpa Enterprise - Supplicant (Client) Configuration

    A bridge connects several Ethernet networks together, and makes them appear as a single Ethernet network to higher protocol layers. By default, the 945U-E is configured as a transparent bridge. When a transparent bridge is started, it learns the location of other devices by monitoring the source address of all incoming traffic. Initially it forwards all traffic between the wired Ethernet port and the wireless port.

  • Page 35: Router Operation (Routed Network)

    945U-E will automatically drop to the next lowest data rate, and if subsequent transmissions are successful at the lower rate, the 945U-E will attempt to increase to the next highest rate. When a station connects to an access point, the two devices negotiate a data rate based on which is within the configured range of radio data rates for both devices.

  • Page 36: Channel Selection

    Save changes to non-volatile memory and reset module. Reset Channel Selection 945U-E (900MHz 802.11) channel selection is performed by selecting the appropriate channel from the drop down list. Only channels available for that region will be available. www.cooperbussmann.com/wirelessresources Rev Version 2.14...

  • Page 37: Advanced Radio Configuration

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 32 US/Canadian Channels Australia     Figure 33 Australian Channels 3.9 Advanced Radio Configuration Some of the more advanced radio settings have been moved from the normal Radio configuration page to the Advanced Radio Settings page to simplify the configuration process.

  • Page 38: Fixed Noise Floor

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual TX Antenna Select which antenna port the module will transmit from: Main Port Only—Messages are transmitted from the main TX/RX port. The auxiliary port RX is disabled. Both (Diversity)—Both ports will be used to transmit, but not at the same time. It calculates the best port based on previous transmissions and MAC addressing.

  • Page 39: Serial Port Configuration

    The 945U-E can be used as a PPP (Point-to-Point Protocol) server to connect the wireless system to serial devices via the RS232 or RS485 serial ports. PPP server enables a network connection to the 945U-E over a serial cable. This is much like dial up Internet. The maximum serial data rate is 115,200 bps. Hardware or software flow control may be selected.

  • Page 40: Serial Gateway (Server/Client/Multicast)

    UDP. With the serial gateway server, client, and multicast functions, it is possible for serial data from a 945U-E to be transferred to any other 945U-E serial ports including the corresponding port on the same 945U-E.

  • Page 41: Modbus Tcp To Rtu Gateway

    There are software packages available (such as SerialIP Redirector by Tactical Software) that can create a virtual serial port on a PC. This virtual serial port can be configured to connect to a 945U-E serial port. Standard programs can then be used to access this serial port as if it were actually connected to the PC. Alternatively, HyperTerminal may be used to connect to a serial port on the 945U-E.

  • Page 42: Serial Menu

    The example in Figure 36 demonstrates how a Modbus/TCP client (master) can connect to one or more Modbus RTU (serial) slaves. In this example the 945U-E access point is configured with the “RS232 Modbus/TCP to RTU Gateway” enabled. Once enabled, the gateway converts the Modbus/TCP queries received from the master into Modbus RTU queries and forwards these over the RS232 port to the slave.

  • Page 43: Rs485 Modbus Tcp/Rtu Converter

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Remote Device Port Client only. Enter the TCP port number of the remote server (the remote port to automatically connect to). Remote Device IP Client only. Enter the IP address of the remote server.

  • Page 44: Multicast Pipe Manager

    On when the digital output is set On. The digital I/O channel can be transferred to/from another device using Modbus (see “3.14 Modbus I/O Transfer”) or it can be configured to provide status of the module communications. If the 945U-E disassociates from another www.cooperbussmann.com/wirelessresources...

  • Page 45: Modbus I/O Transfer

    Modbus TCP or RTU devices. The layout of the 945U-E I/O registers is summarized in the table below. Each register is internally saved as a 16 unsigned integer value. A Modbus transaction may access the entire 16-bit value of any register, or alternatively the most significant bit of a register may be accessed as a discrete value.
  • Page 46 The Modbus TCP client may also poll Modbus RTU (serial) devices connected to either the local serial port or a remote 945U-E serial port by enabling the Modbus TCP to RTU gateway at the corresponding serial port (see “3.10 Serial Port Configuration”).
  • Page 47 Figure 41 Modbus An example of the Modbus functionality of the 945U-E is illustrated below. In this example, the status of the onboard digital input at C will be reflected at the onboard digital output at B. Also, 8 single-bit registers from Modbus serial device D will be transferred to A.
  • Page 48 A. Since the 945U-E supports Modbus TCP client and server simultaneously, the Modbus TCP server for unit B above could also be enabled. This would allow one (or more) external Modbus TCP clients anywhere on the extended wired or wireless network to connect to unit B and monitor the status of the I/O registers, including the I/O at units A, C, and D.

  • Page 49: Roaming

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Response Timeout Enter the timeout (in milliseconds) to wait for a response to the specified transaction. Comm Fail Register Enter the onboard I/O register number to store the communication status of the specified transaction.

  • Page 50: Repeaters (Wds)

    Alternatively, fixed access point to access point links can be configured for optimized throughput. Each 945U-E access point supports up to 10 separate interfaces for WDS links to other devices. Each WDS interface can be either a bridge or router interface. Refer to “1.0 Network Topology” for more information on bridge versus router.
  • Page 51 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 45 WDS Repeaters A WDS bridge interface allows traffic to be bridged to another access point on the same IP network. WDS bridge interfaces do not require additional IP address configuration because they are bridged with the standard wireless interface that is used for connections to associated clients.
  • Page 52 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual WDS connections are made by adding one or more virtual modules to an access point (see Figure 45). Each virtual module can be configured with one of the standard Wi-Fi operating modes (Access Point or Station) or a non- standard Point-to-Point mode.
  • Page 53 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Example 1: Extending Range Using WDS Figure 46 Extending Range One of the most common uses for WDS is to extend the range of the wireless network using repeaters.
  • Page 54 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Example 2: Roaming with WDS Access Points Figure 48 WDS Roaming Another common use for WDS is extending the range across a large wireless network by allowing roaming connections between access points or being able to switch to the next access point when out of range of the previous access point.
  • Page 55 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 50 WDS Redundancy Sites A, B, C, and D can all exchange data with each other (as can all of their stations) as if they were all on the same wired segment.
  • Page 56 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual examples. One reason why the encryption level and key would be different is that the access point may have clients that communicate using a different encryption method (for example, 128-bit WEP) and may not support the same encryption method.

  • Page 57: Routing Rules

    3.17 Routing Rules When a 945U-E receives an IP frame that is destined for an IP address on a different network, it checks if the network address matches the network address of one of its own interfaces (hard-wired Ethernet, wireless Ethernet, or WDS) and forwards the frame appropriately.
  • Page 58 Note that devices on LAN A should specify the 945U-E access point as their default gateway. An alternative to adding routing rules to the 945U-E in this example would be for each device on LAN A that needs to communicate with LANs B and C to have independent routing rules specifying the 945U-E clients at B and C as gateways to those networks.

  • Page 59: Filtering

    When configured as a bridge, the 945U-E will transmit all broadcast messages appearing at its wired Ethernet port. When the 945U-E is configured as a router, this does not occur. In many cases, the intended recipient of the broadcast traffic does not lie at the opposite end of a proposed radio link. Reducing unnecessary broadcast traffic sent over the radio link will increase available bandwidth for data.

  • Page 60: Mac Address Filter Configuration

    Ethernet interface. ARP response packets will always be passed. When configuring a whitelist, it is important to add the addresses of all devices connected to the 945U-E wired Ethernet port that communicate over the wireless link. It is particularly important to add the address of the configuration PC to the whitelist.

  • Page 61: Ip Address Filter Configuration

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Select “Blacklist” or Blacklist will prevent all listed devices from accessing the module and using the radio “Whitelist” link. Whitelist will allow devices with the MAC addresses listed to communicate with the module and utilize the radio link.

  • Page 62: Arp Filter Configuration

    This simplifies network administration because there is no need to manually configure each device with a separate IP address. The 945U-E is able to act as a DHCP client. To set the 945U-E to acquire its IP address from a DHCP server, select the checkbox “Obtain IP Address Automatically”...

  • Page 63: Vlan

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual For the DNS server configuration to be effective, each DNS client must be configured with the address of this DNS server, as either the primary or secondary DNS (secondary DNS is only used if there is no response from the primary DNS).

  • Page 64: Operation

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Operation VLAN Pass-through is enabled by default in the modem. No VLAN configuration is needed, and modem will pass any VLAN tagged frames. To initiate VLAN bridge or router operation, VLAN Aware mode must be enabled on the VLAN page.

  • Page 65: Vlan Group

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual NOTE Leaving the default Management VLAN is advised, as it will ensure that the module is accessible through any interface. VLAN Group Enabling VLAN on the module will require one or more configurable VLAN groups. A maximum of up to 10 VLAN groups can be supported.

  • Page 66: Examples

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Examples Example 1: Basic VLAN A common use for VLAN functionality in a module is to tag data from a VLAN-unaware device and send this to a VLAN trunk. A simple example of this involves bridging between Ethernet and wireless ports for just one VLAN.
  • Page 67 Ethernet port becomes a VLAN trunk. Because the 945U-E supports flexible VLAN functionality such that any of the available interfaces can have membership to particular VLAN(s) by assigning membership to one or more VLAN groups—virtually any possible topology can be achieved.
  • Page 68 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 66 Example 2 Configuration The other VLAN groups each have an Ethernet and a wireless interface configured. All Ethernet interfaces are tagged because they are all connected to a VLAN network. Each wireless interface is configured as untagged to allow connection from untagged devices.

  • Page 69: Module Information Configuration

    Home configuration webpage of the 945U-E. Username The username used to access the configuration on the 945U-E. Take care to remember this username if you change it, as it will be needed to access the 945U-E in future. Password The password used to access the configuration on the 945U-E.

  • Page 70: Configuration Examples

    Access Point Configuration 1. Connect a straight-through Ethernet cable between the PC and the 945U-E. 2. Ensure that the configuration of the PC and the 945U-E are setup to communicate on the same network. 3. Set DIP switch to SETUP mode.

  • Page 71: Connecting Two Networks Together

    In this example, network A is connected to the Internet via a router at IP address 192.168.0.1. Devices on LAN A that only require access to devices on LAN A and B, should have their gateway IP address set to the 945U-E access point as 192.168.0.200.
  • Page 72 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual LAN B Configuration All devices on LAN B should be configured so their gateway IP address is that of the 945U-E access point as 169.254.102.54 Access Point Configuration 1. Connect a straight-through Ethernet cable between the PC and the 945U-E.

  • Page 73: Extending Network Range With A Repeater Hop

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Extending Network Range with a Repeater Hop Configure units as described in “Extending a Wired Network.” Place the access point at the remote intermediate repeater location. Additional repeaters can be added using wireless distribution system (WDS). Refer to “3.16 Repeaters (WDS)”...

  • Page 74: Chapter 4 - Diagnostics

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual 4 - DIaGNOSTICS hapTEr 4.0 Diagnostics Chart LED Indicator Condition Meaning Green Normal operation. Red continuously Supply voltage too low or internal module fault. Red at Power On Boot loader delay at startup.

  • Page 75: Connectivity Parameters

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 72 Connected Devices Connectivity Parameters Association ID. Every client receives a unique temporary ID from the access point. CHAN The radio channel being used. RATE Radio data rate.

  • Page 76: Channel Utilization On A Live System

    When installing or diagnosing a 945U-E modem, the potential capacity of a given radio channel will be reduced by the existence of these other RF signals on the same channel.
  • Page 77 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 74 Channel Utilization Figure 75 shows the radio receive noise floor for the last 60 seconds. Figure 75 RX Noise Floor Figure 76 shows the average channel utilization for each minute up to one hour. It will also give a running average for the total number of minutes up to 59 minutes.

  • Page 78: Custom Survey

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 77 RX Noise Floor Minutes The Channel Survey page also shows two other screens not shown here that indicate the percent channel utilization and noise floor in one-hour intervals. The screens will only show the last 24-hour period.

  • Page 79: Throughput Test

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Example 2 In Figure 79, notice that chart one shows the amount of data being received from Wi-Fi devices, and chart two shows the amount of other noise that is being received. From this you can see that in the last 60-second period there was a 20-second interval with around 60-80% channel utilization, in this case from another 900-MHz device.

  • Page 80: Internal Throughput Test

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Internal Throughput Test Before testing, ensure that the end node of the Wi-Fi link that you wish to test has the Iperf server enabled under the Advanced Radio Settings page and Saved to Flash, and the module has been reset. See “3.9 Advanced Radio Configuration.”...
  • Page 81 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 83 Iperf The specified IP address must be running Iperf in Server mode (if the remote modem does not have the Iperf server running, you will get the Error message “Iperf error, check connectivity to server.” Ensure that it has been enabled and reset the module.

  • Page 82: Statistics

    1.4 Mbps 4.5 Statistics The Statistics webpage is used for advanced debugging of 945U-E. This webpage details the state of the 945U-E and performance information. This page is typically useful to ELPRO technical support personnel in diagnosing problems with the module.

  • Page 83: Network Traffic Analysis

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Access Point Beacon Miss Count Number of beacons unable to be sent (100-msec intervals) due to interference or CCA. Beacon Missed After 15 consecutive beacon misses (1.5 seconds), this count will increment by 1.

  • Page 84: Testing Radio Paths

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Firmware Upgrade This option is used for firmware upgrades. Load the file using the Browse button. When the file is found, click Send to load the file into the module. When completed, click Reset.

  • Page 85: Rssi Test

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 86 Radio Path Tests NOTE The Radio Path Test feature should not be enabled on a live system. It is intended for testing only. Radio path settings are as follows.

  • Page 86: Remote Configuration

    945U-E. To perform a remote configuration, connect a PC to the local module, run Internet Explorer and enter the IP address of the remote unit (or device name if using DNS). The configuration page of the remote module will appear and changes can be made.

  • Page 87: Internal Diagnostic Modbus Registers

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Figure 88 Remote Configuration 4.9 Internal Diagnostic Modbus Registers There are a number of internal diagnostic registers that can be accessed via Modbus TCP/RTU that will help with analyzing and diagnosing the radio network. To access these registers, the Modbus server will need to be enabled and a Modbus server address will need to be configured.

  • Page 88: Statistic Registers

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Register Module Description 5030-5036 As per 5010-5016 As per registers 5010-5016, but for the next wireless adapter (wi2). 5040-5046 As per 5010-5016 As per registers 5010-5016, but for the next wireless adapter (wi3).
  • Page 89 You should see the Command Prompt screen appear. There will be a certain directory specified (unique to your own PC) with a flashing cursor at the end. 3. At the cursor type the word “ping” followed by a space and the default IP address for the 945U-E at first startup.

  • Page 90: Ipconfig

    The command “arp -?” lists the commands available for this function. route The “route” command is used where you are joining two or more different networks together via the 945U-E. Refer to “1.1 Getting Started Quickly” for details. If more than one routing rule is needed (for example, for multiple networks each with a different IP range), a routing table is required.
  • Page 91 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual • route PRINT will show all active routes on PC. • route ADD will add a routing table to network. • route DELETE <destination netmask gateway interface> will delete the unwanted routing table.
  • Page 92 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual 5 - SpECIFICaTIONS hapTEr Transmitter/Receiver Frequency 902 – 928 MHz 915 – 928 MHz Transmit Power 250 mW (+24 dBm) to 630 mW (+28 dBm) (data rate and country specific)
  • Page 93 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual LED Indication/Diagnostics LED Indication Power/OK; RX; TX/Link; RS232; LAN; RS485; Digital I/O status. Please refer to product manual for further information. Reported Diagnostics RSSI Measurements (dBm); Connectivity Information/Statistics; System...

  • Page 94: Appendix A - Firmware Upgrades

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual a - FIrMWarE UpGraDES ppENDIx Determine which firmware version is present in the module to be upgraded by viewing the index webpage of the module. Firmware versions 1.0.3 and later may be upgraded via the Configuration webpages. This upgrade can be performed locally with a PC connected directly to the module, or remotely over a working radio link.

  • Page 95: Appendix B - Glossary

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual B - GLOSSarY ppENDIx Term Definition Acknowledgment. Access Point An access point connects wireless network stations (or clients) to other stations within the wireless network and also can serve as the point of interconnection between the wireless network and a wired network.
  • Page 96 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Term Definition Dial-up A communication connection via the standard telephone network, or plain old telephone service (POTS). Domain name service (DNS) is a program that translates URLs to IP addresses by accessing a database maintained on a collection of Internet servers.
  • Page 97 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Term Definition IPX-SPX Internetwork Packet Exchange, is a networking protocol used by the Novell ® NetWare operating systems. Like UDP/IP, IPX is a datagram protocol used for connectionless communications. Higher-level protocols, such as Sequenced Packet Exchange (SPX) and NCP, are used for additional error recovery services.
  • Page 98 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Term Definition Server A computer that provides its resources to other computers and devices on a network. These include print servers, Internet servers and data servers. A server can also be combined with a hub or router.
  • Page 99 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Term Definition Wi-Fi Wireless Fidelity. An interoperability certification for wireless local area network (LAN) products based on the Institute of Electrical and Electronics Engineers (IEEE) 802.11 standard. www.cooperbussmann.com/wirelessresources Rev Version 2.14...

  • Page 100: Appendix C - Power Conversion

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual C - pOWEr CONVErSION ppENDIx Power Conversion The following table provides dBm to mW conversion. Watts 10 mW 10 dB 13 mW 11 dB 16 mW 12 dB 20 mW...

  • Page 101: Appendix D - Iperf Throughput Test - Ext

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual D - IpErF ThrOUGhpUT TEST - ExT ppENDIx This appendix shows how to set up and use the Iperf application to test the throughput of Ethernet modems. Iperf is a tool used to measure the throughput and quality of a network link. Another application, called Jperf ,can also be used, which gives a graphical interface for all results.
  • Page 102 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual 3. On the client PC, open up a command prompt and change the directory to jperf-2.0.2\bin as you did for the server. This time enter the iperf command to start the client communication to the server: “iperf –c <IP address of Server PC>...

  • Page 103: Jperf Application

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual JPerf Application Jperf is a graphical interface that runs over the top of Iperf. It will display a graph result from the Iperf test. To run Jperf: 1. Open a command prompt and change to the jperf-2.0.2: directory and run the “Jperf” application as shown in Figure 98.

  • Page 104: Appendix E - Gnu Free Doc License

    Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual E - GNU FrEE DOC LICENSE ppENDIx Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 105 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.
  • Page 106 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
  • Page 107 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
  • Page 108 Cooper Bussmann 945U-E Wireless Ethernet Modem & Device Server User Manual Notes: www.cooperbussmann.com/wirelessresources Rev Version 2.14...
  • Page 109 ©2013 Cooper Bussmann www.cooperbussmann.com /wireless Your Authorized Cooper Bussmann Distributor is: The trade names and brand names contained herein are valuable trademarks of Cooper Industries in the U.S. and other countries. You are not permitted to use the Cooper Trademarks without the prior written consent of Cooper Industries.
