Spectare SP 02070 User Manual

Camera/media player/recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Model: SP 02070

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP 02070 and is the answer not in the manual?

Questions and answers

Related Manuals for Spectare SP 02070

Summary of Contents for Spectare SP 02070

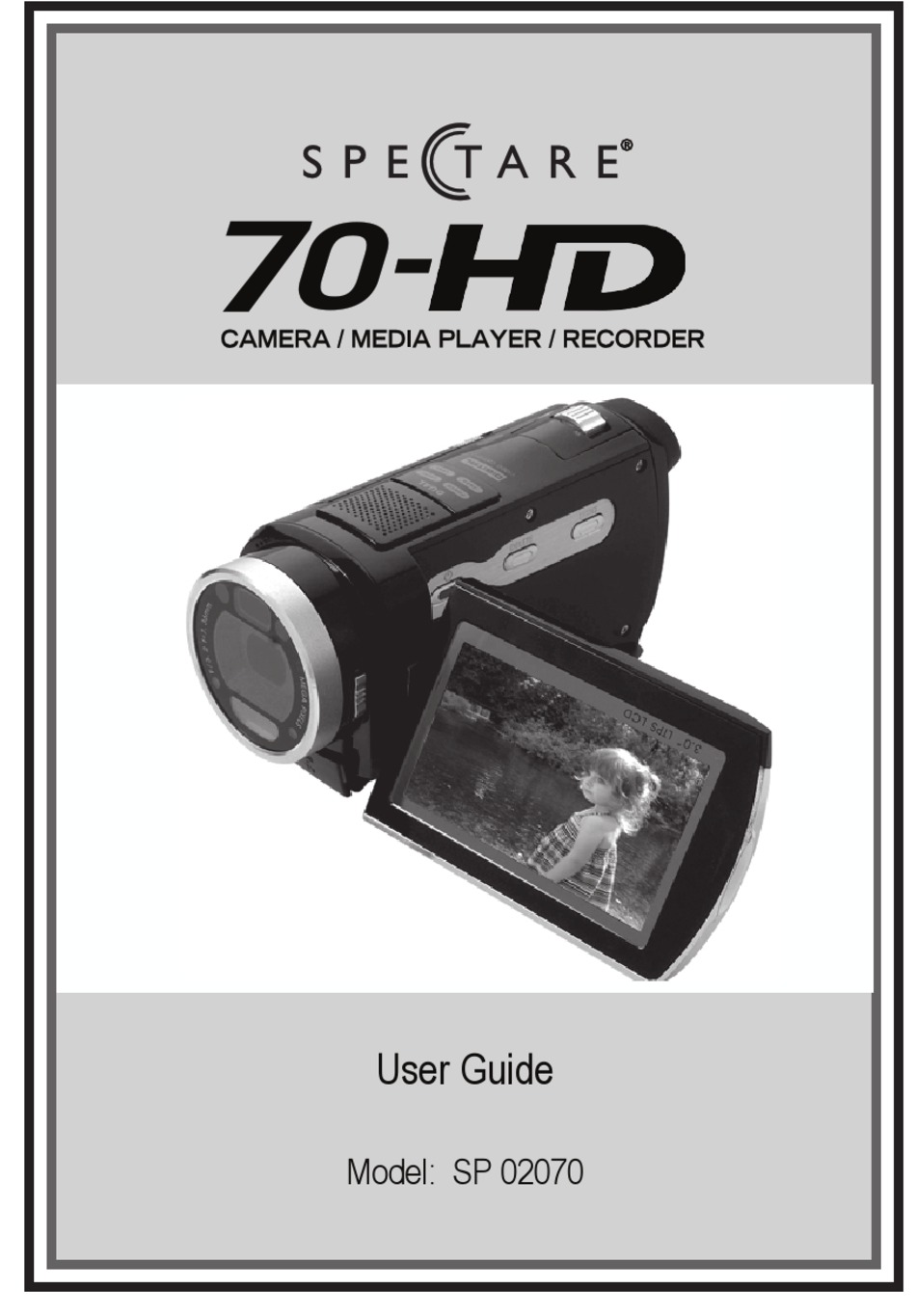

  • Page 1 User Guide Model: SP 02070...
  • Page 2 Spectare Products 6081 Meridian Ave Suite 70-308 San Jose, CA 95120 http://spectareproducts.com support@spectareproducts.com The Spectare Logo and the Spectare brand are trademarked by SuMaWah LLC, San Jose, CA. Copyright 2009 SuMaWah LLC, All Rights Reserved Worldwide.

  • Page 3: Table Of Contents

    Battery Disposal: Do not incinerate, disassemble or short circuit the battery. Do not expose the battery to temperatures above Fahrenheit. Please observe the local regulations regarding the disposal of exhausted batteries and old equipment. user's guide Spectare 70-HD Camera / Player / Recorder...
  • Page 4 Thank you for purchasing the Spectare 70-HD Camera / Player / Recorder. Please take some time to read through and follow these important safety and operation instructions. WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

  • Page 5: What's Included

    What’s Included The following items should be included: Please contact your retailer if you have not received any of these items Earphones AC Adapter Plug HDMI Video Cable CD ROM 70-HD Camera Battery Soft Case Remote control Audio/ Video Cable USB Cable user's guide...

  • Page 6: Product Description

    θ Press and hold to turn on/off POWER Battery Cover Access Zoom Control Press and hold for wide angle Press and hold for telephoto BOTTOM SD Memory card access Tripod socket Spectare 70-HD Camera / Player / Recorder...
  • Page 7 Product Description > Takes the photo in Camera mode, stops SHUTTER and starts the recording in Video and Audio Record modes. : Change from Camera, Video, Music..MODE : Access to the settings menu MENU : Enters the playback mode : Changes the on-screen display DISPLAY : Indicates battery charging and power to...

  • Page 8: Quick Start Guide

    The cards can only be placed in one direction so if they do not fit then turn them around. Press to “click” them in place then close the door. Spectare 70-HD Camera / Player / Recorder...
  • Page 9 Quick Start Guide: Charging the battery 4. With the Lithium rechargeable battery installed, open the connection cover on the front panel and plug in the SMALL end of the USB cable into the camera. 5. Plug in the AC Adapter to a wall outlet and then plug in the LARGE end of the USB cable into bottom of the AC Adapter 6.

  • Page 10: Installing The Software Drivers

    After Restart connect the 70-HD Camera using the USB Cable provided upon the first connection the Hardware Wizard will automatically launch. Follow the on Screen instructions to install the drivers onto your system. Spectare 70-HD Camera / Player / Recorder...

  • Page 11: Installing The Software Tools

    Installing the Software Tools From the CD ROM main menu interface: Click on “Install Photo Editing Tools” and follow the on screen instructions. This will install the BlazePhoto software that will allow you to edit and organize your photos. Click on “Install Video Player Tools” and follow the on screen instructions.

  • Page 12: Using The Menu

    TV Out: Choose the TV output setting : NTSC for USA; PAL for EU. Version: Use this setting only if you have received a firmware upgrade from Spectare Products Support. Card Select: Select the card for viewing and/or capturing files to...

  • Page 13: Camera Mode

    Camera Mode On-Screen Display: 1. Battery level 2. Close Focus Indication 3. White Balance Setting 4. Flash Mode 5. Camera mode: Single or continuous shooting 6. Image Resolution (MP) 7. Image Quality: normal or fine 8. Counter(Recorded/Allowance) Entering CAMERA Mode: Flip out the LCD panel and the camera will automatically turn on.

  • Page 14: Video Mode

    Color Effect: Choose normal, black and white or sepia color effect. Frame Rate: Choose a frame rate of 15 frames per sec. or 30 frames per sec. Audio: Turns the microphone on or off. Spectare 70-HD Camera / Player / Recorder...

  • Page 15: Audio Record Mode

    Audio Record Mode On-Screen Display: 1. Battery level 2. Recording Time 3. Audio Mode Entering AUDIO RECORD Mode: Press the button and use the buttons to choose RECORD MODE icon, then press the button to enter RECORD mode. Making a Audio Recording: press the button start the recording, The Red dot will change to >...

  • Page 16: Music Mode

    After disconnection of the headphones the menu will appear again. Select the arrow to exit and listen through the speakers on the camera. Spectare 70-HD Camera / Player / Recorder...
  • Page 17 MP3 Players. NOTE: Download and use 3rd party software and enter web sites at your own risk. Spectare Products is not responsible for any damage caused by the use of software provided by other companies. user's guide...

  • Page 18: Playback Mode

    To rotate an image bring up the image in full screen view and then select this feature. Use the buttons to rotate and press to confirm. . Print: See page 19 for more details. Spectare 70-HD Camera / Player / Recorder...

  • Page 19: E-Book Mode

    e-Book Mode Entering eBOOK Mode: Press the button and use the buttons to choose eBOOK MODE icon, then press the button to enter eBOOK mode. Choosing the Text File Use the buttons to choose the file you want to read that has been copied to the memory card on your camera.

  • Page 20: Connecting To A Tv

    PLAYBACK mode on your camera to view the photos and movies. After disconnection of the cable the menu will appear again. Select the arrow to exit and the view through the monitor on the camera. Spectare 70-HD Camera / Player / Recorder...

  • Page 21: Remote Control

    Remote Control : Changes to the Camera mode CAMERA : Changes to the Video Mode VIDEO : Press and hold to turn on θ POWER : Changes to Playback Mode PLAY > REC /SHUTTER : Take the photo in Camera mode / Start and Stop the recording in Video mode : Upward Selection : Right Selection...

  • Page 22: Mass Storage: Usb Connection

    Windows hardware wizard installation screens. 4. A partition entitled "removable disc" will automatically be mounted under the "My Computer" Window. This partition will give access to the Memory card(s) that is placed in the camera. Spectare 70-HD Camera / Player / Recorder...
  • Page 23 Mass Storage: Computer USB Connection On a Mac computer the memory card(s) will appear under “devices” in the finder Window. Double click the removable disk icons to access, copy and manage the files in on your camera. To Disconnect from the Computer. On Windows click this icon on the bottom task bar labeled "Safely Remove Hardware."...

  • Page 24: Pc Web Cam

    Go to the MY COMPUTER Window and look for the icons entitled “Coach Video camera” and “Coach Digital Camera” under the “Scanners and Cameras” heading. Double click these icons to access the features Spectare 70-HD Camera / Player / Recorder...

  • Page 25: Troubleshooting

    Troubleshooting The SD card is loaded, but the camera does not capture or record Check if the SD card is locked Check if the SD card has enough space for storage The camera turns off automatically Check the battery level and charge the battery if necessary. Check the power off settings on the camera and change to a longer time as needed (see page 13).

  • Page 26: Technical Specifications

    This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Spectare 70-HD Camera / Player / Recorder...
  • Page 27 user's guide...
  • Page 28 Table of Contents . Overview ................................2 1.1 Introduction ..............................2 1.2 Features ................................. 2 1.3 System Requirements ............................ 3 . Appearance ................................. 4 . Operation Guide ..............................4 3.1 Importing Photos..........................4 3.2 Organizing Photos ..........................8 3.3 Previewing Photos ..........................10 3.4 Editing Photos............................

  • Page 29: System Requirements

    • Edit Photos: Easily edit image, provided with multiple popular edit functions, such as rotate, crop, flip, resize, etc. Supports enhance function: remove red eye, adjust color, blur/sharp, auto enhance; supports creating function: add text, add clip, add frame, add filter such as Mosaic, Windy, Motion, Gray, Emboss, etc.

  • Page 30: Appearance

    . Appearance . Operation Guide 3.1 Importing Photos You can get photos from hard disk folder, Scanner Video Device, Camera& Removable Device, you can also freely search your desired photos local disk. BlazeVideo, Inc. www.blazevideo.com...
  • Page 31 • Browse Folders Default get photo from hard disc folder, you can select folder from the folder tree on the left of the main window. • Get Photo from Scanner & Video Device 1. Capture photo from scanner or video device, the captured photos will be saved into the specified folder.
  • Page 32 Click "Browse" button to specify saving directory and click "OK" button, below menu pops up: 3. Click "Capture" button, thumbnail of current image will appear, you can also continually capture image, after selecting the image, and the image will be saved into the specified directory. BlazePhoto will auto display the captured images as thumbnails in Preview window.
  • Page 33 2. After select the desired image, click "Transmit" button, the selected images will be transmitted into specified folder; Click "Transmit All", all images in the device will be transmitted into specified folder, BlazePhoto will auto display all the selected images. •...

  • Page 34: Organizing Photos

    2. Drop-down click "Look In" box under "Search Options" to select your desired destination, default is "All Hard Discs"; Drop-down click "Search Filter" to select the desired image format, default is "All Pictures"; Fill in the minimum size of the desired image, default is 50K. 3.
  • Page 35 Catalog" , below tag folder tree will display: Move mouse to blank area and right click, you will perform New Tag, Edit Tag, Delete Tag operations. Create New Tag Right click to select "New Tag", you will create a new tag. Create new sub-tag: Move mouse to an existing tag, right click to select "New Tag", you will create a new sub-tag under this tag.

  • Page 36: Previewing Photos

    Type new tag name and select a tag icon, click "OK", the tag will be modified. Delete Tag: Move mouse to the desired tag, right click to select "Delete Tag", and click "Yes" to delete this tag. Sort Photo by Tag: Please take any one of below steps to add tag into image: 1.
  • Page 37 2. Get Photo from History Record: BlazePhoto can auto add the viewed picture folder into history record. Select a folder in history record, the right window will display all the supported photos under this folder as thumbnails or single picture. 3.
  • Page 38 View the selected image Edit the selected image Add the selected image into System Tray Copy the selected image Cut the selected image Delete the selected image from hard disk Add tag into selected image Remove tag icon from selected image Print the selected image Set the selected image as desktop wallpaper Locate the selected image on hard disk...

  • Page 39: Editing Photos

    3.4 Editing Photos Select an image, click "Edit" button, or right click a thumbnail then select "Edit", Edit window will appear as below: 1. Select Photos in Preview stage, select one or more photos, and the selected photos will display in Picture Tray.
  • Page 40 Click "Apply" to apply the result, click "Reset" to keep the original status. Flip: Click "Horizontal" to horizontally flip image, click "Vertical" to vertically flip image. Click "Apply" to apply the result, click "Reset" to keep the original status. Resize: Default is to "Manual" resize, there are below three ways to resize: 1.
  • Page 41 Click "Apply" to apply the result, click "Reset" to keep the original status. Crop: There are two crop modes available, "Free Crop" and "Keep Aspect Ratio". Default is "Free Crop". Free Crop: Move highlight area or freely drag the arrow button around the image to select crop area.
  • Page 42 Click "Apply" to apply the result, click "Reset" to keep the original status. Adjust Color: To change brightness, contrast, hue and saturation of the image. Drag the slide bar or click "-", "+" button to adjust. Click "Apply" to apply the result, click "Reset" to keep the original status. Blur/Sharp: Rightwards drag the slide bar to make image sharp;...
  • Page 43 Click "Apply" to apply the result, click "Reset" to keep the original status. Enhance: Auto adjust color of photos. There are three enhance effects: Normalize, Stretch, Equalize. Click one desired effect to enhance image. Click "Apply" to apply the result, click "Reset" to keep the original status. Create: Add Text: Type characters in Edit Box, click "Font"...
  • Page 44 can modify the size and color of text. Add Clips: Click and select a clip in the clip list, the clip will be added into the image. Click "Apply" to add clips; click other clip, you will change to other clip. BlazeVideo, Inc.
  • Page 45 Add Frame: Click and select a frame in the frame list, the frame will be added into the image. Click "Apply" to add frames; left click the frame, you will select other frame. Filter: Select a filter, drag the intension bar to adjust the effect, click "Apply" to apply BlazeVideo, Inc.
  • Page 46 the filter. 3. Save Photos After finishing editing, click "Save" or "Save As" button in the tool bar, or select "File->Save" or "File->Save As" menu, you will save the edited image. Note: If directly save image, BlazePhoto will backup the original photo and append .BAK to extension in current directory.

  • Page 47: Creating

    13. Actual Size: display picture with actual size. 14. Show/Hide Original Picture: toggle-switch to show or hide the original picture 3.5 Creating BlazePhoto provides three creating modes: Create Disc, Create Slideshow DVD, Create html albums. Drop down click "Create" button or click the relative create button at the right bottom of the main interface to select your desired create items.
  • Page 48 • Create Slideshow DVD: Make all the image collections in Picture Tray into slideshow DVD, and select to burn it or not, the interface is as below: TV Mode: Set video standard as PAL or NTSC. NTSC--National Television System Committee, mainly used in Japan, US, Canada, Mexico, etc, with 720*480 resolution;...

  • Page 49: Sharing Photos

    Select your desired album style, destination folder and other settings, click "OK", you will begin to create a html page. After creating finished, a dialog box will popup to enquire you whether to burn into disc, if click "Yes", you will burn the html page into disc just like burn a normal data disc.
  • Page 50 • Print: Print all the image collections in Picture Tray, the operation interface is as below: Layout: There are two modes available: Individual Prints and Picture Package, which are described as below: 1. Individual Prints: print selected pictures one by one, multiple different images on one page is possible.
  • Page 51 Picture Package Format: if select "Picture Package" layout, decides how many copies of the same image printed on each page. Select Printer: if multiple printers installed, please select a target printer. Page Range: Print All: Print all previewed image; Print Range: select to print specified images.

  • Page 52: Settings

    2. Rename modified files: rename the modified image files as "character in edit box" + number. After finish above settings, click "OK", you will begin to batch convert files. • Send Email Send all the image collections in Picture Tray as mail, interface is as below: Client: to specify mail client, such as Outlook, Outlook Express, Hotmail, etc.
  • Page 53 Language: Select the interface language, you should relaunch the program after setting to make the change take effects. Default Start Folder: Set the default folder to open after launching program. Capture Picture Save Folder: Select a folder to save the image captured from digital devices.
  • Page 54 2. Media Library Location: specify the location of the media library. Compact Now: there is maybe some useless info for media library, click "Compact Now" to delete useless info to reduce media library size. BlazeVideo, Inc. www.blazevideo.com...
  • Page 55 3. Slideshow Background Music: add background music for slideshow preview, can be mp3 or wma file. Effect Time: the effect time between two images. Interval Time: the interval time between two images. BlazeVideo, Inc. www.blazevideo.com...
  • Page 56 4. Advanced Show tags icon: show tags icon while previewing pictures. File Associations: Set BlazePhoto as default application to view pictures, click it to pop up below menu: BlazeVideo, Inc. www.blazevideo.com...

  • Page 57: Contact Support

    Select All-Select all file formats in the list to be default opened by BlazePhoto Select None-Cancel all file associations with BlazePhoto Default-Click to select the file type default associated with BlazePhoto OK-Submit the file associations setting, the selected file format will be directly opened by BlazePhoto Cancel-Exit and keep original setting .
  • Page 58 BlazeVideo Media Player User’s Guide...
  • Page 59 Table of Contents Ⅰ. Overview....................................2 1.1 Introduction..................................2 1.2 Features....................................2 1.3 System Requirements................................2 Ⅱ. Appearance....................................3 Ⅲ. Operation Guide..................................3 3.1 Open File ................................3 3.2 Switch File ................................4 3.3 Seek Special Moment ..............................4 3.4 Take Snapshot................................4 Ⅳ. Contact Support ..................................5 Ⅰ. Overview 1.1 Introduction BlazeVideo Media Player is a simple and easy to use media file player.

  • Page 60: Ⅱ. Appearance

    Display Card Have 24 Bits resolution and support DirectX, 8MB Video-ROM or more PCI sound cards, Integration chipset on Mother Board, USB audio Sound Card devices etc. compatible with Windows and stereo speakers DirectX DirectX 8.1 or later Ⅱ. Appearance Ⅲ.

  • Page 61: Switch File

    3.2 Switch File Click to switch to previous file to playback. Click to switch to next file to playback. Or you can double click a file in playlist to directly switch to play this file. 3.3 Seek Special Moment Drag and drop the slide bar in the main menu, you will seek special moment to play. The video keeps change while you are dragging.

  • Page 62: Ⅳ. Contact Support

    Ⅳ. Contact Support Please collect the following information and E-mail us. We will respond you as soon as possible: • Your device brand name and model • BlazeVideo Media Player’s version number • Windows Operating System’s version • Hardware configuration (sound card, VGA card, Image Capture card) and their specifications •...
  • Page 63 BlazeVideo Magic V2.0 User Manual...
  • Page 64 Blaze Video Magic is a powerful but easy to use utility for multimedia file conversion. Expanding your multimedia entertainment, Blaze Video Magic realizes you to freely access and enjoy video, music, photo on PC, MP3 player, portable MPEG4 device, PS game player or 3G smart phone.
  • Page 65 There are three main programs: Convert Video Blaze Video Magic allows you to convert multiple video files, the source file can be *.RM, *.RMVB, *.AVI, *.WMV, *.ASF, *.MPG, *.MPEG, *.MPE, *.MP4, *.DAT, *.MOV, *.VOB, the target output file can be AVI-MPEG4, ASF-MPEG4, MP4-MPEG4, PSP-MPEG4, 3GP-MPEG4, AVI-DIVX.
  • Page 66 Stop:Click to stop playing the current playback file. Output Setting: Output Format: Drop down click to select your desired output format, five items available: AVI-MPEG4, ASF-MPEG4, MP4-MPEG4, 3GP-MPEG4, AVI-DIVX. Setting: Click to popup a box for video output setting, please refer to Video Output Setting.
  • Page 67 Here you can freely set audio and video parameter of your desired output file, including audio compressor & format, VCD Channel (available only for *.DAT source file), video compressor, size, bit rate, quality, FPS, key frame according to your requirement. Split: Split a large video file into smaller video clips to fit your device memory, drop down click to freely select Not Split, Split to 1 part, Split to 2 parts, Split to 3 parts or Split to 4 parts.
  • Page 68 Blaze Video Magic allows you to convert all files with audio into MP3 format, you can directly convert audio file, or extract sound tracks from video and save as MP3 format. Please follow below steps to convert music file: 1. Add Source File: Add: Add the source file you want to convert, the source file may be audio or video file.
  • Page 69 Output Format: Drop down click to select your desired output format, five items available: CD Quality MP3(CBR), High Definition Quality MP3(CBR), CD Quality MP3(VBR), High Definition Quality MP3(VBR), User Defined MP3. Setting: Only activated for "User Defined MP3" format. Click to popup "MP3 Output Setting"...
  • Page 70 Convert Photo Click "Photo" button at the top of Main window to switch to Photo convert window, here you can freely convert picture file. You can convert mulitple pictures including *.BMP, *.JPG, *.GIF, *.TIF, *.PNG to JPEG format, and you can freely set the output picture's resolution to change output picture's file size.
  • Page 71 Output Setting: Output Format: defaultly set as "JPEG" format. Resolution: defaultly set as "800x600", you can also drop down click to set resolution as"1024x768". Quality: defaultly set as "100%". Set Output Path: Photo output path is defaultly set as "My Document/My Pictures". Browse: click "Browse"...
  • Page 72 System Requirements Basic Recommended 1.0GHZ 2.0GHZ System Memory 256MB RAM 512MB RAM Operating Microsoft Windows 98/ME/2000/XP System Hard-disk Depends on converted file's size and coding Available method, At least 1 GB free space on system Capacity disc DirectX DirectX 8.0 or later Windows Meida Player 9.0 or later Real Player 10.0 or later Required...
