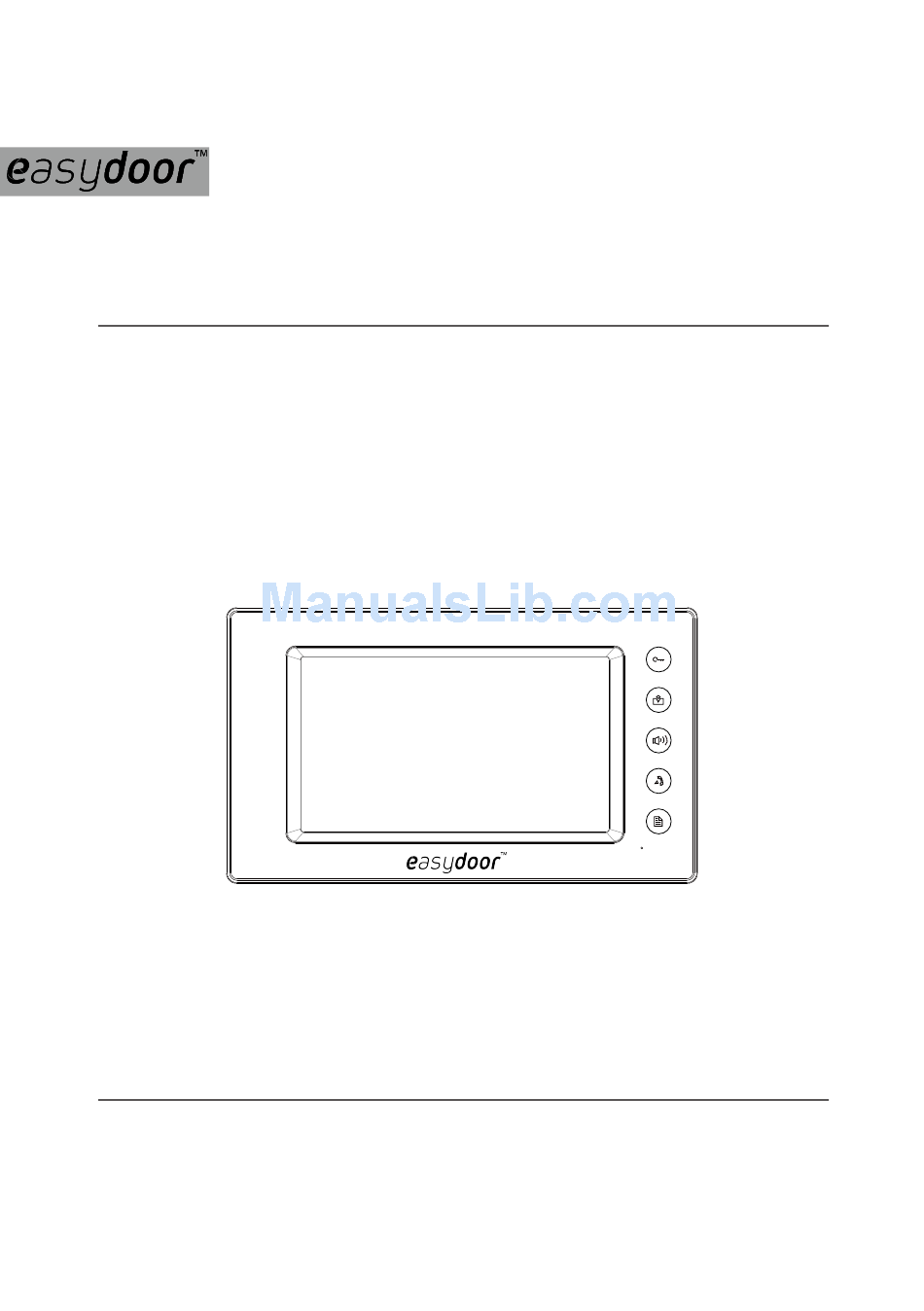

- Page 1 VIDEO MONITOR VM 7T BM USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1. Parts and Functions - - - - - - - - - - - - - - - - - - - - - - 1 2. -
Page 3: Parts And Functions
1. Parts and Functions Home Screen UNLOCK Button MONITOR Button Manual Monitor Intercom Multimedia Monitor TALK Button CALL Button Close Memory Album User Setup Playback MENU Button 09/30/2010 Thu.16:41 Microphone Ventilation Vent Speaker Connection Port DIPS 1 2 3 4 5 6 Mounting Hook 2. -
Page 4: Operation Instructions
3. Operation Instructions 3.1 Answering a Door Call ● Press the CALL button on door station. ● The monitor rings,and the visitor's image will be seen on screen. Note:the screen turns off after 30 seconds if nobody answers. ● Press TALK Button or touch icon, you can talk with the visitor for 90 seconds. -
Page 5: Basic Setup Instructions
* Note:1. Press "CALL" button or touch icon again to redial. 2. Touch Dial Number icon to cancel the call. -Name List- [0001] Jim Last Next [0002] Calo,Liu [0003] Jacko,Zhang [0004] Jana,Qiao Intercom Inner Call Direct Call by Namelist Guard Unit [0005] Hebe,Zhang Dial Close... -
Page 6: Ring Volume Setting
● Touch the screen again (or press MENU button again) to enter home screen. then touch icon to enter call tone setting User Setup Carman Going Home Door Station screen,touch Door station call tone/intercom Call Tone Congratulate Ding Dong Rhythm of the rain Do Re Me call tone/door bell call tone,12 pieces ring Happy Birthday... -
Page 7: Monitor Time Setting
Night Ring Night Ring Night Ring Volume Ring Volume Volume Volume Exit&Save Exit&Save Adjust + Adjust + Adjust - Adjust - Exit&Unsave Exit&Unsave 4.3 Monitor Time Setting ● Enter home screen page(refer to 4.1),thenTouch icon to enter Manual Monitor next page.and then press icon to enter monitor time setting page. -
Page 8: Screen Setting
● Touch icon,a digital Installer setup keypad and installation setting will be Installation settings: [0010]#:Remove all remote control [0011]#:Add remote control showed on screen. [8000]#:Set as master unit 0 [8001]#:Set as slaver unit 1 [8002]#:Set as slaver unit 2 Code Number:[----] [8003]#:Set as slaver unit 3 [8004]#:Set as guard unit ●... -
Page 9: Built -In Memory And Sd Card
5. Built -in Memory and SD Card This Monitor has been equipped with a built-in memory (about 120 MB) together with a SD card reader. Maximum 16 GB SD card can be supported. SD card ● The monitor can play photos and pictures. ●... -
Page 10: Picture Recording
5.1 Picture Recording Both Auto-Recording and Manual-Recording are available.and Auto-Recording is default. If 00:03 Talking Standard Screen receive a Call , after 3s, the monitor will record Unlock automatically. or you can touch Capture Talk icon to record the visitor's image manually. Capture Recording... -
Page 11: Photo Frame
5.4 Photo Frame 5.4.1 Playing Touch icon on home screen to play the photos(must plug in SD card).it can be Album played both manually and automatically,use your fingers to slide right or left on screen to play last/next photo. 5.4.2 Playing time setting Touch icon on home screen Multi Media...
