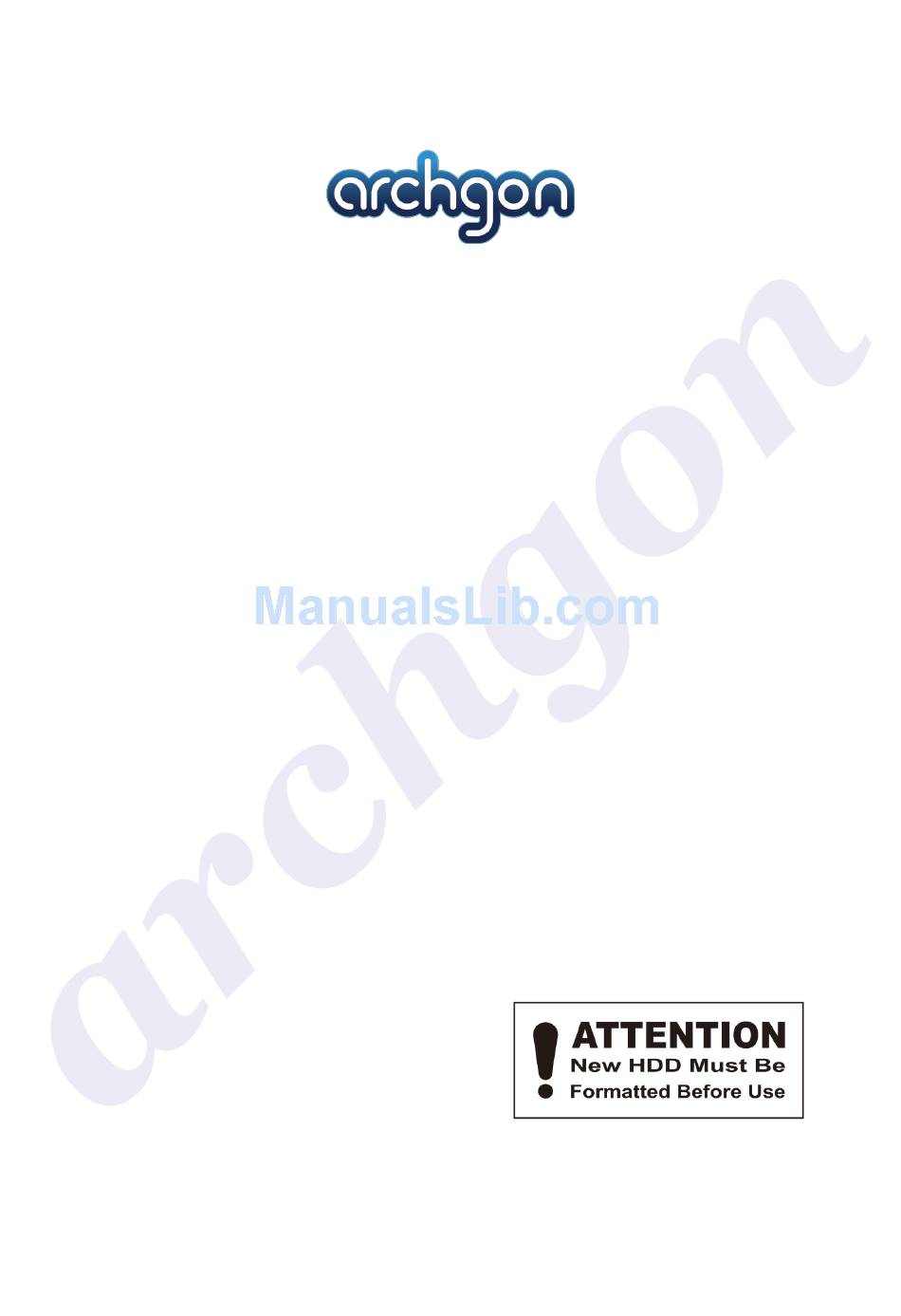

- Page 1 MH-3621-U3 Clone 2.5”/3.5” Dual SATA HDD Docking System User’s Manual HDDs Installation Guide ☆ HDD Formatting Guide ☆ Clone Operation Guide ☆ NOTE ☆...
-
Page 2: Table Of Contents
2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone CONTENTS ABOUT THE CASE ..................2 HARD DRIVE INSTALLATION GUIDE ............4 HARD DRIVE FORMATTING GUIDE ............5 CLONE OPERATION ..................10 NOTE ........................ 12 - 1 -... -
Page 3: About The Case
2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone About the Case Front View Blue: USB Link Orange: 0~24.99% Clone button clone completion Blue: Power Blue: HDD2 Orange: 25~49.99% Orange: 75~100% clone completion clone completion Red: clone error Red: standby Blue: HDD1 Orange: 50~74.99%... -
Page 4: Top View
2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone Top View HDD 1 HDD Ejection Jacks for HDD1 HDD 2 and HDD2 - 3 -... -
Page 5: Hard Drive Installation Guide
2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone Hard Drive Installation Guide STEP1: Target the correct location of SATA connector(s) STEP2: Install either 2.5” and/or 3.5”HDD(s) to the docking station and connect to the SATA connector(s) well. - 4 -... -
Page 6: Hard Drive Formatting Guide
2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone Hard Drive Formatting Guide STEP1: Right-click on “My Computer” icon and select the” Manage” column. STEP2: Select “Disk Management” and you will see your hard drives showing “Unallocated”. ： example 250GB & 750GB hard drives. - Page 7 2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone STEP3: Right-click the circled block and select “Initialize Disk” STEP4: Press “OK” button to initialize the hard drive. - 6 -...
- Page 8 2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone After the hard drive(s) appears “Online,” Right-click the “Unallocated” STEP5: block and select “New Partition”. STEP6: The “New Partition Wizard” will appear. Follow the instruction of the wizard to complete the partition.
- Page 9 2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone STEP7: When new partition is completed, the hard drive will be recognized as a “New Volume”. - 8 -...
- Page 10 2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone STEP8: Format the other hard drive in the same way to see below. - 9 -...
-
Page 11: Clone Operation
2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone Clone Operation NOTE： All data in HDD2 will be deleted once clone operation is started. ● HDD combination can be of either or both 2.5” and/or 3.5” SATA HDDs, ● as long as HDD2 is equal to or bigger than HDD1 on capacity. - Page 12 2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone STEP3: Press & hold the clone button for at least three seconds, and clone operation will start having the RED Power LED disappear and all 4 LEDs turned on in orange.
-
Page 13: Note
2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone Note Clone Function The capacity for HDD1 must be smaller or equal to HDD2 All the data in HDD2 will be deleted once clone operation is started If the capacity for HDD2 is bigger than HDD1, capacity remains in HDD2 upon clone completion can be formulated to a new partition. - Page 14 2.5”/3.5”Dual SATA HDD Docking System Installation Guide MH-3621-U3 Clone Diagnosis of LEDs This case consists of 4 LEDs LED Activity chart: this chart describes LED activity under various conditions. Operation Activities Configurations LED Status HDD status Clone Operation...
