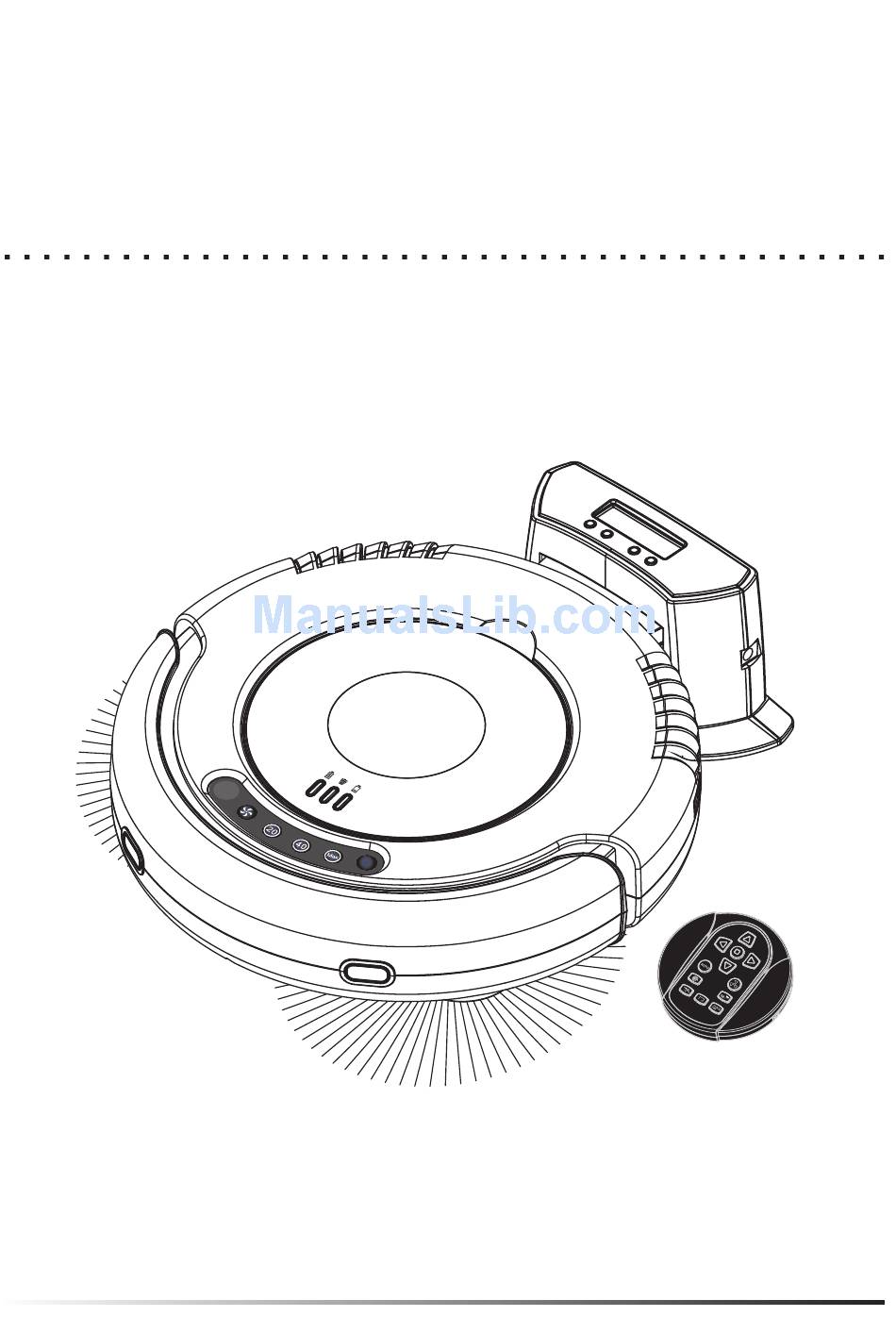

- Page 1 Robotic Vacuum Cleaner With LCD Docking Station Operation Manual Royal Robot 1300...
-
Page 3: Table Of Contents
* Safety Instructions * Battery and Recharging Instructions SPECIAL FEATURES -------------------------------------------------------- 3 MAJOR COMPONENTS AND ATTACHMENTS ------------------------ 3 OVERVIEW OF THE ROYAL ROBOT 1300------------------------------- 4 UV(ULTRAVIOLET) LIGHT SWITCH AND WARNING ---------------- 5 INSTALLATION GUIDE ------------------------------------------------------- 6 * Proof Test * Installing and Removing Side Brush... -
Page 4: Safety Instructions
11. If Royal Robot 1300 is malfunctioned or damaged by force, do not operate Royal Robot 1300 regardless the cause. Please call your local dealer for service information. 12. Turn off the power and remove the battery from Royal Robot 1300 if the unit will not in use for a long period of time. -
Page 5: Special Features
This revolution Robotic Vacuum Cleaner With LCD Docking Station is equipped with functions suitable for cleaning up floor surfaces of home and office such as wood, tile, and linoleum. Royal Robot 1300 Robotic Vacuum Cleaner With LCD Docking Station is definitely a household helper. Working Patterns:... -
Page 6: Overview Of The Royal Robot 1300
OVERVIEW OF THE ROYAL ROBOT 1300 LCD Control Panel Heat Vent LED Indicator Bumper Contact plates for automatic charging Control Panel Front Small Wheel Side Brush & Cap Anti-Cliff sensor Intake Valve Left and Right Side Brush Wheels & Cap... -
Page 7: Uv(Ultraviolet) Light Switch And Warning
UV(ULTRAVIOLET) LIGHT SWITCH AND WARNING CAUTION!! "Do not stare at the UV light!" (UV) Ultraviolet light is dangerous to your eyes. Even a short exposure can damage your eyes, cause severe irritation and possible loss of sight. TURN OFF THE UV LIGHT SWITCH WHEN INSTALLING AND REMOVING: INSTALLING AND BATTERY ADJUSTMENT OF... -
Page 8: Installation Guide
INSTALLATION GUIDE Proof Test: Please try either one of the following two methods to test the installation of docking station, if the vacuum cannot go back to the docking station and charge successfully, then please replace the docking station to the proper height. -
Page 9: Installing And Removing Side Brush
INSTALLATION GUIDE ＊ Make sure the power switch of T285D and UV light are turned off. Installing and Removing Side Brush: To install: Remove the side brush caps from the bottom of cleaner. Put the brushes directly onto the holder and press on the caps to fix it.(Fig. 3) Then spread the brush bristle evenly as shown in Fig. -
Page 10: Installing Dusting Paper And Holder
INSTALLATION GUIDE ＊Make sure the power switch of Royal Robot 1300 and UV light are turned off . (Please refer to page 5.) Installing Dusting Paper and Holder: 1. Flat the dusting paper and put it on the floor or table. Then place the holder (the side with 4 stoppers face up) on the paper at the midpoint as below diagram. -
Page 11: Installing And Removing Remote Control Battery
INSTALLATION GUIDE Installing and Removing Remote Control Battery: ※Remove insulation sheet before use remote. Turn the Remote Control upside down. Press position A and pull out position B of the battery slot at same time. Put the battery with the positive “+” side facing up. Push-in the battery slot as below diagram.. -
Page 12: Battery Installation And Removal
INSTALLATION GUIDE Battery Installation and Removal: 1. Make sure the power switch of Royal Robot 1300 is turned off. 2. Press the two points “A” (marked in the below diagram) and slide the battery cover in the direction of arrow “B” (marked in the below diagram). -
Page 13: Recharging Battery
(CHARGING) on Royal Robot 1300 (as above diagram) will flash green, and it will stay green when the cleaner has been uninterruptedly charged for 6~8 hours. 4. When the Royal Robot 1300 is in "Battery Low" situation, the LED indicator below the“... -
Page 14: Adjustment Of Anti-Cliff Sensors
ADJUSTMENT OF ANTI-CLIFF SENSORS Make sure the power switch of Royal Robot 1300 and UV light are ＊ turned off. There are three “Anti-Cliff” sensors at the bottom of Royal Robot 1300 to prevent the unit from falling down stairs.If the distance between the stair and the ground is shorter than usual, please adjust all windows of “Anti-cliff”... -
Page 15: General Operation
GENERAL OPERATION Preparation for Operation: 1. Install the side brushes and install the battery according to the manual. 2. Turn off the power switch on the side of the unit, and charge the battery directly from D.C. Jack for 6~8 hours prior to the first operation. 3. -
Page 16: Remote Control
GENERAL OPERATION Remote Control: ※Remove insulation sheet before use remote. IR transmitter (2) Forward (1) Auto (4) Turn Right (3) Turn Left (5) Stop (6) Backward (7) Vacuum switch (9) Spiral (8) Docking (10) Random (11) Along the wall (12) “Z” type 1. -
Page 17: Control Panel Of Docking Station
GENERAL OPERATION Control Panel of Docking Station: Present Time Setting Hour Minute Day of Week Battery Indicator Completed setting for time of cleaning Functions of buttons: ＊ "Set": Press “Set” to switch between setting the "CLK" present time and “... -
Page 18: Basic Operation
GENERAL OPERATION Basic Operation: →Manual work ※When LED Indicator lights on. → Check: Œ . Dust bin is full. . Intake Valve is stuck with dirt. Ž . Wipe out the inner and outside of Intake Valve area. 1. Press the “Working time selection buttom” on the control panel to select the work time: Short, about 20 minutes, Middle, about 40 minutes,... -
Page 19: Select Working Time And Function Presented
GENERAL OPERATION Select working time and function presented: LED indication and sequence Function Presented Maximum working time with docking function ON. Light on 40 minutes working time with docking function ON. Light on 20 minutes working time with docking function ON. Light on Flash Maximum working time with docking function OFF. -
Page 20: Cleaning And Maintenance
CLEANING AND MAINTENANCE Maintenance Method: The operation and maintenance of the Royal Robot 1300 is very simple. After each use, clean any dirt left behind on the dust bin and filter. It is not necessary to clean the intake after every use. - Page 21 CLEANING AND MAINTENANCE 3. Open the upper cover of the dust bin. 4. Lift up and take out the filter. 5. Throw away the dust and dirt from the dust bin.
- Page 22 CLEANING AND MAINTENANCE 6. Rinse the dust bin with tap water. It is not necessary to wash every time. Please do not put it into the washing machine to do the cleaning. 7. Periodically clean the filter with a soft bristle brush. 8.
-
Page 23: Cleaning Intake
CLEANING AND MAINTENANCE Cleaning Intake: After repeated use, dirt and dust can accumulate around the intake of the T285D and the working efficiency can be reduced. To ensure the best efficiency and constant airflow, the intake should be cleaned periodically. Intake Valve Cleaning Side Brushes: 1. -
Page 24: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution 1.Recharge the cleaner. LED stays red after 1.Battery Low condition. 2.Remove T285D from power on. 2.The wheels stuck. obstacles. T285D could not The dust bin filter is not Install the dust bin filter vacuum effectively properly installed. -
Page 25: Warning Of Battery & Adaptor Usage
WARNING OF BATTERY & ADAPTOR USAGE 1. Please follow the voltage and current specified and printed on the packing labels. Check with salesman or local power company if it is uncertain. 2. Please apply the same model’s battery (D.C. 14.4V 1500mAh) and adaptor (19V 600mA) as equipped with the packing. - Page 28 Royal Robot 1300 ROYAL CONSUL EUROPE A/S Ringvejen 59, 7900 Nykøbing Mors-Danmark Tlf. +45 96 69 16 00 Fax. +45 96 69 16 01 E-mail: rce@royal-consul.dk Web: www.royal-consul.dk...
