ID Tech MD22292B User Manual

9.2 million pixels ultra wide view color tft lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MD22292B 9.2 Million Pixels Ultra Wide View Color
TFT LCD Monitor
User's Guide
P/N: 13M3273

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD22292B and is the answer not in the manual?

Questions and answers

Summary of Contents for ID Tech MD22292B

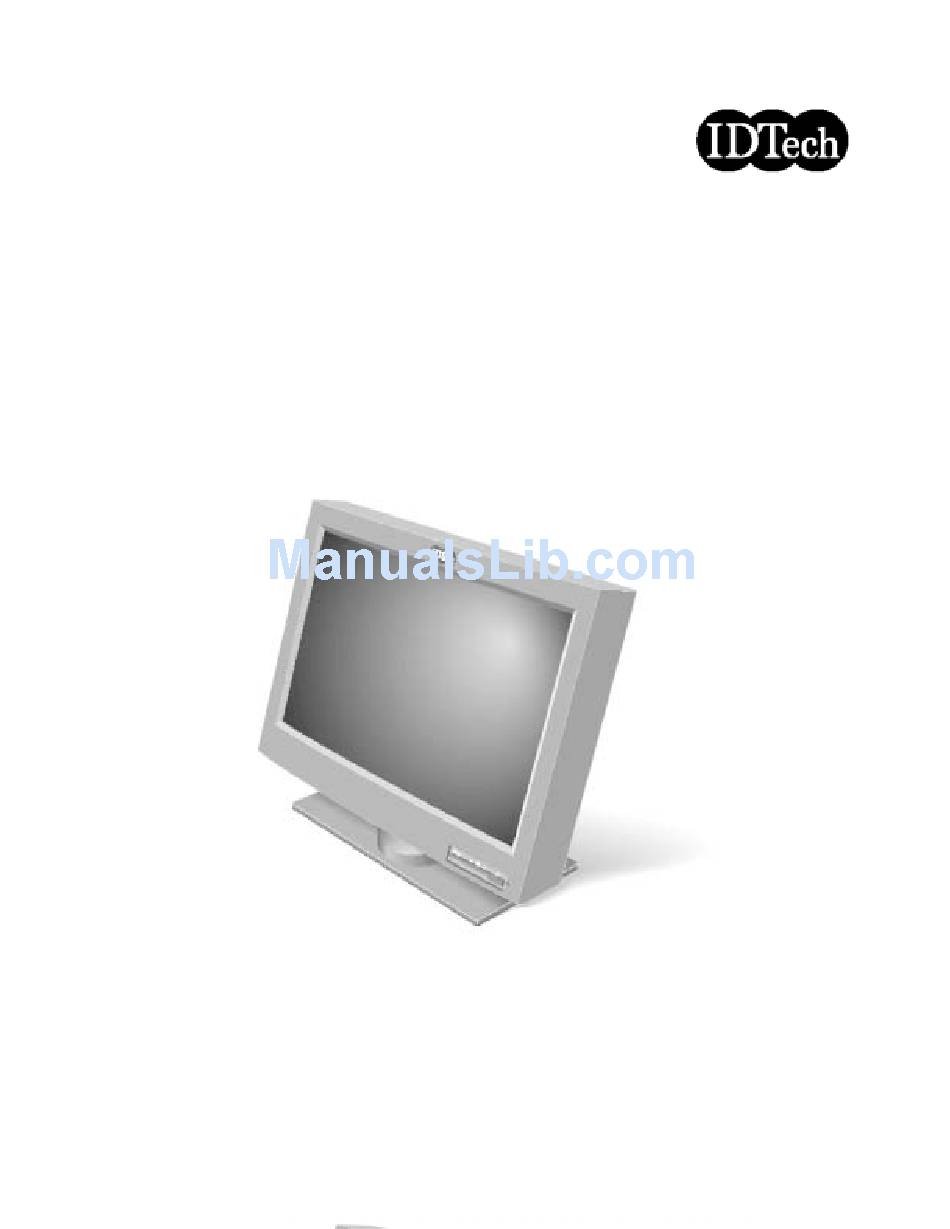

  • Page 1 MD22292B 9.2 Million Pixels Ultra Wide View Color TFT LCD Monitor User’s Guide P/N: 13M3273...
  • Page 2 First Edition (January 2004) International Display Technology Co., Ltd. 2004. All rights reserved.

  • Page 3: Danger Statements

    Danger Statements Danger Statements iii...
  • Page 5 Danger Statements v...
  • Page 7 Danger Statements vii...
  • Page 8 viii...
  • Page 9 Danger Statements ix...
  • Page 11 Danger Statements xi...
  • Page 13 Danger Statements xiii...

  • Page 15: Notices

    Notices Attention • Do not exert strong pressure to the surface of the monitor screen. You may break the LCD panel. • Do not place heavy objects on top of this product. They may damage the monitor. • Do not touch the monitor screen with your fingers. Fingerprints and oil stains may remain on the screen surface.
  • Page 16 matter in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, International Display Technology Co., Ltd. 800, Ichimiyake, Yasu-cho, Yasu-gun Shiga-ken, 520-2392 Japan Trademarks Matrox and Matrox MMS are trademarks or registered trademarks of Matrox Electronic Systems Ltd.

  • Page 17: Table Of Contents

    Contents DANGER STATEMENTS........................III NOTICES ............................... XV .............................. TTENTION ..........................CONSIDERATIONS ......................... PERATING CONSIDERATIONS ..........................ICENSE INQUIRIES ............................RADEMARKS CHAPTER 1. BEFORE SETTING UP ..................... 1 ............................1 REREQUISITES ............................... 1 NPACKING ............................2 HECKING PARTS CHAPTER 2. HARDWARE SETUP ......................3 ..............................
  • Page 18 APPENDIX C. CONFIGURING YOUR VIDEO GRAPHICS CARD ............ 30 APPENDIX D. FIELD REPLACEABLE UNITS (FRUS)..............31 APPENDIX E. COMPLIANCE ....................... 32 TCO’95..............................32 (FCC) S .............. 34 EDERAL OMMUNICATIONS OMMISSION TATEMENT ............34 NDUSTRY ANADA LASS MISSION OMPLIANCE TATEMENT ............ 35 VIS DE ONFORMITÉ...

  • Page 19: Chapter 1. Before Setting Up

    Chapter 1. Before setting up This guide contains information on how to set up and operate the MD22292B 9.2 Million Pixels Ultra Wide View Color LCD Monitor, hereafter called the monitor. This chapter describes the following: • Prerequisites • Unpacking •...

  • Page 20: Checking Parts

    Checking parts Check the box for the following items. If any items are missing or damaged, contact your place of purchase immediately. Monitor User’s Guide (This book) Connector tool Power adapter and cord Power cord Digital signal cable* Notes: *The DVI signal cable is shipped already connected to the monitor.

  • Page 21: Chapter 2. Hardware Setup

    Chapter 2. Hardware setup This chapter describes the following: • The location of the controls, switches, and connectors. • The procedure for setting up the monitor (page 4). Locations Front view Monitor screen Serial number label OSD control Brightness control Power switch Base stand Power light...

  • Page 22: Hardware Setup

    Hardware setup Storing the connector tool This section describes how to store the connector tool for future use. This tool will be useful when disconnecting the cables from the monitor. To store the connector tool, do the following: 1. Clear a workspace, and turn the monitor face down. Attention: a.
  • Page 23 3. Remove the connector cover. Connector cover 4. Unhook the digital signal cable from the cable hook and lift it up to store the connector tool in the rear compartment of the monitor. Cable hook Connector tool Chapter 2. Hardware setup...

  • Page 24: Connecting The Cables

    Connecting the cables This section describes how to connect the following cables: 1. Power adapter cord 2. Digital signal cable 3. Power cord Connecting the power adapter cord 1. Connect the power adapter cord to the DC-IN connector at the rear of the monitor.
  • Page 25 3. Reinstall the connector cover on the monitor. Connector cover 4. Reinstall the stand rear cover and turn the monitor to the upright position. Stand rear cover Note: Do not power on the monitor or the personal computer or workstation until instructed. Failure to do so may damage the unit or the video graphics card.
  • Page 26 Connecting the digital signal cable Note: If you use the converter box, see “Converter Box User s Guide”. 1. Make sure that the power cord is NOT connected to your PC or workstation. 2. Open the cover of your personal computer or workstation, and install the video graphics card, if necessary.
  • Page 27 Connecting the power cord Note: Read the respective Danger Statements on pages iii through xiii before continuing with this section. 1. Connect the power cord to the power adapter. 2. Connect the power plug to a properly grounded power outlet. Note: Make sure that all the cables are connected;...
  • Page 28 4. Press the power switch on the monitor. The power light comes on. Power switch Power light Notes: a. When you turn off the monitor, wait at least five seconds before turning it on again. b. If you accidentally disconnected the power cord from the main outlet and you connected it to the outlet again, the screen may flicker continuously.

  • Page 29: Chapter 3. Adjusting And Maintaining Your Monitor

    Chapter 3. Adjusting and maintaining your monitor This chapter describes the following: • How to adjust the viewing angle. • How to set the controls. • The operating status of your monitor. • How to disconnect the cables. • How to use the security key lock. •...

  • Page 30: Setting The Monitor Control Buttons

    Setting the monitor control buttons You can control the various functions of the monitor using the buttons at the front right of the monitor. The four buttons control the following functions: Button/Button Direct access Functions available from the OSD Name functions Menu Displays the on-screen...

  • Page 31: Accessing The On-Screen Display (Osd) Menus

    Accessing the on-screen display (OSD) menus You can access the on-screen display (OSD) menus by pressing the Menu/Enter button. The OSD menus enable you to set the various operating conditions of your monitor. The OSD menus consist of the following: Main menu (for menu selection) Submenus (for controls setting) - Brightness level...
  • Page 32 Submenus To access a submenu, do the following: Brightness submenu 1. Select the Brightness icon on the Main menu using the Left-Arrow or the Right-Arrow button 2. Press the Menu/Enter button. The Brightness submenu appears. 3. Adjust the brightness using the Left-Arrow or the Right-Arrow button. 4.
  • Page 33 3. Press the Left-Arrow button for at least 3 seconds to disable or enable the color management mode when a single video input is being used 4. Press the Menu/Enter button to exit from this submenu. Note: * The monitor automatically detects the number of video inputs and timings.

  • Page 34: Checking The Operating Status Of Your Monitor

    Checking the operating status of your monitor You can check the status of your monitor by the color of the power light. Power switch Power light The color of the power light changes from green to amber when your monitor receives a time-out video signal from the personal computer or workstation and enters Standby mode to save power.

  • Page 35: Disconnecting The Cables

    Disconnecting the cables Note: Before you begin the procedures below, be sure to read the Danger Statements on page iii. To disconnect the digital signal cable, do the following: 1. Power off your monitor, peripheral units (if any), and personal computer or workstation and unplug them from the power outlet.

  • Page 36: Using The Security Key Lock

    Using the security key lock The monitor has a built-in security keyhole at the rear of the screen for fastening a security lock and cable. This lock is used to help prevent the monitor from being removed without your permission. This cable can be purchased at any PC shop.

  • Page 37: Chapter 4. Troubleshooting

    Chapter 4. Troubleshooting Is something wrong? If you suspect something is not working correctly, you should: 1. Turn on the computer and monitor. 2. Set the brightness control ( ) to the proper position. 3. Make sure that all cables are securely connected. 4.

  • Page 38: Warranty Information

    Warranty information Machine Name: MD22292B 9.2 Million Pixels Ultra Wide View Color TFT Monitor Warranty Period: One (1) Year Service and support Call: IDTech Customer Support Line in Japan 81-46-215-4445 9:00-17:00 at Japan Mean Time e-mail address: supportdesk@idtech.co.jp Before calling, please available as much of the following information as possible.

  • Page 39: Appendix A. Specifications

    Appendix A. Specifications The specifications of the monitor are as follows: Horizontal: 3840 pixels Maximum addressability Vertical: 2400 pixels Diagonal 564 mm (22.2”) Size (viewable image area) Horizontal: 478 mm (18.7”) Active display area Vertical: 299 mm (11.8”) 235 cd/m typical Brightness 400 : 1 typical...

  • Page 40: Recommended Configuration

    Recommended configuration The following pages contain comprehensive details of the MD22292’s capability and attachment options. The majority of applications can be addressed by the configurations shown below. MD22292 Supported Minimum Graphics Image motion Screen Typical Applications Firmware Card characteristic Model EDID level Update...

  • Page 41: Supported Display Modes

    Supported display modes All versions of the monitor support the following modes. Industry & standard modes Addressability Horizontal Vertical Pixel Clock Mode Actual Display Input Frequency Frequency Frequency Scale Resolution (kHz) (Hz) (MHz) Factor 640x400 31.5 70.0 25.2 3200x2000 640x480 31.5 59.9 25.2...
  • Page 42 Addressability H Freq. Pixel EDID** (QUXGA-W) Input (kHz) Freq. Clock (Hz) (MHz) (960x2400)x4 ch1 ~ 4 99.2 40.9 104.8 P1 P4 (1920x1200)x4 ch1 ~ 4 50.1 40.9 104.8 (1920x1200)x4 ch1 ~ 4 50.3 40.9 127.2 P2 P2 P2 (1920x1200)x4 ch1 ~ 4 58.9 48.0 122.5...
  • Page 43 Notes: * Requires dual-link DVI converter box **Each EDID contains up to four extended timings, the number (P1 - P4) in the top section of the table indicates the order & priority of these timings within the EDID. The selectable EDID number for each configuration is shown in the bottom section of the table.

  • Page 44: Appendix B. Updating The Settings For Your Monitor

    Extended Display Identification Data or EDID and is read by operating systems and video graphics cards to determine the optimum display properties for the system. The IDTech MD22292B is a very advanced and flexible monitor and it exceeds the capability of the EDID system to describe it fully.

  • Page 45: Changing The Settings

    2. Enabling the special OSD (on-screen display) menu a. Press the leftmost OSD button (select / enter) and navigate to the (i) (information) icon by using the '←' (navigate left) or '→' (navigate right) button. Press the 'select / enter' button to access the information screen.

  • Page 46: Important Notices

    The EDID setting cannot be reset to the original number as for the factory default values by the procedure given in this manual. To reset the EDID to an equivalent value to the factory default, check your MD22292B model and choose the appropriate number as below, then update the setting.
  • Page 47 EDID settings may be updated without notice. For the latest information, refer to the IDTech technical support website for the MD22292B monitor. EDID setting numbers and DDC-CPU versions Version of DDC- CPU 3.2 3.3 3.4 3.5 3.6 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6...

  • Page 48: Appendix C. Configuring Your Video Graphics Card

    Appendix C. Configuring your video graphics card There are several aspects of video graphics card performance that have to be considered when configuring them for use with this monitor. The latest information on certified graphics cards for this monitor is available on the following web page, including any device driver and video BIOS updates if required.

  • Page 49: Appendix D. Field Replaceable Units (Frus)

    FRUs for withdrawn model FRU part number Part number Matrox video graphics card 07N1244 07N1241 Digital signal cable for Matrox 07N1246 07N1218 (Do not use for other equipment than MD22292B 07N1219 and Matrox G200MMS video card.) Appendix D. Field Replaceable Units (FRUs) 31...

  • Page 50: Appendix E. Compliance

    Appendix E. Compliance TCO’95 Congratulations! You have just purchased a TCO'95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.

  • Page 51: Environmental Requirements

    environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

  • Page 52: Federal Communications Commission (Fcc) Statement

    Federal Communications Commission (FCC) Statement MD22292B 9.2 Million Pixels Ultra Wide View Color FTF LCD Monitor This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 53: Avis De Conformité Á La Réglementation Díindustrie Canada

    Avis de Conformité á la Réglementation díIndustrie Canada Cet appareil numérique de classe A est conforme á la norme NMB-003 du Canada. Deutsche EMV-Direktive (electromagnetische Verträglichkeit) Dieses Gerät ist berechtigt in Übereinstimmung mit dem deutschen EMVG vom 9.Nov.92 das EG-Konformitätszeichen zu f¸ hren. Der Aussteller der Konformitätserklärung ist die IDTech.

  • Page 54: Union Europea - Normativa Emc

    Ce produit a été testé et il satisfait les conditions de l’équipement informatique de Classe A en vertu de CISPR22/Standard européen EN 55022. Les conditions pour l’équipement de Classe A ont été définies en fonction d’un contexte d’utilisation commercial et industriel afin de fournir une protection raisonnable contre l’interférence d’appareils de communication autorisés.

  • Page 55: Statements For Other Countries

    Statements for Other Countries Power Cord For your safety, IDTech provides a power cord with a grounded attachment plug to use with this IDTech product. To avoid electrical shock, always use the power cord and plug with a properly grounded power outlet.

  • Page 56: Mprii

    MPRII This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1999 (MPRII) for very low frequency (VLF) and extremely low frequency (ELF) emissions. Hinweise Gemäβ der Amtsblätter des BMPT Nm. 61/1991 und 6/1992 wird der Betreiber darauf aufmerksam gemächt, daβ...
  • Page 57 Appendix E. Compliance 39...
