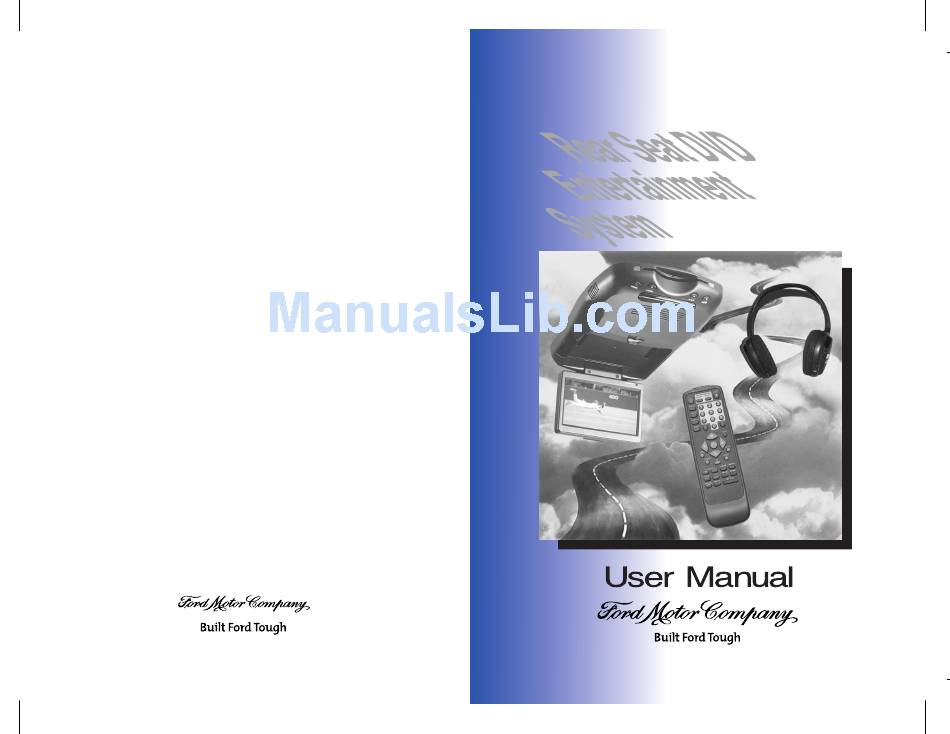

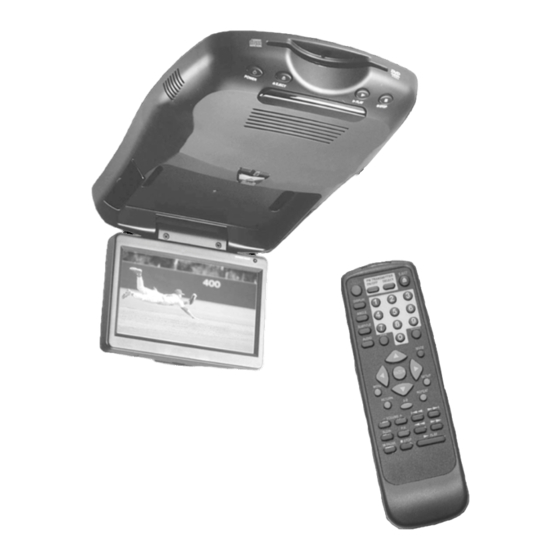

- Page 1 Rear Seat DVD Entertainment System SK3LIJ-19G323BA 128-6369 APRIL 2002 FIRST PRINTING LITHO IN U.S.A. USER MANUAL...
-
Page 2: Table Of Contents
Ford Motor Company. Ford may change the contents without notice and without incurring obligation. Copyright © 2002 Ford Motor Company... -
Page 3: Quick Start — How To Get Going
Quick Start — How to get going To operate the DVD system: 1. Install two batteries into the remote control and 2 batteries into each of the headphones. 2. Turn the ignition switch to the ACC or ON position. 3. Insert a DVD disc into the DVD player. The DVD player will turn on and the DVD will start playing. -
Page 4: Introduction
Introduction INTRODUCTION Your vehicle is equipped with a Rear Seat DVD Entertainment System which allows you to listen to audio CDs, watch DVDs and to plug in and play a variety of standard video games. The DVD player is capable of playback of standard DVDs, CDs and CD-R/RW media. - Page 5 Federal Communication Commission (FCC) Compliance Changes or modifications not approved by Ford Lincoln-Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 6 Introduction Temperature extremes When the vehicle is parked under direct sunlight or in an extremely cold place for a long period of time, wait until the cabin temperature of the vehicle is at normal temperature before operating the system. Humidity and moisture condensation Moisture in the air will condense in the DVD player under extremely humid conditions or when moving from a cold place to a warm one.
-
Page 7: Features
Features FEATURES • 7 inch Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD) Monitor • On Screen Display (OSD) for control of picture quality and functions • Full Function Remote Control • Five frequency FM modulator with remote control and OSD (Channel 1, 88.3 MHz, Channel 2, 88.7 MHz, Channel 3, 89.1 MHz, Channel 4, 89.5 MHz, Channel 5, 89.9 MHz) •... - Page 8 Features CONTROLS AND INDICATORS 1. DVD disc insertion slot 2. PLAY ( ) button 3. STOP ( ) button 4. Infrared Transmitter and Sensor — Used to transmit audio to wireless headphones. Also allows the remote control to operate unit. 5.
- Page 9 Features 10. SCREEN RELEASE — Moves in direction of the arrow to release the drop down screen. 11. HEADPHONE JACK — Allows the use of wired headphones with a 1/8” plug for listening to video program audio. 12. FM TRANSMITTER CHANNEL SELECT — (Channel 1, 88.3 MHz, Channel 2, 88.7 MHz, Channel 3, 89.1 MHZ, Channel 4, 89.5 MHz, Channel 5, 89.9 MHz).
- Page 10 Features REMOTE CONTROL OPERATION Battery installation Before attempting to operate your Remote Control, install the batteries as described below. 1. Turn the Remote Control face down. Lift the battery cover off. 2. Install two “AAA” batteries as shown. Make sure that proper polarity (+ or -) is observed.
- Page 11 Features DVD AND REMOTE CONTROL FUNCTION DESCRIPTIONS 1. DVD POWER on/off button Press this button to turn the unit on. The DVD or selected video source will be displayed on screen and the picture will appear in a few seconds. Press the button again to turn the unit off. 2.
- Page 12 Features Use the cursor buttons to select TITLE/CHAPTER. Press ENTER to confirm selection. Press ENTER repeatedly for subtitle, Audio, Surround, Angle A to B & Repeat. These options may vary from disc to disc. 3. ANGLE button Press to display and select the camera angles. The angle changes with each press.
- Page 13 Features 11. VOLUME up (+) button Press this button to raise the volume level of the wired headphones. This button also used to make picture adjustments in the picture select mode. Note: The volume down and volume up buttons will not affect the volume of wireless headphones or a wired RF modulator.
- Page 14 Features 19. Numbers buttons Use these buttons to enter the numbers 0 to 9 for selection of CD tracks, DVD chapters, and password setting. 20. SOURCE button Video signals from video equipment connected to the audio/video inputs can be displayed on the monitor by pressing this button. Each time the button is pressed, the audio/video source will change in the following sequence: DVD, AV1, AV2 and AUX.
- Page 15 Features 29. Previous ( ) button Press this button to return to the previous chapter or track. 30. Scan forward ( ) button Press this button to search in a forward direction at 2,4, 6 and 8 times the normal speed. 31.
- Page 16 Features 3. After the unit has been turned on and is displaying a picture, adjust the viewing angle by pivoting the screen to optimize the picture quality. 4. Remember to turn the unit off and pivot the LCD to the locked position when not in use.
- Page 17 Features SPECIAL OPERATION FEATURES When the unit is off and a disc is inserted, it will automatically turn on and load the disc. When the unit is off, the disc can be ejected by pressing the EJECT button. The source will be automatically change to the DVD when the disc is inserted.
- Page 18 Features DVD BASICS To get the optimum use out of the DVD section, make sure you read this section completely. REGIONAL CODING Both the DVD player and DVD discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.
- Page 19 Features USING THE SETUP MENU Using the setup display, you can configure the initial setup and adjust the picture quality. You can also select a language for the on-screen menu and Setup Menu. You can also select viewing ratings to limit play back by children.
- Page 20 Features SETTING THE LANGUAGE FOR ON-SCREEN DISPLAY Press SETUP and using the ( ) buttons select “OSD LANGUAGE”. Press button to enter option menu. ON SCREEN DISPLAY (OSD) LANGUAGE MENU The OSD Language Menu allows the user to select the language for the on-screen display.
- Page 21 Features Use the buttons to select from: 1. G (Children) 2. PG 3. PG-13 NO _PARE NTAL 4. R 5. NC-17 6. Adult No_Parental (No parental control) The lower the value, the more strict the limitation. Press the ENTER button to confirm the selection. The unit will prompt you for a password. The default password is 3308.
- Page 22 Features PLAYING AUDIO CDS When playing an audio CD, the OSD (On-Screen-Display) appears automatically. The OSD displays the current track playing, the total playing time of the track, the total playing time of the disc and the elapsed time of the track Press the DISPLAY button on the remote control to access audio disc information.
- Page 23 Features USING THE RANDOM PLAY MODE During CD playback, the random play mode can be accessed by pressing (STOP) button, followed by the ZOOM button, followed by (PLAY) button. RANDOM will appear on the monitor. PLAYING MP3 DISCS MP3 is a format for storing digital audio. An audio CD quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space.
- Page 24 Features SELECTING A PLAY MODE You can choose the playback order of the songs on a disc. The FOLDER play mode is the default. To access the play mode options, press STOP if the disc is playing. Press the button until the PLAY MODE option is highlighted.
- Page 25 Features 3. Use the button to access the song list of the folder. Use the to highlight a song. Press ENTER to add the song to the play list. The song you have chosen and the number of songs you have chosen appear at the top of the screen.
-
Page 26: Accessories
Wireless headphones The system includes a built-in infrared transmitter for use with wireless headphones. To obtain additional wireless headphones, contact your Ford dealer. Adjust the volume by using the controls on each headset. The wireless headphones must be used within a line of sight from the transmitter. - Page 27 Accessories Wired headphones There are two 1/8 inch headphone jacks on the unit that can be used with any standard wired stereo headphones. These jacks are controlled by the volume up/down buttons on the system’s remote control. Remove the protective plastic cover to access the jacks. Remember to replace the cover when the jacks are not in use.
-
Page 28: General Operating Tips
Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. -
Page 29: Troubleshooting
It may be something that has been overlooked. Do not attempt to repair the system on your own as it will invalidate the warranty. For repairs, see your Ford Dealer. Look for the specific symptom(s) below. Only perform the action listed to remedy the specific symptom(s). - Page 30 Troubleshooting Problem Solution • Make sure your unit is connected No sound or distorted sound properly. Make sure all cables are securely inserted into the appropriate jacks. • If you are using the IR headphones, make sure you turn on the power to the headphones.
- Page 31 This part of the movie is often programmed to prohibit skipping through it. Replacement Parts Item Remote Control See your Ford dealer for replacement. Protective Covers for headphone and RCA jacks Specifications Features Specifications LCD Backlighting...
