Summary of Contents for Meen green MGP-20

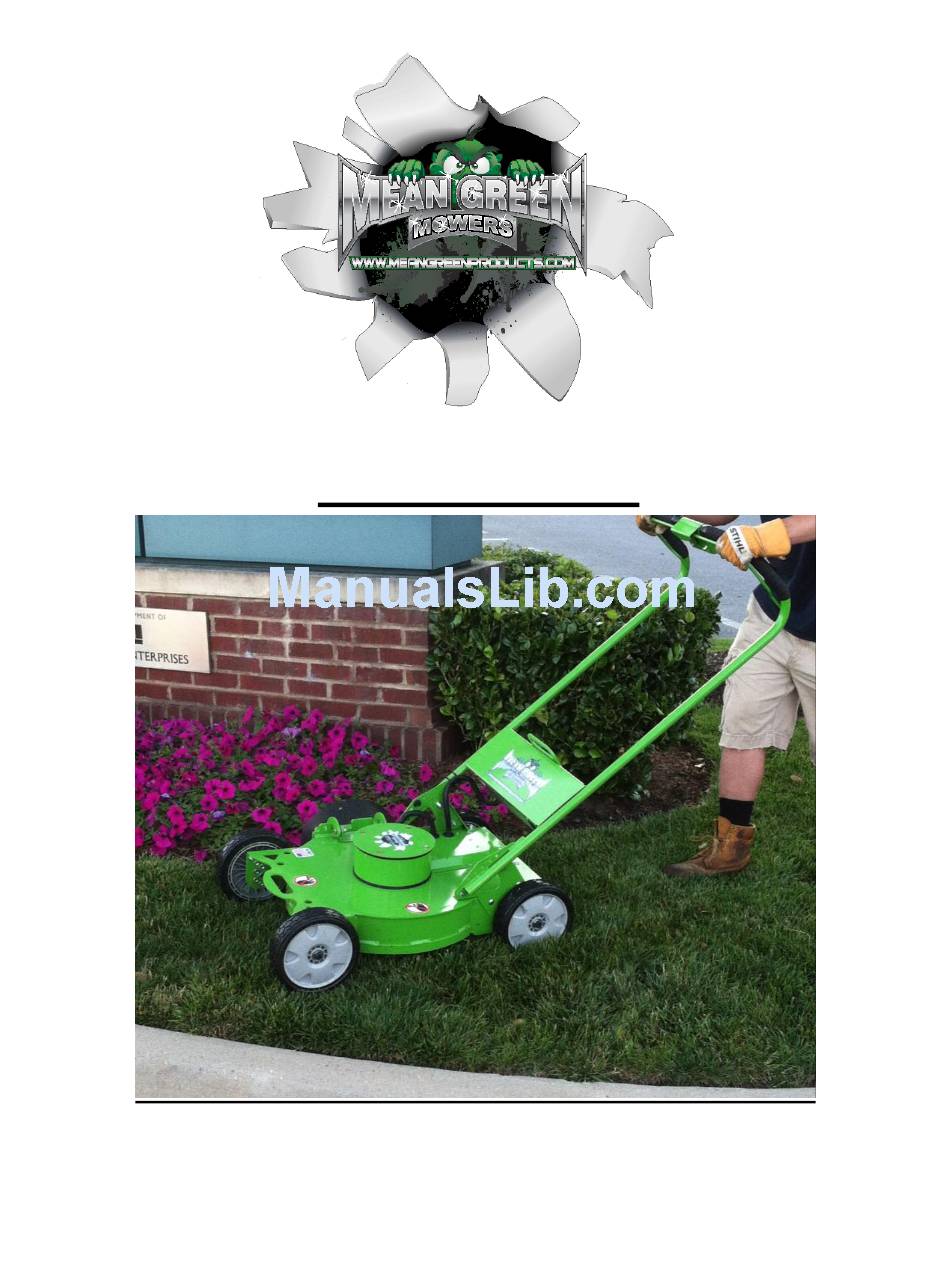

- Page 1 MGP-20 Push Mower Owner’s Manual Mean Green Products, LLC 4404 Hamilton Cleves Rd. Unit 2 * Hamilton, OH 45013 513-738-4736 or 513-200-7561(Sales & Service)
-
Page 2: Table Of Contents
__Index________________________________Page Warranty Information……………………………………………………….A-C Warranty Registration…………………………………......C Warranty Registration Card…………………………………....C General Information……………………………………………………………..1 Safety Precautions……………………………………………………………..2-6 Safety/Instruction Decals…………………………………………………..2-6 Mower Control Panel…………………………………………………………...4 Power ON Light…………………………………………………………………….4 Operator Presence Safety Rod……………………………………………5,7 Master Power Ignition Switch……………………………………………….6 Battery Capacity Indicator…………………………………………………….5 Deck Blade Start Button………………………………………………….…4,7 HI & LO Mode Switch…………………………………………………………4,6 Operation………………………………………………………………………….8-9 Use of ramp……………………………………………………………………..9-11 Slope Guide……………………………………………………………………….8A... - Page 3 Electrical System……………………………………………………………..17-22 Mower Blade Maintenance………………………………………………….16 Electrical System Safety……………………………………………………….17 Electrical System Information………………………………………………17 Component Maintenance……………………………………………….17-18 Battery Connectors……………………………………………………………..19 Battery Charger…………………………………………………………………..19 Battery Maintenance………………………………………………………19-20 Battery Charging……………………………………………………………..20-22 Disconnecting Batteries……………………………………………………….21 Reconnecting Batteries………………………………………………………..22 Battery Storage…………………………………………………………………….22 Troubleshooting……………………………………………………………...22-23 Storage…………………………………………………………………………………23 New Season Preparation………………………………………………………23 MGP-20 Push Mower Assembly Lithium Energy Module Maintenance...
- Page 4 Tractors and Decks Mean Green Products LLC Two Year Limited Warranty For Residential and Commercial Use WHAT IS COVERED BY THIS WARRANTY Mean Green Products, makes the following warranty to the original purchaser only: A. Residential Use: Mean Green Mowers used for normal residential purposes* are warranted for two (2) years or 500 hours total usage (whichever comes first) from date of delivery on all materials and workmanship.
- Page 5 workmanship of chassis and deck structures and one (1) year or 500 hours total usage (whichever comes first) from date of delivery on all materials and workmanship. If the Purchaser discovers within this warranty period a defect in materials or workmanship: He must promptly notify Mean Green Products, or an authorized dealer, in writing of the defect.
-
Page 6: Warranty Registration
Cost of any substitute equipment, facilities, services or downtime The claims of third parties including customers, and injury to property Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. TIME LIMIT Any action for breach of warranty must be commenced within twenty-four (24) months following delivery of the goods in a residential application. -
Page 7: Warranty Registration Card
GENERAL INFORMATION This manual applies to the following Mean Green Products equipment lines: Mean Green Mowers – MGP-20 Push Mower To the new owner The purpose of this manual is to assist owners and operators in maintaining and operating the mower. -
Page 8: Safety Precautions
SAFETY PRECAUTIONS This safety alert symbol is used to call attention to a message intended to provide a reasonable degree of PERSONAL SAFETY for operators and other persons during the normal operation and servicing of this equipment. DANGER – denotes immediate hazards which WILL result in severe personal injury or death. -
Page 9: Safety Precautions
DANGER: Rotating blades! (fig.1A) * Keep shields and covers in place while machine is in operation * Keep hands, feet and clothing away from rotating blades DANGER: Safety Precautions!: (fig.2A) Read Owner’s Manual Before Operation Keep Hands, Feet, And Clothing Away From Rotating Blades Maintain Safe Distance From People And Pets Roll Over Warning –... -
Page 10: Mower Control Panel
Warning: Do Not Step! (fig.1B) *Fall Hazard Important: Mower Control Panel (fig.1C) A. Blade HI/LO B. Power ON light C. Blade Start Button Mower Control Panel Fig.1C... -
Page 11: Operator Presence Safety Rod
Fig. 1H: Operator Presence Safety Rod (Rod underneath handle bar grips) Rod must be depressed for mower blade switch to engage. Note: When lever is released, mower blades will automatically stop in less than 3 seconds. ***Important: IN CASE OF EMERGENCY: Operator should immediately release Operator Presence Safety Rod to STOP blades!!*** Fig. -
Page 12: Master Power Ignition Switch
Fig.1D Fig. 1D: Master Power Ignition Switch – (Located on the right side of battery) A three position Switch: Battery Lock, Off and On. With key inserted, rotate key clockwise to lock the battery pin in mount. Rotate clockwise again to the ON position to turn on power. Note: Power ON light will turn on when key is in the ON position (located on Mower Control Panel Fig.1C) Fig. -
Page 13: Operator Presence Safety Rod
Fig. 1F: Deck Blades ON and OFF: To engage blade, turn key to ON position, pull UP operator presence safety rod and momentarily push button (do not hold button down)(Fig.1G) (located on control panel) Operator Presence Safety Rod MUST be held against the handlebar for the blade to engage Operator Presence and operate. -
Page 14: Operation
OPERATION Safe Operating Practices This product is capable of amputating hands and feet and throwing objects. Always follow all safety instructions to avoid serious injury or death. Operation Evaluate the terrain to determine what accessories and attachments are needed to properly and safely perform the job. -
Page 15: Use Of Ramp
Turn the key to the OFF position, remove key before removing the grass catcher or unclogging the discharge chute. Never clear the discharge chute with the machine running. Turn the key to the OFF position, remove key, and make sure the blades have stopped before cleaning. Use a stick to clear a plugged discharge area. - Page 16 machine suddenly rolling over causing serious injury or death. Use a walk behind, push mower or hand-held trimmer on slopes and near drop-offs, retaining walls, drainage ditches, embankments and water to avoid machine rollover and serious injury or death. Do not mow on wet grass. Reduced traction could cause sliding and loss of steering control.
-
Page 17: Children
on a slope. There are many other possibilities too numerous to mention. Just remember to always exercise extreme caution when operating on any slope. Children Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. -
Page 18: Safety Interlock System
Safety Start Interlock System The machine is equipped with a safety start interlock system consisting of the Operator Presence Safety Rod and Operator Safety Lever. Operating suggestions DANGER: Prior to operating the mower the operator should be thoroughly familiar with the proper use and operation of the equipment, should read the manual completely and thoroughly, and should have attempted slow moving maneuvers to become familiar with the... -
Page 19: Operating Instructions
mow the lawn twice to achieve a better quality of cut. During normal mowing cut only about 1/3 of the grass blade. Cutting more than that is not recommended unless grass is sparse or it is the end of the mowing season. Alternate mowing direction to keep the grass growing straight and better dispersion of the clippings. - Page 20 Service Park the mower on level ground. Rotate key to OFF position and remove key from switch before doing any maintenance. Disconnect battery cables by pulling up out on the LARGE RED battery quick disconnect handle! Wait for all movement to stop before adjusting, cleaning or repairing.
-
Page 21: Electrical System
damage and deterioration, which could expose moving parts or allow objects to be thrown. Frequently check components and replace with manufacturer’s recommended parts, when necessary. Exercise caution when working under the deck as the mower blades are extremely sharp. Wear gloves and use extra caution when servicing them. Use only genuine Mean Green Mower parts to ensure that original standards are maintained. -
Page 22: Mower Blade Maintenance
Mower blade maintenance Check the mower blades daily, they are the key to power efficiency and well groomed turf. Keep them sharp, a dull blade will tear rather than cut the grass, leaving a brown ragged top on the grass within a few hours. A dull blade also requires more power. -
Page 23: Electrical System Safety
Electrical System Information The Mean Green Mower is powered by a 36 volt electrical system. It consists of the following components: MGP-20 Push Mower 1. Blade controller - (1) 2. Deck Motors - (1) 3. Digital battery display (1) (on limited models) 4. -
Page 24: Battery Safety
IMPORTANT: When battery voltage becomes low, the mower blades will stop. When the batteries discharge to this point they require recharging. The unit should immediately be returned to the battery charging area and the unit connected to the battery charger. Battery Safety Battery posts, terminals, and related accessories may contain lead and lead compounds, chemicals known to... -
Page 25: Battery Connectors
sulfuric acid and contact with skin, eyes or clothing can cause severe chemical burns. Internal contact: Get medical attention immediately! WARNING: Incorrect battery cable routing could cause damage to the mower and battery cables. This can cause sparks which can cause a battery gas explosion which will result in serious personal injury. -
Page 26: Battery Charging
batteries each time you service the battery. 3. Keep grass, dirt and debris from collecting near battery terminals. 4. Batteries are not to remain in a discharged state or damage to the batteries will occur. Lead sulfate deposits will form inside the batteries affecting charging and operation. 5. -
Page 27: Disconnecting Batteries
fully charged every 30 days to maintain battery life. 4. When charging, be sure charger cooling fan inlet and outlet are not blocked. Disconnecting the Batteries (LITHIUM MODULES) NOTE: ALWAYS disconnect battery cables by pulling out on LARGE RED battery quick disconnect handle before ANY maintenance is performed on mower unit. -
Page 28: Reconnecting Batteries
Fig. H Reconnecting the Batteries (Lithium Modules) 1. Reverse process of disconnecting the battery (Fig.H). 2. Plug RED battery quick disconnect handle into right side of battery connecting port. Battery Storage To maximize battery life it is best to fully charge batteries shortly after each use. -
Page 29: Storage
Loss of deck operation The deck fails to operate with fully charged batteries. RESET Mower Electronics by Switching Ignition Key to OFF position for approximately 5 seconds & then back to ON position. If this does not remedy the problem - Contact your Mean Green Products Dealer.
