Page 1

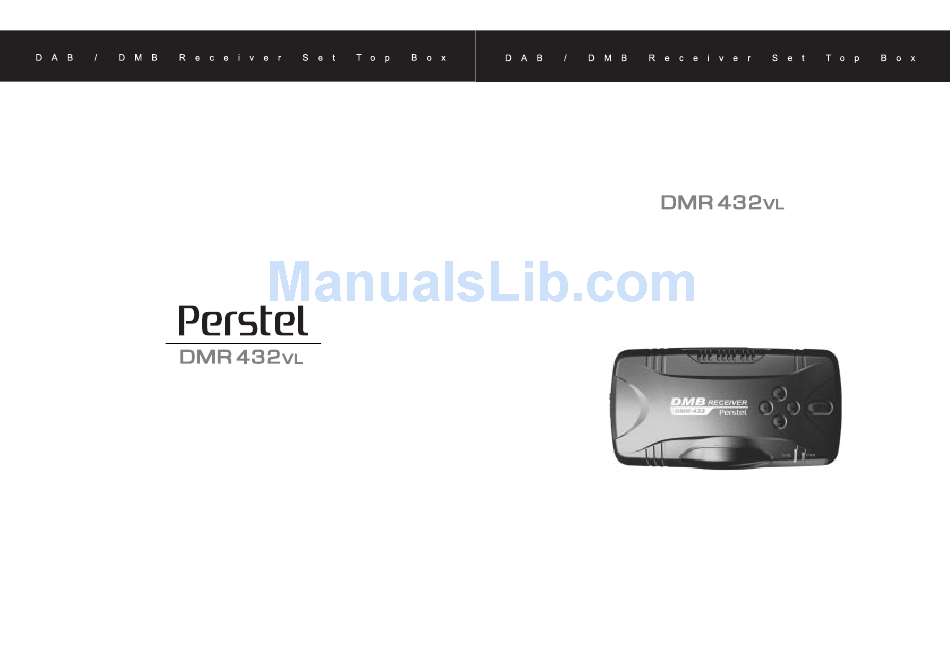

User's Manual T-DMB Receiver Thanks for purchase of Perstel DMB Receiver. Please read User’s Manual before use.
Page 2
Before use Before use Safety precautions Safety precautions Safety precautions Please read this User's Manual carefully for safe and convenient drive. Manufacturer is not responsible for material, mental and/or physical damages when safety pre- cautions stated herein are not kept. Safety precautions Install the antenna at the center of loop for Do not turn on the product before turning...
Page 3
Intellectual Property Rights Package contents Intellectual Property Rights PERSTEL holds intellectual property rights for those material used in this user's manual. Any content or image is not allowed for copying, transforming without prior consent by PERSTEL. 2005 PERSTEL INC. All Rights reserved.
Page 4
Before use Before use Product installation Connection diagram Product installation Connection diagram For safety reasons, it is highly recommended to consult installation work with local installation shops or dealers. Installation charge has to be borne by users. Home TV set For safety reasons, it is highly recommended to keep the product underneath of driver's or Vehicle TV set passenger's seat.
Page 5
Before use Before use Option items Controls diagram Controls diagram Remote sensor For best interface with remote controller, post the remote sensor on dashboard or on front glass using double adhesive tape. DMR432 unit Antenna set Insert antenna connector in DMR432 antenna port till it clicks. And, for best signal reception, locate anten- na magnet base at the center of car loop.
Page 6
Before use Before use Controls diagram Remote controller Functionality of DMR432 buttons Remote controller Menu Buttons of DMR432 main unit Navigation List do not provide full control. It is Up/Down- For volume control, or scroll up and down the menu in menu Enter/ Mute Navigation recommended to use remote...
Page 7
Getting started Before use LCD indicator Power on Power on Battery replacement (Remote controller) Open the battery compartment by Turn the power on using slide switch on the left side of the using tiny pin, and replace battery product. following polarity indication. Slide battery compartment back to origi- nal position.
Page 8
Operation Operation Mute/ Unmute Volume control Mute/ Unmute Volume control Press buttons shortly to mute DMB mode audio. Press buttons to raise volume To unmute audio, press mute button level. again, or adjust volume button. Volume adjustment from remote controller Press buttons to raise vol- or from DMR432 works same way to...
Page 9
Operation Operation Search Preset tune mode Search When service scan completes, tune mode automati- For the first time use, it is highly recommended to run a "Full Scan". Full Scan finds and saves DMB ser- cally turns to Preset. vices available at the location. To get better signal reception, place the DMR432 at wide open area. Press menu button, and use up/down button to move to [Search].
Page 10
Operation Operation Preset tune mode Preset tune mode Press [LIST] button to bring up service list. DMR432 tunes to other services if left or right Scroll the list using up/ down button and press button is pressed while a service is being broad- casted.
Operation Operation Adding services to service list Manual tune mode Adding services to service list Manual tune mode Do the followings to add current service to Press right button to see service service list. list.Scroll up/down to find an ensemble you wished to tune. 1.
Page 12
Operation Operation Menu Display button Display button Menu - When using remote controller 1. Press [MENU] button to enter menu. Press DISP button to display service informa- tion related to current DMB service. Current 2. Scroll the menu using up/down buttons and press [OK] button to enter sub-menu. ensemble, service name, signal strength, 3.
Page 13
Operation Operation Screen Mode Country setting Setting Screen Mode Normal Screen Mode Country setting Screen Mode enables users to extend screen. Do the followings to expand screen DAB/DMB frequency is not all the same per region. When Country setting changes, frequency band and reception area changes accordingly.
Page 14
Setting Setting Screen Mode Country Korea Normal Operation Operation Video Out OSD Language setting Setting Screen Mode Country Korea Normal Setting OSD Language setting Video Out Setting Korean Country OSD Language Korea Do the followings to set message and menu language to Korean or English. Video Out enables users to select video signal type.
Page 15
Operation Operation MENU TREE System Reset Setting NTSC Korean OSD Language Video Out System Reset MENU TREE "System Reset" clears the entire user settings and return to factory default setting. Please reconfirm whether initializing is really necessary. Do the followings to initialize DMR432 settings. MENU Preset list Press [MENU]...
Page 16
Product specifications Product specifications Specifications DMR432VL Model BAND-III : 174MHz ~ 240MHz Frequency L-BAnD : 1452~1492MHz Europe: ETSI EN 300 401 Technical standards Korea: TTAS.KO-07.0024 TTAS.KO-07.0026 Better than -96dBm @ BER = 1 x 10-4(BAND - III) Sensitivity Better than -92dBm @ BER = 1 x 10-4(L - BAND) MPEG-4 / H.264 Video decoding MUSICAM &...
